This is the hardware kit that bolts a DECKED D-co Honcho 80 case down to a CargoGlide tray, and it is hardware only: the case itself is not included, and this kit does nothing on its own. It is the CargoGlide version of the kit, which is what determines the fasteners in the box.
It is a drilled installation, meaning the case gets holes through its base and the backing plates spread the load on the inside so the shell is not carrying the fasteners alone. Once it is done the case is a fixture rather than something that slides around: mount cases to roof rails, roof racks, truck bed racks or a CargoGlide tray and build a modular system that works with or without DECKED drawers underneath.

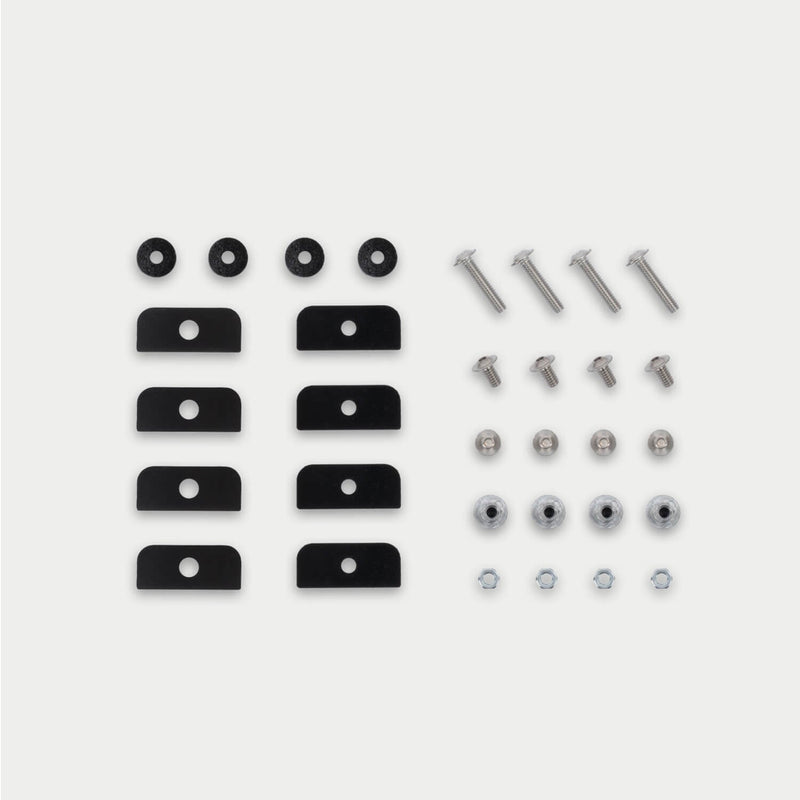

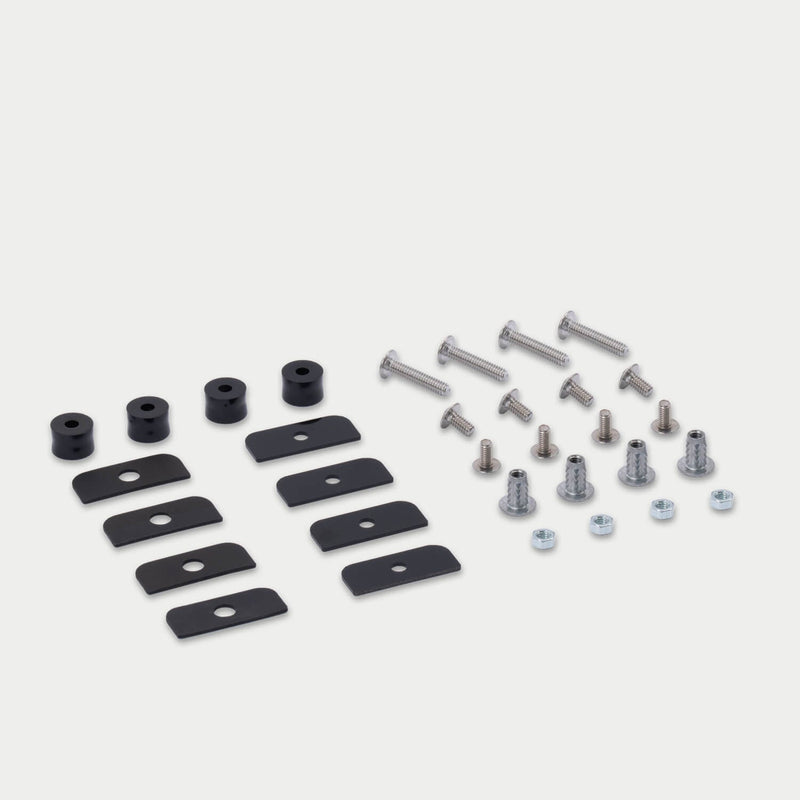

What's Included:
- 8 black backing plates
- 4 spacers
- 8 stainless bolts
- Four knurled threaded inserts that set into the drilled holes
- 4 hex nuts
Features
Mounts the Case, Anywhere
DECKED designed this so a Honcho 80 does not have to live in a drawer. Roof rails, roof racks, truck bed racks and CargoGlide trays all become mounting points, with or without a DECKED Drawer System in the truck.
Fasteners Matched to CargoGlide
This kit ships with four knurled threaded inserts that set into the drilled holes, which is what makes it the cargoglide version. The other version of this kit uses different hardware, and they are not interchangeable.
Backing Plates Spread the Load
Eight backing plates sit inside the case so the bolt heads are not pulling directly on the case shell. That is what stops a mounted case tearing out its own mounting points under vibration.
A Permanent Fixture
This is a drilled installation, not a strap or a clamp. Done properly, the case stops being cargo and starts being part of the vehicle, which is exactly what you want at highway speed.
Build a Modular System
Because the mounting points are standard, the same case can move between a rack and a tray as your setup changes, and the cases stay lockable and weatherproof wherever they end up.
Made in the USA
Made in the USA and covered by DECKED's limited lifetime warranty.
Fitment & Compatibility
| Application |
Fit |
| DECKED D-co Honcho 80 case to a CargoGlide tray |
✓ Fits |
| Mounting to an M6 T-track system |
● Use the T-Track version of this kit instead |
| Used on its own without a D-co case |
✗ Does not apply, this is mounting hardware and the case is sold separately |
| DECKED Drawer System or Tool Box mounting |
✗ Not required, cases can be mounted with or without DECKED drawers in the truck |
Fit guidance: Two things to confirm before ordering. First, you need a DECKED D-co Honcho 80 case, which is not included. Second, pick the version that matches what you are bolting to: this is the CargoGlide kit, supplied with threaded inserts and spacers.
Specifications
-
Model: DECKED D-co Case Mounting Kit, CargoGlide
-
Part Number: A0034-CTRK
-
Kit Type: Drilled installation hardware, cargoglide
-
Mounts: DECKED D-co Honcho 80 case (sold separately)
-
Mounts To: CargoGlide trays and flat surfaces
-
Key Fasteners: threaded inserts and spacers
-
Backing Plates: 8
-
Color: Black
-
Shipping Weight: 1 lb
-
Shipping Carton: 9" x 6" x 1"
-
Country of Origin: Made in the USA
-
UPC: 815294026342
Installation
Type: Drilled installation, case base to mounting surface · Time: About 45 minutes · Tools: Drill with the bit size called out in the instructions, socket set and a marker · Difficulty: Moderate, drilling required
This kit requires drilling through the base of the case. Mark and measure against your mounting surface before drilling anything, because the holes are permanent. Follow DECKED's instruction sheet for hole positions.
