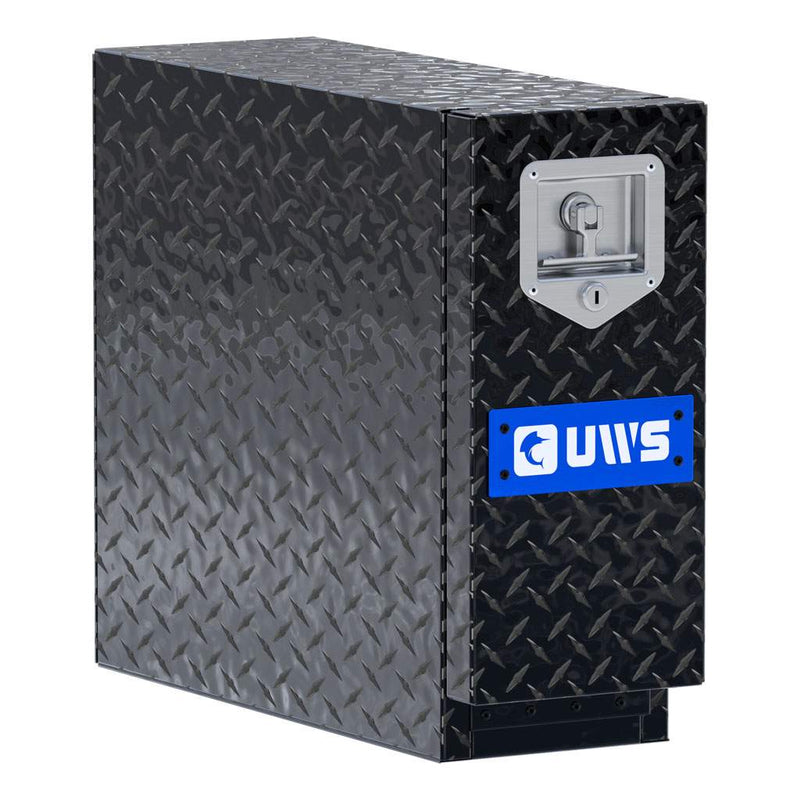

The UWS EC20052 is a 22" drawer tool box: a sealed, lockable aluminum tower that bolts to your bed floor and gives you a stack of commercial-grade drawers instead of one deep bin everything sinks to the bottom of. It stands 18.75" tall, 22" wide and 7.75" front to back, and holds 1.9ft³. The lid is UWS's patented RigidCore design, foam-filled so it does not bow or bind, with gas struts that lift it to a full 90 degrees and hold it there. A MicroSeal gasket runs the perimeter to keep dust and water out. Because this is the EC version, UWS packages it for parcel delivery rather than freight, so it comes to your door without a terminal pickup or a delivery window.
What's Included:
UWS 22" drawer truck tool box, gloss black aluminum
2 keys
4 hex bolts, 1/4" x 1-1/4"
8 flat washers, 1/4"
4 nylock nuts, 1/4"
UWS installation manual
Features

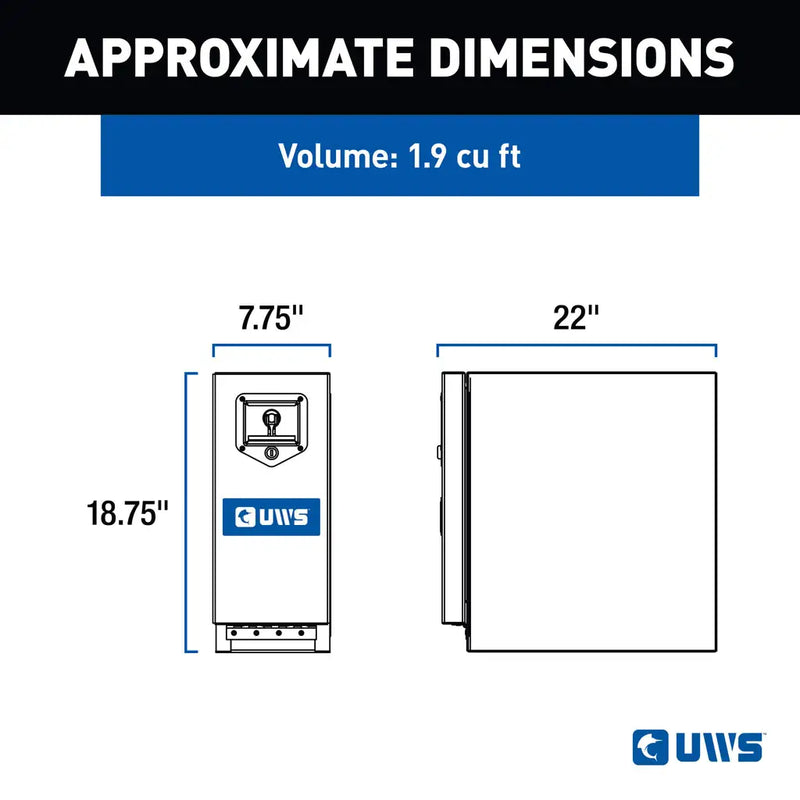

1.9ft³ of Lockable Storage The box measures 7.75" x 22" x 18.75" overall and holds 1.9ft³. Capacity is UWS's own published figure for this model, not a category average.
Patented RigidCore Foam-Filled Lid The lid is not a hollow aluminum shell. UWS injects a solid foam core between two sheets of aluminum, which stiffens the whole panel so it does not bow in the middle, does not warp in the sun, and does not bind in the latches after a few hundred cycles. It is the difference you notice every time the lid closes squarely instead of needing a shove.
One-Piece Welded Aluminum Tub The tub is formed from a single sheet of extra-thick aluminum and welded, rather than riveted or folded from panels. There are no seams down the corners to leak or split, and aluminum will not rust out from the inside the way a painted steel box does once the coating is chipped.
Gloss Black Powder Coat Over Aluminum The gloss black powder coat finish is applied over aluminum, so even where the coating eventually gets chipped there is no steel underneath to rust. Gloss black gives a deep, wet-looking shine that matches factory black trim and black wheels.

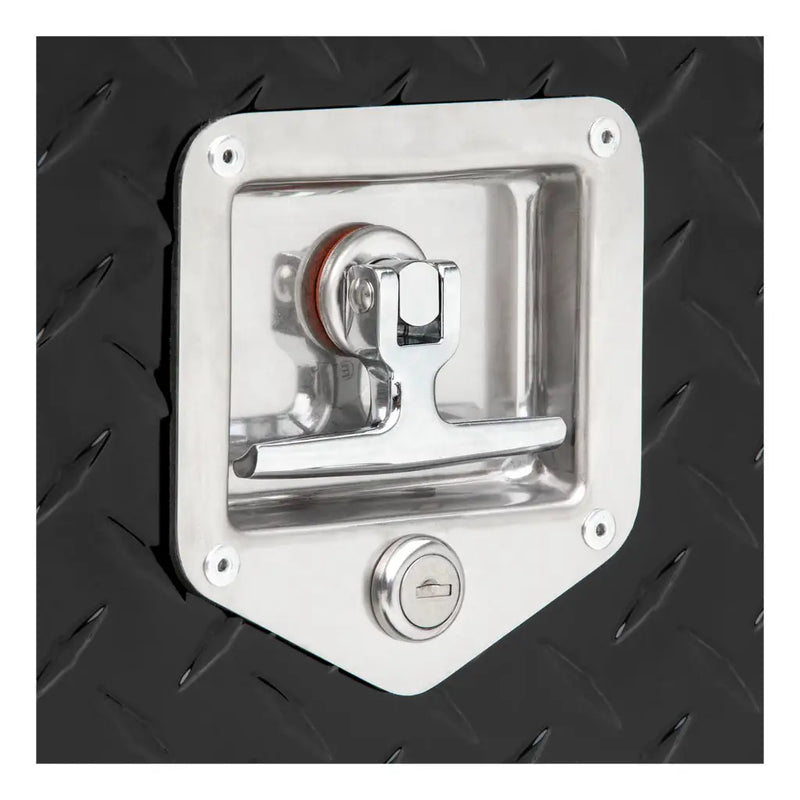

Locking T-Handle and a Sealed Door A single key-operated T-handle secures the door over the drawer stack, so the whole box locks with one turn rather than drawer by drawer. The door carries MicroSeal stripping around its perimeter to keep road grime and water off the drawer slides.

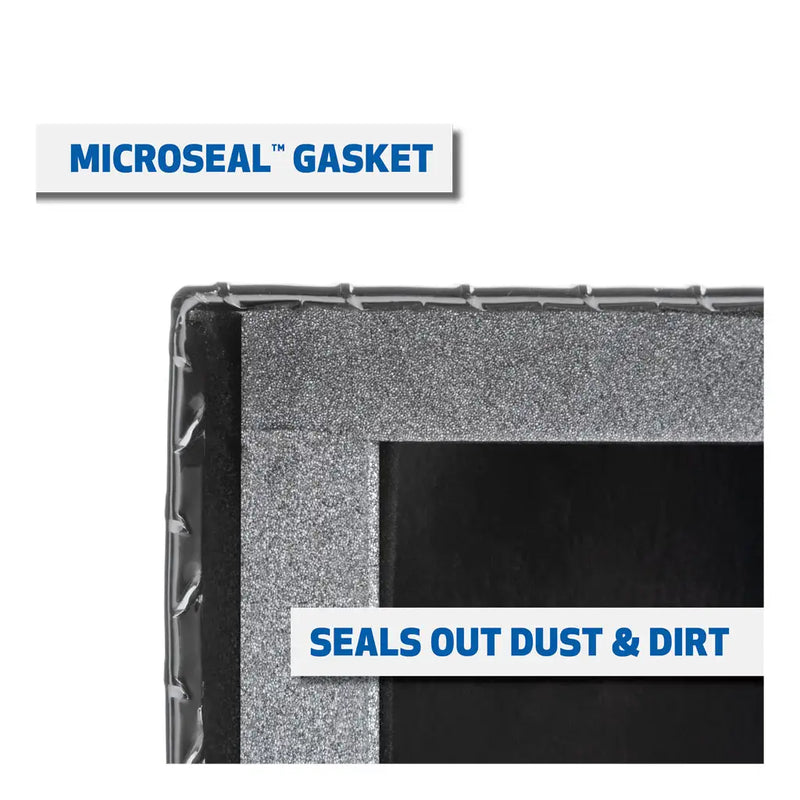

MicroSeal Gasket Around the Lid A closed-cell gasket runs the full perimeter of the opening and compresses when the lid shuts, which is what keeps dust, road spray and rain out of the box. UWS demonstrates it publicly by hitting a closed box with mud and then a pressure washer, and that video is linked on this page.

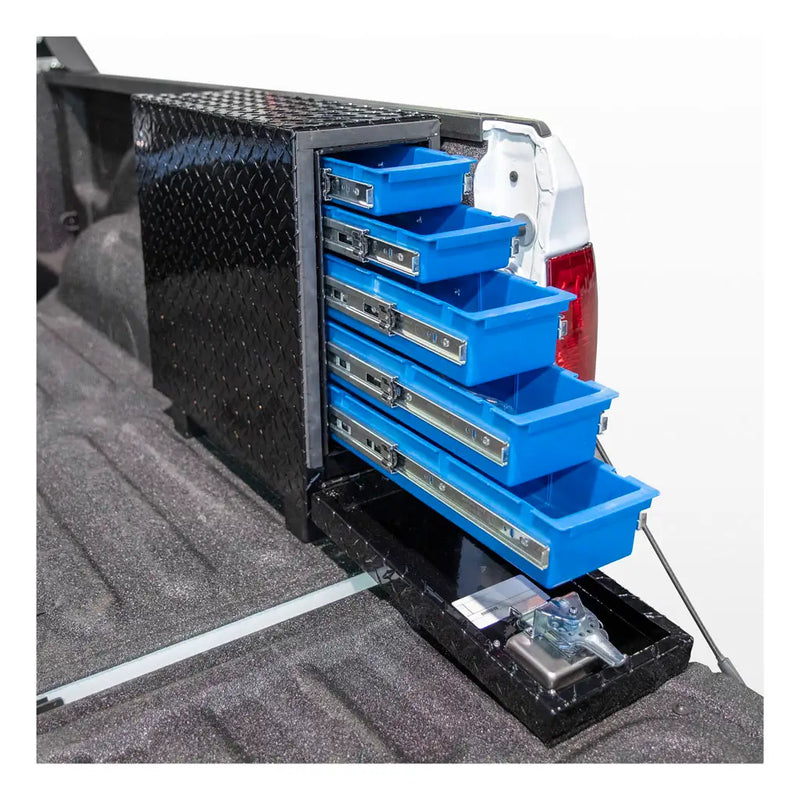

Commercial-Grade Drawer Stack The drawers run on commercial-grade slides inside the sealed aluminum shell, so tools stay sorted and reachable instead of sliding into one pile at the front of a deep box every time you brake. UWS lists five precision-injected drawers for this box.
Packaged for Parcel Delivery, Not Freight This is the EC version of the box, which UWS packages specifically so it can ship by parcel carrier instead of on a freight pallet. In practice that means it comes to your door rather than to a terminal you have to drive to, and there is no appointment window to sit through. The box inside is the same box as the freight-only version; only the packaging differs.
Fitment & Compatibility
Application
Fit
Full-size pickup beds (mounted against the bulkhead or a wheel well)
✓ Yes, the usual application
Mid-size pickup beds
✓ Yes if you have 22" of floor width and 7.75" of depth to give up
Service bodies, flatbeds and trailers
✓ Yes, anywhere you can bolt through a flat floor
Crossover mounting on the bed rails
✗ No, this is a floor-mounted drawer box, not a crossover
Fit guidance: This is a universal-fit drawer box, not a vehicle-specific kit. It stands 18.75" tall, 22" wide and 7.75" front to back, and it bolts through the bed floor with the four included 1/4" hex bolts, washers and nylock nuts. Installation requires drilling four holes in the bed floor, so check underneath for fuel and brake lines, wiring and the tank before you drill. Measure your available floor space and your tailgate and tonneau clearance before ordering. No vehicle-specific fitment is claimed.
Specifications
UWS Part Number: EC20052
Product Type: Drawer truck tool box
Material: Aluminum
Finish: Gloss Black
Storage Capacity: 1.9ft³
Overall Length: 7.75"
Overall Width: 22"
Overall Height: 18.75"
Door Style: Single-Door
Latch Type: T-Handle
Carrying Handles: Without Carrying Handles
Product Weight: 34 lb
Shipping Weight: 38.39 lb
Shipping Method: Parcel carrier, heavily packaged by UWS for parcel delivery
Installation Difficulty: Easy
UPC: 672078080750
Warranty: Limited lifetime warranty, one-year finish, one-year parts
Country of Origin: USA
Installation
Type: Bolt-through mount to the bed floor, drilling required · Time: About 45 minutes to 1 hour · Tools: Drill and drill bit set, ratchet and socket set, tape measure · Difficulty: Easy, rated Easy by UWS, but it does involve drilling the bed floor
Set the box where you want it, mark the four mounting holes, then check underneath the bed before you drill: fuel and brake lines, wiring looms and the tank all live under there and a drill bit through any of them is an expensive mistake. Drill the four holes, then bolt the box down with the supplied 1/4" hex bolts, flat washers and nylock nuts, torquing to about 3 ft-lb. Two keys are supplied. Read the UWS installation manual in full before you start.
Resources
Everything you need for your UWS 22" Drawer Truck Tool Box, Gloss Black, in one place.
Warranty. UWS limited lifetime warranty on the box, with one year on the finish and one year on parts. The warranty covers defects in materials and workmanship; it does not cover damage from overloading, misuse, accident, or improper installation, and it does not cover normal wear to the finish. Keep your proof of purchase. Prestige Truck is an authorized UWS dealer, so warranty claims are handled through the manufacturer's normal process.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About UWS
UWS, United Welding Services, has been welding aluminum truck boxes since 1989 and is now part of the CURT Group within Lippert, which is what puts a national warranty and parts network behind what started as a fabrication shop. The company builds tool boxes, transfer tanks and chests for people who open them every working day, and the engineering choices reflect that: welded one-piece tubs instead of riveted panels, stainless steel latch hardware instead of plated steel, and a foam-filled lid instead of a hollow one.
Two of those choices are worth knowing by name. The patented RigidCore lid sandwiches a solid foam core between aluminum skins, so the lid stays flat and keeps latching squarely long after a hollow lid would have bowed in the middle. The MicroSeal gasket runs the full perimeter of the opening and is what keeps dust and water out. UWS is confident enough in the seal to publish a video of a closed box being hit with mud and then a pressure washer. UWS builds these boxes in Florida: the company's own product copy for this model says it is designed, fabricated and welded there, and the carton is marked Assembled in USA.
This particular listing is from the UWS EC series, which is the same box packaged so it can travel by parcel carrier rather than freight. That is worth money to you: the box arrives at your door instead of a freight terminal, without a delivery appointment to wait on.
Prestige Truck is an authorized UWS dealer. Every box we ship is new, in the manufacturer's carton, and covered by the full UWS limited lifetime warranty.
Compare The Range
How this compares to similar models
The closest alternatives side by side, so you do not have to keep tabs open.
Model
This OneUWS 22" Drawer Truck Tool Box, Gloss Black (EC20052)
UWS drives a pickup onto a closed box to show what the foam-filled RigidCore lid actually withstands.
It is a marketing stunt, but it is a fair demonstration of why a foam-cored lid does not bow in the middle the way a hollow one does.
MicroSeal Weather Test: Tool Box Vs Mud Vs Pressure Washer
UWS packs a closed box with clean rags, buries the outside in mud, then hits it with a pressure washer and opens it up.
It is the clearest demonstration of what the MicroSeal gasket on this box is actually doing.
UWS Damage-Free Delivery, How The EC Boxes Are Packed
This model is an EC box, which is the parcel-shippable version of the UWS range.
This clip shows how UWS packages these boxes to survive a parcel network instead of a freight pallet.
Frequently Asked Questions
Straight answers on specs, fit and support
What are the actual dimensions of the EC20052?
7.75" x 22" x 18.75" overall, holding 1.9ft³. Measure your clear bed floor against those numbers before ordering, and remember to allow for the door or lid to open.
How much does the EC20052 actually hold?
1.9ft³. That figure is UWS's own published capacity for this exact model.
Do I have to drill my truck bed to fit it?
Yes. This box bolts through the bed floor using four supplied 1/4" hex bolts, washers and nylock nuts, and UWS's manual lists a drill and drill bit set among the required tools. Before you drill, get under the truck and check for fuel and brake lines, wiring and the tank.
How does it lock, and can I open it from either side?
It uses a single keyed T-handle over the drawer stack, and two keys are supplied. One turn secures the whole box rather than locking drawer by drawer.
What is the difference between the EC20052 and the freight-shipped version?
Packaging, not product. UWS builds the EC series as the same box in heavier protective packaging so it can travel by parcel carrier instead of on a freight pallet. For you it means doorstep delivery instead of a freight terminal, and no delivery appointment to wait in for.
Is this gloss black or matte black?
Gloss black. It is a deep, reflective powder coat over aluminum, the finish that matches factory black trim and black wheels. UWS also builds a matte black version of several boxes in this range if you would rather have a flat, non-reflective look. Because the substrate is aluminum, a chip cannot start rust.
