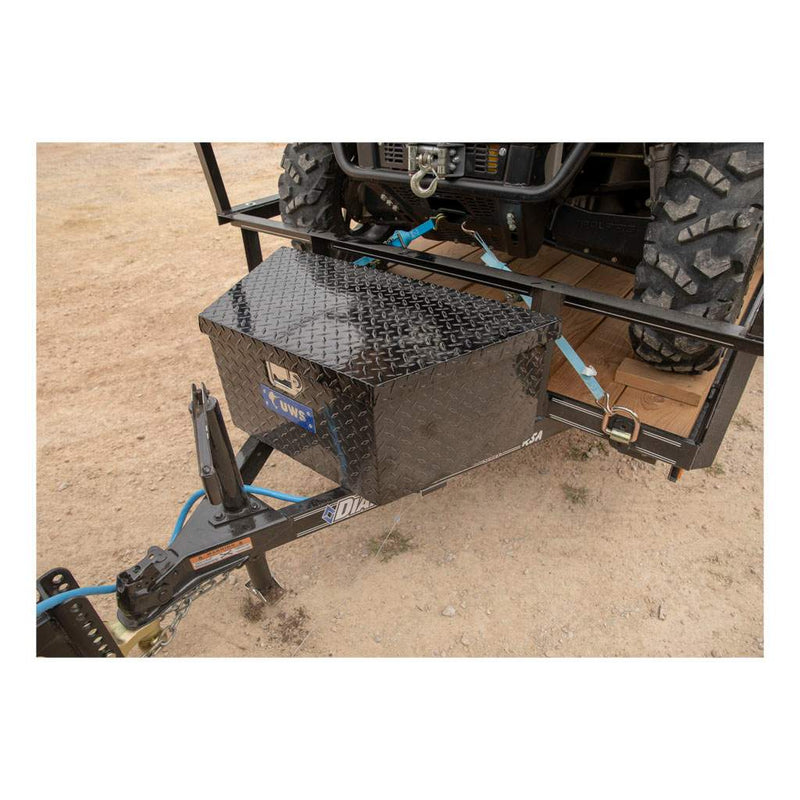

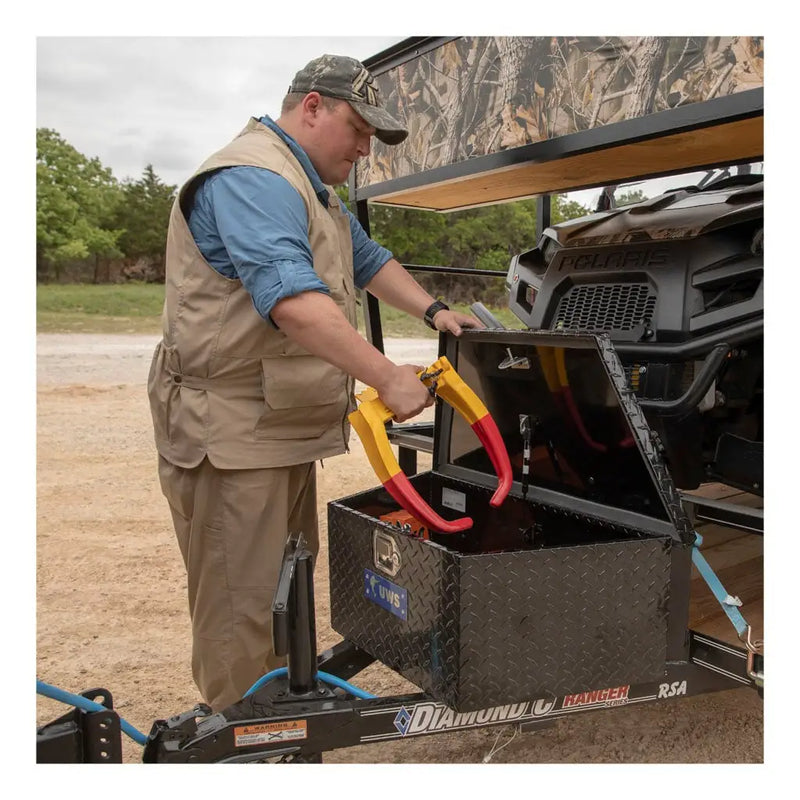

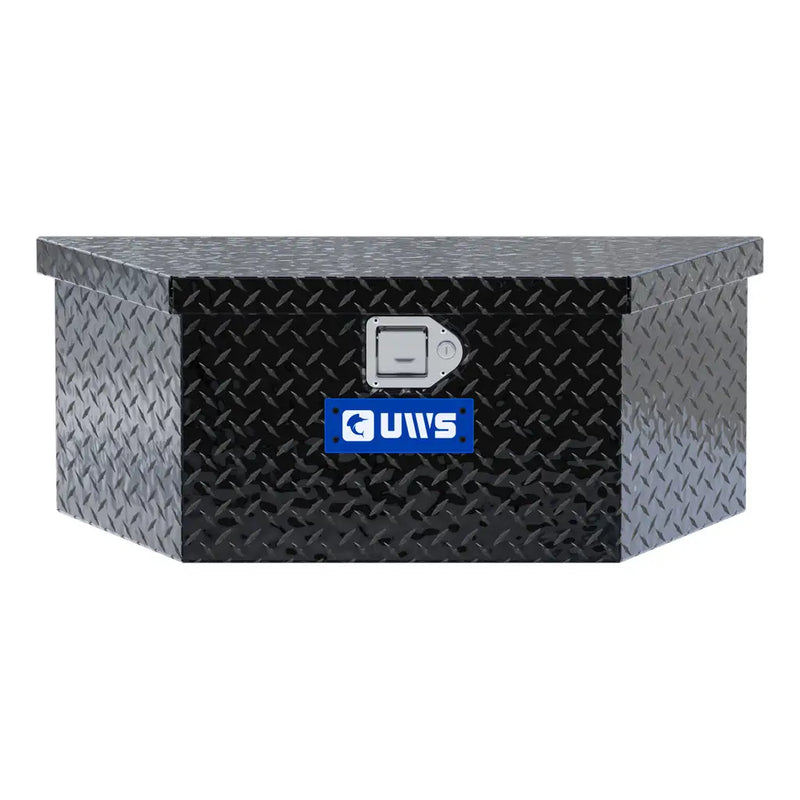

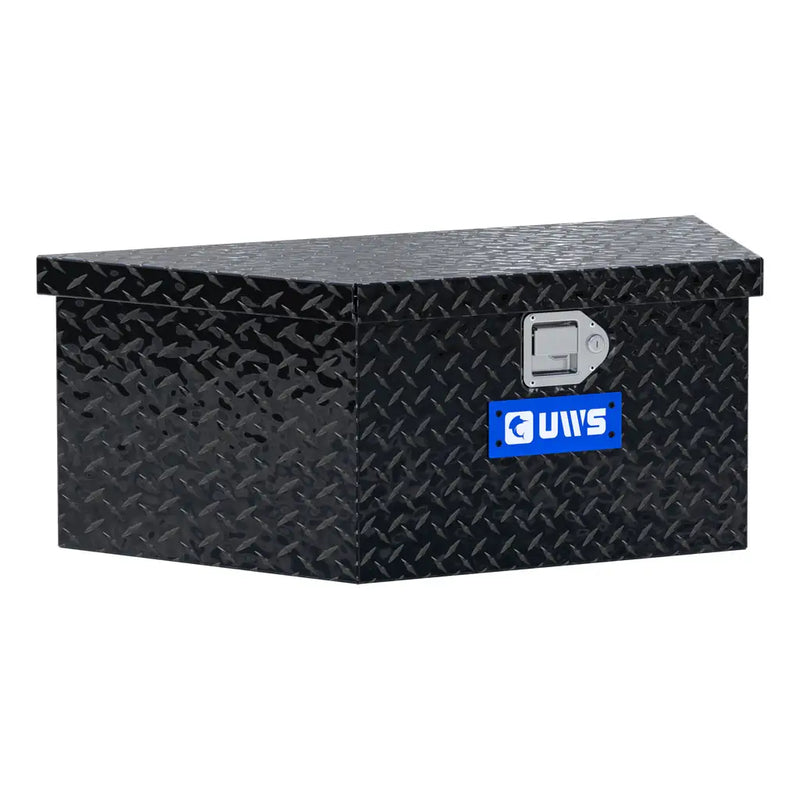

This UWS trailer tongue box mounts on the tongue of the trailer, ahead of the deck, and gives you 2.9ft³ of locked storage for straps, chain, a jack and the tools you only miss when you are already on the road. The body measures 34.75" x 17" x 13". The tub is a single piece of 0.058" aluminum, the lid is UWS's patented RigidCore foam-filled design so it will not flex or bind, and a MicroSeal gasket runs the full perimeter of the opening to keep rain and dust out. The finish is gloss black powder coat over diamond plate. This is the heavy-packaging version of the box: mechanically identical to the standard part, but crated for parcel carriage so it can ship without freight. UWS designs, fabricates and welds it in Florida and backs it with a limited lifetime warranty.
What's Included:
UWS 34" Trailer Tongue Box in Gloss Black, part EC20422
2 keys

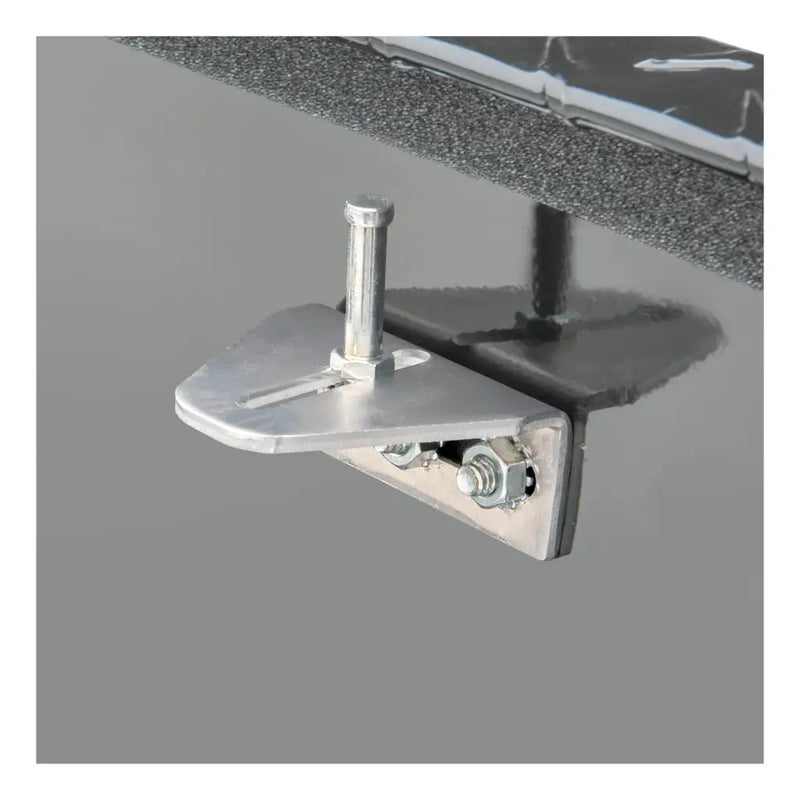

NOT included: mounting hardware. Trailer tongues vary too much, so UWS recommends a minimum of two square 3/8" U-bolts with nuts and washers, bought to suit your tongue
UWS installation sheet, product literature and warranty information
Features

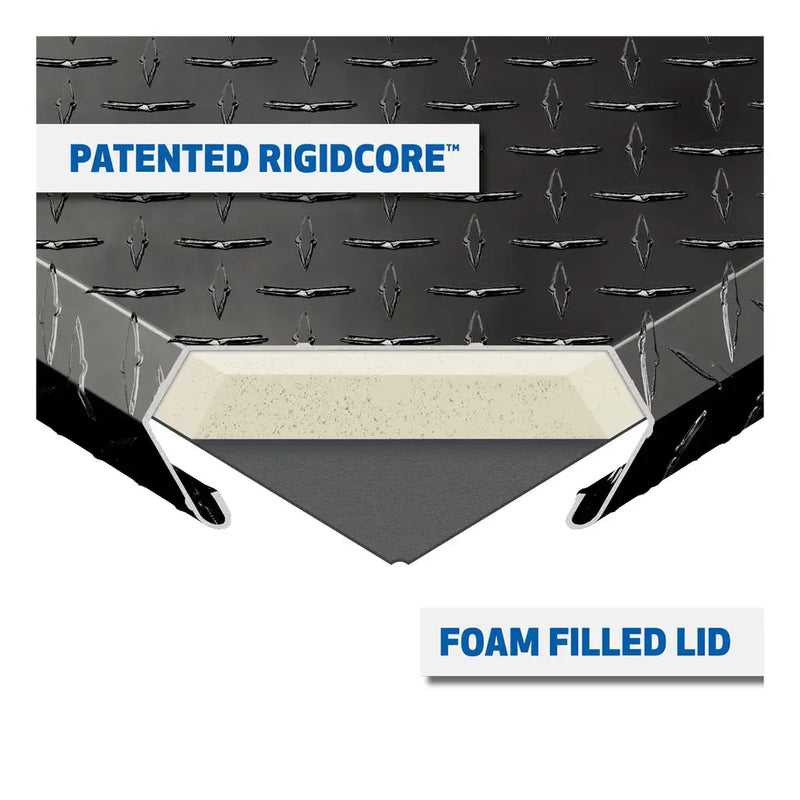

Patented RigidCore Foam-Filled Lid UWS fills the lid with a solid foam core instead of leaving it hollow. That is what stops a long lid from flexing in the middle, binding in its own opening or drumming as you drive. On a 34.75" lid this is the difference between a box that still latches cleanly after a few years and one that has to be pushed down to catch.
Fits Straight-Tongue and A-Frame Trailers The base is shaped to sit on a straight tongue or across an A-frame, which covers most utility, equipment and boat trailers on the road.
Low Profile Clears Trailer Hardware The reduced height leaves room above the box for a hand winch, jack or coupler handle on the trailer tongue, which is exactly where a full-height box normally fouls.

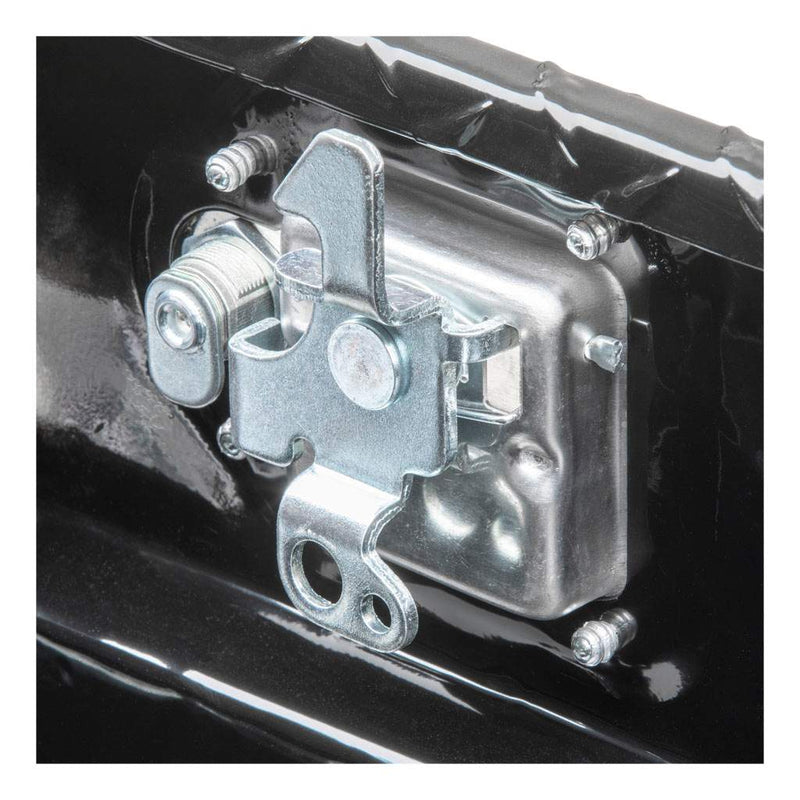

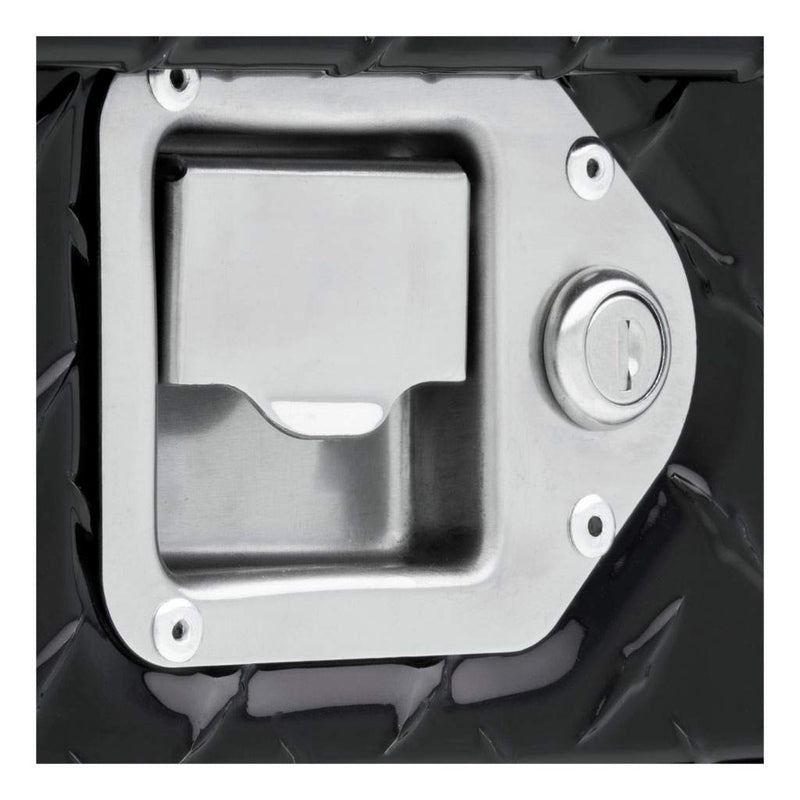

Stainless Steel Lock Handle The lock handle is stainless steel, not plated pot metal, so it keeps working after a few winters of salt and do not seize or bloom with rust. The handle locks with the supplied keys.
Extra-Thick 0.058" One-Piece Aluminum Tub The tub is formed from a single piece of 0.058" aluminum rather than welded up from thinner panels, so there are fewer seams to leak or split and the box keeps its shape when it is loaded with heavy hand tools, cordless kits and chain. Aluminum also means it will not rust out from the inside the way a painted steel box does once the coating is chipped, which matters on a box that lives outdoors and gets road salt thrown at it every winter.
Designed, Fabricated and Welded in Florida UWS designs, fabricates and welds its tool boxes at its own plant in Florida. That is unusual at this price and it shows up in the things that are hard to fix later: consistent weld quality, lids that sit square, and gaskets that actually meet all the way round.
Limited Lifetime Warranty UWS backs the box with a limited lifetime warranty, with one year on the finish and one year on parts. That is the manufacturer telling you what it expects the welded aluminum structure to do over the life of the truck.
Fitment & Compatibility
Trailer Type
Fit
A-frame tongue
✓ Yes
Straight single-tube tongue
✓ Yes
Boat, utility and equipment trailers
✓ Yes, these are the common applications
Fit guidance: The box mounts on the trailer tongue ahead of the deck and measures 34.75" x 17" x 13". Check the length of tongue you have clear ahead of the coupler and behind the jack, and confirm the box will not foul the jack handle, winch post or safety chains. Mounting hardware is not included; UWS states you must supply bolts to suit your truck.
Specifications
UWS Part Number: EC20422
Equivalent Standard Part Number: TBV-34-LP-BLK (same box, standard packaging)
Box Style: Trailer Tongue Box, Low Profile
Finish: Gloss Black powder coat over diamond plate
Material: 0.058" one-piece aluminum
Storage Capacity: 2.9ft³

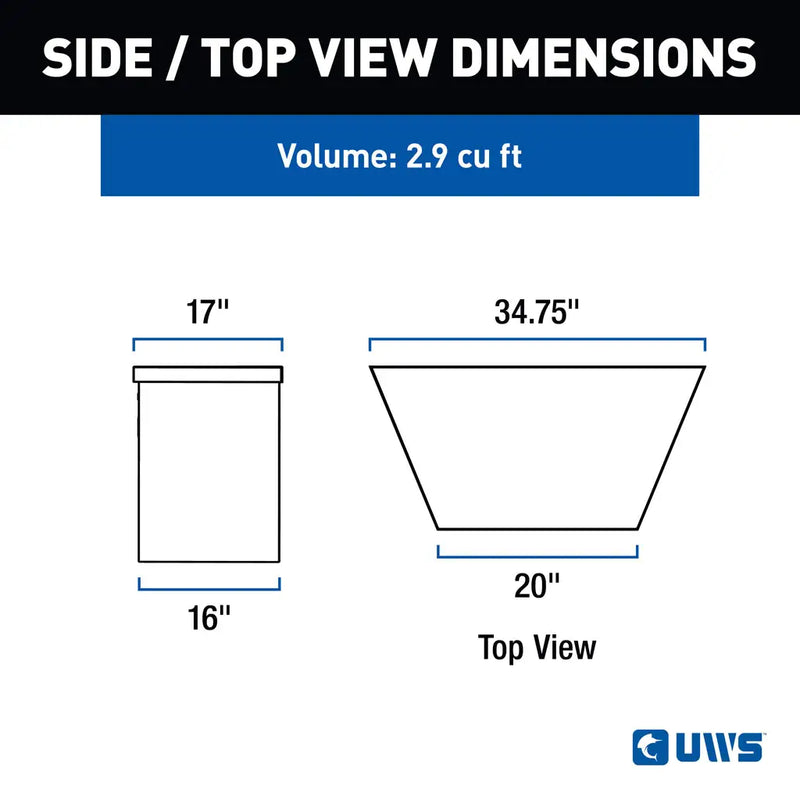

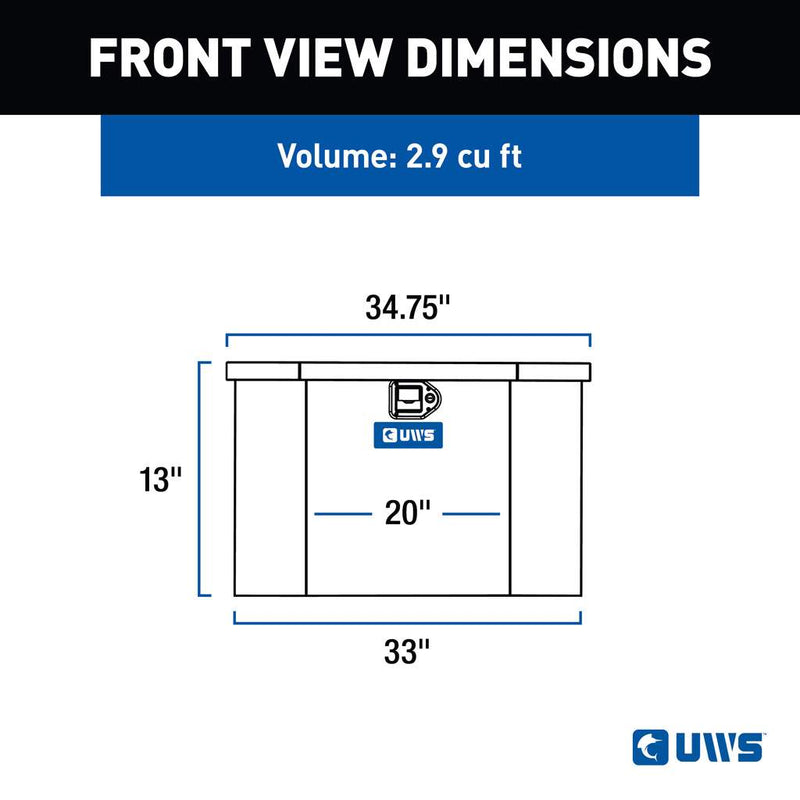

Overall Length: 34.75"
Overall Width: 17"
Overall Height: 13"
Interior Tub Length: 33"
Interior Tub Width: 16"
Lid Type: Single Lid
Latch / Handle: Paddle Handle
Lid Core: Patented RigidCore foam-filled
Weather Sealing: MicroSeal full-perimeter gasket
Carrying Handles: Without Carrying Handles
Installation Difficulty: Easy
Product Weight: 19.4 lb
Shipping Weight: 29.03 lb
UPC: 672078082273
Warranty: Limited lifetime, one-year finish, one-year parts
Origin: Designed, fabricated and welded in Florida, USA
Installation
Type: Bolt-in · Time: About 30 to 60 minutes · Tools: Socket set, drill and bit if your application is not pre-drilled, tape measure, marker; a second person to lift and hold the box · Difficulty: Easy, DIY-friendly
Set the box on the tongue, confirm it clears the coupler, jack handle, winch post and safety chains, then mark through and bolt down. Keep the fasteners clear of the coupler mechanism and re-check them after the first towed trip, because a tongue box sees more vibration than a bed box.
Resources
Everything you need for your UWS 34" Trailer Tongue Box, Gloss Black, Low Profile, in one place.
Warranty. UWS limited lifetime warranty on the box, with one year on the finish and one year on parts. Damage from overloading, accident, modification or improper installation is not covered, and the warranty is offered to the original purchaser.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About UWS
UWS, United Welding Services, has been welding aluminum truck boxes in Florida since 1988. It is now part of the Lippert and CURT Group family, which is what gives a box at this price a real dealer network, real parts support and a warranty that means something years later. What has not changed is where the boxes are made: UWS designs, fabricates and welds them at its own plant rather than importing finished bodies, and that is visible in the details that cannot be fixed after the fact, such as square lids, consistent welds and gaskets that meet cleanly all the way around the opening.
Two UWS features do most of the work in this trailer tongue box. The first is the patented RigidCore lid, filled with a solid foam core instead of left hollow, which is what stops a long lid flexing in the middle, drumming at speed or binding in its own opening as the box ages. The second is MicroSeal, a full-perimeter gasket that compresses as the lid closes and keeps out the rain, road spray and fine grit that ruin the contents of a cheaper box. Underneath both is a 0.058" one-piece aluminum tub, thicker than most of the competition and immune to the rust that eventually kills a painted steel box.
Prestige Truck is an authorized UWS dealer. Every box we ship is new, factory-packed, covered by the full UWS limited lifetime warranty and supported by UWS's US-based parts and service team.
Compare The Range
How this compares to similar models
The closest alternatives side by side, so you do not have to keep tabs open.
RigidCore Strength Test: Tool Box Vs. Pickup Truck
UWS drives a pickup onto one of its RigidCore lids.
It is a marketing stunt and it is also the clearest demonstration of what the foam core actually does, which is stop a long lid flexing, denting or binding in its own opening. This box uses the same RigidCore lid.
MicroSeal Weather Test: Mud And A Pressure Washer
UWS buries a box in mud and then turns a pressure washer on it to show what the MicroSeal gasket keeps out.
Worth two minutes if you are deciding between this and a cheaper box with a plain foam strip, because sealing is the thing you only notice once it has failed.
UWS Damage-Free Delivery
This part is the heavy-packaging version of the box, crated so it can travel by parcel carrier instead of freight.
This short UWS film shows the packaging system that makes that possible and what the carton should look like when it reaches you. Inspect the carton on arrival and photograph any damage before you sign.
Frequently Asked Questions
Straight answers on specs, fit and support
What are the actual dimensions, and will it fit my truck?
The box is 34.75" long, 17" deep and 13" tall overall, and it holds 2.9ft³. Measure the flat space you have available before ordering.
Is the mounting hardware included?
No, and that is deliberate on UWS's part: trailer tongues vary too much for one kit to fit. You get the box and 2 keys. UWS recommends a minimum of two square 3/8" U-bolts with nuts and washers, sized to your tongue.
What is the difference between this and the standard UWS part?
Nothing about the box itself. UWS states that this part is identical to #TBV-34-LP-BLK, with the only difference being that it is heavily packaged so it can travel by parcel carrier rather than by freight. You get the same box, the same warranty and, usually, a faster and cheaper delivery.
How well does it keep water out?

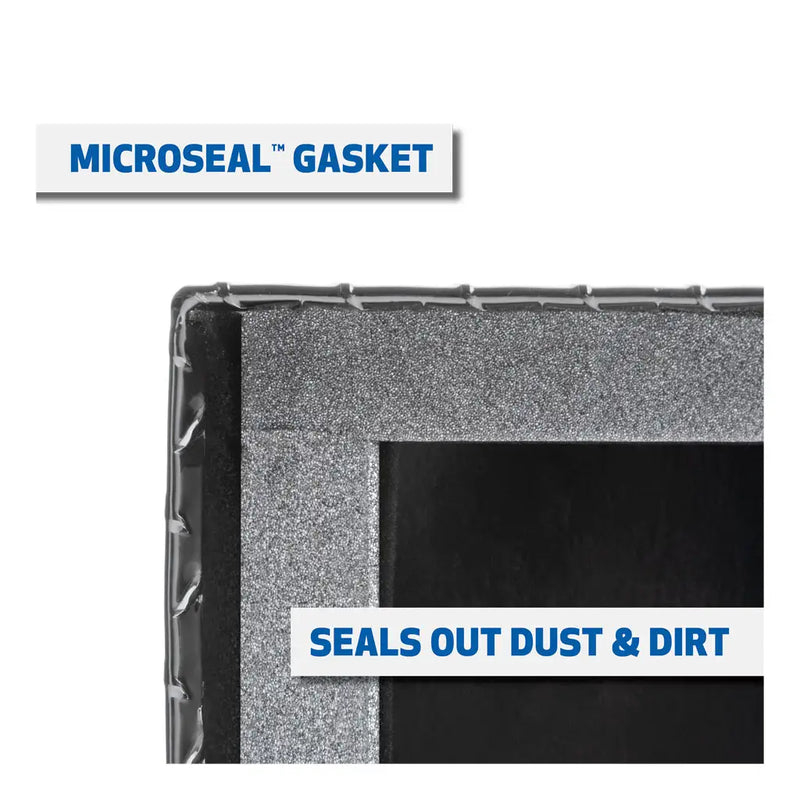

A MicroSeal gasket runs the full perimeter of the opening and compresses as the lid closes. No tool box is a submarine, and a box that is pressure washed straight at the seam or parked nose-down in standing water can still take some in, but in normal service it stays dry inside. Keep the gasket clean and it will keep sealing.
What is the finish, and how does it hold up?
Gloss Black powder coat over aluminum diamond plate. Powder coat is far tougher than wet paint and, because the substrate underneath is aluminum, a chip does not start rust the way it would on a steel box. The gloss finish keeps a wet look and cleans up easily. The finish carries a one-year warranty; the box itself is covered for a limited lifetime.
Does the lid stay open on its own?
This model uses a twist latch and a manually lifted lid rather than a self-opening mechanism. The lid is the same RigidCore foam-filled construction, so it stays flat and does not bind.
