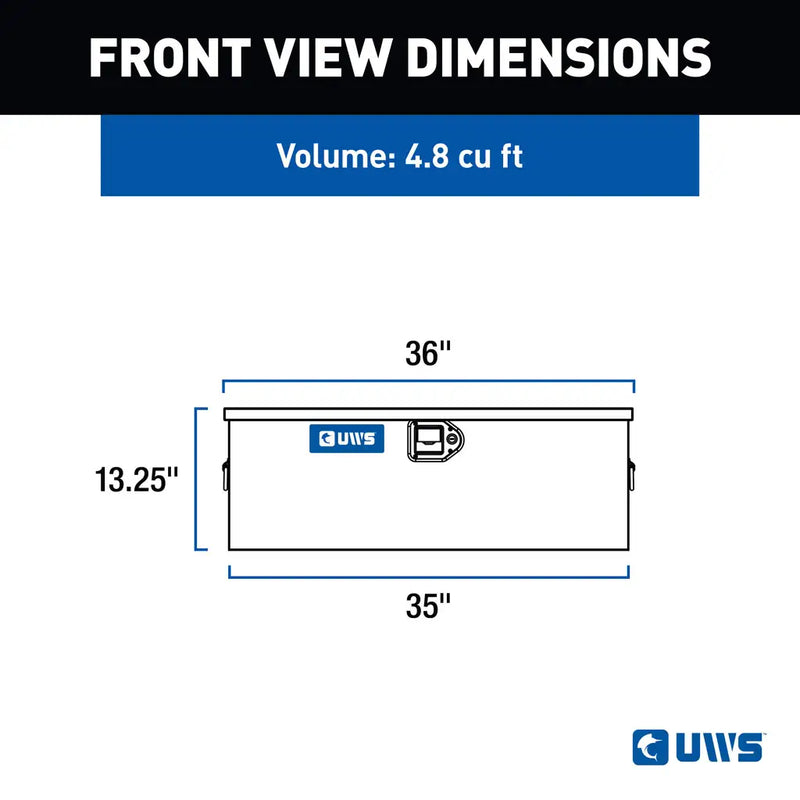

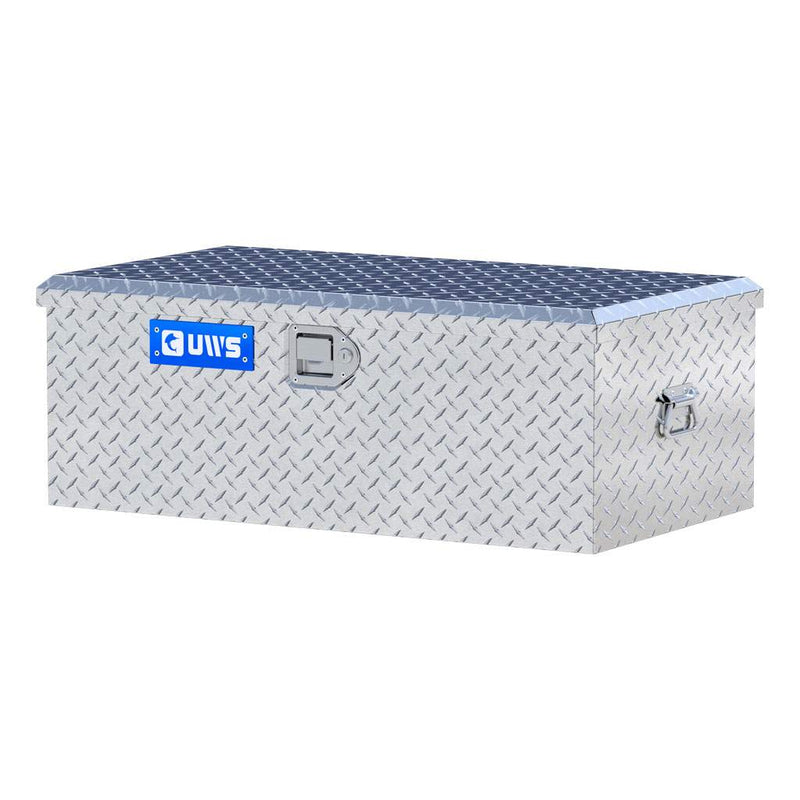

The UWS EC20061 is a 36" aluminum foot locker, a compact lockable chest for the gear you want secured but do not want to give a full crossover box to. It measures 36" x 20" x 13.25" and holds 4.8ft³. The lid is UWS's patented RigidCore design, foam-filled so it does not bow or bind, with gas struts that lift it to a full 90 degrees and hold it there. A MicroSeal gasket runs the perimeter to keep dust and water out. Because this is the EC version, UWS packages it for parcel delivery rather than freight, so it comes to your door without a terminal pickup or a delivery window.
What's Included:
UWS 36" aluminum foot locker, bright aluminum
2 keys
Mounting hardware kit (NOT included on all models, see the note below)
Features
4.8ft³ of Lockable Storage The box measures 36" x 20" x 13.25" overall and holds 4.8ft³. Capacity is UWS's own published figure for this model, not a category average.

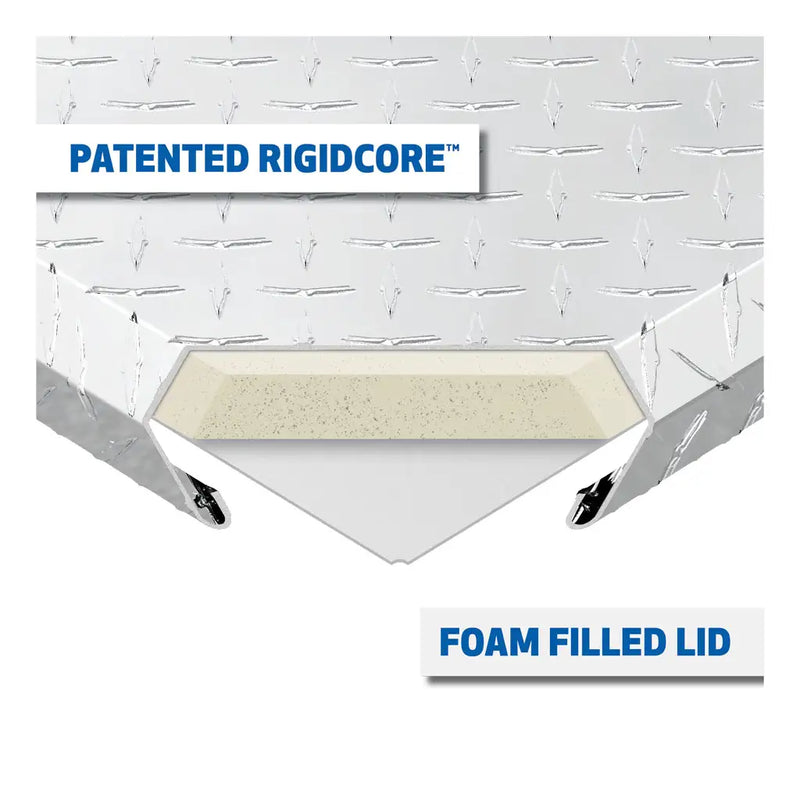

Patented RigidCore Foam-Filled Lid The lid is not a hollow aluminum shell. UWS injects a solid foam core between two sheets of aluminum, which stiffens the whole panel so it does not bow in the middle, does not warp in the sun, and does not bind in the latches after a few hundred cycles. It is the difference you notice every time the lid closes squarely instead of needing a shove.
One-Piece Welded Aluminum Tub The tub is formed from a single sheet of extra-thick aluminum and welded, rather than riveted or folded from panels. There are no seams down the corners to leak or split, and aluminum will not rust out from the inside the way a painted steel box does once the coating is chipped.
Bright Aluminum Diamond Plate Finish The bright aluminum diamond plate is the classic work-truck look and it is the lowest-maintenance finish UWS offers: there is no paint to chip, so a scuff polishes out rather than turning into a rust spot. UWS's own care guidance is that polish will clear small scratches and scuffs.

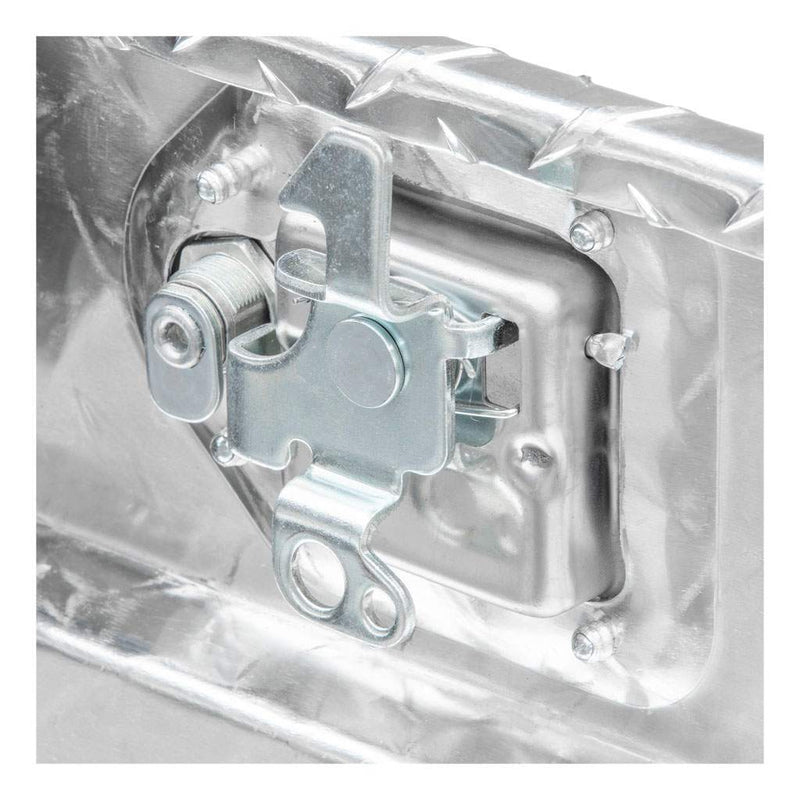

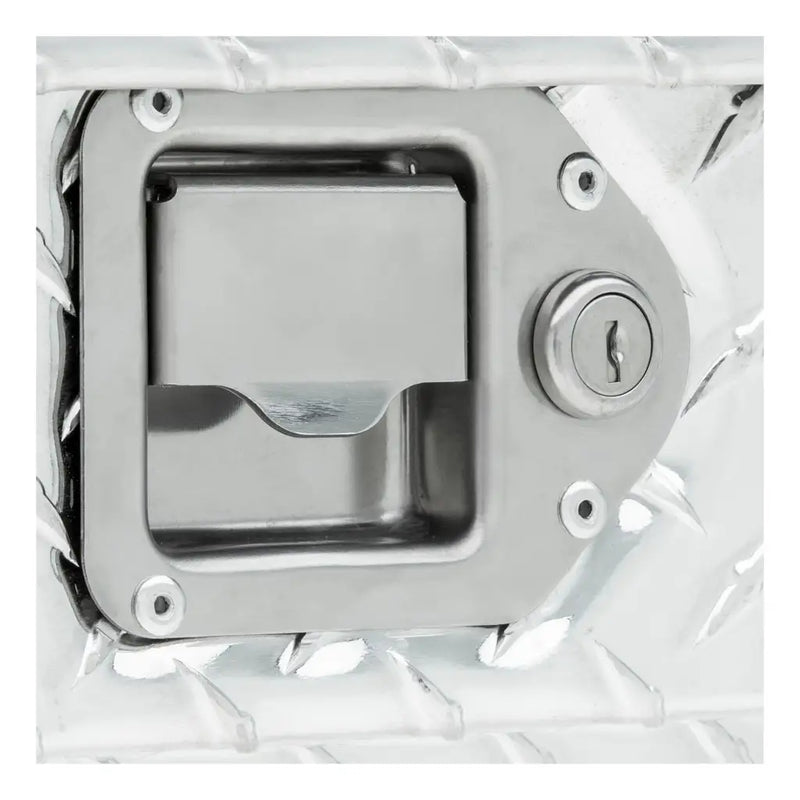

Stainless Steel Paddle Latches, Locking From Either Side Two recessed stainless steel paddle latches with keyed locks, connected inside the box so it opens from the driver's side or the passenger's side. Recessing the latch into the box face means there is nothing sticking out to catch a hip or a cargo strap, and stainless means the lock still turns after a salt winter.

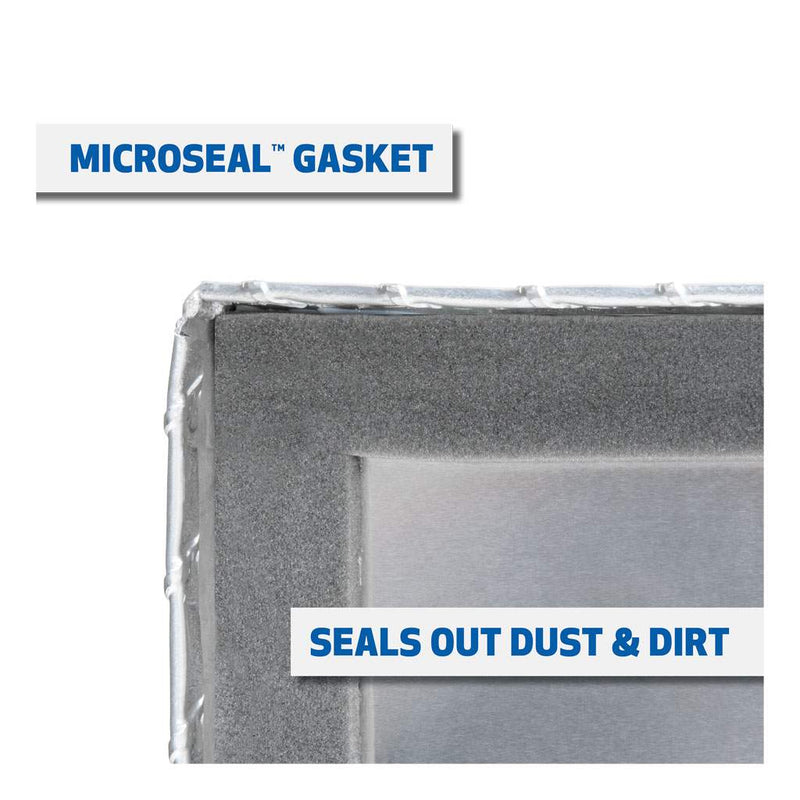

MicroSeal Gasket Around the Lid A closed-cell gasket runs the full perimeter of the opening and compresses when the lid shuts, which is what keeps dust, road spray and rain out of the box. UWS demonstrates it publicly by hitting a closed box with mud and then a pressure washer, and that video is linked on this page.

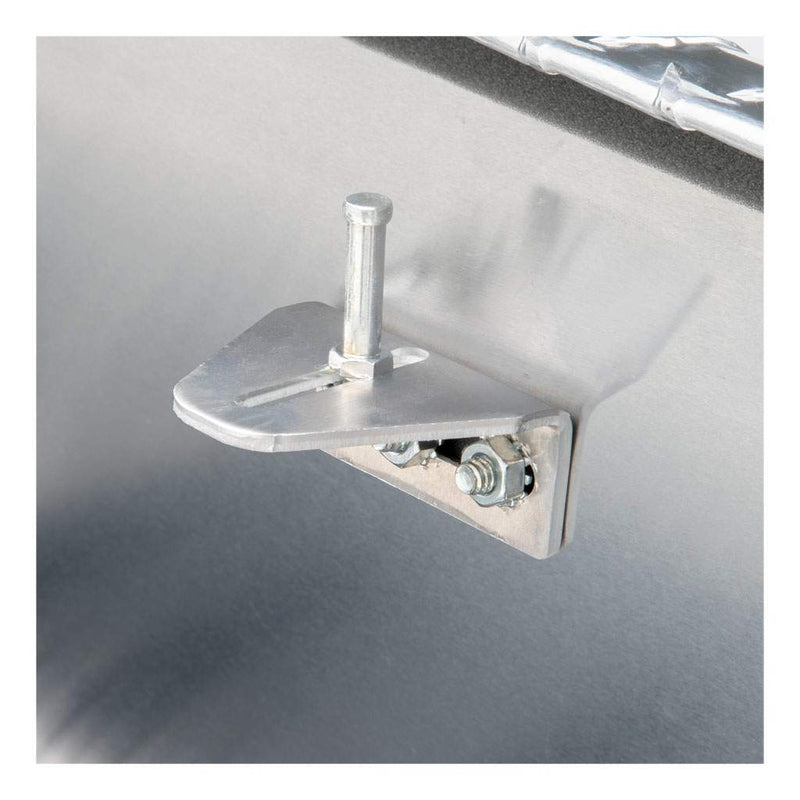

Self-Opening Lid That Stops at 90 Degrees Gas struts take the weight, so the lid lifts itself once the latches release and stays put at a full 90 degrees. That matters when your hands are full: you release the latch, the lid goes up, and it does not come back down on your knuckles while you are reaching in.
Packaged for Parcel Delivery, Not Freight This is the EC version of the box, which UWS packages specifically so it can ship by parcel carrier instead of on a freight pallet. In practice that means it comes to your door rather than to a terminal you have to drive to, and there is no appointment window to sit through. The box inside is the same box as the freight-only version; only the packaging differs.
Fitment & Compatibility
Application
Fit
Pickup beds, any size
✓ Yes, it needs 36" x 20" of floor
Trailers, flatbeds and service bodies
✓ Yes, it bolts to any flat surface
Garage, shop or job-site storage
✓ Yes, it works as a standalone lockable chest
Mounting on the bed rails as a crossover
✗ No, this is a floor-standing chest
Fit guidance: A universal-fit lockable chest measuring 36" x 20" x 13.25". It is small enough to sit against the bulkhead of most beds and still leave usable floor. IMPORTANT: UWS's own installation manual for this chest states that not all models include a mounting hardware kit, so budget for hardware in case yours ships without it. Installation requires drilling. No vehicle-specific fitment is claimed.
Specifications
UWS Part Number: EC20061
Product Type: Aluminum foot locker
Material: Aluminum
Finish: Bright Aluminum
Storage Capacity: 4.8ft³

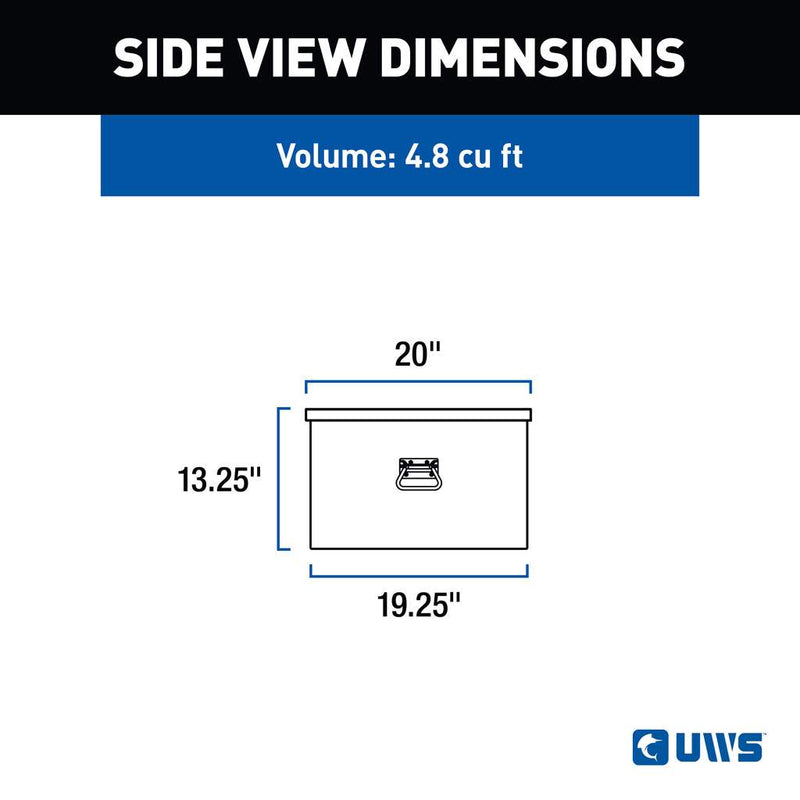

Overall Length: 36"
Overall Width: 20"
Overall Height: 13.25"
Tub Length: 35"
Tub Width: 19.25"
Tub Style: Standard
Profile: Standard Profile
Lid Type: Single Lid
Latch Type: Paddle Handle
Carrying Handles: Without Carrying Handles
Product Weight: 24.4 lb
Shipping Weight: 34.03 lb
Shipping Method: Parcel carrier, heavily packaged by UWS for parcel delivery
Installation Difficulty: Easy
UPC: 672078080767
Warranty: Limited lifetime warranty, one-year finish, one-year parts
Country of Origin: USA
Installation
Type: Bolt-through mount to the bed floor, drilling required · Time: About 45 minutes to 1 hour · Tools: Drill with 1/2" and 11/32" bits, ratchet and socket set, tape measure · Difficulty: Easy, rated Easy by UWS, but it does involve drilling the bed floor
Position the chest, mark your holes, and check under the bed for fuel and brake lines, wiring and the tank before drilling. Then bolt it down and torque to the figures in the UWS manual. IMPORTANT: UWS's own manual for this chest states that not all models include a mounting hardware kit, so open the carton and check before you book the job. If hardware is not in the box you will need to supply your own. Two keys are supplied.
Warranty, Shipping & Returns
Warranty. UWS limited lifetime warranty on the box, with one year on the finish and one year on parts. The warranty covers defects in materials and workmanship; it does not cover damage from overloading, misuse, accident, or improper installation, and it does not cover normal wear to the finish. Keep your proof of purchase. Prestige Truck is an authorized UWS dealer, so warranty claims are handled through the manufacturer's normal process.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About UWS
UWS, United Welding Services, has been welding aluminum truck boxes since 1989 and is now part of the CURT Group within Lippert, which is what puts a national warranty and parts network behind what started as a fabrication shop. The company builds tool boxes, transfer tanks and chests for people who open them every working day, and the engineering choices reflect that: welded one-piece tubs instead of riveted panels, stainless steel latch hardware instead of plated steel, and a foam-filled lid instead of a hollow one.
Two of those choices are worth knowing by name. The patented RigidCore lid sandwiches a solid foam core between aluminum skins, so the lid stays flat and keeps latching squarely long after a hollow lid would have bowed in the middle. The MicroSeal gasket runs the full perimeter of the opening and is what keeps dust and water out. UWS is confident enough in the seal to publish a video of a closed box being hit with mud and then a pressure washer. UWS builds these boxes in Florida: the company's own product copy for this model says it is designed, fabricated and welded there, and the carton is marked Assembled in USA.
This particular listing is from the UWS EC series, which is the same box packaged so it can travel by parcel carrier rather than freight. That is worth money to you: the box arrives at your door instead of a freight terminal, without a delivery appointment to wait on.
Prestige Truck is an authorized UWS dealer. Every box we ship is new, in the manufacturer's carton, and covered by the full UWS limited lifetime warranty.
Compare The Range
How this compares to similar models
The closest alternatives side by side, so you do not have to keep tabs open.
UWS drives a pickup onto a closed box to show what the foam-filled RigidCore lid actually withstands.
It is a marketing stunt, but it is a fair demonstration of why a foam-cored lid does not bow in the middle the way a hollow one does.
MicroSeal Weather Test: Tool Box Vs Mud Vs Pressure Washer
UWS packs a closed box with clean rags, buries the outside in mud, then hits it with a pressure washer and opens it up.
It is the clearest demonstration of what the MicroSeal gasket on this box is actually doing.
UWS Damage-Free Delivery, How The EC Boxes Are Packed
This model is an EC box, which is the parcel-shippable version of the UWS range.
This clip shows how UWS packages these boxes to survive a parcel network instead of a freight pallet.
Frequently Asked Questions
Straight answers on specs, fit and support
What are the actual dimensions of the EC20061?
36" x 20" x 13.25" overall, holding 4.8ft³. Measure your clear bed floor against those numbers before ordering, and remember to allow for the door or lid to open.
How much does the EC20061 actually hold?
4.8ft³. That figure is UWS's own published capacity for this exact model.
Does it come with mounting hardware?
Check the carton. UWS's own installation manual for this chest states that not all models include a mounting hardware kit and that you may need to supply your own. We would rather tell you that up front than have you find out with the truck in the driveway. Two keys are included, and the install does require drilling.
How does it lock, and can I open it from either side?
It uses two keyed stainless steel paddle latches, and two keys are supplied. The handles are connected inside so the lid opens from either side of the bed.
What is the difference between the EC20061 and the freight-shipped version?
Packaging, not product. UWS builds the EC series as the same box in heavier protective packaging so it can travel by parcel carrier instead of on a freight pallet. For you it means doorstep delivery instead of a freight terminal, and no delivery appointment to wait in for.
How does the bright aluminum finish hold up?
Well, and it is the easiest of the three UWS finishes to live with. There is no paint layer to chip, so a scuff stays cosmetic instead of turning into a rust spot, and UWS's own care guidance is that polish will clear small scratches and scuffs. Aluminum does not rust, so road salt takes the shine off long before it does any structural harm.
