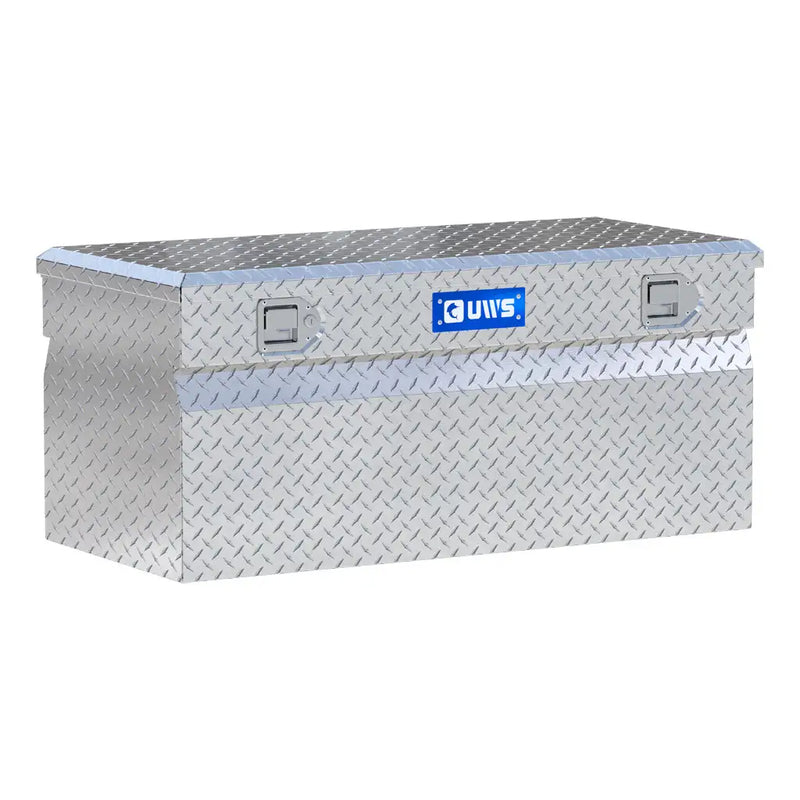

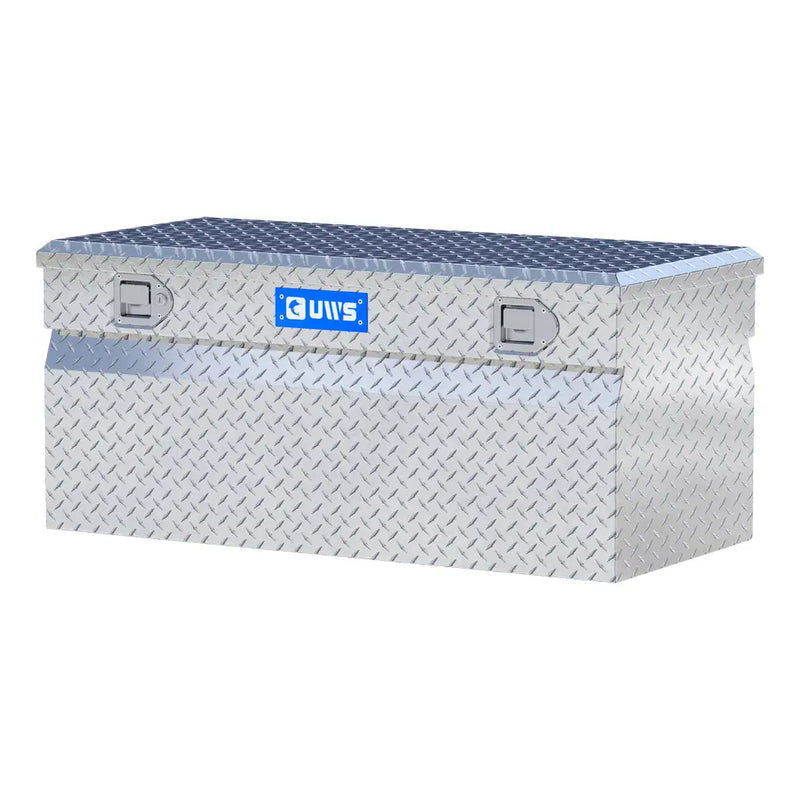

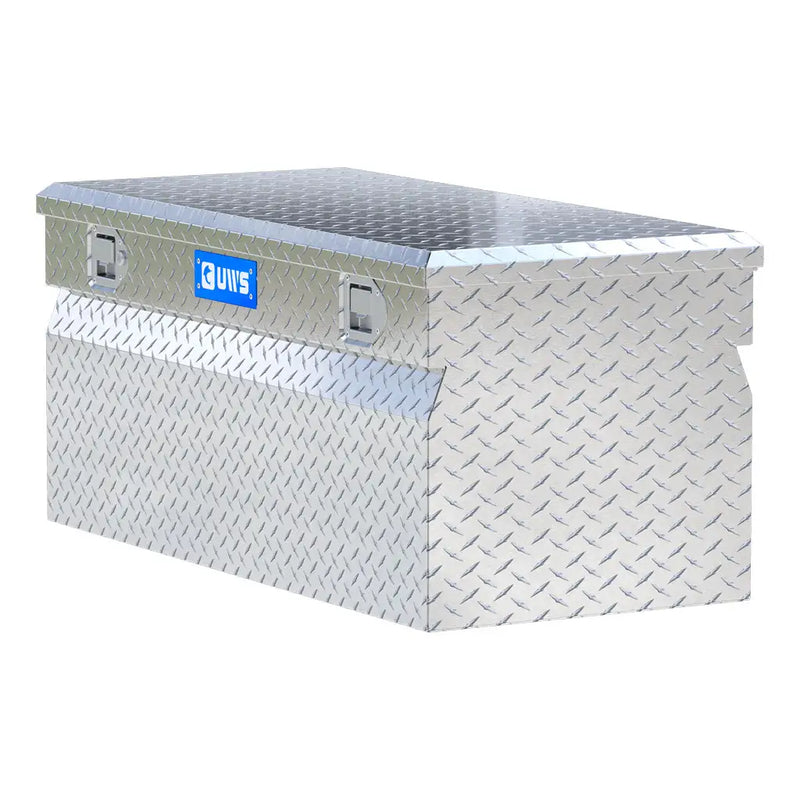

The UWS 42" Utility Chest Box is a bright aluminum diamond plate chest box built for the bed of a working truck, and at 43" long, 20" wide and 19" tall it gives you 8.4ft³ of locked, sealed storage without touching your bed rails. It is a chest rather than a crossover box, so it sits on the bed floor and every inch of that volume is usable depth: long tools stand up in it, and nothing has to be worked around the rails. The tub is 0.058" aluminum diamond plate welded into a single piece, and the lid uses UWS's patented RigidCore construction, a pair of aluminum plates completely filled with a hardening foam so the lid stays flat instead of bowing when it is leaned on. A MicroSeal gasket runs the full lid seam to keep rain, road spray and dust out, and two key-operated stainless steel paddle handles are linked by an interior lock rod so you can open the box from either side of the truck. Gas struts self-open the lid so you can work it one-handed. It weighs 33.2 lb empty and is designed, fabricated and welded by UWS in Florida.
What's Included:
One UWS 42" Utility Chest Box, Bright Aluminum
Two keys (UWS install sheet Parts List: 1 chest box, 2 keys, 1 mounting hardware kit)
MicroSeal gasket, factory-fitted around the lid seam
Self-opening gas struts, factory-fitted
Mounting hardware kit, but see the note below: UWS states that not all models include one
UWS installation manual
UWS limited lifetime warranty
UWS prints this caveat on its own Parts List page: "Not all models include mounting hardware kit. You may need to purchase your own hardware to install this chest box." UWS does not say which models, so treat the kit as not guaranteed.
Features
8.4ft³ of Locked, Sealed Storage The TBC-42 measures 43" long by 20" wide by 19" tall overall, with a 42" by 19.25" tub inside, and UWS rates it at 8.4ft³. Because it is a chest rather than a crossover box, all of that volume is usable depth instead of being split around the bed rails.

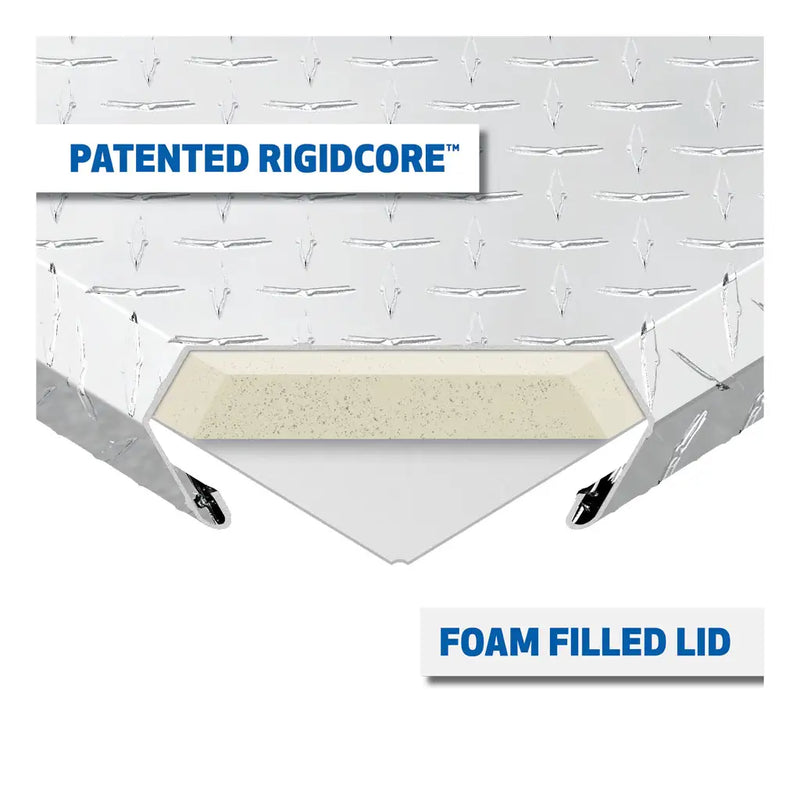

Patented RigidCore Foam-Filled Lid The lid is not a hollow shell. UWS fills it with a hardening, expanding foam pressed between two aluminum plates, and the foam sets into a solid structure that carries load across the whole panel. In practice that means the lid does not bow when someone stands on it, and it does not warp out of shape over a few summers and start binding on the gasket. RigidCore is patented and it is the single biggest difference between this box and a cheap aluminum one.

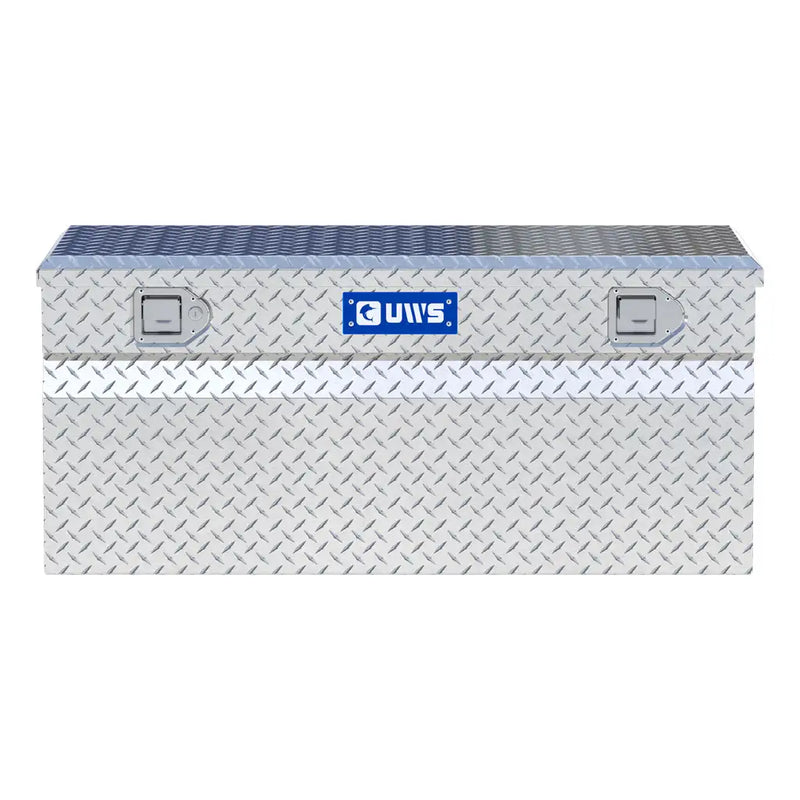

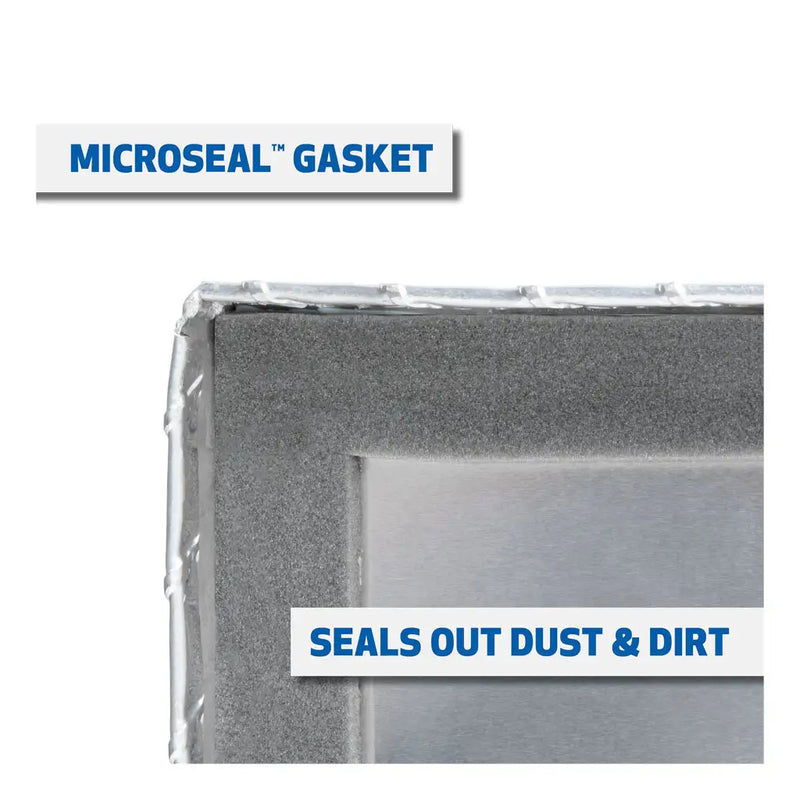

MicroSeal Gasket Around the Full Lid Seam A MicroSeal gasket runs the entire seam where the lid meets the tub, which is what keeps rain, road spray, dust, grit and insects out of the box. It is the difference between finding your tools dry and finding them under a film of red dust after a week on a job site.

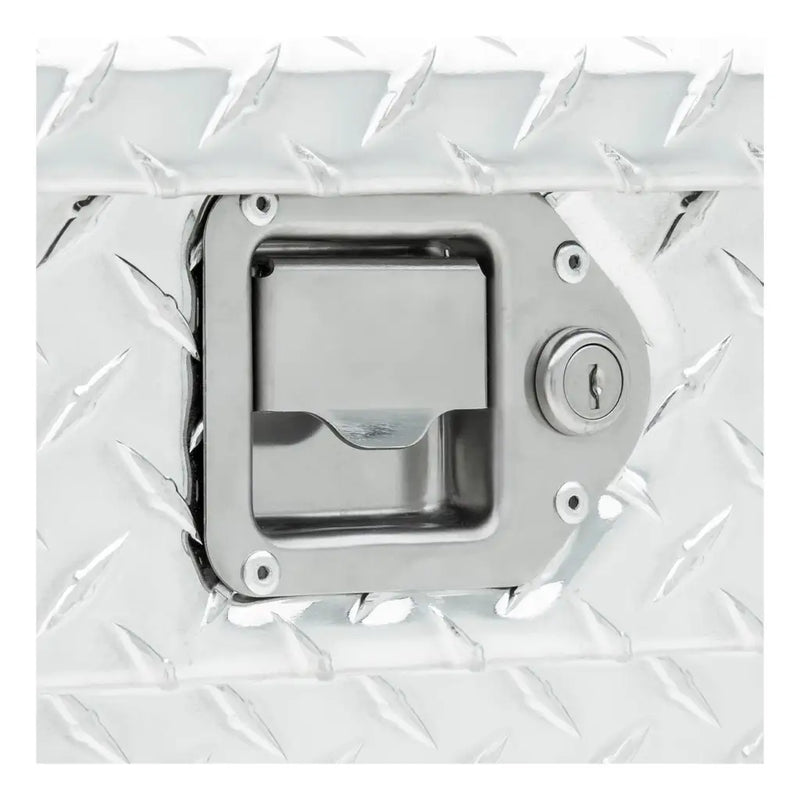

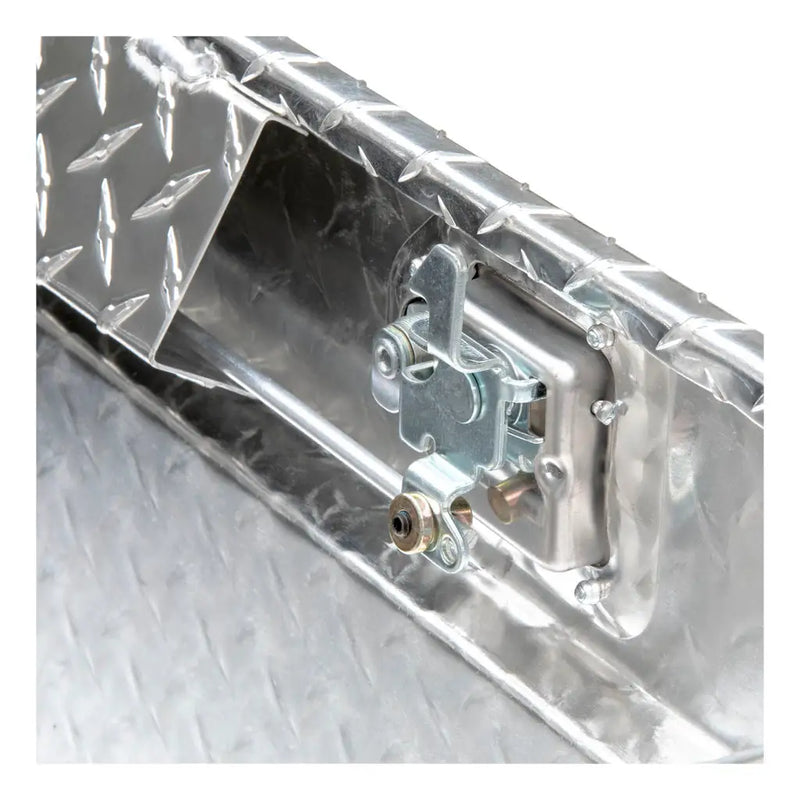

Two Locking Handles on an Interior Rod The TBC-42 carries two key-operated stainless steel paddle handles, connected by a rod inside the box so both latches release together. You can open it from the driver side or the passenger side without walking round the truck, and the rod runs inside a protective enclosure so it cannot simply be reached and popped.

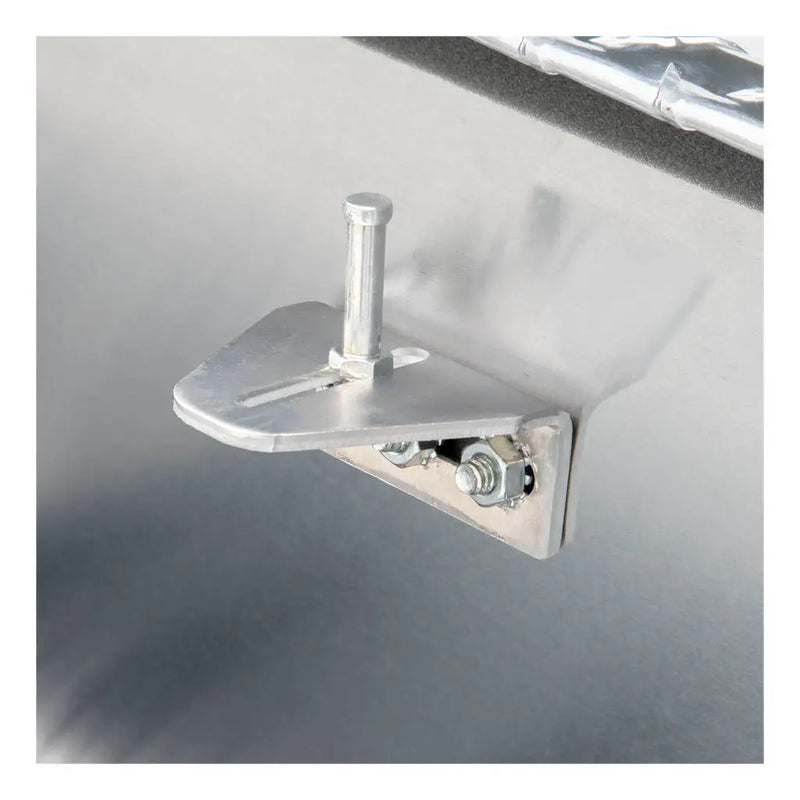

Self-Opening Lid, One-Handed Gas struts take the weight of the lid and hold it open, so you can flip the latch and the lid rises on its own. It sounds like a small thing until you are carrying a cordless drill in one hand and a coffee in the other.
Welded One-Piece Aluminum Tub The tub is 0.058" aluminum diamond plate welded into a single piece rather than riveted or folded, so there are no seams to work loose and no fasteners to shear. Aluminum also keeps the box light, at 33.2 lb, and it does not rust when the finish gets scratched.
✓ Yes, fits between the wheel wells as well as forward of them. Measure your own bed; mid-size beds run roughly 44" between the wells and about 56" at the bulkhead.
✓ Yes, fits between the wheel wells as well as forward of them. Full-size beds run roughly 49" to 51" between the wells and about 62" to 66" at the bulkhead.
3/4-ton and 1-ton pickups (F-250/350, Silverado 2500/3500, Ram 2500/3500)
✓ Yes, fits between the wheel wells as well as forward of them. The widest beds in the range, so a long chest has the best chance here.
Flatbeds, service bodies, trailers, shop and garage use
✓ Yes. This is a free-standing chest, so it needs a flat floor and nothing else.
Under a tonneau cover
● Only if your cover clears 19". This is a standard-profile chest, not a low-profile under-tonneau box; UWS builds the SLC-48 for that job.
Fit guidance: This is a universal-fit chest box, not a vehicle-specific kit, so there is no year, make and model list to check. What matters is one measurement: the 43" overall length of the box against the usable width of your bed. A chest sits across the bed with its length running from rail to rail, normally pushed forward against the bulkhead where the bed is at its widest. Beds are narrower between the wheel wells than they are at the bulkhead, so measure both. Also check that the 19" height still lets your rear window and any bed cover work, and remember that a bed liner takes an inch or so off every internal measurement. The box is free-standing; UWS supplies no bed-specific mounting kit.
Specifications
UWS Part Number: TBC-42
Product Type: Aluminum chest tool box
Material: Aluminum diamond plate, welded single-piece tub
Finish: Bright aluminum diamond plate
Overall Length: 43"
Overall Width: 20"
Overall Height: 19"
Tub Length: 42"
Tub Width: 19.25"
Storage Capacity: 8.4ft³
Tub Style: Standard
Profile: Standard Profile
Lid Type: Single Lid
Latch Type: Key-operated stainless steel paddle handles (2), linked by an interior lock rod
Carrying Handles: No
Product Weight: 33.2 lb
Shipping Weight: 39 lb
Shipping Method: Freight (LTL) only
Installation Difficulty: Easy
UPC: 672078010153
Warranty: Limited lifetime, with one year on the finish and one year on the parts
Country of Origin: USA
Installation
Type: Free-standing in the truck bed, on a flatbed or in the shop; no vehicle-specific mounting kit required · Time: About 10 minutes · Tools: A tape measure, and a second person for the lift at 33.2 lb · Difficulty: Easy, no drilling required
A chest box does not bolt to the bed rails; it sits on the bed floor, normally pushed forward against the bulkhead where the bed is widest. Measure your bed before ordering: this box is 43" long, and beds are narrower between the wheel wells than at the bulkhead. Once it is in, secure it. An unsecured chest will slide forward under heavy braking, so run straps to the bed's tie-down points or bolt it down. If you are running a bed liner, remember it takes an inch or so off every internal measurement. One thing to know before you plan the install: the Parts List in UWS own chest box manual lists a mounting hardware kit, then footnotes that not all models include one and that you may need to buy your own hardware. UWS does not publish which models do. Budget for supplying your own bolts and treat the kit as a bonus rather than a certainty.
Resources
Everything you need for your UWS 42" Utility Chest Box, Bright Aluminum, 8.4ft³, in one place.
Warranty. UWS limited lifetime warranty on the box, with one year on the finish and one year on the parts. The warranty covers defects in materials and workmanship; it does not cover damage from overloading, misuse, accident or improper installation, and it does not cover normal wear on the finish.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About UWS
UWS is short for United Welding Services, and the name is the point: every UWS box starts as flat aluminum sheet and is welded into a single-piece tub rather than riveted or folded together. The company builds at its own plant in Perry, Florida, and it has been supplying the truck accessory trade long enough that the diamond plate box with the blue UWS badge is a familiar sight on job sites. UWS is part of the CURT Group, which in turn belongs to Lippert, so behind a fairly specialized Florida welding shop sits a full national parts and warranty network.
Two pieces of engineering separate a UWS box from a generic aluminum one. The first is the patented RigidCore lid: instead of a hollow shell, the lid is a pair of aluminum plates completely filled with a hardening, expanding foam, which sets into a solid structure and stops the lid bending, warping or binding after a few years of being leaned on. The second is the MicroSeal gasket, which lines the entire seam where the lid meets the tub and keeps water, dust, grit and insects out of the box rather than merely slowing them down. Both are backed by a limited lifetime warranty on the box, with one year on the finish and one year on the parts.
Prestige Truck is an authorized UWS dealer. Every box we ship is new, in the original UWS carton, built in the USA, and covered by the full UWS factory warranty.
Frequently Asked Questions
Straight answers on specs, fit and support
Will the TBC-42 fit my truck bed?
Measure before you order. The box is 43" long and it sits across the bed, so what matters is your bed's usable width. Full-size beds are roughly 49" to 51" between the wheel wells and about 62" to 66" at the bulkhead; mid-size beds are roughly 44" and 56". At 43" this one fits almost any bed, wells included. A bed liner takes another inch or so off.
How much does it actually hold?

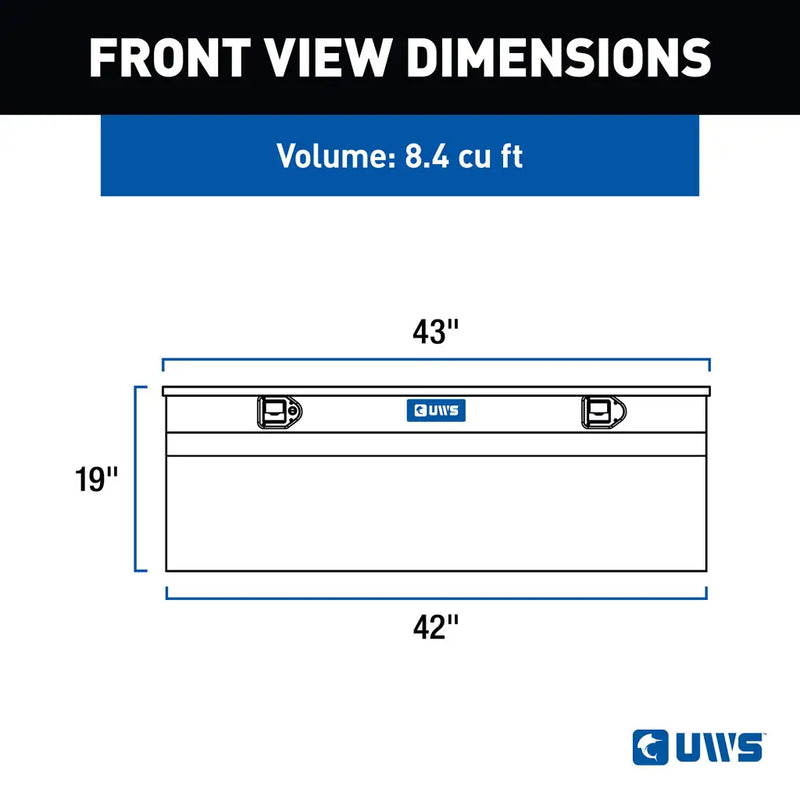

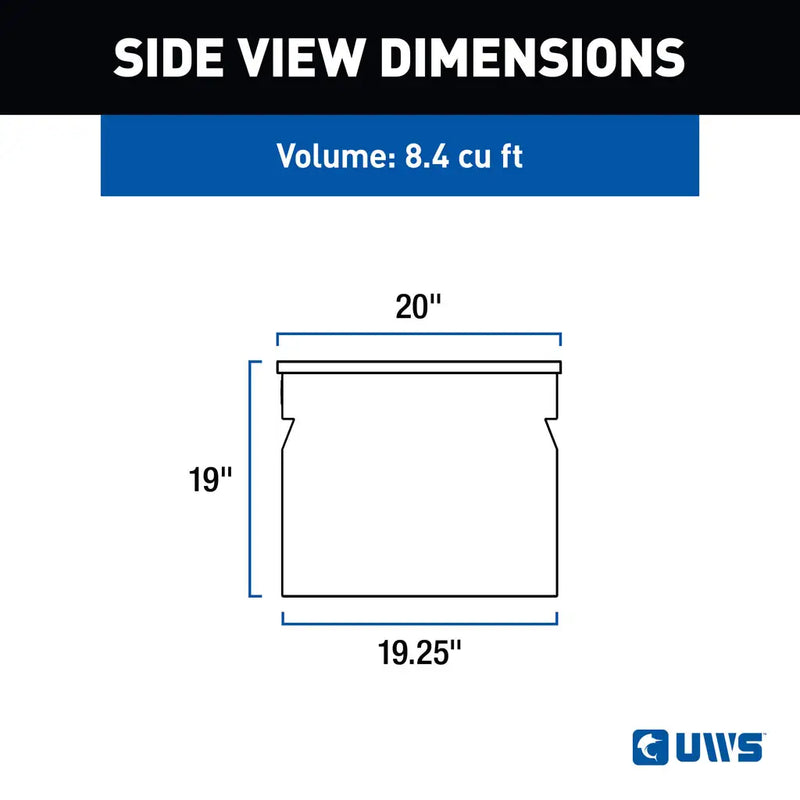

UWS rates it at 8.4ft³, and the tub measures 42" by 19.25". That figure comes from UWS's own dimension drawing for this part number, and we have checked it against the spec table on the same page.
Does it lock, and how many handles does it have?
Yes. It has two key-operated stainless steel paddle handles, linked by a rod inside the box so both latches work together. You can open it from either side of the truck, and the rod runs in a protective enclosure to resist prying. Keys are supplied.
What is RigidCore, and does it matter?
RigidCore is UWS's patented lid construction: two aluminum plates with a hardening, expanding foam filling the space between them. It matters because an unsupported aluminum lid this size will bow when it is leaned on and eventually warp enough to bind on the gasket. A RigidCore lid stays flat, which is also what keeps the MicroSeal gasket sealing years later.
Is it weatherproof?
It is well sealed rather than submersible. A MicroSeal gasket runs the entire seam where the lid meets the tub and keeps out rain, road spray, dust and insects, which is what a bed box actually faces. It is not rated as a waterproof case, so treat pressure washing straight at the seam and standing water inside the bed as things to avoid.
Does it come with mounting hardware, and how does it ship?
Maybe, and we would rather tell you that than guess. The Parts List in UWS's own chest box manual reads: one chest box, two keys, one mounting hardware kit, and then footnotes that not all models include the kit and that you may need to purchase your own hardware. UWS does not publish which models are which, so plan on supplying your own bolts. It ships by freight (LTL) at a shipping weight of 39 lb, so expect a delivery appointment and a truck rather than a courier. The box itself weighs 33.2 lb, which is a two-person lift into the bed.
