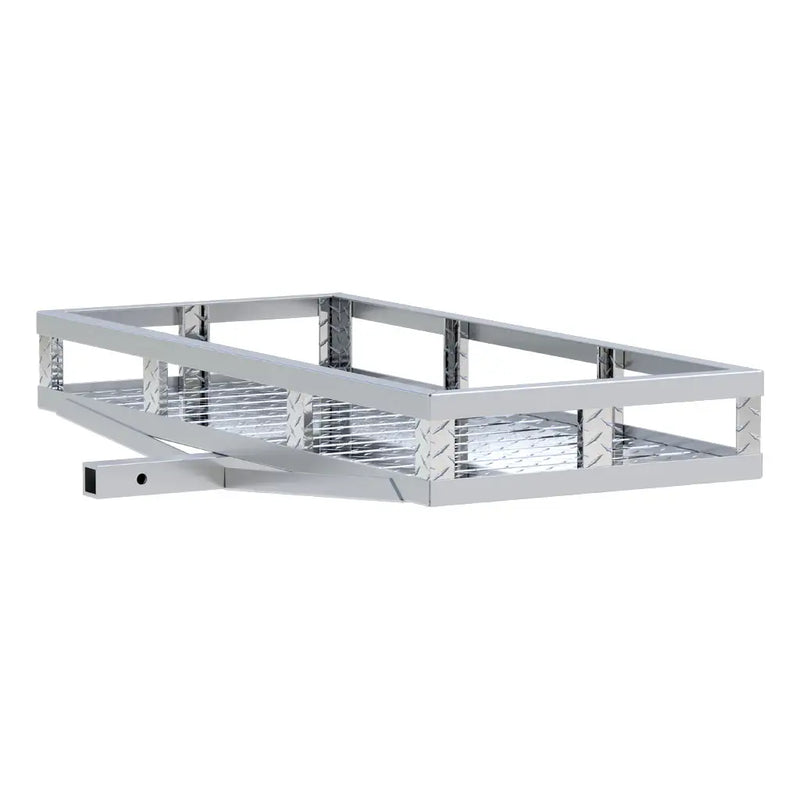

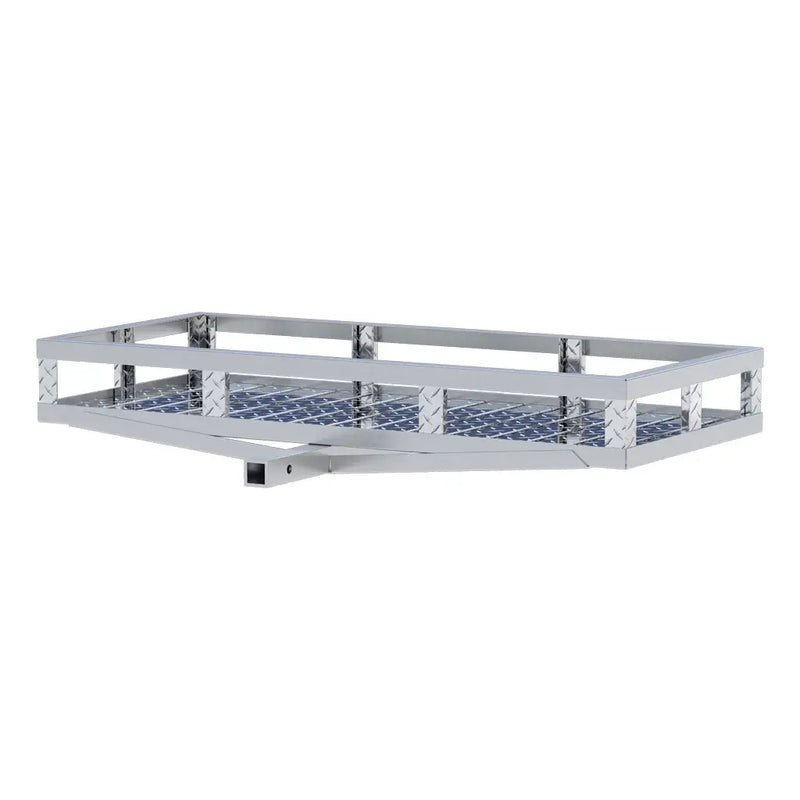

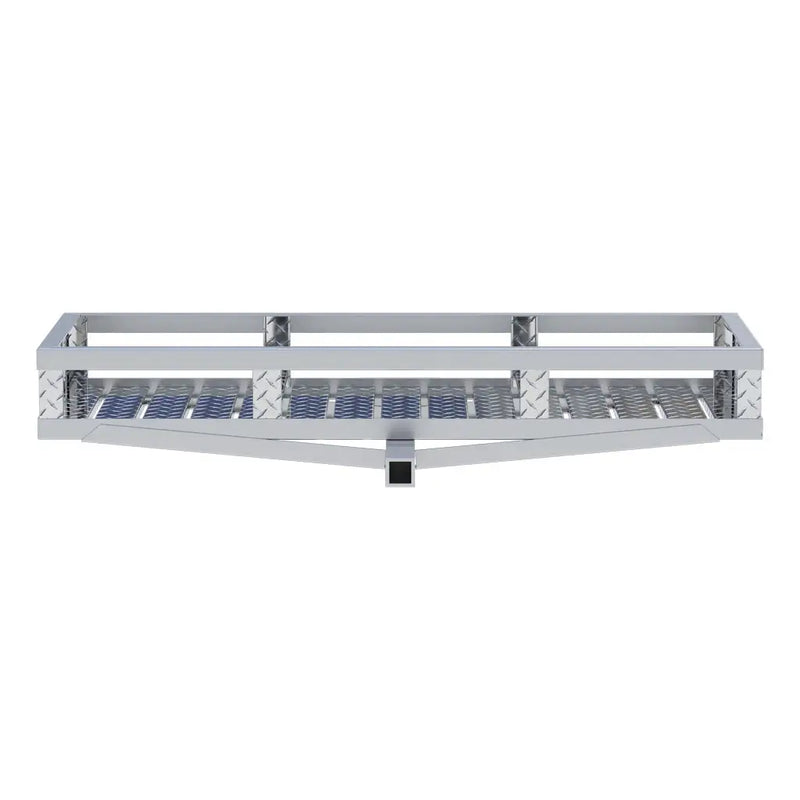

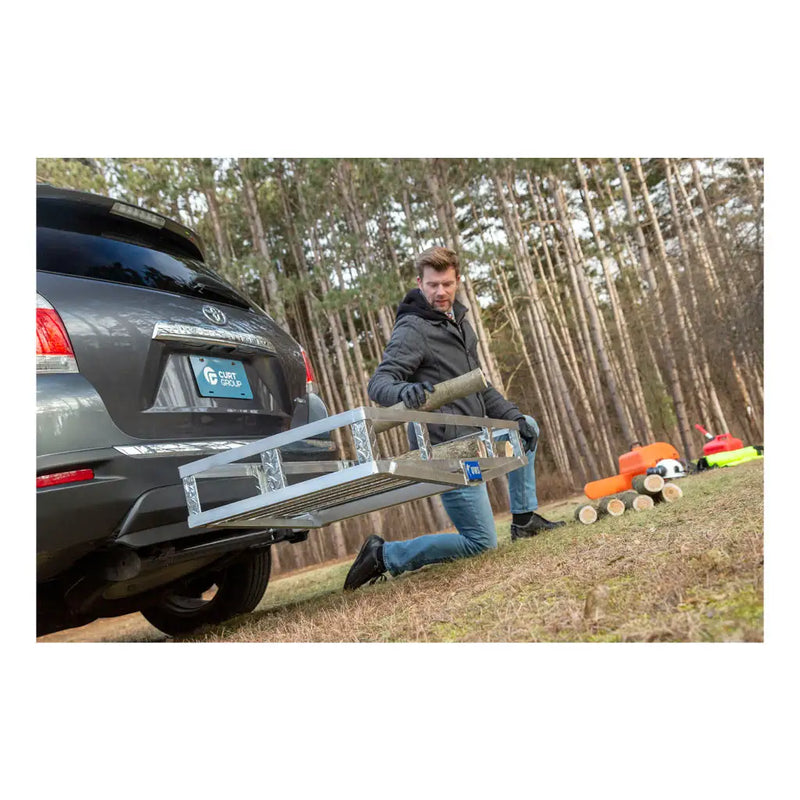

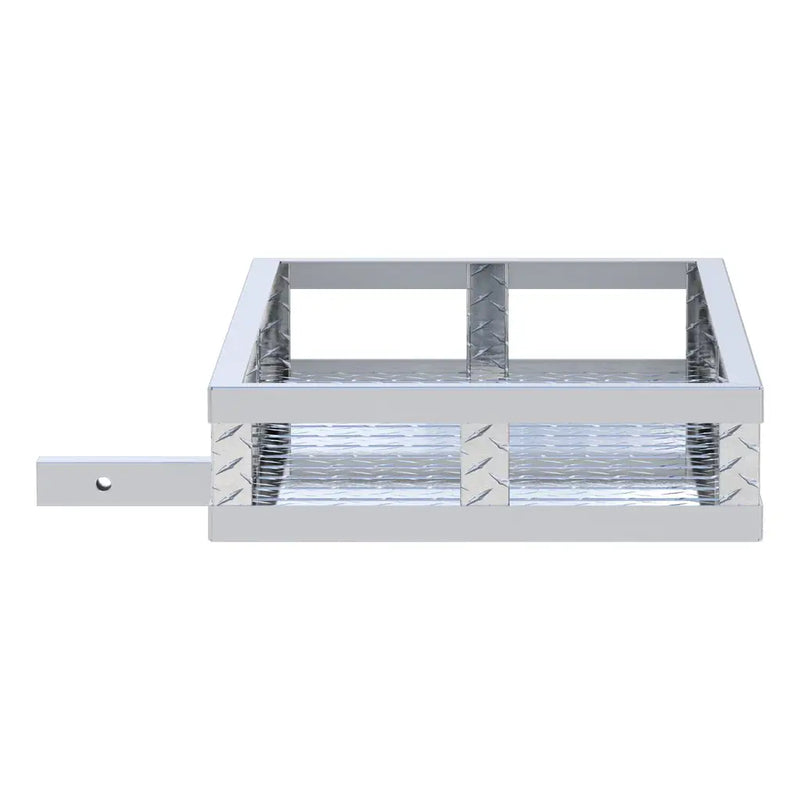

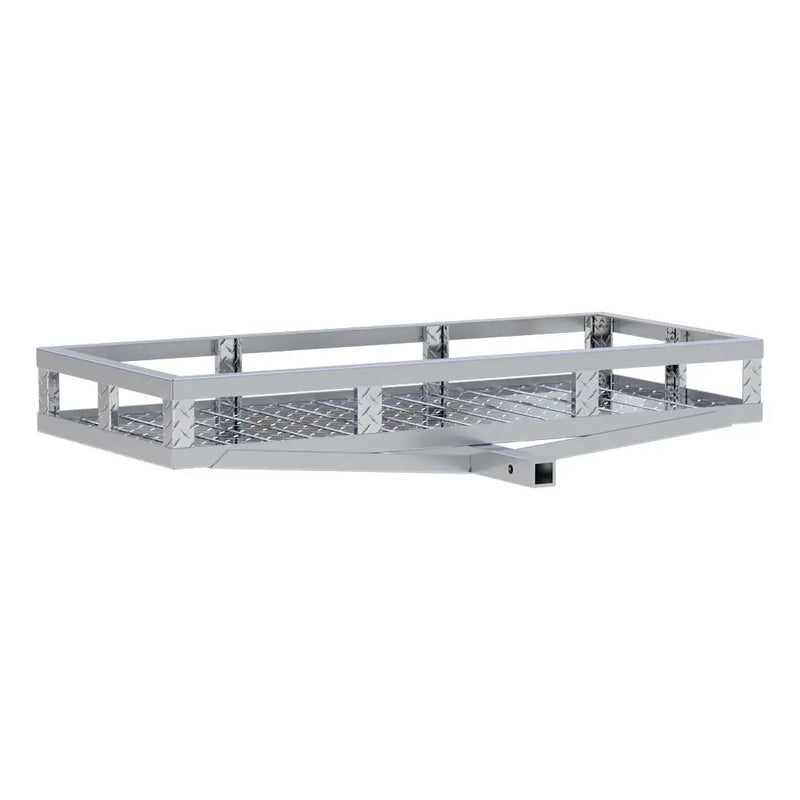

The UWS 51" x 23" Aluminum Hitch Cargo Carrier slides into any 2" x 2" hitch receiver and instantly adds over eight square feet of cargo space where it belongs: outside the vehicle. The platform is 51" by 23" and stands 6.38" tall, built entirely from aluminum with a reinforced base, and UWS rates it at 500 lb. That makes it the obvious place for the load you would rather not have in the cabin, whether that is wet gear after a day out, fuel cans, muddy boots or a chainsaw. Because it is aluminum rather than painted steel it weighs only 25.2 lb, so one person can fit it, and it will not rust where a steel basket eventually will. UWS also builds the TBC-48-DD chest box specifically to mount on this carrier, which turns the open basket into a lockable, weather-sealed box; that chest is sold separately. A hitch pin and clip are not included, and it is made in the USA.
What's Included:
One UWS aluminum cargo carrier, 51" x 23", with a 2" x 2" hitch shank
UWS limited lifetime warranty
Hitch pin and clip are not included
The TBC-48-DD chest box is sold separately
Features
Over Eight Square Feet Outside the Vehicle The UWS-CARRIER is 51" by 23", which UWS puts at over eight square feet of extra cargo space hanging off the back of the vehicle. That is the space you want for the things you would rather not have inside the cabin: wet gear, fuel cans, muddy boots, a chainsaw.
500 lb Load Capacity on a Reinforced Base UWS rates the carrier at 500 lb and builds the base with reinforcement rather than relying on the mesh alone. Check your vehicle's tongue weight rating as well, because on most vehicles the hitch, not the basket, is the limit.
Fits Any 2" x 2" Receiver The shank slides into any standard 2" x 2" receiver tube, so it moves between vehicles without any vehicle-specific parts. There is nothing to bolt to the body and nothing to drill.

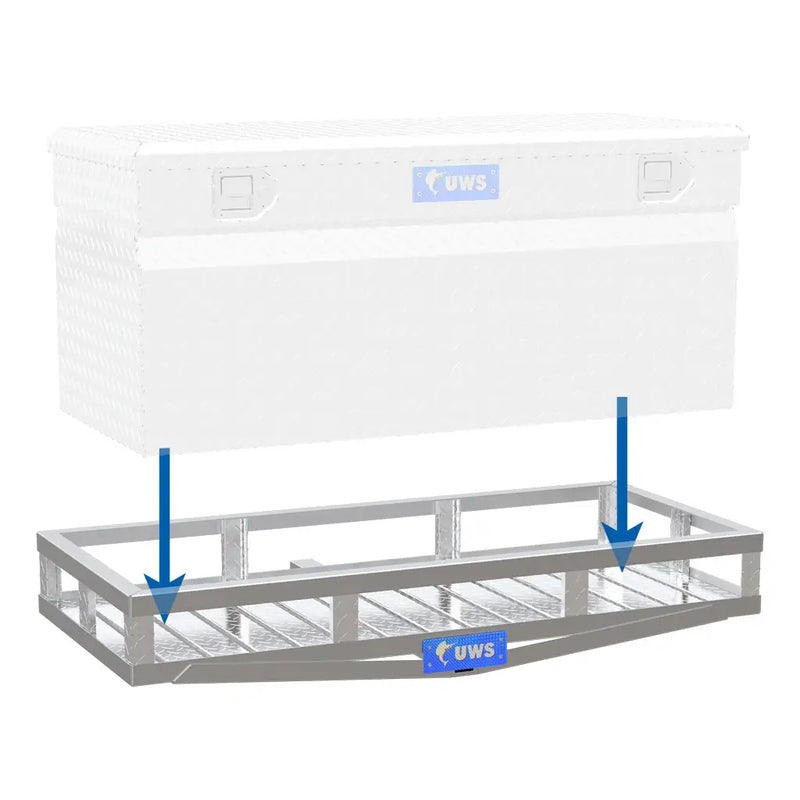

Takes the UWS TBC-48-DD Chest Box UWS designed the TBC-48-DD chest to drop straight onto this carrier, turning an open basket into a lockable, weather-sealed box. The chest is sold separately, and it is the reason to choose this carrier over a generic one if you already run UWS boxes.
All-Aluminum, Made in the USA The whole carrier is aluminum, so it is light enough to fit single-handed, at 25.2 lb, and it will not rust where a painted steel basket will. UWS builds it in the USA and backs it with the same limited lifetime warranty as its boxes.
Fitment & Compatibility
Application
Fit
Any 2" x 2" hitch receiver
✓ Yes. The shank is sized for the standard 2" receiver used on most trucks, SUVs and crossovers with a Class III or higher hitch.
1-1/4" hitch receivers
✗ No. The shank will not fit a 1-1/4" receiver and no adapter is supplied.
UWS TBC-48-DD chest box
✓ Yes, the chest is designed to mount on this carrier. It is sold separately.
Load
● 500 lb rated for the carrier, but your vehicle's tongue weight rating is usually the real limit.
Hitch pin and clip
✗ Not included.
Fit guidance: The carrier fits any 2" x 2" receiver tube, which makes it vehicle-independent, but the number that decides whether you can actually use it fully is your vehicle's maximum tongue weight, not the carrier's 500 lb rating. The carrier itself weighs 25.2 lb and hangs well behind the axle, so its load acts on the hitch with leverage. Check the tongue weight figure in your owner's manual and count the carrier, any box mounted on it and the cargo together. Also check that the loaded carrier still lets your tailgate or hatch open.
Material: Aluminum diamond plate, welded single-piece tub
Finish: Bright aluminum diamond plate

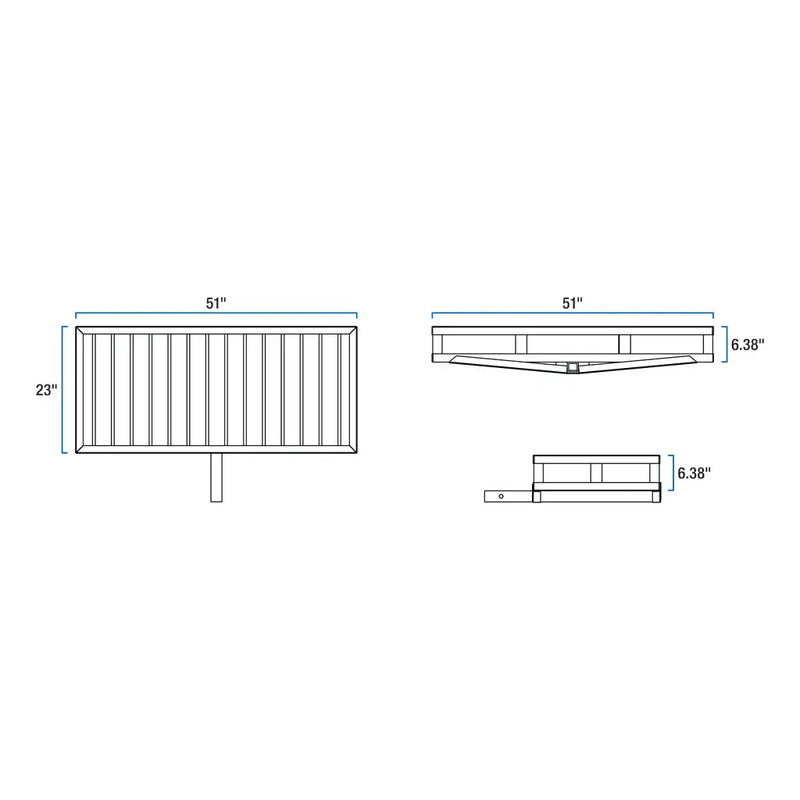

Overall Length: 51"
Overall Width: 23"
Overall Height: 6.38"
Load Capacity: 500 lb
Receiver Size: 2" x 2"
Product Weight: 25.2 lb
Shipping Weight: 30 lb
Shipping Method: Freight (LTL) only
UPC: 672078035118
Warranty: Limited lifetime, with one year on the finish and one year on the parts
Country of Origin: USA
Installation
Type: Slides into any 2" x 2" hitch receiver tube · Time: About 5 minutes · Tools: A hitch pin and clip, which are not included · Difficulty: Easy, no tools required
Slide the shank into the receiver, line up the holes and fit a hitch pin and clip. Before loading it, look up your vehicle's maximum tongue weight and count the carrier's 25.2 lb, any chest box you mount on it and the cargo together against that figure. Check that the tailgate or hatch still opens with the carrier fitted and loaded, and if the carrier hides your plate or lights, fit a light bar to stay legal in your state.
Warranty, Shipping & Returns
Warranty. UWS limited lifetime warranty on the box, with one year on the finish and one year on the parts. The warranty covers defects in materials and workmanship; it does not cover damage from overloading, misuse, accident or improper installation, and it does not cover normal wear on the finish.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About UWS
UWS is short for United Welding Services, and the name is the point: every UWS box starts as flat aluminum sheet and is welded into a single-piece tub rather than riveted or folded together. The company builds at its own plant in Perry, Florida, and it has been supplying the truck accessory trade long enough that the diamond plate box with the blue UWS badge is a familiar sight on job sites. UWS is part of the CURT Group, which in turn belongs to Lippert, so behind a fairly specialized Florida welding shop sits a full national parts and warranty network.
Two pieces of engineering separate a UWS box from a generic aluminum one. The first is the patented RigidCore lid: instead of a hollow shell, the lid is a pair of aluminum plates completely filled with a hardening, expanding foam, which sets into a solid structure and stops the lid bending, warping or binding after a few years of being leaned on. The second is the MicroSeal gasket, which lines the entire seam where the lid meets the tub and keeps water, dust, grit and insects out of the box rather than merely slowing them down. Both are backed by a limited lifetime warranty on the box, with one year on the finish and one year on the parts.
Prestige Truck is an authorized UWS dealer. Every box we ship is new, in the original UWS carton, built in the USA, and covered by the full UWS factory warranty.
Frequently Asked Questions
Straight answers on specs, fit and support
What hitch does the UWS-CARRIER need?
Any standard 2" x 2" receiver tube. It will not fit a 1-1/4" receiver, and no adapter is supplied. A hitch pin and clip are also not included.
How much can it carry?
UWS rates the carrier at 500 lb, but on most vehicles that is not the number that limits you. Your vehicle's maximum tongue weight usually runs out first, and the carrier's own 25.2 lb plus anything you mount on it counts against that figure. Check your owner's manual.
Can I put a tool box on it?
Yes. UWS designed the TBC-48-DD chest box to drop straight onto this carrier, which turns the open basket into a lockable, weather-sealed box. The chest is sold separately.
How much space does it add?
The platform is 51" by 23", which UWS describes as over eight square feet of extra cargo space. It is the obvious place for the things you would rather not carry inside: wet gear, fuel cans, muddy boots.
Will it rust?
No. The whole carrier is aluminum, which is also why it weighs only 25.2 lb and can be fitted single-handed. A painted steel basket will rust where it gets chipped; this one will not.
Will my tailgate still open?
Usually, but check with the carrier fitted and loaded, because it varies by vehicle. Also check whether the loaded carrier obscures your license plate or lights, since a light bar may be required where you live.
