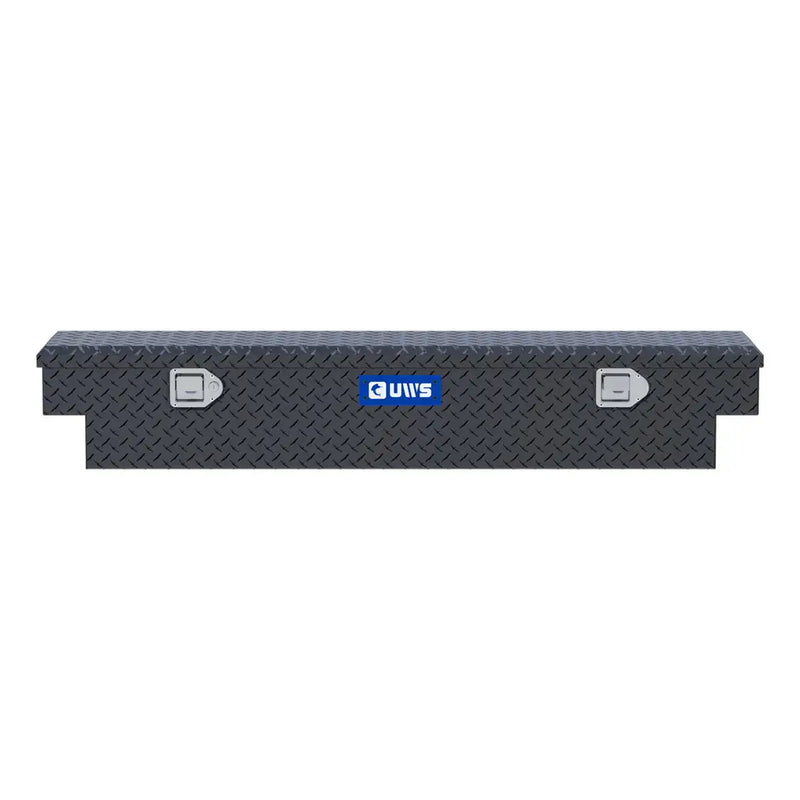

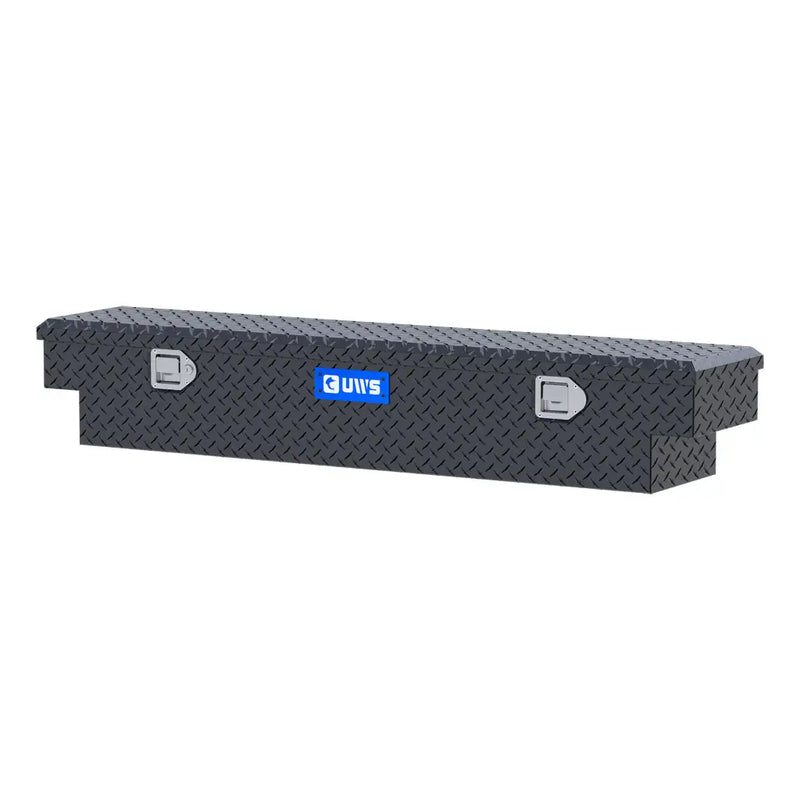

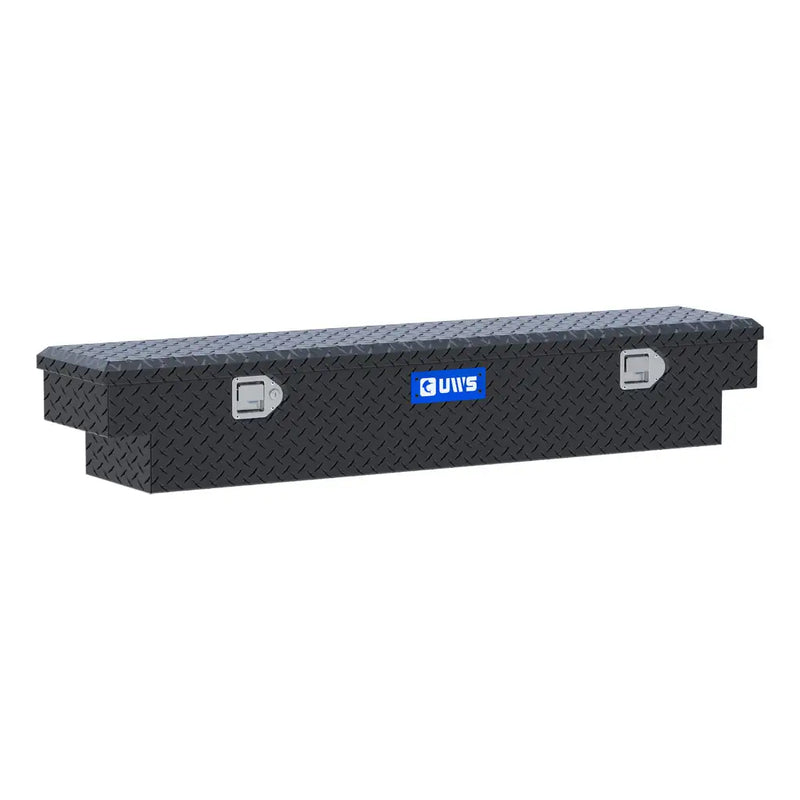

The UWS 59" UTV Crossbed Tool Box runs across the front of a side-by-side bed and gives you 3.2ft³ of locked, sealed storage while leaving the rest of the load floor clear. It is 59.75" across, only 12.25" deep and 10.25" tall, which is the shape that makes it work: it takes the strip of bed you were not really using and turns it into somewhere chainsaw kit, straps, fencing tools or a couple of cases can live. This part number is the box on its own, without brackets: UWS builds it to mount with vehicle-specific brackets, but the kit is not in this carton and has to be ordered separately for your machine. The tub is aluminum welded into a single piece in the USA and finished in matte black powder coat, which stays glare-free across the hood. The lid carries UWS's patented RigidCore foam-filled construction so it does not flex or warp, and a MicroSeal gasket runs the lid seam to keep out the water and fine grit that get into everything on a trail machine. A recessed key-operated stainless steel paddle handle locks it. Empty weight is 27.6 lb, and this SKU ships by freight.
What's Included:
One UWS 59" UTV Crossbed Tool Box, Matte Black Aluminum
Two keys (UWS install sheet Parts List for this box: 1 UTV tool box, 2 keys)
MicroSeal gasket, factory-fitted around the lid seam
Mounting brackets and hardware are NOT included with this part number. UWS publishes the bare box sheet under UTV-59-MB and its Parts List reads: 1 UTV tool box, 2 keys, with a note that vehicle-specific hardware comes in kits sold separately
UWS limited lifetime warranty
Features

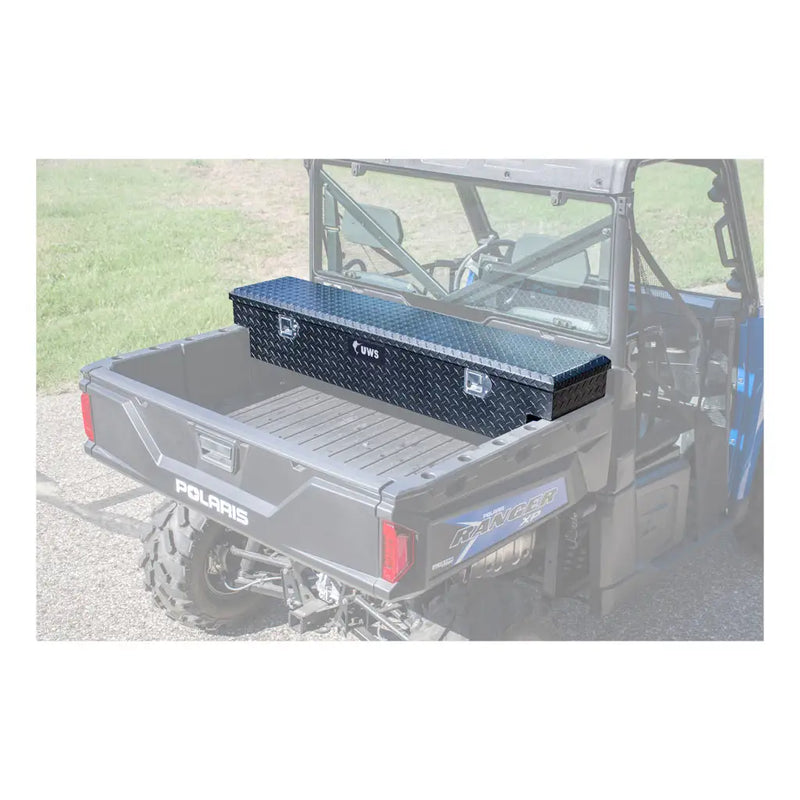

3.2ft³ Across the Bed of the Side-by-Side The box runs 59.75" across the UTV bed, stands only 10.25" tall and is just 12.25" deep, so it takes the front strip of the bed and leaves the rest of the load floor clear. UWS rates the interior at 3.2ft³, which is enough for chainsaw kit, tow straps, fencing tools or a couple of rifle cases without eating the space you actually haul in.
Designed for Vehicle-Specific Brackets, Sold Separately This is the bare box. It is built to mount with UWS vehicle-specific brackets, but the bracket kit is not in the carton and has to be ordered separately for your machine. If you want the box and the brackets together, buy the bracketed SKU for your application instead.

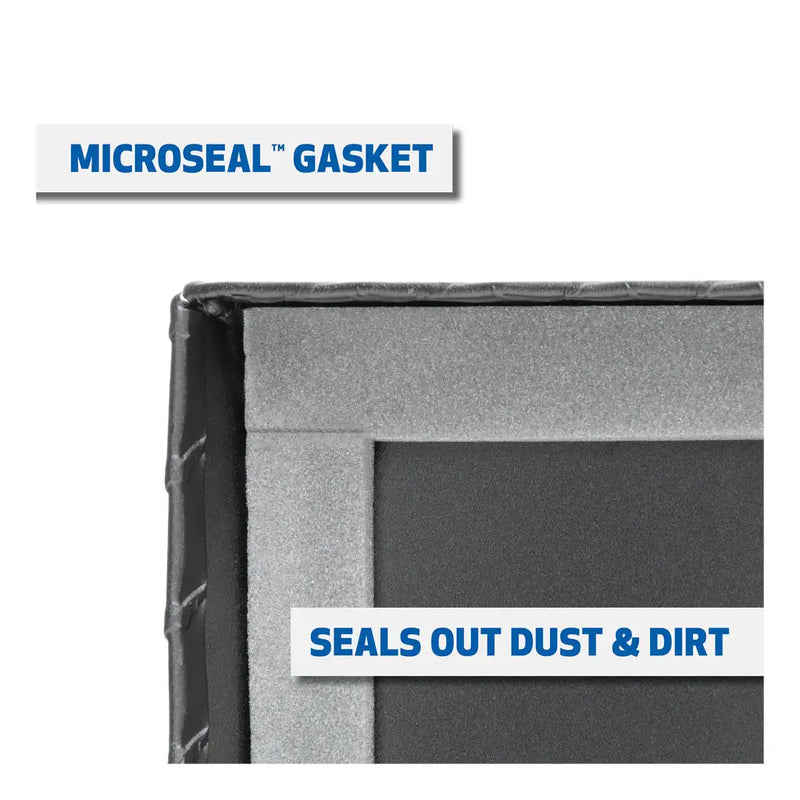

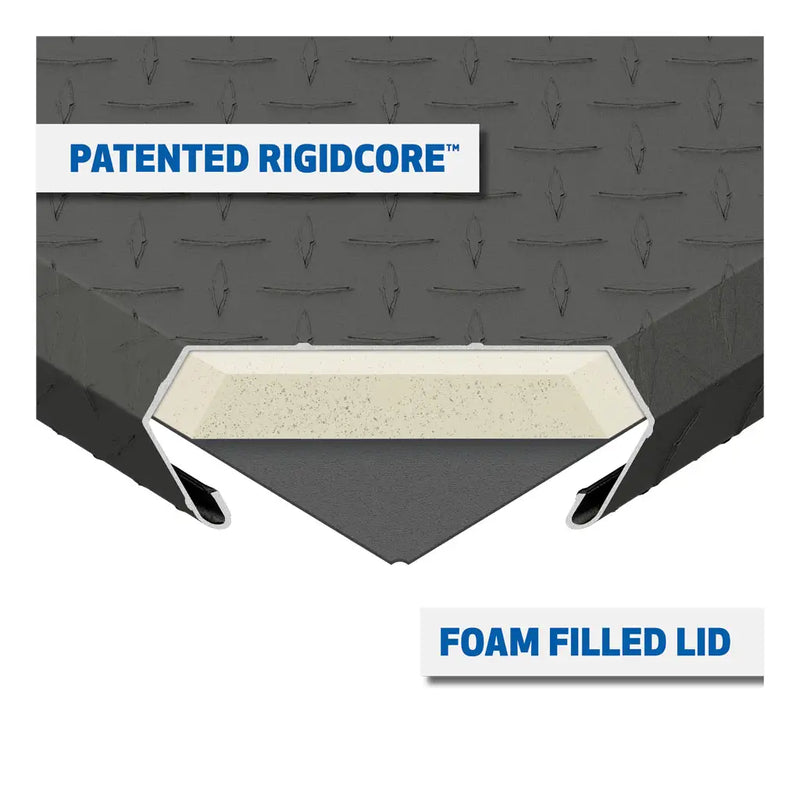

Patented RigidCore Lid and MicroSeal Gasket The lid uses the same patented RigidCore construction as UWS's truck boxes, with hardening foam pressed between two aluminum plates so it does not flex or warp, and a MicroSeal gasket runs the lid seam to keep out dust, water and the fine grit that gets into everything on a trail machine.

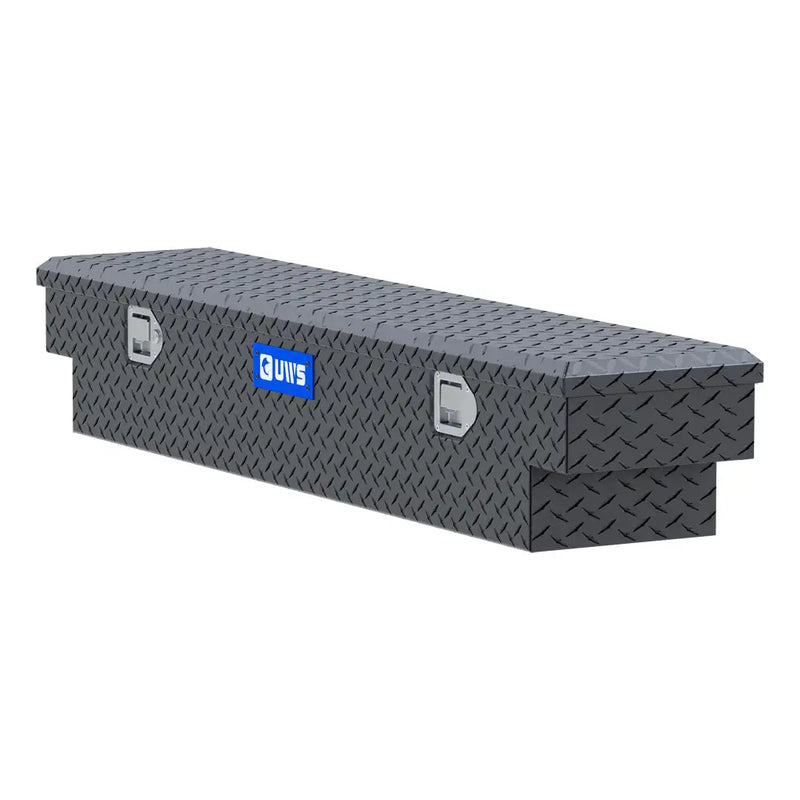

Welded Aluminum Tub, Powder Coated Matte Black The tub is aluminum, welded into a single piece in the USA, and finished in matte black powder coat. Matte black is the practical choice on a UTV: it does not throw glare back at you across the hood, and the powder coat adds corrosion resistance on top of what aluminum already gives you.

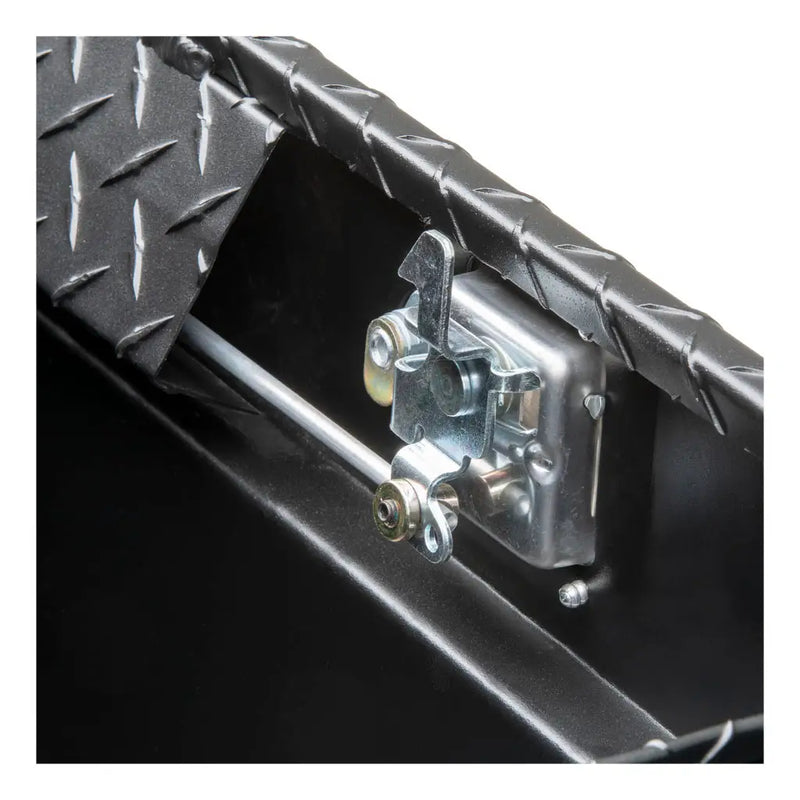

Key-Operated Stainless Steel Paddle Handle A recessed stainless steel paddle handle keeps the box locked and keeps the latch out of the way of shins and cargo. Stainless matters here because a UTV box spends its life wet and muddy.
Ships Freight This SKU ships by freight (LTL), which suits a box this size going to a shop or a yard. UWS also sells the identical box in heavy parcel packaging under a different part number if a freight delivery is awkward for you.
Fitment & Compatibility
Application
Fit

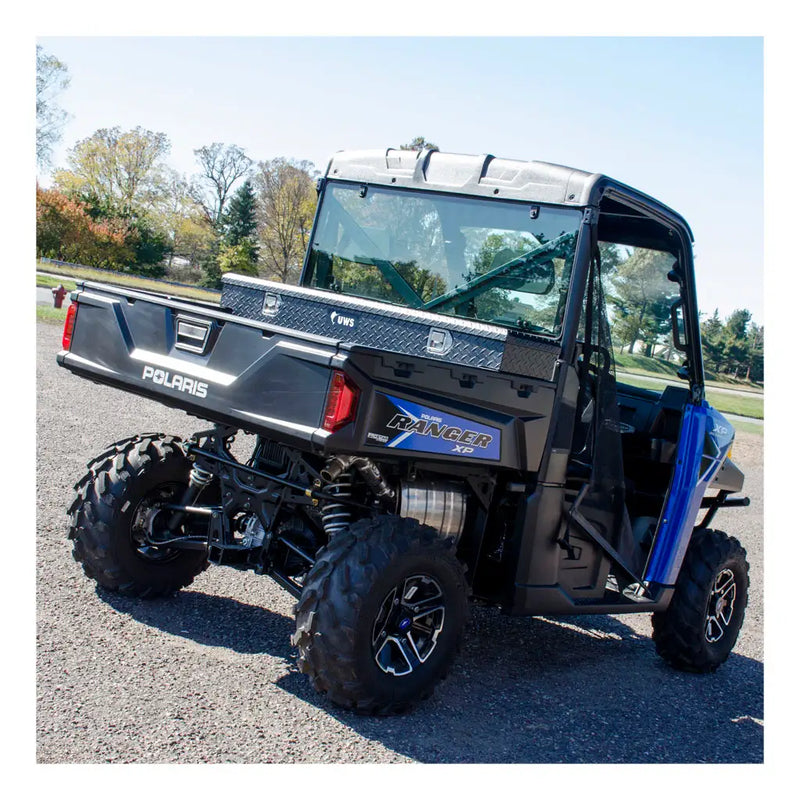

Polaris Ranger 1000
✓ Yes, on certain model years. UWS lists this SKU for the Polaris Ranger 1000; confirm your machine and year against the UWS application guide before ordering.
Other side-by-side models
● Only with the correct UWS bracket kit for that machine. The box itself is common across the range; the brackets are what make it vehicle-specific.
ATVs and four-wheelers
✗ No. This is a crossbed box for a side-by-side bed. UWS builds the ATV box for rack mounting.
Pickup truck beds
✗ No. At 59.75" long and 12.25" deep this box is proportioned for a UTV bed and has no truck bed-rail mounting.
Brackets
✗ NOT included with this part number. Order the bracket kit for your machine separately, or buy the bracketed SKU.
Fit guidance: This is a UTV crossbed box. It mounts down in the bed of a side-by-side with vehicle-specific brackets, and it is not a truck bed-rail box: there is nothing on it that clamps to a pickup bed rail, and the 59.75" x 12.25" x 10.25" proportions are wrong for a truck. UWS publishes fitment by machine and model year in its application guide and states only that this SKU suits certain years, so treat the application named here as the starting point and verify the year against UWS before you order. No bracket kit is in this carton.
Specifications
UWS Part Number: UTV-59PR-MB
Product Type: UTV crossbed tool box
Material: Aluminum diamond plate, welded single-piece tub
Warranty: Limited lifetime, with one year on the finish and one year on the parts
Country of Origin: USA
Installation
Type: Bolt-in to the UTV bed with UWS vehicle-specific brackets, which are not supplied with this part number · Time: About 45 minutes to an hour · Tools: Socket and wrench set, drill and the bit size called out on the bracket sheet where the application requires drilling · Difficulty: Easy to intermediate, DIY-friendly
This part number does not include brackets, so source the correct UWS bracket kit for your machine before you start. Once you have it, offer the box up and locate the brackets before drilling, check the lid clears the cab and cage through its full travel, then torque everything down and re-check the fasteners after the first few hours of use.
Warranty, Shipping & Returns
Warranty. UWS limited lifetime warranty on the box, with one year on the finish and one year on the parts. The warranty covers defects in materials and workmanship; it does not cover damage from overloading, misuse, accident or improper installation, and it does not cover normal wear on the finish.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About UWS
UWS is short for United Welding Services, and the name is the point: every UWS box starts as flat aluminum sheet and is welded into a single-piece tub rather than riveted or folded together. The company builds at its own plant in Perry, Florida, and it has been supplying the truck accessory trade long enough that the diamond plate box with the blue UWS badge is a familiar sight on job sites. UWS is part of the CURT Group, which in turn belongs to Lippert, so behind a fairly specialized Florida welding shop sits a full national parts and warranty network.
Two pieces of engineering separate a UWS box from a generic aluminum one. The first is the patented RigidCore lid: instead of a hollow shell, the lid is a pair of aluminum plates completely filled with a hardening, expanding foam, which sets into a solid structure and stops the lid bending, warping or binding after a few years of being leaned on. The second is the MicroSeal gasket, which lines the entire seam where the lid meets the tub and keeps water, dust, grit and insects out of the box rather than merely slowing them down. Both are backed by a limited lifetime warranty on the box, with one year on the finish and one year on the parts.
Prestige Truck is an authorized UWS dealer. Every box we ship is new, in the original UWS carton, built in the USA, and covered by the full UWS factory warranty.
Frequently Asked Questions
Straight answers on specs, fit and support
Will the UTV-59PR-MB fit my machine?
UWS lists this part number for certain model years of the Polaris Ranger 1000. "Certain years" is UWS's own wording, and the bracket kit is cut for specific years, so check your machine's year against the UWS application guide before ordering rather than going by the model name alone.
Are the mounting brackets included?
No. This part number is the box only. The mounting brackets and hardware have to be ordered separately for your machine. If you want the box and the brackets in one carton, buy the SKU that is listed for your specific machine instead.
Can I put this in a pickup truck bed?
It is not designed for one. This is a crossbed box proportioned for a side-by-side bed, at 59.75" by 12.25" by 10.25", and it has no truck bed-rail mounting of any kind. For a pickup, look at the UWS chest and crossover boxes instead.
How much will it hold?

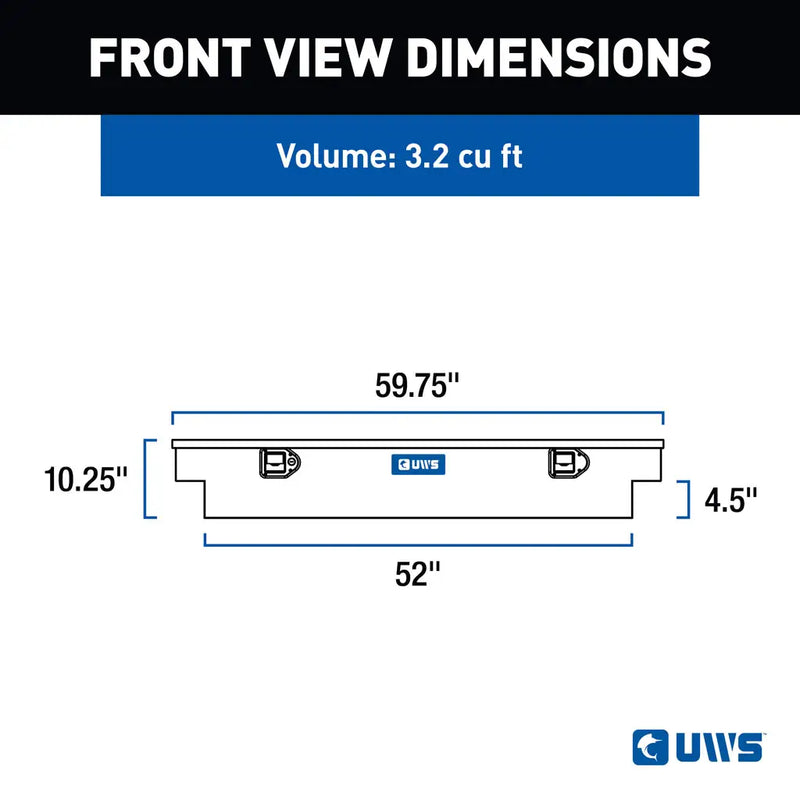

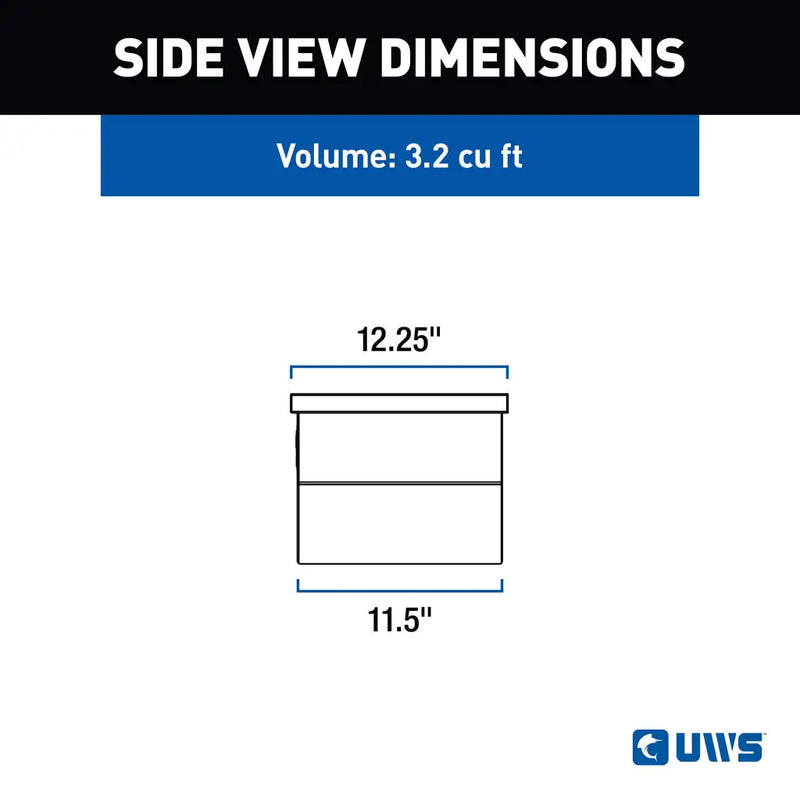

UWS rates the interior at 3.2ft³. The tub measures 52" by 11.5", 4.5" deep at the lower section. Those figures come from UWS's own dimension drawing for this part number and match the spec table on the same page.
Will it keep dust and water out?
That is what the MicroSeal gasket is for: it lines the seam where the lid meets the tub and keeps out moisture, dirt, debris and insects. On a trail machine the fine dust is usually the bigger problem, and the gasket is the reason the contents stay clean. It is a sealed box, not a submersible case.
Why are there two part numbers for what looks like the same box?
Because of how it ships. This one goes freight (LTL), which means a truck and a delivery appointment. UWS also sells the identical box in heavy parcel packaging under a separate part number, backed by a damage-free delivery guarantee, if a freight delivery is awkward where you are.
