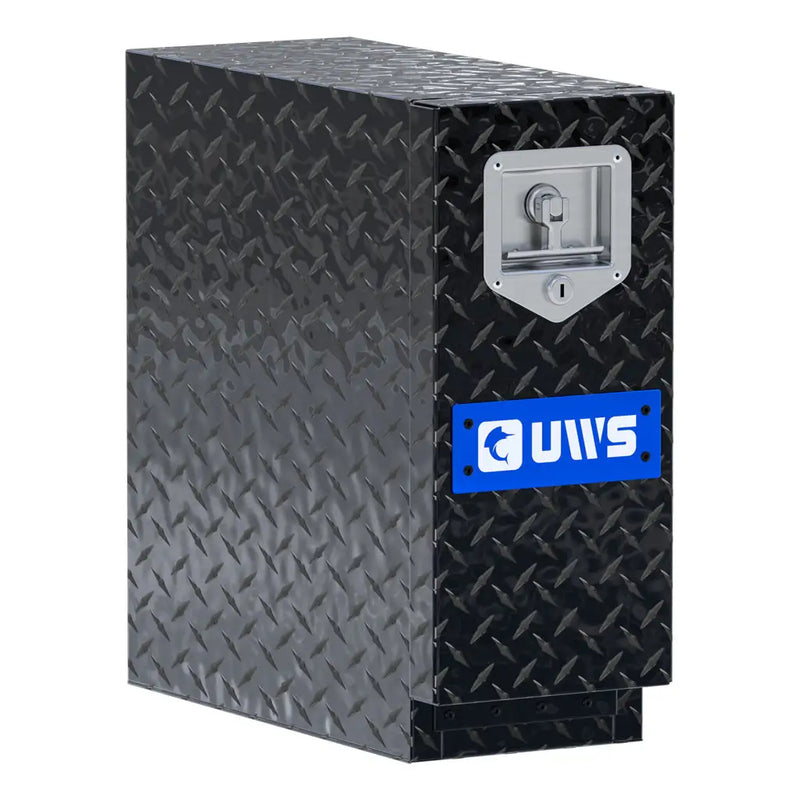

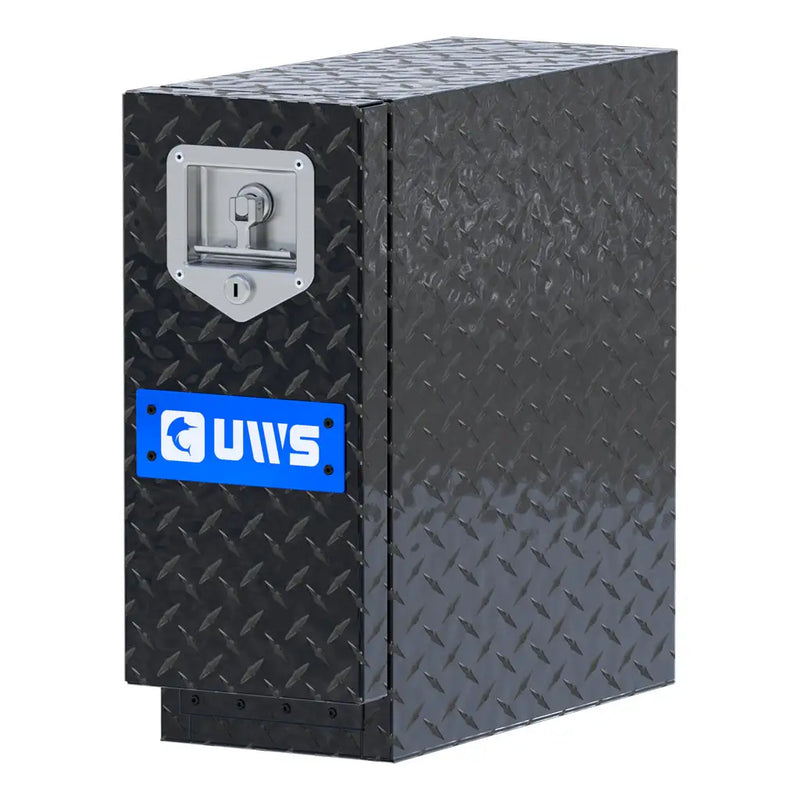

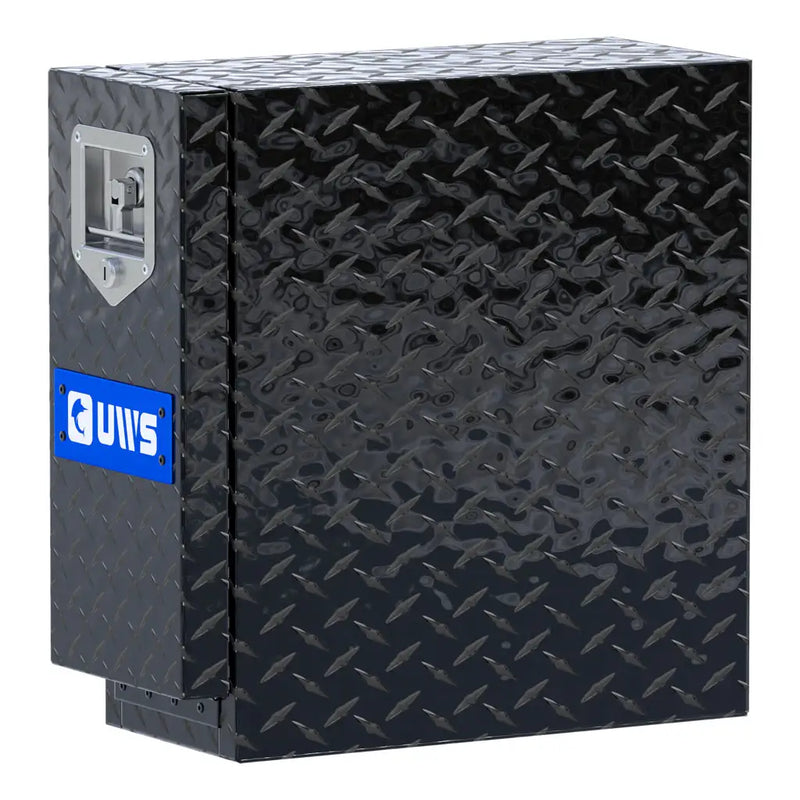

Five drawers, one lock, and a footprint that gives most of your bed back. The UWS DS-18-BLK is a 18" wide drawer box that mounts upright in the truck bed and turns loose tools into something you can actually find. The five commercial-grade precision-injected drawers sit behind a single lockable door, so the whole set is secured by one T-handle rather than five separate latches, and the door carries MicroSeal weather stripping to keep grime and moisture off what is inside. Capacity is 1.5ft³ across the drawers, the shell is extra-thick aluminum finished in gloss black powder coat, and the whole box stands 18.75" tall on a 18" by 7.75" footprint. Like all UWS truck tool boxes, it is designed, fabricated and welded in Florida.
What's Included:
UWS DS-18-BLK drawer truck tool box
Five precision-injected drawers, fitted
Two keys
Four hex bolts, 1/4" x 1-1/4"
Eight flat washers, 1/4"
Four nyloc nuts, 1/4"
MicroSeal weather stripping, fitted
UWS installation sheet
Features

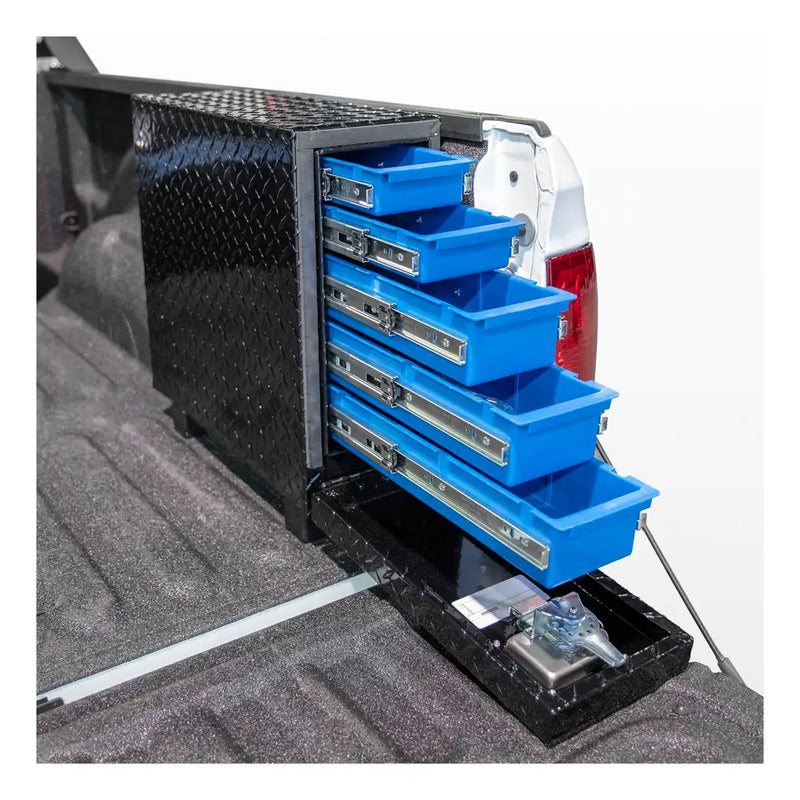

Five Drawers Behind One Lock The drawers are commercial-grade and precision-injected, and they sit inside the box behind a single lockable door. That is the practical advantage over an open chest: everything has a place, and one turn of one key secures the lot rather than leaving you to check five separate latches in the dark.
1.5ft³ of Organized Storage Total drawer capacity is 1.5ft³. It is not a large number compared with an open crossover box, and it is not meant to be. Drawer volume buys you the ability to put your hand on a specific socket or a specific fitting in seconds, which on a working truck is worth more than another cubic foot of pile.

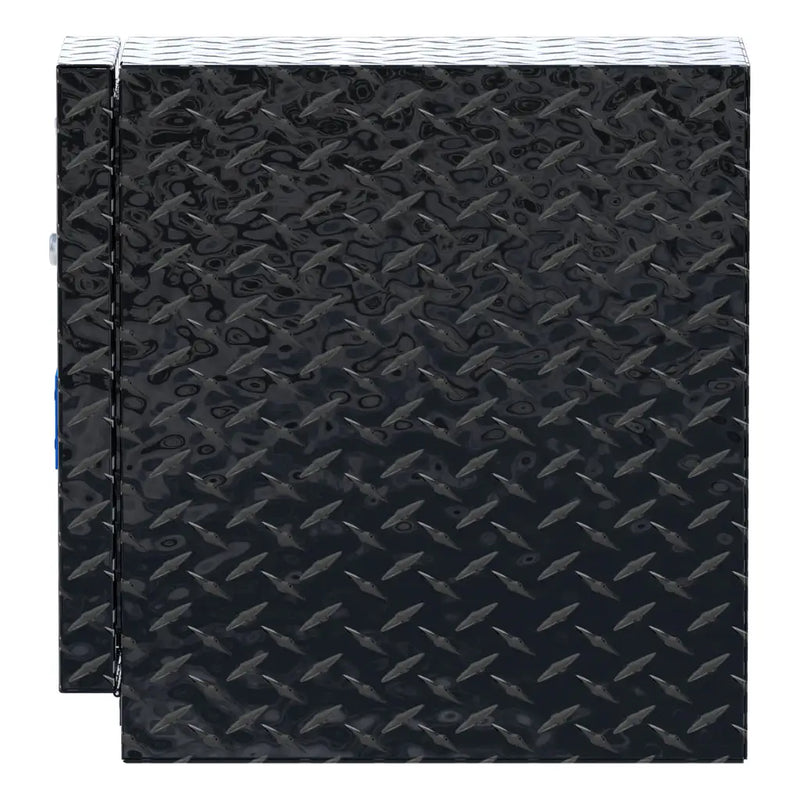

Upright Footprint Keeps the Bed Usable At 18" wide and only 7.75" front to back, the box stands against the bulkhead or the wheel well and leaves the floor of the bed open. You are giving up a narrow strip of bed rather than the whole front of it.

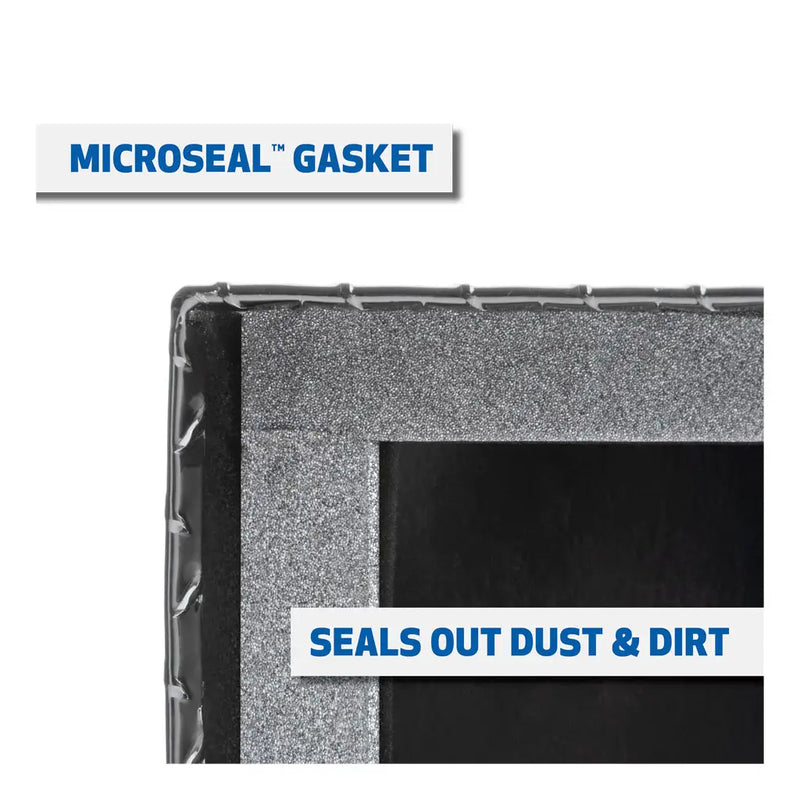

MicroSeal Weather Stripping on the Door UWS runs its MicroSeal stripping around the door, which is a thick automotive-style seal rather than a thin foam strip. It is what keeps road grit and rain out of the drawers, and it is the difference between tools that come out clean and tools that come out gritty.
Extra-Thick Welded Aluminum Heavy-wall aluminum with welded seams, finished in gloss black powder coat over a diamond-plate surface. Aluminum is the right material for a box bolted into a steel bed that lives in road salt, because it will not rust out from the mounting points the way a painted steel box does.

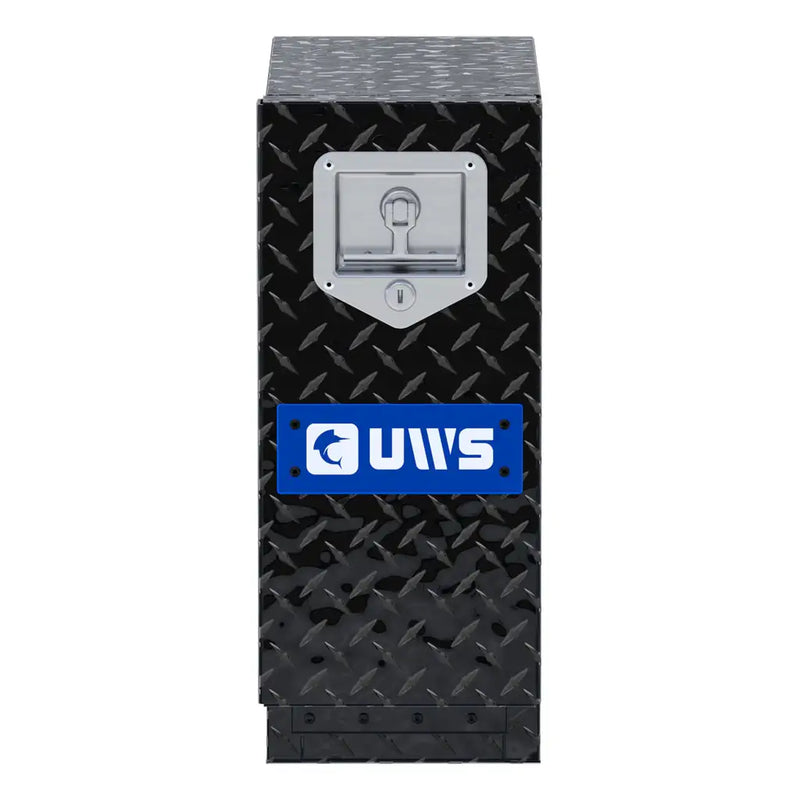

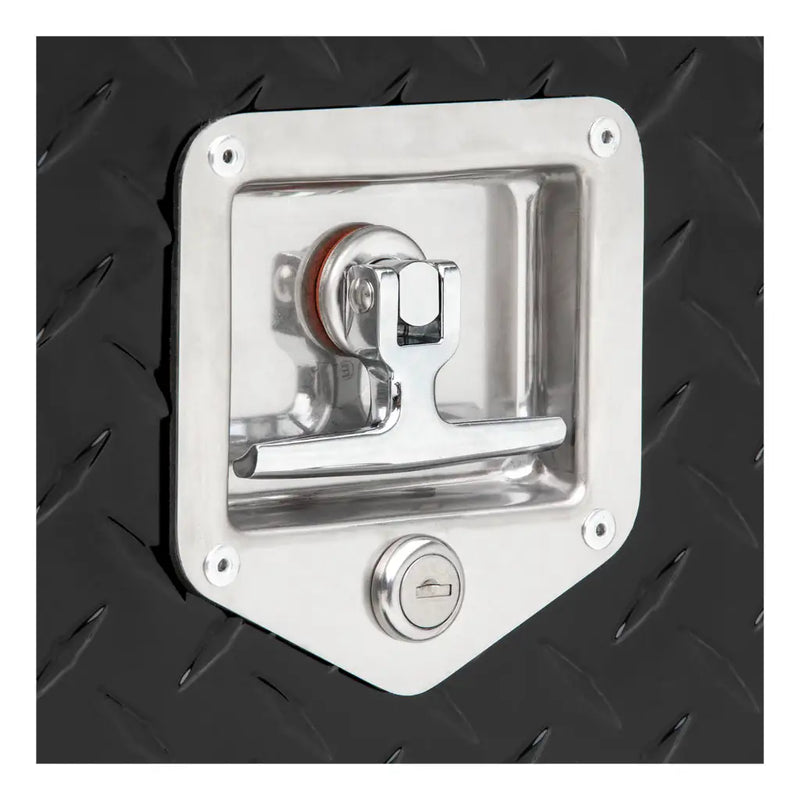

Locking T-Handle A single keyed T-handle that folds flush into the door. Replacement cylinders and keys for the T-handle series are stocked as service parts, so a lost key never becomes a reason to replace the box.
Fitment & Compatibility
Application
Fit
Full-size pickup beds
✓ Yes, mounts upright against the bulkhead or wheel well
Mid-size pickup beds
● Usually yes, but measure: the box needs 7.75" of floor depth and 18.75" of height clearance under a closed tonneau
Service bodies, trailers and shop use
✓ Yes, anywhere you can bolt it down to a flat floor
Under a low-profile tonneau cover
● Only if you have more than 18.75" of clearance, which most low-profile covers do not give
Spanning the bed rails
✗ No, this is a bed-floor box, not a crossover
Fit guidance: This is a bed-floor drawer box, not a crossover, so it does not span the bed rails and its fit is about floor space and height rather than rail-to-rail width. Check three things before ordering: 7.75" of depth against your bulkhead or wheel well, 18" of width for the footprint, and 18.75" of vertical clearance, which is the measurement that catches people out if a tonneau cover is involved. The bolt-down hardware is supplied with the box, and the drawers need to be able to open fully forward, so leave room in front of the box as well as under it.
Specifications
Part Number: DS-18-BLK
Model: 18" Drawer Truck Tool Box
Box Style: Drawer box
Drawers: 5
Storage Capacity: 1.5ft³
Door Style: Single-door
Latch Type: T-handle
Material: Aluminum
Finish: Gloss black powder coat

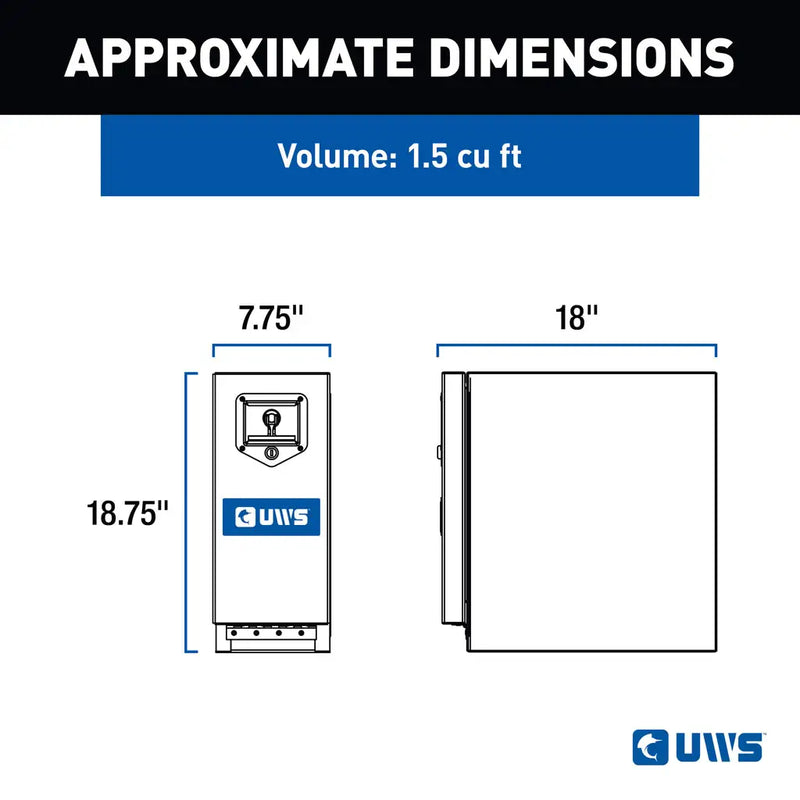

Overall Width: 18"
Overall Height: 18.75"
Overall Length: 7.75"
Carrying Handles: Not fitted
Installation Difficulty: Easy
Product Weight: 27.2 lb
Shipping Weight: 30 lb
Shipping Method: Freight only, oversized item
Country of Origin: USA
UPC: 672078016193
Warranty: UWS Limited Lifetime Warranty, one-year finish, one-year parts
Installation
Type: Bolt-down mounting to the truck bed floor · Time: About an hour · Tools: Drill, socket set, marker, tape measure, and a second person to lift the box into place · Difficulty: Easy to intermediate, DIY-friendly
Set the box where you want it and open every drawer fully before you mark anything, because a box positioned tight against the bulkhead can foul its own drawers. Mark through the mounting points, then get underneath and confirm your drill path is clear of the fuel tank, brake and fuel lines, the spare tire winch and the wiring harness. Drill, deburr, treat the bare metal on a steel bed, and bolt down using the supplied 1/4" hardware. At 30 lb this is a two-person lift into a bed. Follow the UWS installation sheet linked on this page for the specifics.
Resources
Everything you need for your UWS 18" Drawer Truck Tool Box, Gloss Black, in one place.
Warranty. UWS Limited Lifetime Warranty on the box, with one year on finish and one year on parts. Normal wear, cosmetic damage and damage from overloading or improper installation are not covered.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About UWS
UWS has been building aluminum truck storage since 1997, and today it sits inside the CURT Group under Lippert, alongside CURT towing and Luverne steps. That matters mainly for what it buys you as an owner: a real engineering department, a published warranty, and a parts counter that still stocks handles, cylinders and strikers for boxes sold years ago. UWS builds tool boxes the way a fleet buyer would spec them, out of heavy-wall aluminum with fully welded seams rather than folded and riveted corners.
Two things separate a UWS box from a bargain box on a shelf. The first is the patented RigidCore lid, a foam-injected core that fills the lid cavity so the panel does not oil-can, drum or dish when somebody stands on it. The second is MicroSeal weather stripping, a thick automotive-style seal that runs the full perimeter and keeps dust and water out of the tub on washboard roads and in driving rain. Add stainless hardware, a lock that is actually worth locking and a lid that holds itself open, and you have a box that still works after the winters that finish cheaper boxes.
Prestige Truck is an authorized UWS dealer. Every box we ship is new, factory-packed, covered by the full UWS factory warranty, and backed by a parts supply that means a lost key or a tired handle never turns into a replaced tool box.
Compare The Range
How this compares to similar models
The closest alternatives side by side, so you do not have to keep tabs open.
Model
This OneUWS 18" Drawer Truck Tool Box, Gloss Black (DS-18-BLK)
UWS packs a box with mud and then attacks the seams with a pressure washer to show what the MicroSeal stripping keeps out.
Relevant here because this box depends on that same perimeter seal to keep grit and water away from whatever you store in it.
Damage-Free Delivery Guaranteed
This box ships by freight rather than parcel, so it arrives on a truck and you sign for it. UWS explains how it packs and crates boxes for that trip and what to check before you sign the delivery receipt.
Inspect the carton at the curb, because noting damage on the paperwork is far easier than chasing it afterwards.
Frequently Asked Questions
Straight answers on specs, fit and support
How much will it actually hold?
1.5ft³ across the five drawers. Think of it as organization rather than bulk storage: a drawer box holds fewer cubic feet than an open crossover of similar cost, and what you get in exchange is being able to find one specific tool without unpacking anything.
Does it fit under a tonneau cover?
It stands 18.75" tall, which is more clearance than most low-profile covers give. Measure from the bed floor to the underside of your closed cover before ordering, since this box mounts on the floor rather than the rails.
Are the drawers lockable individually?
No, and they do not need to be. All five sit behind one lockable door with a T-handle, so a single key secures the entire box. That is quicker in practice than checking five latches.
Is mounting hardware included?
Yes. UWS's installation sheet lists four 1/4" x 1-1/4" hex bolts, eight 1/4" flat washers and four 1/4" nyloc nuts in the carton, along with two keys, so the bolt-down hardware comes with the box. You still need to check underneath before you drill, because the fuel tank, brake and fuel lines and the spare tire winch are all things you do not want to find with a drill bit.
Will it ship to my house?
It ships by freight rather than parcel, so it arrives on a truck at roughly 30 lb in its packaging. Someone needs to be there to sign for it and inspect the carton, and note any damage on the delivery paperwork before signing.
Can I get replacement keys later?
Yes. This box uses the UWS T-handle lock system, and both replacement cylinders and keys are stocked as service parts, ordered by the code stamped on your cylinder. A lost key is a parts order, not a new box.
