The wheel well is the most wasted space in a pickup bed, and this is the box built to use it. The UWS FW-48-DS-P is a 48" passenger-side wheel well box that steps over the wheel arch and sits tight against the bed side, leaving the floor of the bed clear to haul everything else. The main compartment gives 3.9ft³ under a patented RigidCore foam-filled lid, and below it are three integrated drawers that slide open toward the rear behind their own small lockable door, which is where the small tools and fittings live. The shell is extra-thick bright aluminum diamond plate, secured by a stainless steel lock handle. Mounting hardware is not included. Like all UWS truck tool boxes, it is designed, fabricated and welded in Florida.
What's Included:
UWS FW-48-DS-P wheel well truck tool box, passenger side
Three integrated rear-sliding drawers, fitted
RigidCore foam-filled lid
Stainless steel locking handle
Two keys
UWS installation sheet
Features

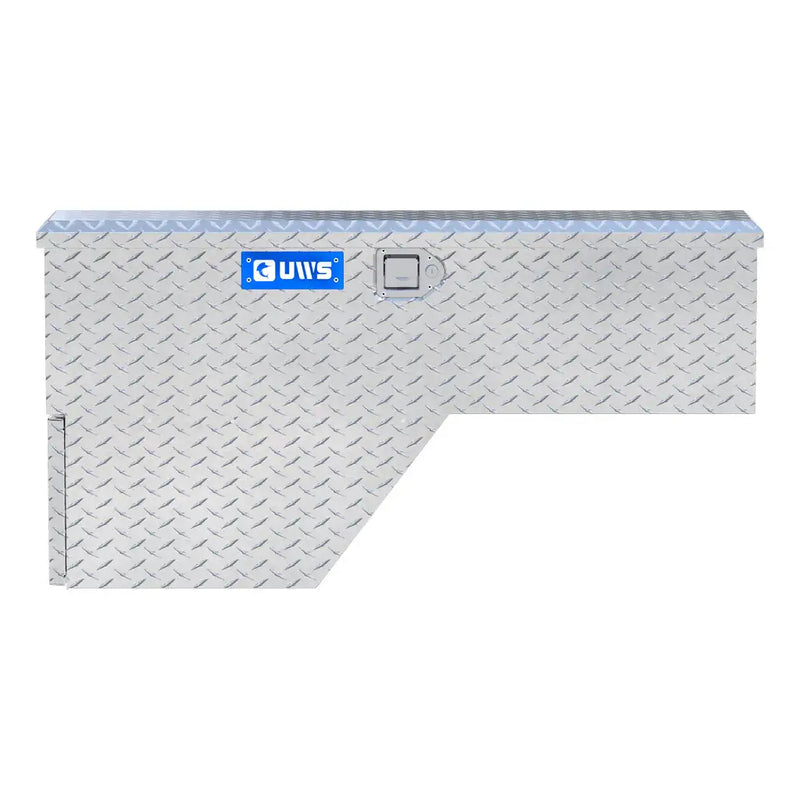

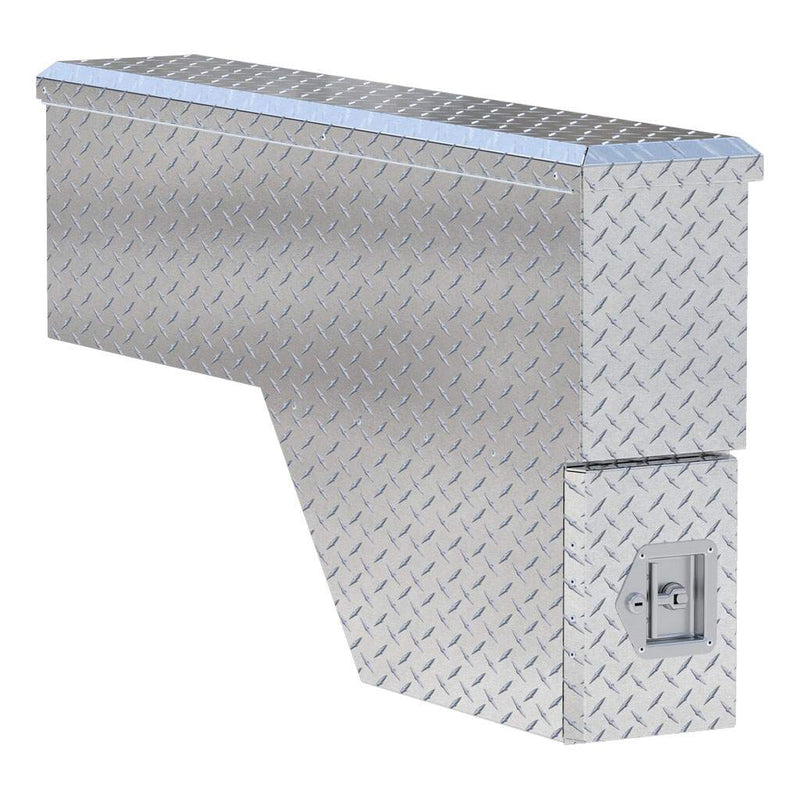

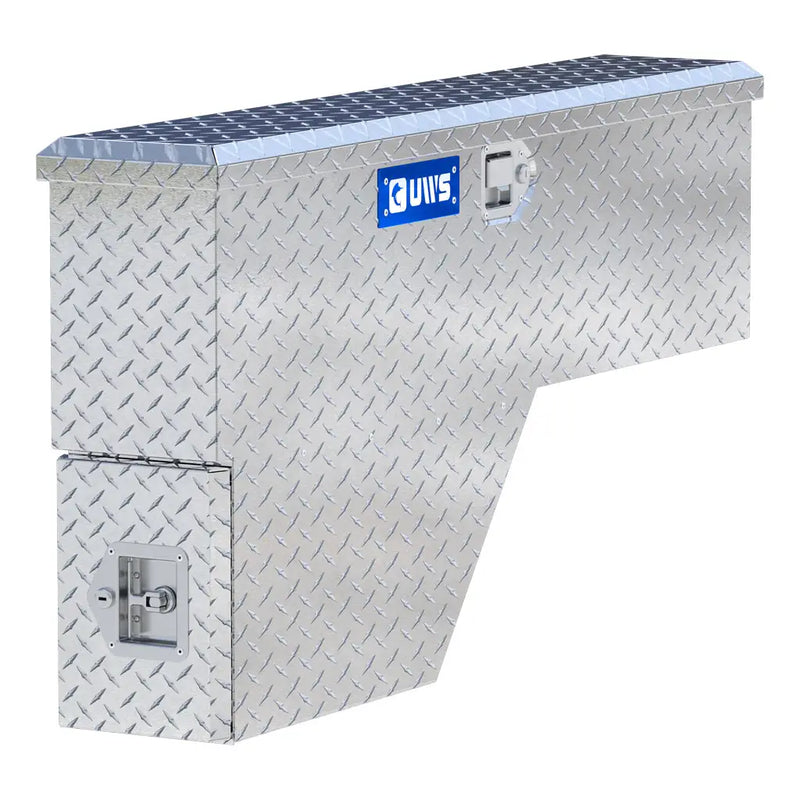

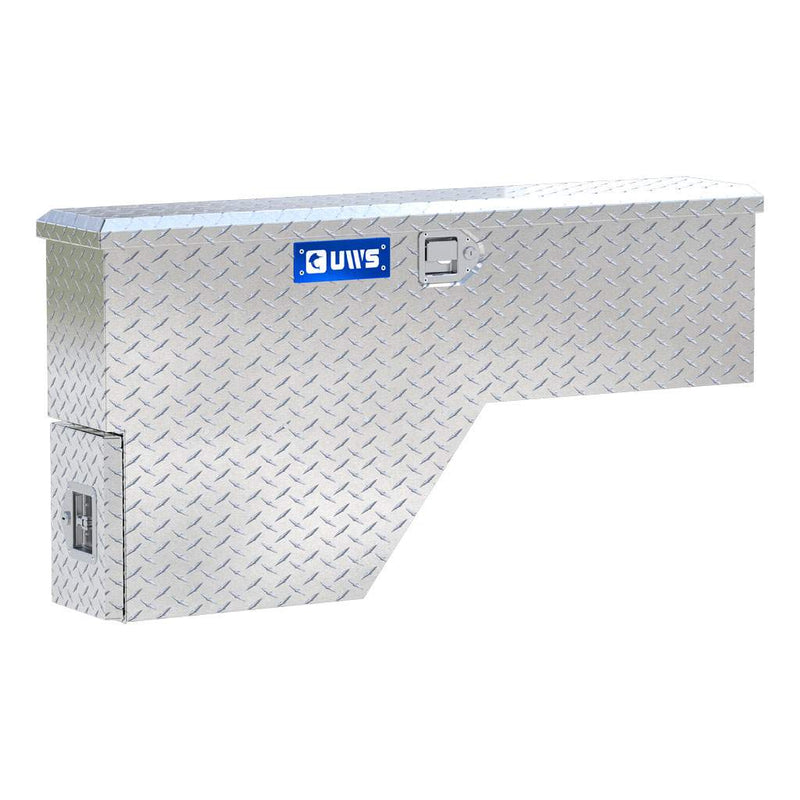

Shaped Around the Passenger-Side Wheel Well This box is handed. The step in the lower profile is cut to clear the passenger-side wheel arch, so it drops against the bed side and wastes nothing. Order the side you actually need, because a passenger-side box will not sit correctly on the opposite side of the truck.

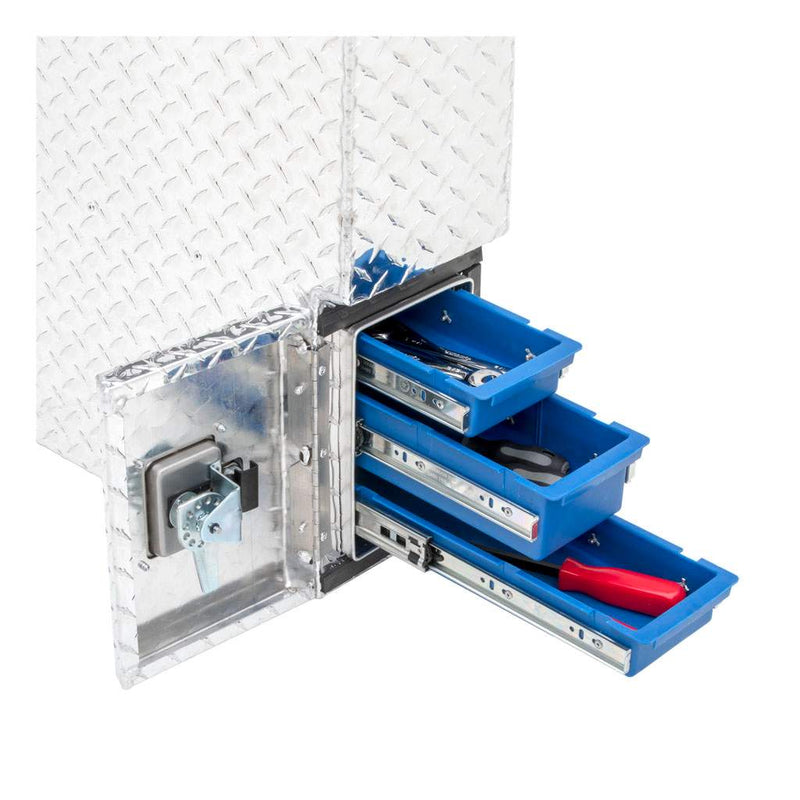

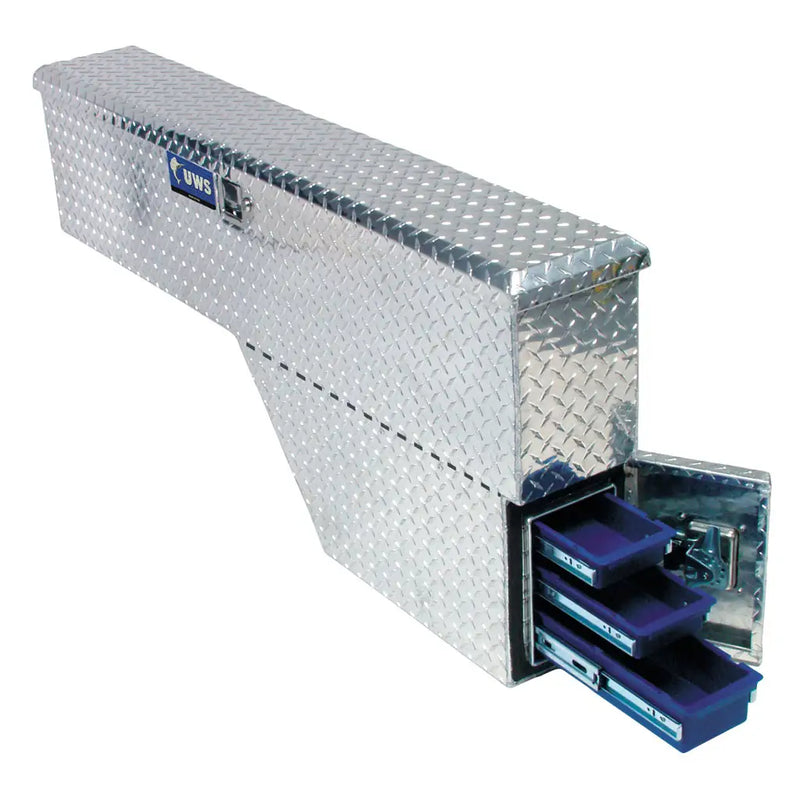

3.9ft³ Plus Three Drawers The upper compartment carries 3.9ft³ under the lid, and three drawers below it slide open toward the rear behind a separate lockable door. The split is deliberate: long items and bulk go up top, and the things you lose in a big box live in the drawers.

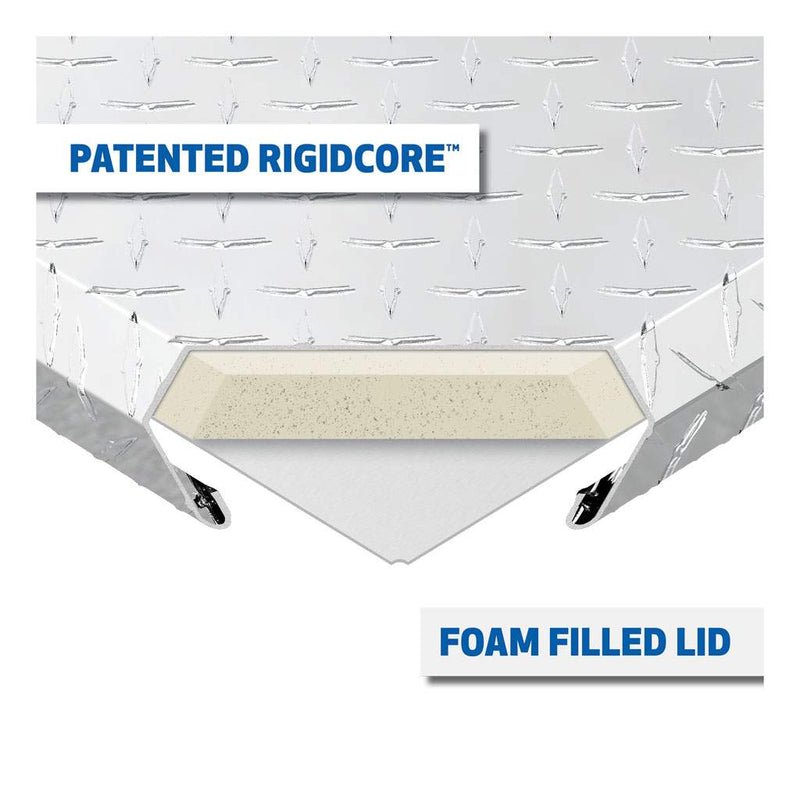

Patented RigidCore Foam-Filled Lid The lid is foam-injected rather than hollow, so the panel carries load across its whole area instead of dishing when someone stands on it to reach into the bed. It is the single biggest difference between a UWS lid and a budget box lid, and it is why the lid does not drum on a rough road.

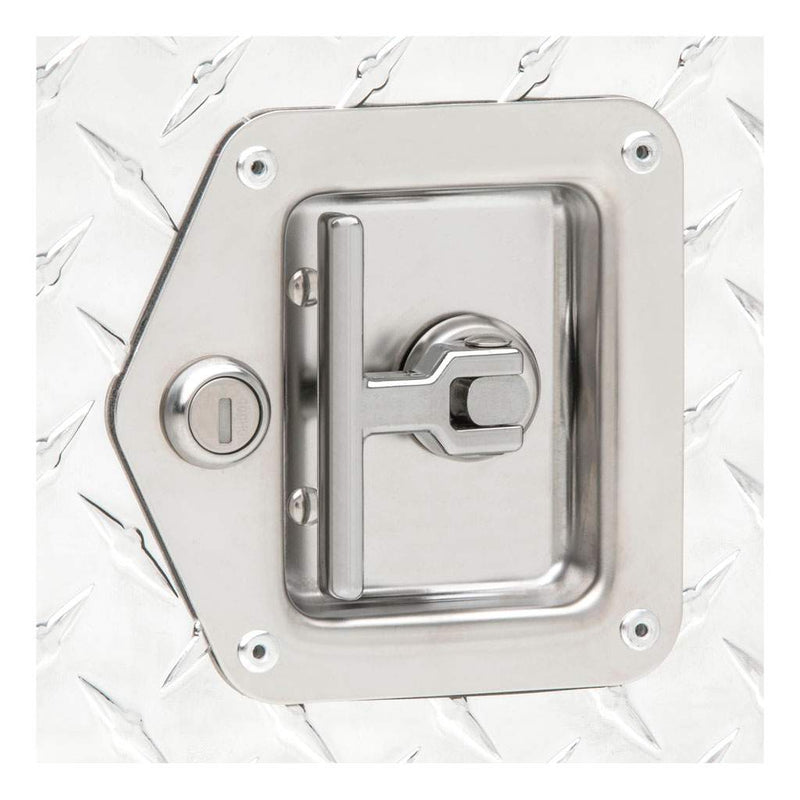

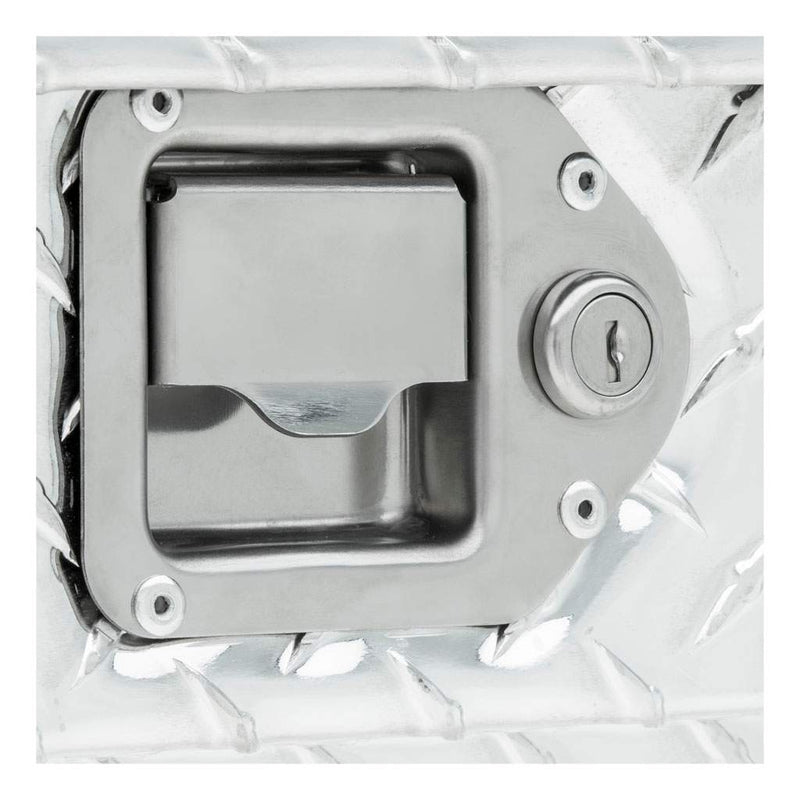

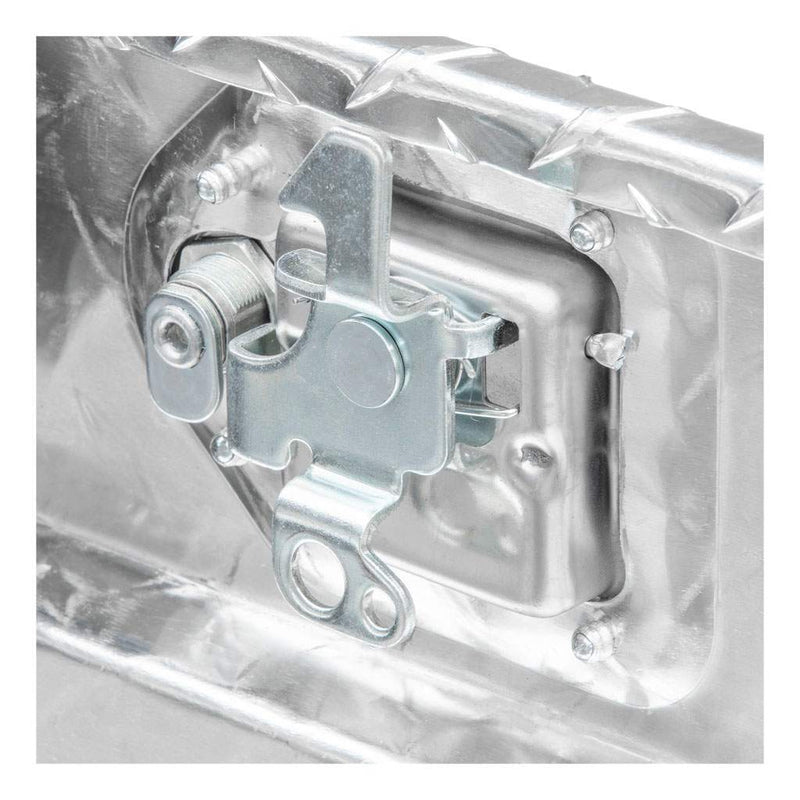

Stainless Steel Lock Handle Stainless rather than plated steel, because the handle is the part most exposed to weather and wash chemicals and the part that has to keep working after a decade outdoors.

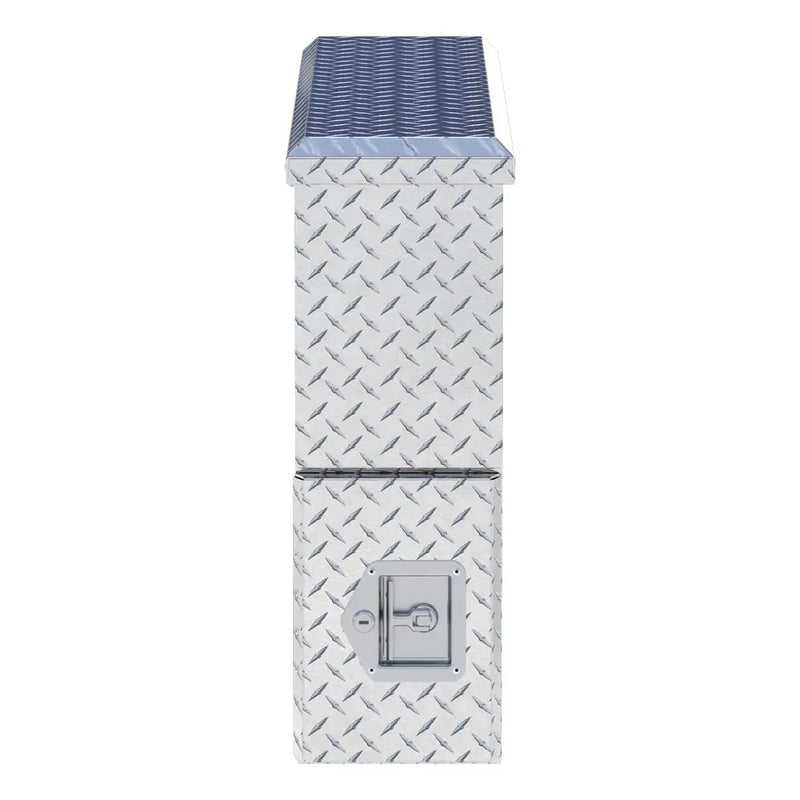

Leaves the Bed Floor Open At 8.75" deep against the bed side, the box takes a narrow strip along the wall rather than a block across the front. You keep the full length of the bed for cargo, which is the whole argument for a wheel well box over a crossover.
Extra-Thick Welded Aluminum Heavy-wall aluminum with welded seams in a bright diamond-plate finish, standing 24.75" tall overall with a 13" upper section above the 11.75" angled step.
Fitment & Compatibility
Application
Fit
Passenger side of a full-size pickup bed
✓ Yes, this is the application it is shaped for
Driver side of the bed
✗ No, order the driver-side version instead
Mid-size pickup beds
● Measure first, a 48" box is long for a short mid-size bed and the wheel arch shape differs
Beds with a spray-in or drop-in liner
● Usually yes, but the liner changes the wheel well profile, so check the box sits flat before drilling
Under a tonneau cover
● Only with more than 24.75" of clearance, which most covers do not provide
Fit guidance: Two things decide this fit. First the side: this is the passenger-side box and it is not reversible, so confirm which side of the truck you are fitting before ordering. Second the wheel arch: the step in the lower profile is cut to a standard full-size pickup wheel well, and a bed liner or an unusual arch shape can stop the box sitting flat. Measure the length of clear bed side you have available against the 48" overall width, and check 24.75" of height clearance if anything closes over the bed. UWS does not supply mounting hardware with this box, and the drawers slide toward the rear, so leave room behind the box for them to open.
Specifications
Part Number: FW-48-DS-P
Model: 48" Wheel Well Tool Box, Passenger-Side
Box Style: Wheel well box with drawers
Orientation: Passenger-Side
Drawers: 3, rear sliding
Storage Capacity: 3.9ft³
Lid Type: Single lid, RigidCore foam filled
Door Style: Single-door
Latch Type: T-handle and paddle handle
Material: Aluminum
Finish: Bright aluminum

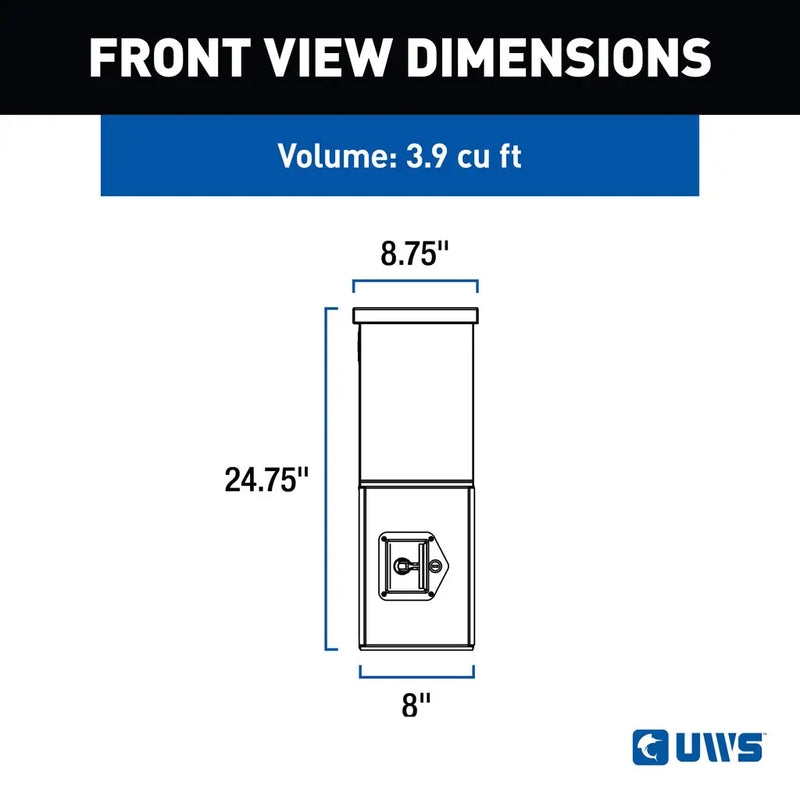

Overall Width: 48"
Overall Height: 24.75"
Overall Length: 8.75"
Upper Height: 13"
Angled Height: 11.75"
Lower Tub Width: 20.25"
Tub Length: 8"
Tub Width: 18"
Profile: Standard profile
Installation Difficulty: Easy
Product Weight: 34.4 lb
Shipping Weight: 40 lb
Shipping Method: Freight only, oversized item
Country of Origin: USA
UPC: 672078016254
Warranty: UWS Limited Lifetime Warranty, one-year finish, one-year parts
Installation

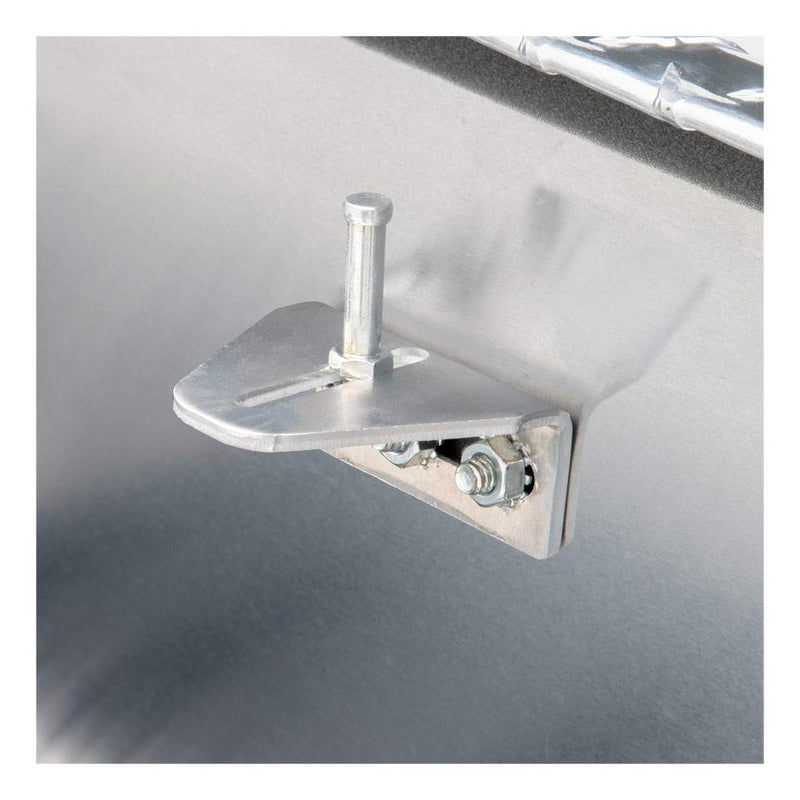

Type: Bolt-down mounting to the truck bed floor alongside the wheel well · Time: About an hour to 90 minutes · Tools: Drill, socket set, marker, tape measure, and a second person for the lift · Difficulty: Easy to intermediate, DIY-friendly
Set the box in place and check three things before marking: that the step clears the wheel arch without rocking, that the lid opens fully without hitting the bed rail, and that the drawers slide all the way out toward the rear with the tailgate down. Then mark, and get underneath to confirm the drill path is clear of the fuel tank, brake and fuel lines, the spare tire winch and the wiring harness. Drill, deburr, treat bare metal on a steel bed, and bolt down. Mounting hardware is not supplied. At 40 lb this is a two-person lift. Follow the UWS installation sheet linked on this page.
Resources
Everything you need for your UWS 48" Passenger-Side Wheel Well Truck Tool Box with Drawers, Bright Aluminum, in one place.
Warranty. UWS Limited Lifetime Warranty on the box, with one year on finish and one year on parts. Normal wear, cosmetic damage and damage from overloading or improper installation are not covered.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About UWS
UWS has been building aluminum truck storage since 1997, and today it sits inside the CURT Group under Lippert, alongside CURT towing and Luverne steps. That matters mainly for what it buys you as an owner: a real engineering department, a published warranty, and a parts counter that still stocks handles, cylinders and strikers for boxes sold years ago. UWS builds tool boxes the way a fleet buyer would spec them, out of heavy-wall aluminum with fully welded seams rather than folded and riveted corners.

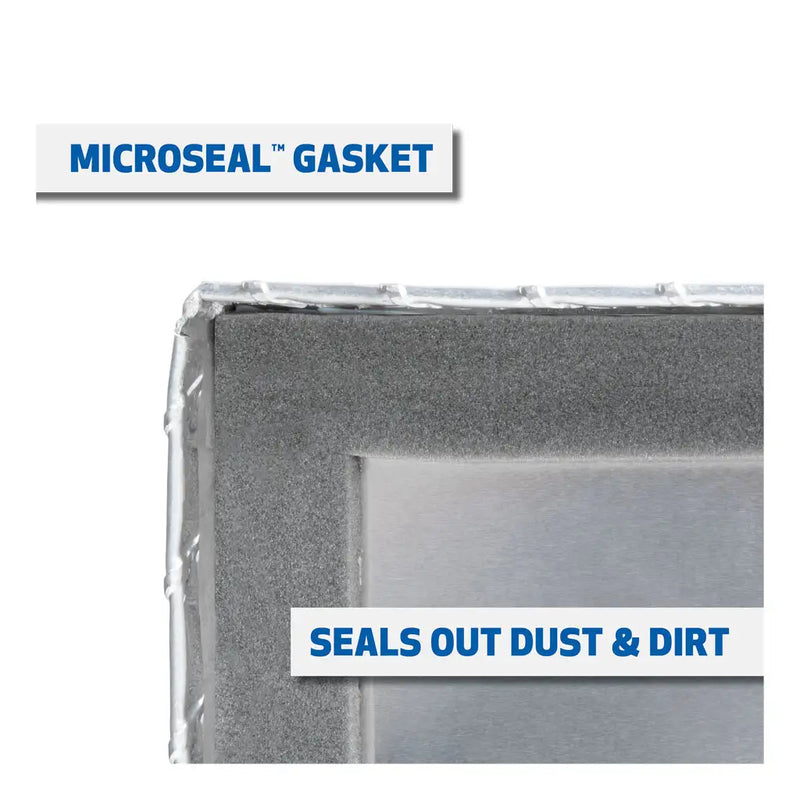

Two things separate a UWS box from a bargain box on a shelf. The first is the patented RigidCore lid, a foam-injected core that fills the lid cavity so the panel does not oil-can, drum or dish when somebody stands on it. The second is MicroSeal weather stripping, a thick automotive-style seal that runs the full perimeter and keeps dust and water out of the tub on washboard roads and in driving rain. Add stainless hardware, a lock that is actually worth locking and a lid that holds itself open, and you have a box that still works after the winters that finish cheaper boxes.
Prestige Truck is an authorized UWS dealer. Every box we ship is new, factory-packed, covered by the full UWS factory warranty, and backed by a parts supply that means a lost key or a tired handle never turns into a replaced tool box.
Compare The Range
How this compares to similar models
The closest alternatives side by side, so you do not have to keep tabs open.
Model
This OneUWS 48" Passenger-Side Wheel Well Truck Tool Box with Drawers, Bright Aluminum (FW-48-DS-P)
RigidCore Strength Test: Tool Box Vs. Pickup Truck
UWS drives a pickup onto one of its RigidCore lids.
It is a stunt, but it demonstrates the actual point of a foam-injected lid: the core fills the cavity so the panel spreads load across its whole area instead of dishing in the middle the way a hollow lid does.
Damage-Free Delivery Guaranteed
This box ships by freight rather than parcel, so it arrives on a truck and you sign for it. UWS explains how it packs and crates boxes for that trip and what to check before you sign the delivery receipt.
Inspect the carton at the curb, because noting damage on the paperwork is far easier than chasing it afterwards.
Frequently Asked Questions
Straight answers on specs, fit and support
Which side do I need?
This is the passenger-side box. Stand at the tailgate looking forward: the passenger side is on your right in a US-market truck. The box is handed around the wheel arch and will not fit correctly on the opposite side.
How much does it hold?
3.9ft³ in the main compartment under the lid, plus three drawers underneath. The drawers are for the small things that disappear in a big box; the upper compartment is for everything else.
Do the drawers lock?
They sit behind their own small lockable door, so yes, the drawer bay is secured separately from the main compartment. The main lid has its own stainless lock handle.
Is mounting hardware included?
No, and UWS is explicit about it: the install sheet's parts list is the box and two keys only, with a footnote saying you must purchase your own hardware. The right bolts depend on your bed. Look underneath before drilling, since the fuel tank, brake and fuel lines and the spare tire winch are all in play.
Will it clear my bed liner?
Usually, but a liner changes the wheel arch profile and can leave the box rocking. Set the box in place and check it sits flat on all its mounting points before you drill anything.
How does it ship?
By freight, not parcel, at about 40 lb packaged. It arrives on a truck, someone has to sign for it, and you should inspect the carton and note any damage on the paperwork before signing.
