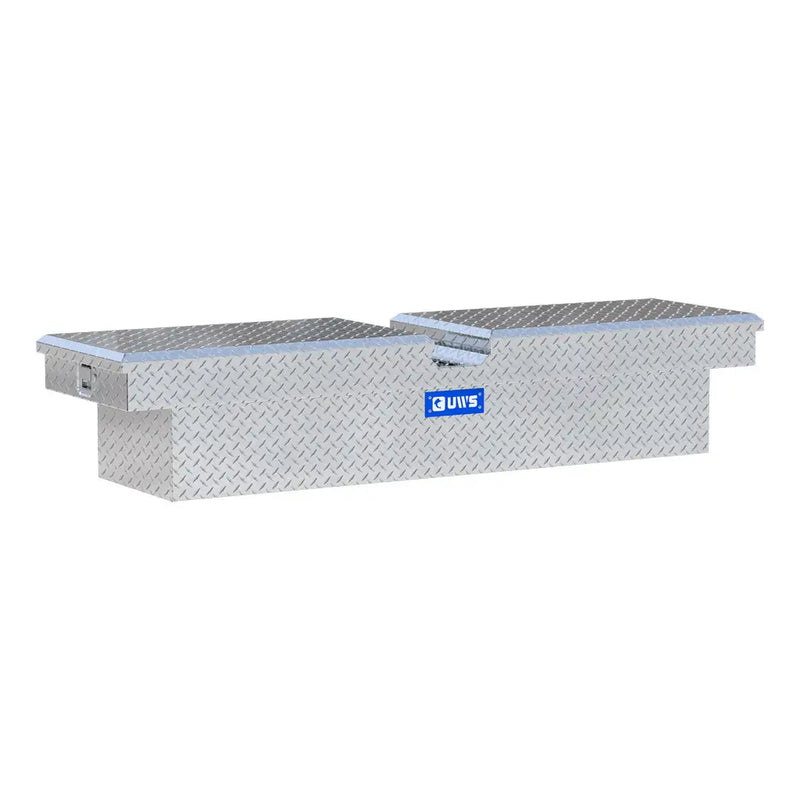

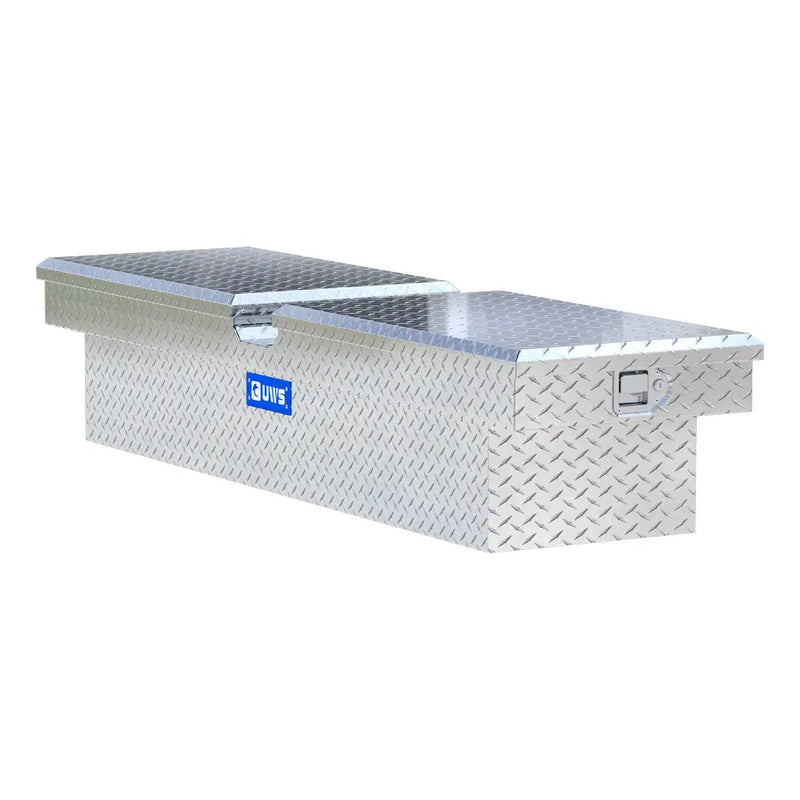

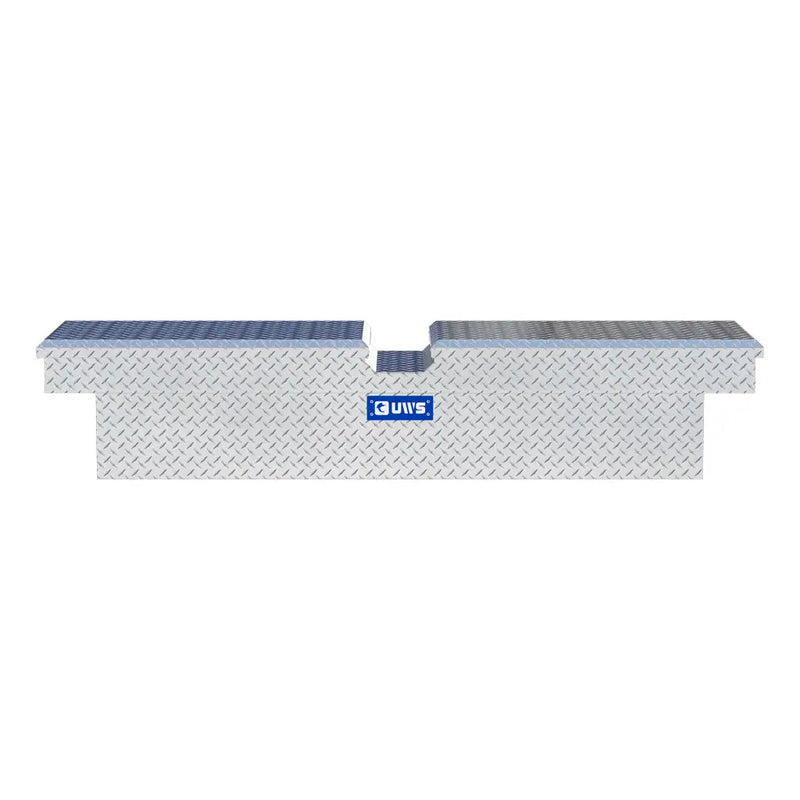

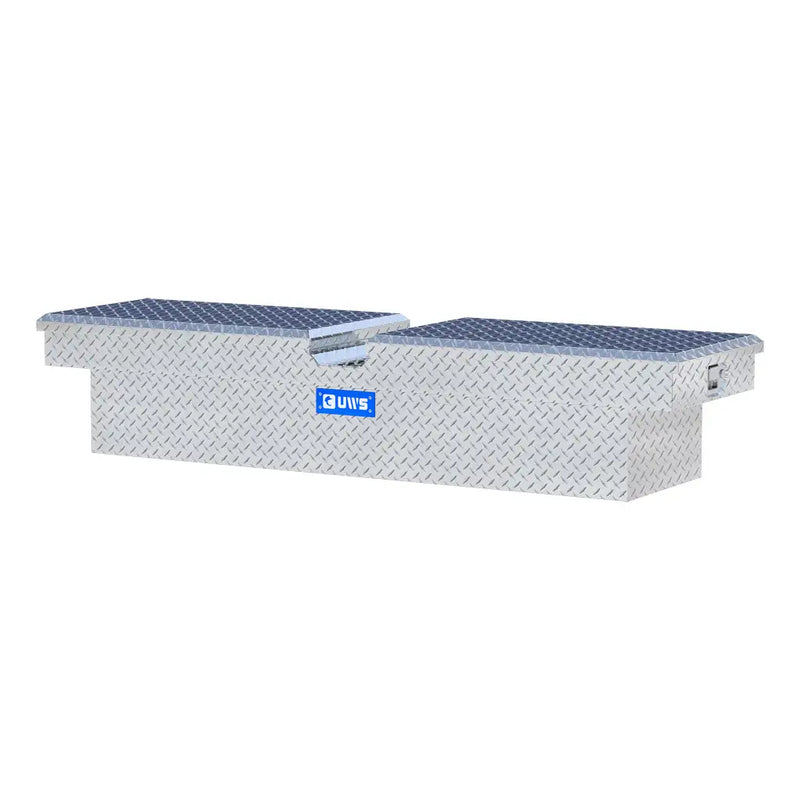

This is the UWS crossover truck tool box, the box that sits across the bed just behind the cab. It holds 9ft³ in a 73" body, and it uses gull wing lids so you can open just the half you need from whichever side you are standing on. It closes on two stainless steel paddle lock handles, set wide apart so they fall to hand from beside either bed rail. The tub is a single piece of 0.058" aluminum, the lid is UWS's patented RigidCore foam-filled design so it will not flex or bind, and a MicroSeal gasket runs the full perimeter of the opening to keep rain and dust out. The finish is bright aluminum diamond plate. This is the heavy-packaging version of the box: mechanically identical to the standard part, but crated for parcel carriage so it can ship without freight. UWS designs, fabricates and welds it in Florida and backs it with a limited lifetime warranty.
What's Included:
UWS 72" Crossover Truck Tool Box in Bright Aluminum, part EC50009
2 keys
2 rail pads
2 J-hooks, 3"
2 washers, 1/4"
2 nuts, 1/4"
Divider tray, on the models that include one
UWS installation sheet, product literature and warranty information
Features
Extra-Thick 0.058" One-Piece Aluminum Tub The tub is formed from a single piece of 0.058" aluminum rather than welded up from thinner panels, so there are fewer seams to leak or split and the box keeps its shape when it is loaded with heavy hand tools, cordless kits and chain. Aluminum also means it will not rust out from the inside the way a painted steel box does once the coating is chipped, which matters on a box that lives outdoors and gets road salt thrown at it every winter.

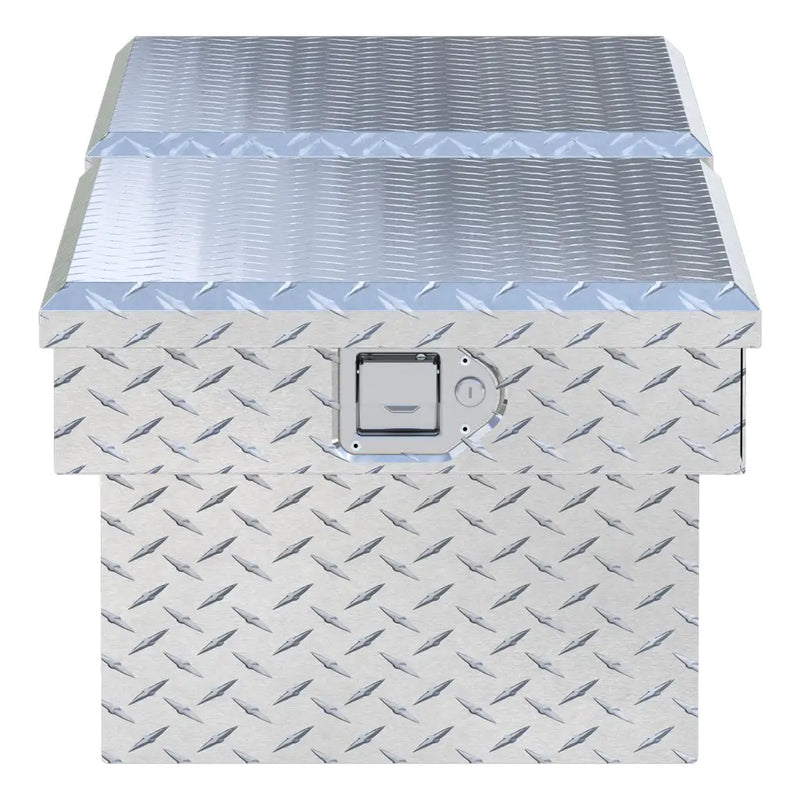

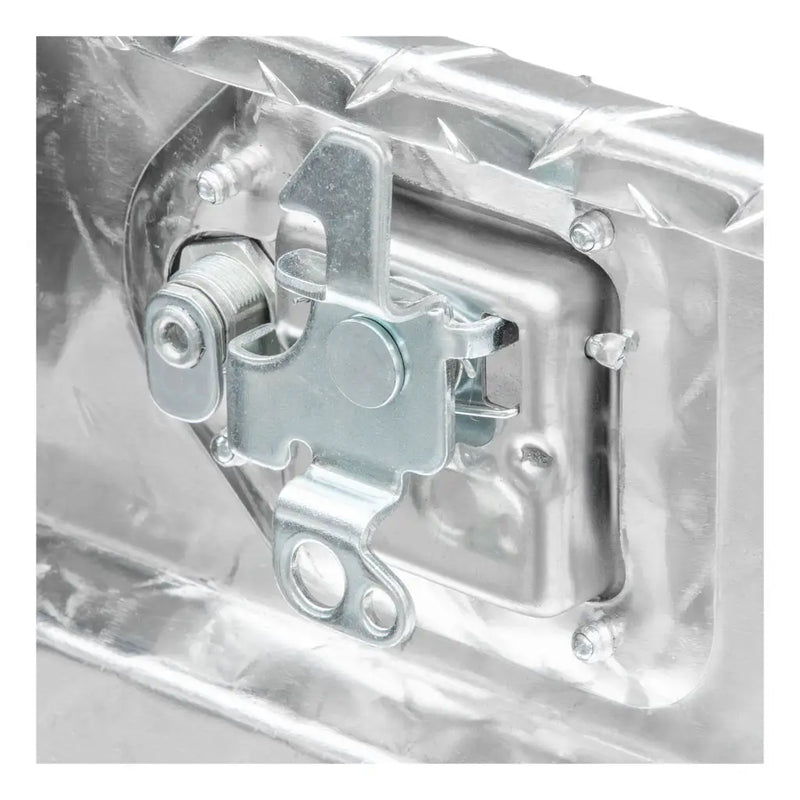

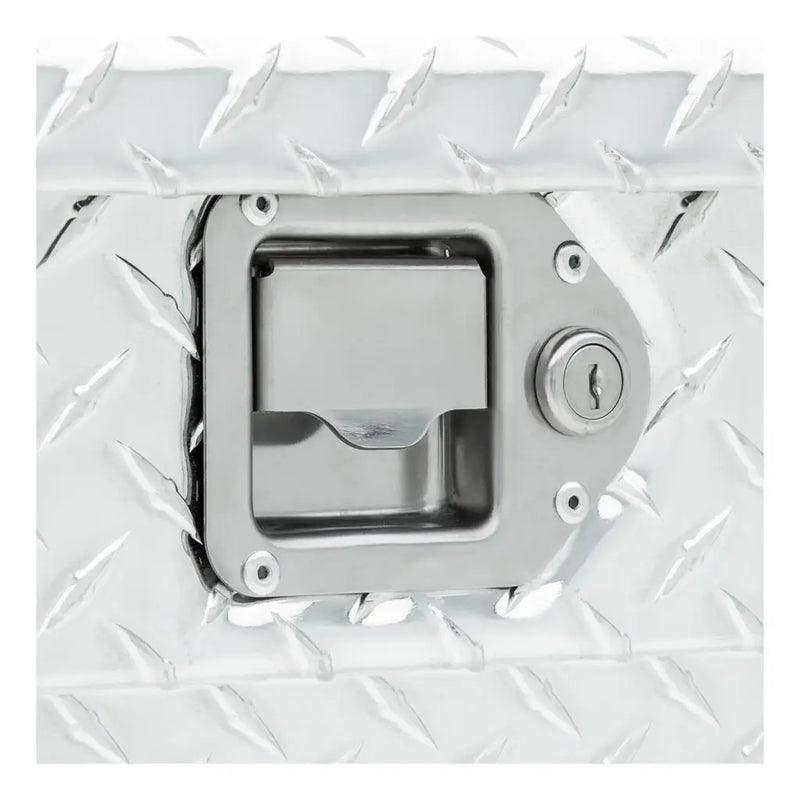

Stainless Steel Lock Handles The lock handles are stainless steel, not plated pot metal, so they keep working after a few winters of salt and do not seize or bloom with rust. Both handles lock.

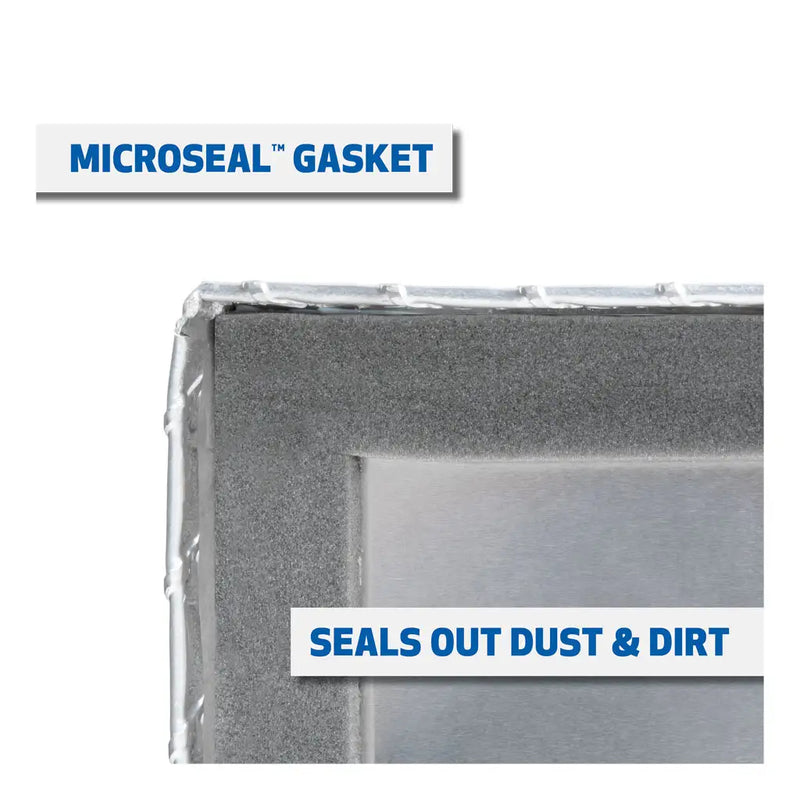

MicroSeal Weather Gasket A MicroSeal gasket runs the full perimeter of the opening and compresses as the lid closes, sealing out rain, road spray, dust and the fine grit that ruins bearings and fastener threads. It is the part of a tool box most owners only think about after they have found standing water inside a cheaper one.

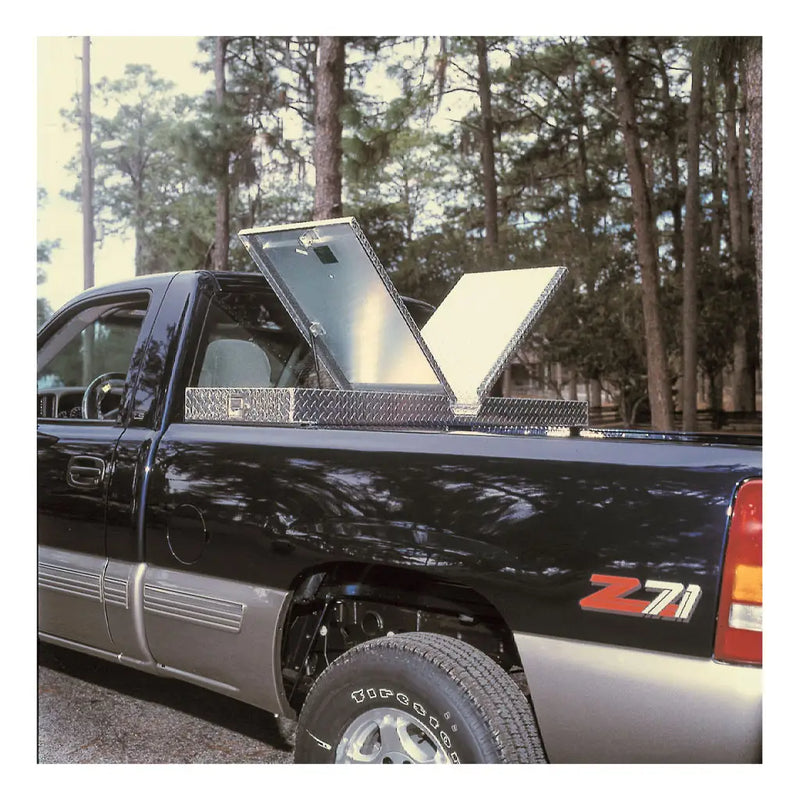

Self-Opening Lid Release the paddle handles and the lid lifts and stays up on its own, close to a full 90 degrees. That is a genuinely useful detail when both hands are full or you are working in the dark: you are not holding a heavy lid open with a shoulder while you dig for a socket.

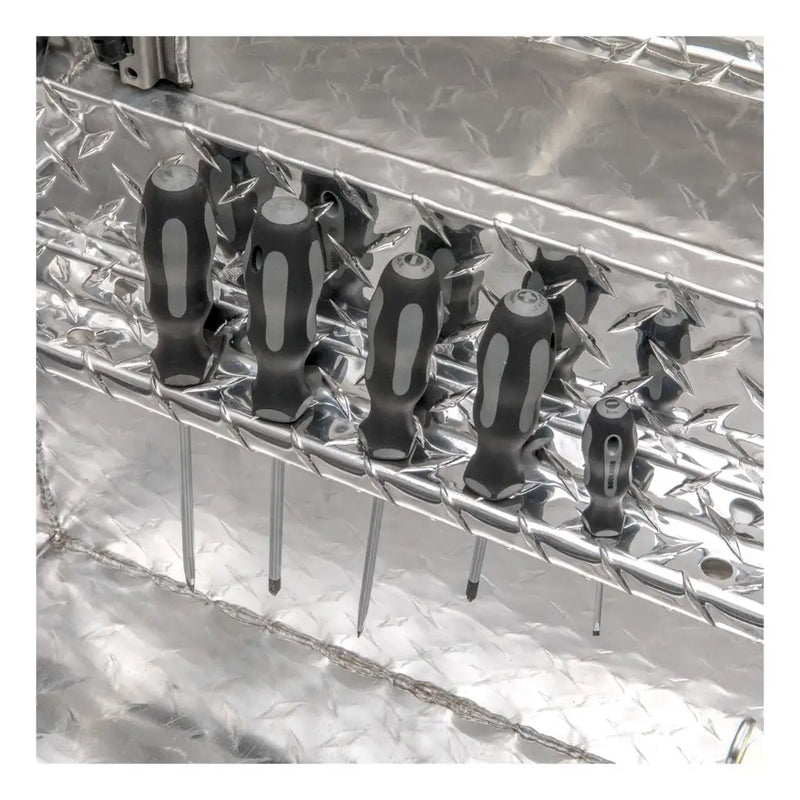

Tool Trays and Screwdriver Holders Moulded tool trays and built-in screwdriver holders come as part of the box, so the things you reach for constantly have a home instead of ending up loose in the bottom.

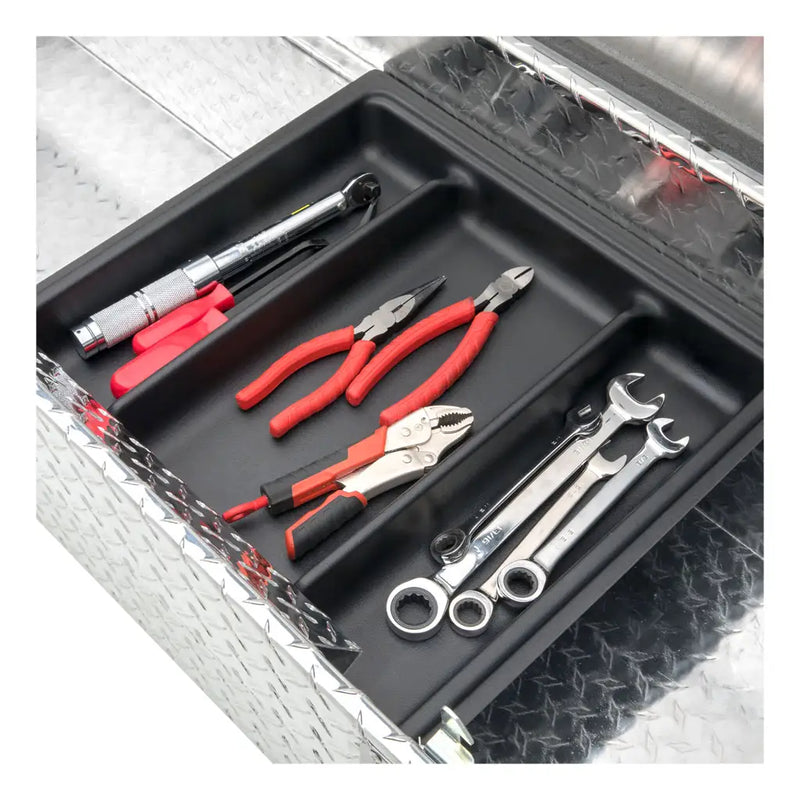

Three-Compartment Sliding Tray A divided tray slides the length of the box on its own rails, keeping fasteners, bits and small hand tools sorted and reachable instead of migrating to the far corners every time you drive.
Part of a Full Size Range UWS builds this body style in several lengths, so you can match the box to the bed rather than accepting whatever happens to be in stock. This one is the 72" version.
Pre-Drilled and Ready to Mount The mounting slots are pre-drilled and the hardware is supplied, so fitting is a matter of setting the box in place, marking through and bolting down. No cutting or drilling of the truck is required.
Fitment & Compatibility
Bed Type
Fit
Full-size pickup, standard bed width
✓ Yes, ideal application
Full-size pickup, 5.5' short bed
✓ Yes, a crossover box sits behind the cab and does not depend on bed length
Mid-size pickup (Tacoma, Ranger, Colorado)
● Measure rail to rail first, a 72" box suits full-size beds
Flareside, stepside and older narrow beds
● Measure rail to rail before ordering
Fit guidance: A crossover box spans the bed rails just behind the cab, so the measurement that matters is rail to rail, outside to outside, not bed length. This box is 73" across (UWS markets it as the 72" box; 73" is the true overall length), 20" front to back and 14.75" tall. Mounting hardware is included: 2 rail pads, 2 J-hooks, washers and nuts.
Specifications
UWS Part Number: EC50009
Equivalent Standard Part Number: TB-72 (same box, standard packaging)
Box Style: Crossover Truck Tool Box, Standard Profile
Finish: Bright Aluminum diamond plate
Material: 0.058" one-piece aluminum
Storage Capacity: 9ft³

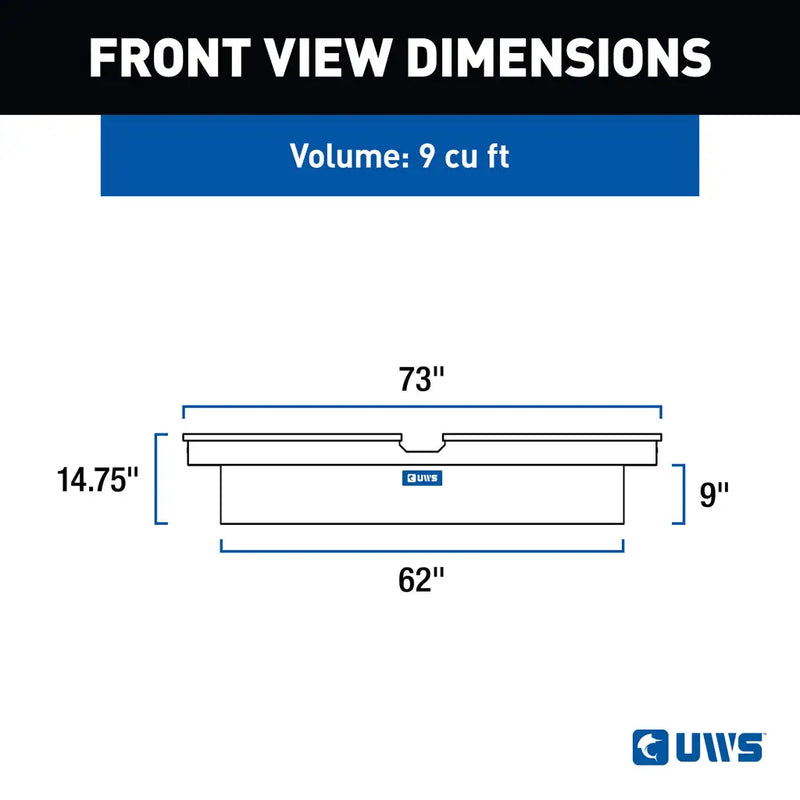

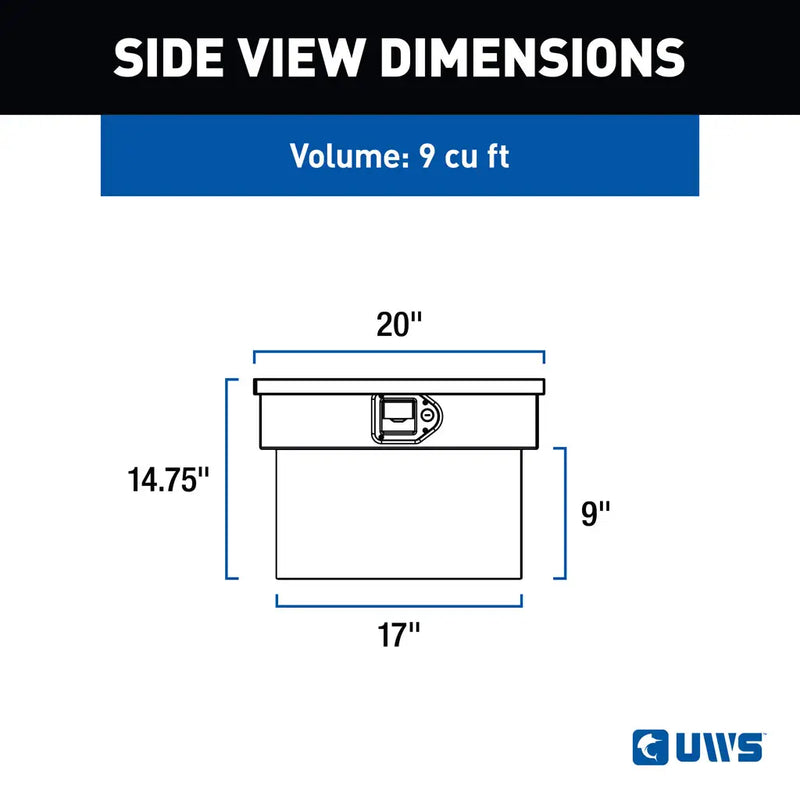

Overall Length: 73"
Overall Width: 20"
Overall Height: 14.75"
Interior Tub Length: 62"
Interior Tub Width: 17"
Interior Tub Depth: 9"
Lid Type: Gull-Wing Lid
Latch / Handle: Paddle Handle
Lid Core: Patented RigidCore foam-filled
Weather Sealing: MicroSeal full-perimeter gasket
Installation Difficulty: Easy
Product Weight: 46 lb
Shipping Weight: 66.4 lb
UPC: 672078086233
Warranty: Limited lifetime, one-year finish, one-year parts
Origin: Designed, fabricated and welded in Florida, USA
Installation
Type: Clamp-in, no drilling normally required · Time: About 30 minutes · Tools: Socket set, drill and bit if your application is not pre-drilled, tape measure, marker; a second person to lift and hold the box · Difficulty: Easy, DIY-friendly
Set the box across the bed rails behind the cab, check the lid clears the rear window and any cab guard through its full travel, then clamp it down with the supplied hardware. Most crossover boxes clamp to the underside of the bed rail rather than bolting through, so no drilling of the truck is normally needed.
Resources
Everything you need for your UWS 72" Gull Wing Crossover Truck Tool Box, Bright Aluminum, in one place.
Warranty. UWS limited lifetime warranty on the box, with one year on the finish and one year on parts. Damage from overloading, accident, modification or improper installation is not covered, and the warranty is offered to the original purchaser.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About UWS
UWS, United Welding Services, has been welding aluminum truck boxes in Florida since 1988. It is now part of the Lippert and CURT Group family, which is what gives a box at this price a real dealer network, real parts support and a warranty that means something years later. What has not changed is where the boxes are made: UWS designs, fabricates and welds them at its own plant rather than importing finished bodies, and that is visible in the details that cannot be fixed after the fact, such as square lids, consistent welds and gaskets that meet cleanly all the way around the opening.

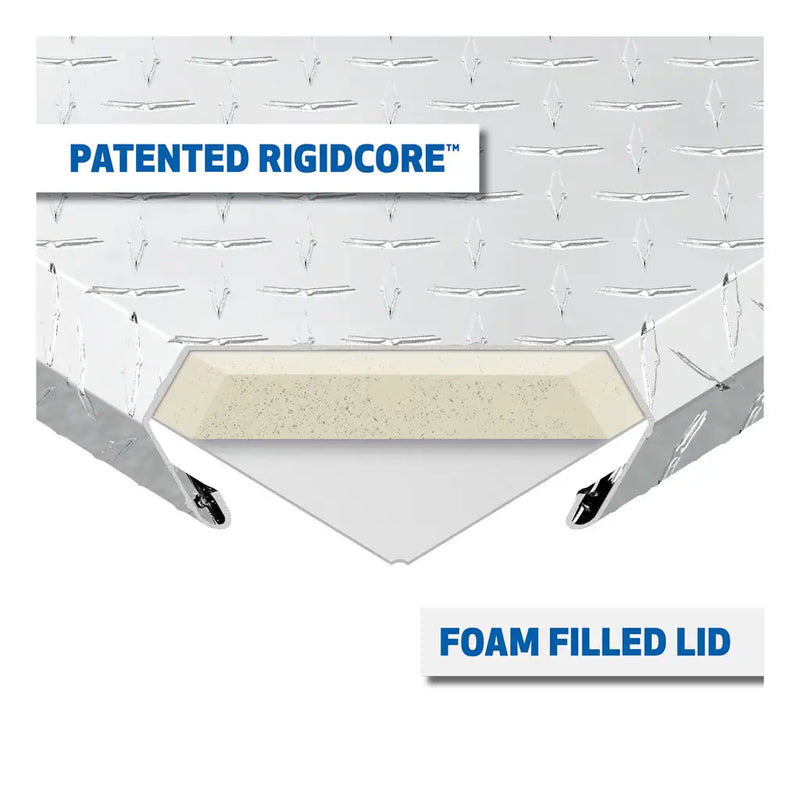

Two UWS features do most of the work in this crossover truck tool box. The first is the patented RigidCore lid, filled with a solid foam core instead of left hollow, which is what stops a long lid flexing in the middle, drumming at speed or binding in its own opening as the box ages. The second is MicroSeal, a full-perimeter gasket that compresses as the lid closes and keeps out the rain, road spray and fine grit that ruin the contents of a cheaper box. Underneath both is a 0.058" one-piece aluminum tub, thicker than most of the competition and immune to the rust that eventually kills a painted steel box.
Prestige Truck is an authorized UWS dealer. Every box we ship is new, factory-packed, covered by the full UWS limited lifetime warranty and supported by UWS's US-based parts and service team.
Compare The Range
How this compares to similar models
The closest alternatives side by side, so you do not have to keep tabs open.
RigidCore Strength Test: Tool Box Vs. Pickup Truck
UWS drives a pickup onto one of its RigidCore lids.
It is a marketing stunt and it is also the clearest demonstration of what the foam core actually does, which is stop a long lid flexing, denting or binding in its own opening. This box uses the same RigidCore lid.
MicroSeal Weather Test: Mud And A Pressure Washer
UWS buries a box in mud and then turns a pressure washer on it to show what the MicroSeal gasket keeps out.
Worth two minutes if you are deciding between this and a cheaper box with a plain foam strip, because sealing is the thing you only notice once it has failed.
How To Measure Your Truck Bed Before You Order
UWS walks through measuring a truck bed properly, which is the step that prevents almost every returned tool box.
Do this before you order: the measurement that matters for a box like this is the flat space or rail-to-rail width you actually have, not the advertised bed length.
Frequently Asked Questions
Straight answers on specs, fit and support
What are the actual dimensions, and will it fit my truck?
The box is 73" long, 20" deep and 14.75" tall overall, and it holds 9ft³. The usable tub inside measures 62" x 17" x 9". Measure your bed rail to rail, outside to outside, because a crossover box spans the rails rather than sitting in the bed.
Is the mounting hardware included?

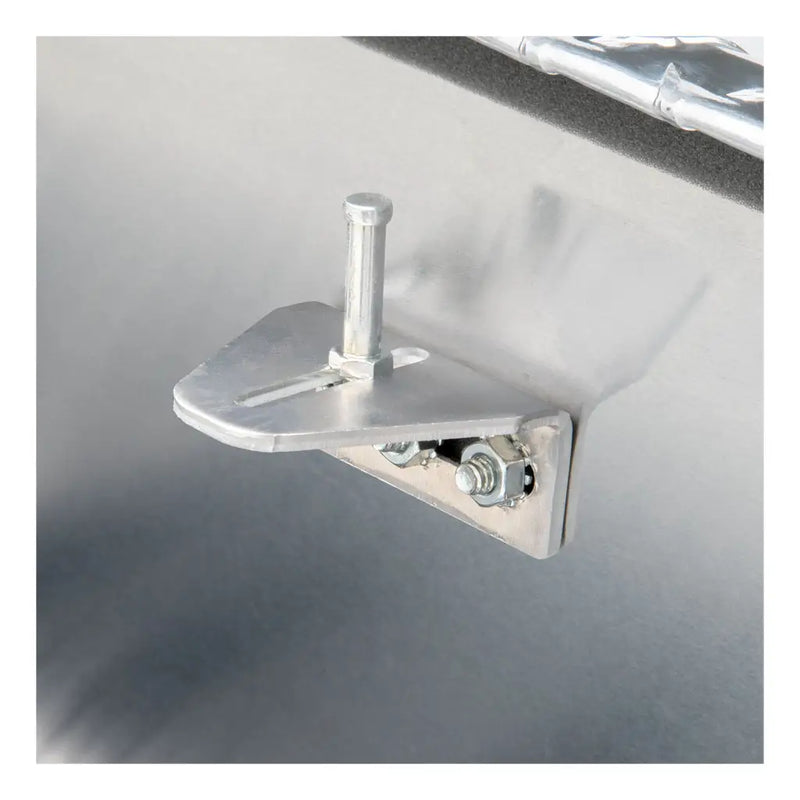

Yes. UWS's parts list for this box is the box, 2 keys, 2 rail pads, 2 3" J-hooks, 2 1/4" washers and 2 1/4" nuts, which is everything needed to clamp it to the bed rails. Some models also include a divider tray. No drilling of the truck is normally required.
What is the difference between this and the standard UWS part?
Nothing about the box itself. UWS states that this part is identical to #TB-72, with the only difference being that it is heavily packaged so it can travel by parcel carrier rather than by freight. You get the same box, the same warranty and, usually, a faster and cheaper delivery.
How well does it keep water out?
A MicroSeal gasket runs the full perimeter of the opening and compresses as the lid closes. No tool box is a submarine, and a box that is pressure washed straight at the seam or parked nose-down in standing water can still take some in, but in normal service it stays dry inside. Keep the gasket clean and it will keep sealing.
What is the finish, and how does it hold up?
Bright aluminum diamond plate, which is the mill finish of the aluminum itself rather than a coating. It cannot chip or peel because there is nothing on top to come off, and aluminum does not rust. It will dull and pick up a patina over the years, which most owners either like or polish back.
Does the lid stay open on its own?
Yes. Release the paddle handles and the RigidCore lid lifts and holds itself open at close to 90 degrees, so you have both hands free. The foam-filled lid is light enough for the mechanism to manage but stiff enough not to flex on the way up.
