This is the low-profile version of the UWS truck side tool box: the same bed-wall mounting and 3ft³ of sealed storage, but a shallower 11.75" body that stays below the line of the bed rails so it does not block the rear window or the camera. It ships with UWS space-saving legs rather than full vertical posts. The tub is a single piece of 0.058" aluminum, the lid is UWS's patented RigidCore foam-filled design so it will not flex or bind, and a MicroSeal gasket runs the full perimeter of the opening to keep rain and dust out. The finish is gloss black powder coat over diamond plate. It is assembled in the USA and backed by a limited lifetime warranty.
What's Included:
UWS 48" Truck Side Tool Box in Gloss Black, part EC30202-MK2
UWS space-saving leg kit (TBSM-MK2), pivoting and length-adjustable, supplied in place of the standard legs
2 keys
NOT included: mounting hardware. UWS states you must supply your own bolts to suit your truck
UWS installation sheet, product literature and warranty information
Features

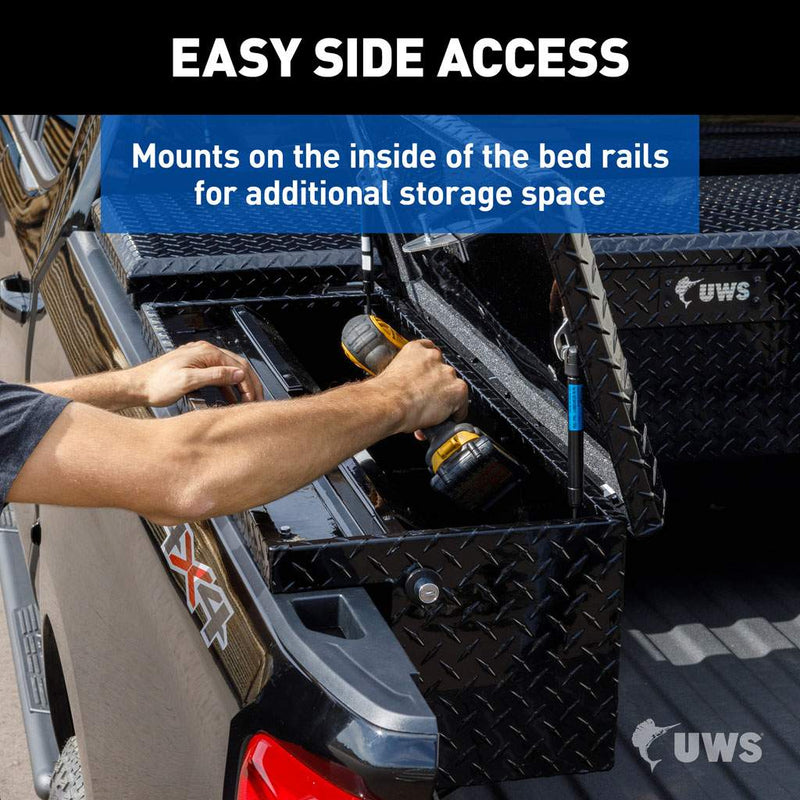

Mounts on Either Side The box is symmetrical, so the same part fits the driver side or the passenger side. If you later add a second box on the opposite rail you order this same number again.
Part of a Full Size Range UWS builds this body style in several lengths, so you can match the box to the bed rather than accepting whatever happens to be in stock. This one is the 48" version.

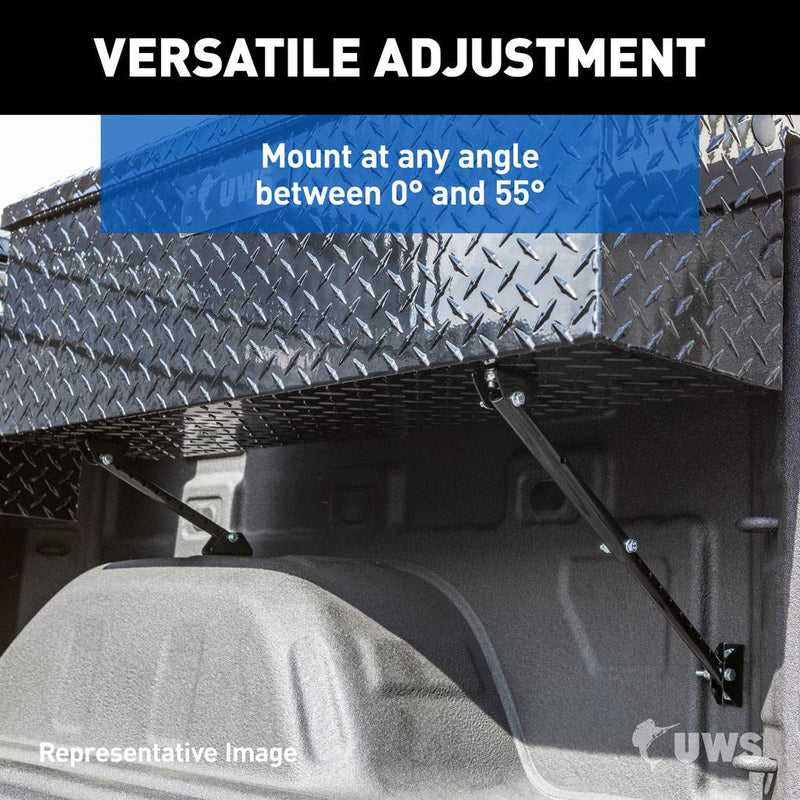

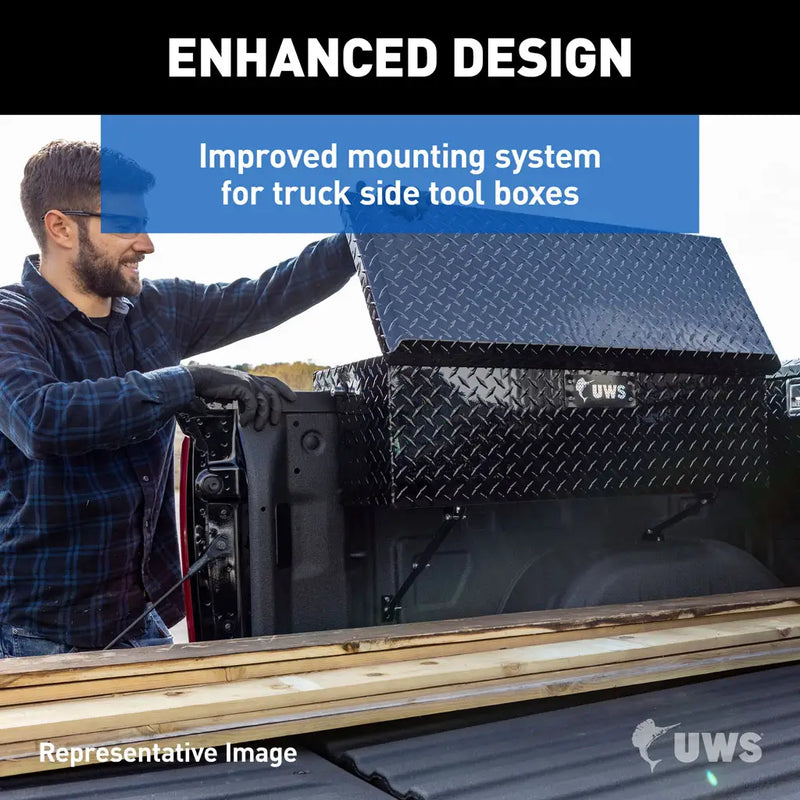

Fully Adjustable Leg Brackets The legs use pivoting brackets and telescope for length, so they can be anchored almost anywhere on the box and the bed wall. That flexibility is what lets one leg kit work across a wide range of bed depths and rail shapes.

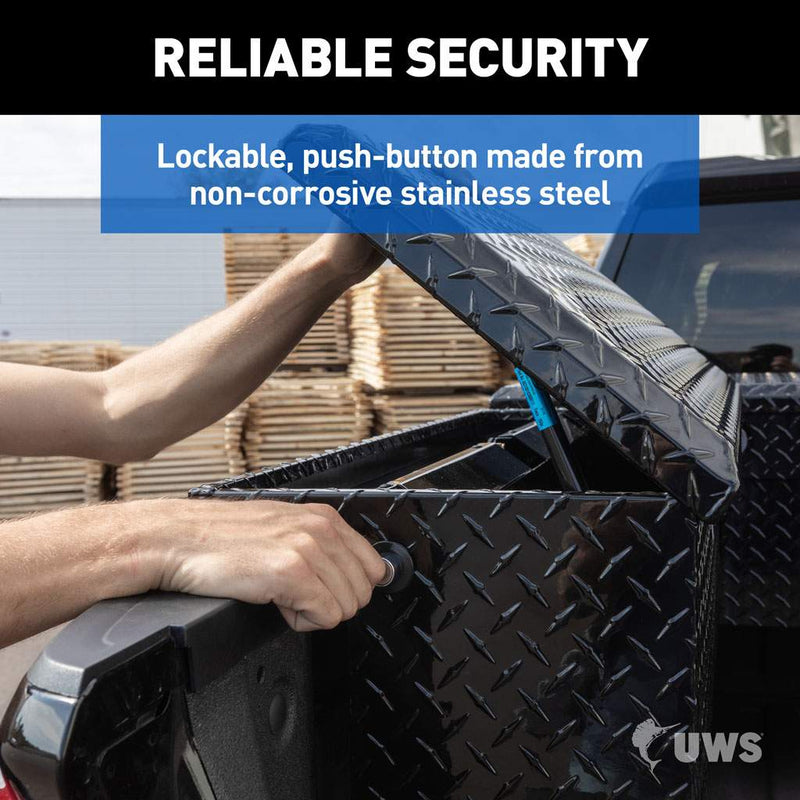

Lockable Stainless Push-Button A flush stainless push-button releases the lid and locks with a key. There is no protruding handle to catch a hip or a passing load, which is part of why this box works so well tucked against the bed wall.
Assembled in the USA This box is assembled in the USA and backed by a US-based parts and warranty operation, so replacement handles, gaskets and keys are straightforward to source years down the line.

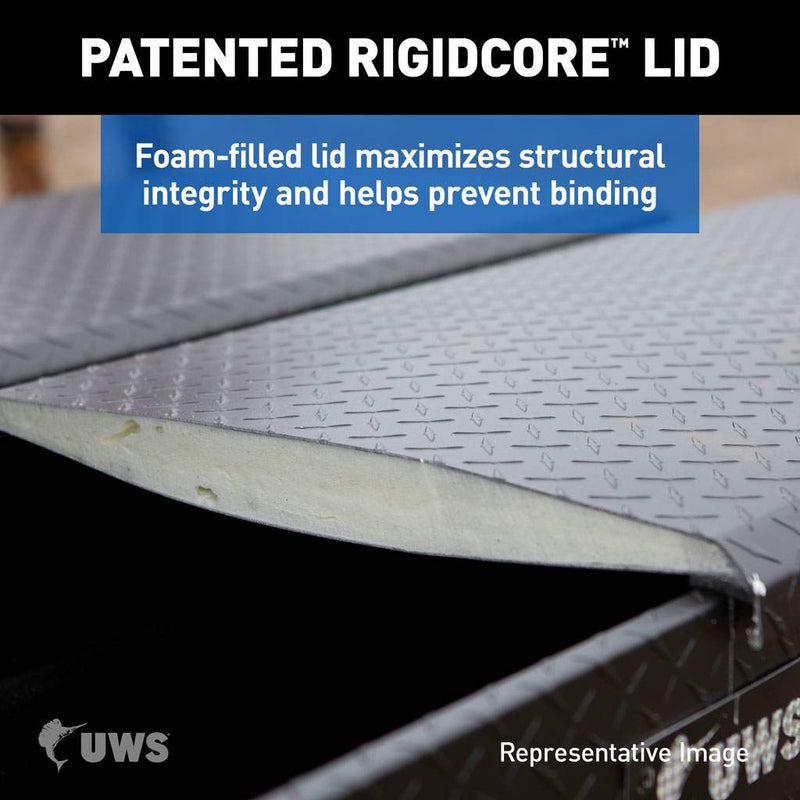

Patented RigidCore Foam-Filled Lid UWS fills the lid with a solid foam core instead of leaving it hollow. That is what stops a long lid from flexing in the middle, binding in its own opening or drumming as you drive. On a 48.75" lid this is the difference between a box that still latches cleanly after a few years and one that has to be pushed down to catch.
Extra-Thick 0.058" One-Piece Aluminum Tub The tub is formed from a single piece of 0.058" aluminum rather than welded up from thinner panels, so there are fewer seams to leak or split and the box keeps its shape when it is loaded with heavy hand tools, cordless kits and chain. Aluminum also means it will not rust out from the inside the way a painted steel box does once the coating is chipped, which matters on a box that lives outdoors and gets road salt thrown at it every winter.

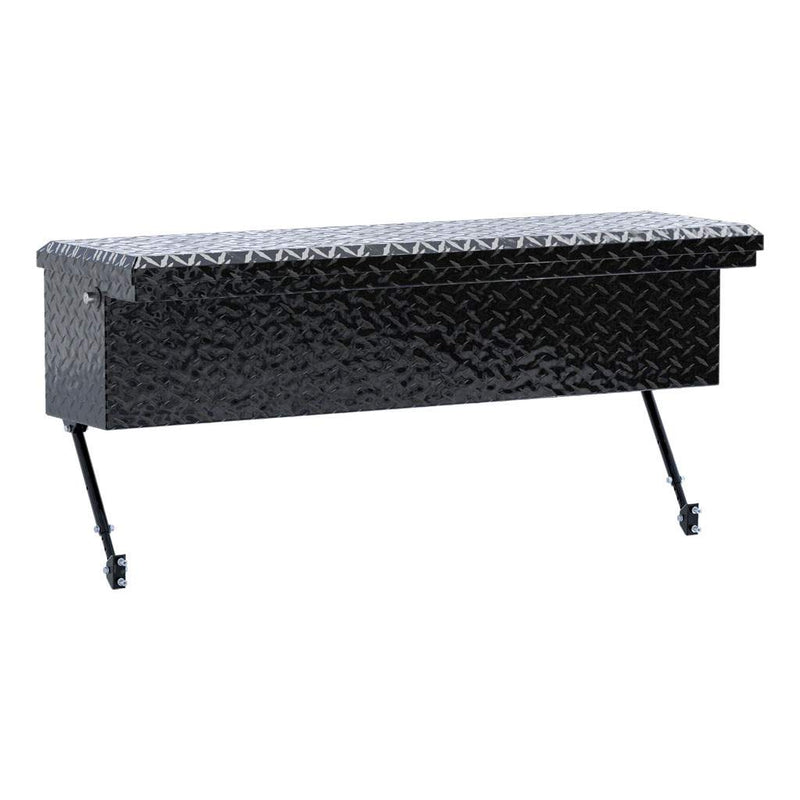

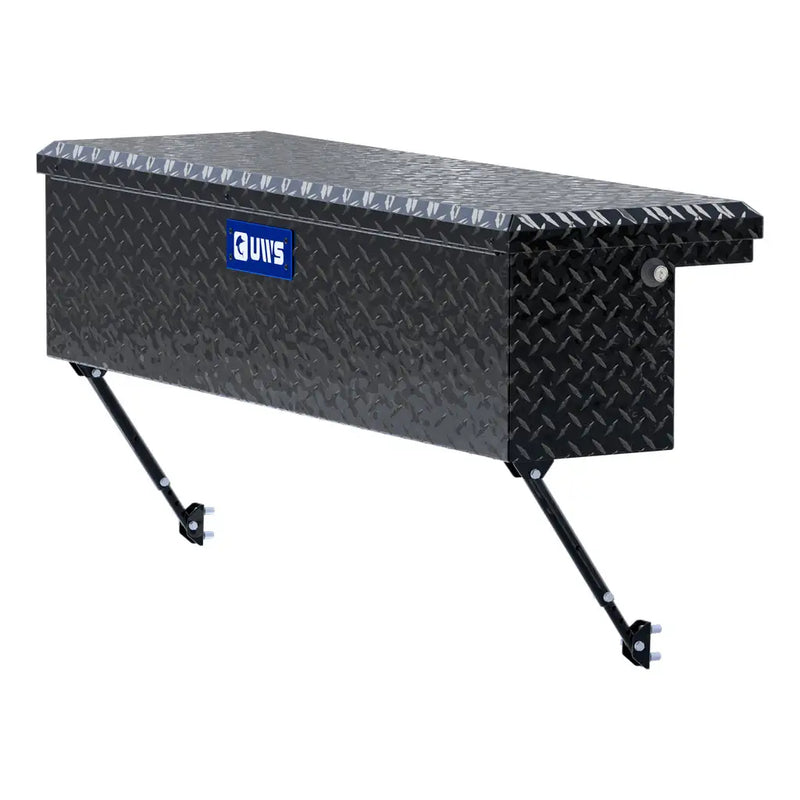

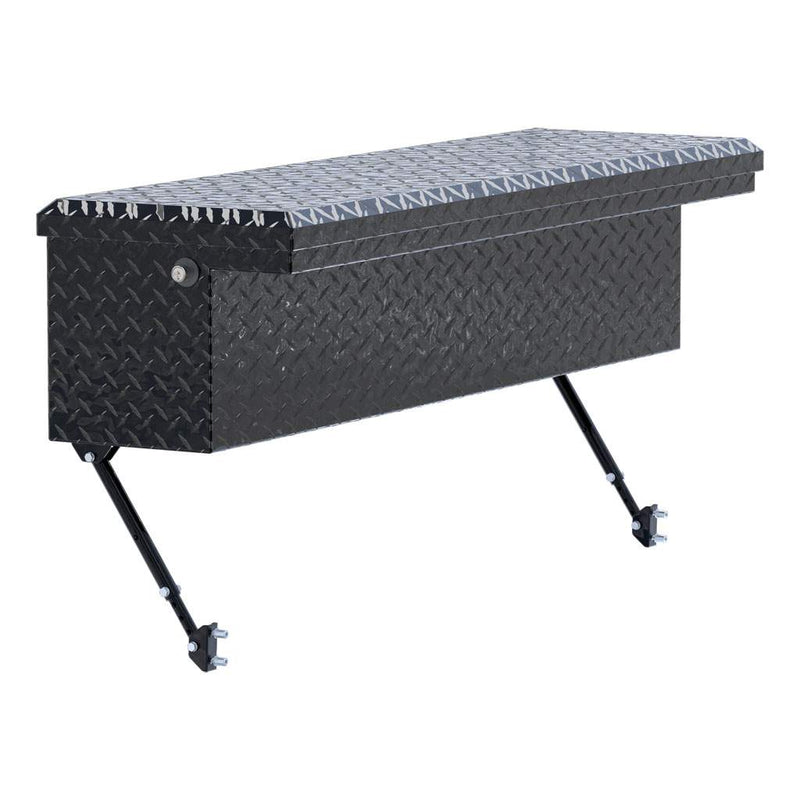

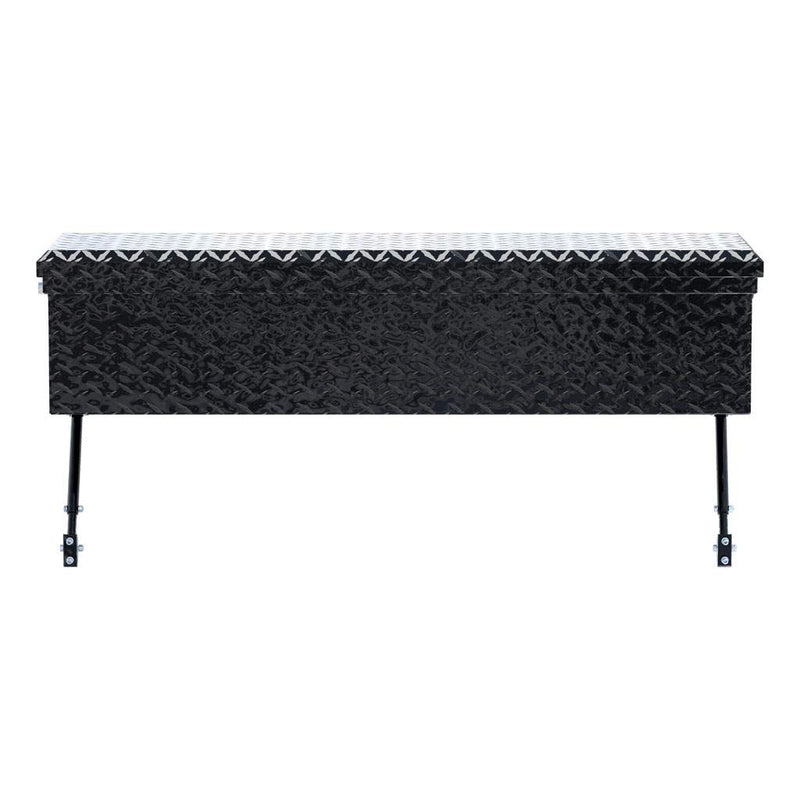

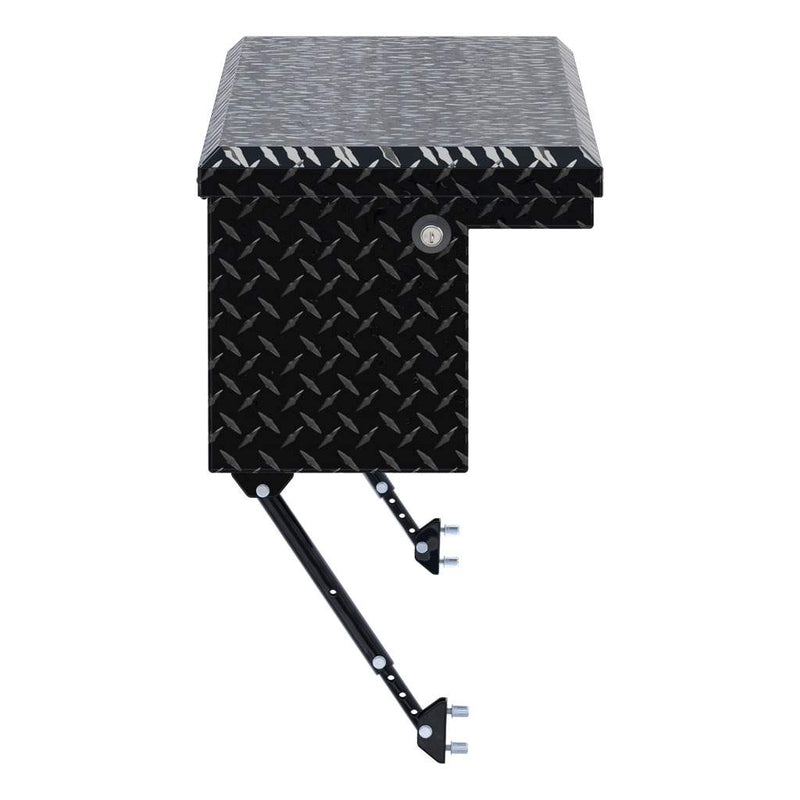

Space-Saving Legs This version ships with UWS space-saving legs in place of full vertical posts. The angled braces take up far less of the bed floor, so you keep usable width alongside the box for cargo, and the bed floor stays largely clear underneath.
Fitment & Compatibility
Application
Fit
Full-size pickup bed wall
✓ Yes, ideal application
Mid-size pickup bed wall
● Measure first, a 48" box needs a long bed wall
Trucks where rear vision or a bed cover matters
✓ Yes, this is why the low profile exists
Either side of the truck
✓ Yes, the box is symmetrical and mounts on either side
Fit guidance: The low-profile body is 11.75" tall, which on most trucks keeps it below the line of the bed rails so it does not block the rear window or the reversing camera. Measure the clear rail length before ordering: the box is 48.75" long. This version ships with adjustable space-saving legs rather than full vertical posts. Mounting hardware is not included; UWS states you must supply bolts to suit your truck.
Specifications
UWS Part Number: EC30202-MK2
Box / Leg Kit Part Numbers: EC30202 box with TBSM-MK2 leg kit
Box Style: Truck Side Tool Box, Low Profile
Finish: Gloss Black powder coat over diamond plate
Material: 0.058" aluminum box with carbon steel legs
Storage Capacity: 3ft³

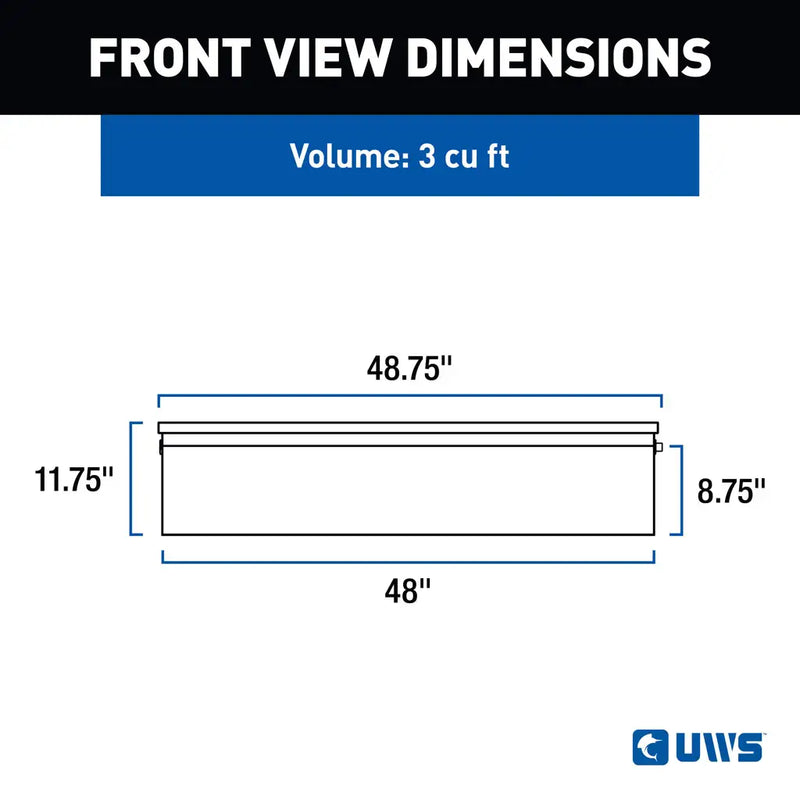

Overall Length: 48.75"
Overall Width: 14.5"
Overall Height: 11.75"
Interior Tub Length: 48"
Interior Tub Width: 9.25"
Interior Tub Depth: 8.75"
Lid Type: Single Lid
Latch / Handle: Push-Button Lock
Lid Core: Patented RigidCore foam-filled
Weather Sealing: MicroSeal full-perimeter gasket
Installation Difficulty: Easy
Product Weight: 29.5 lb
Shipping Weight: 35.5 lb
UPC: 672078060387
Warranty: Limited lifetime, one-year finish, one-year parts
Origin: Assembled in the USA
Installation
Type: Bolt-in · Time: About 30 to 60 minutes · Tools: Socket set, drill and bit if your application is not pre-drilled, tape measure, marker; a second person to lift and hold the box · Difficulty: Easy, DIY-friendly
Hang the box on the inside face of the bed wall, set the legs to length so it sits level and the lid clears the rail through its full travel, then mark and bolt. The space-saving legs pivot and telescope, so set the angle before you commit to the bracket positions. Check behind the bed wall for wiring and the fuel filler before drilling.
Resources
Everything you need for your UWS 48" Truck Side Tool Box, Gloss Black, Low Profile + Space-Saving Legs, in one place.
Warranty. UWS limited lifetime warranty on the box, with one year on the finish and one year on parts. Damage from overloading, accident, modification or improper installation is not covered, and the warranty is offered to the original purchaser.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About UWS
UWS, United Welding Services, has been welding aluminum truck boxes in Florida since 1988. It is now part of the Lippert and CURT Group family, which is what gives a box at this price a real dealer network, real parts support and a warranty that means something years later. What has not changed is where the boxes are made: UWS designs, fabricates and welds them at its own plant rather than importing finished bodies, and that is visible in the details that cannot be fixed after the fact, such as square lids, consistent welds and gaskets that meet cleanly all the way around the opening.
Two UWS features do most of the work in this truck side tool box. The first is the patented RigidCore lid, filled with a solid foam core instead of left hollow, which is what stops a long lid flexing in the middle, drumming at speed or binding in its own opening as the box ages. The second is MicroSeal, a full-perimeter gasket that compresses as the lid closes and keeps out the rain, road spray and fine grit that ruin the contents of a cheaper box. Underneath both is a 0.058" one-piece aluminum tub, thicker than most of the competition and immune to the rust that eventually kills a painted steel box.
Prestige Truck is an authorized UWS dealer. Every box we ship is new, factory-packed, covered by the full UWS limited lifetime warranty and supported by UWS's US-based parts and service team.
Compare The Range
How this compares to similar models
The closest alternatives side by side, so you do not have to keep tabs open.
Model
This OneUWS 48" Truck Side Tool Box, Gloss Black, Low Profile + Space-Saving Legs (EC30202-MK2)
RigidCore Strength Test: Tool Box Vs. Pickup Truck
UWS drives a pickup onto one of its RigidCore lids.
It is a marketing stunt and it is also the clearest demonstration of what the foam core actually does, which is stop a long lid flexing, denting or binding in its own opening. This box uses the same RigidCore lid.
MicroSeal Weather Test: Mud And A Pressure Washer
UWS buries a box in mud and then turns a pressure washer on it to show what the MicroSeal gasket keeps out.
Worth two minutes if you are deciding between this and a cheaper box with a plain foam strip, because sealing is the thing you only notice once it has failed.
UWS Damage-Free Delivery
This part is the heavy-packaging version of the box, crated so it can travel by parcel carrier instead of freight.
This short UWS film shows the packaging system that makes that possible and what the carton should look like when it reaches you. Inspect the carton on arrival and photograph any damage before you sign.
Frequently Asked Questions
Straight answers on specs, fit and support
What are the actual dimensions, and will it fit my truck?

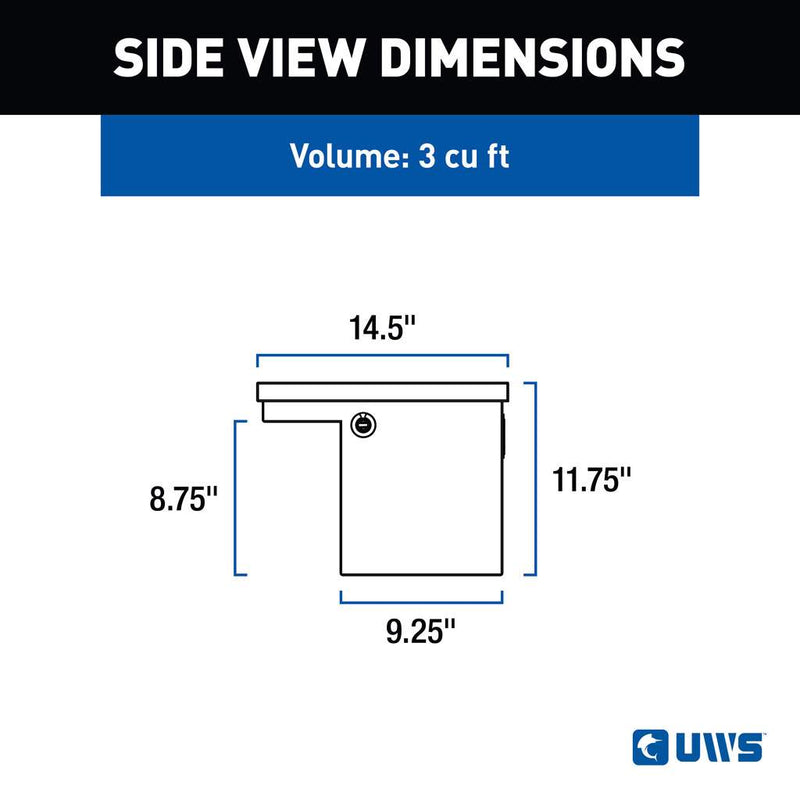

The box is 48.75" long, 14.5" deep and 11.75" tall overall, and it holds 3ft³. The usable tub inside measures 48" x 9.25" x 8.75". Measure the clear length of bed wall you have, and the height from the bed floor to the top of the rail.
Is the mounting hardware included?
The TBSM-MK2 space-saving leg kit and 2 keys are in the carton, but the bolts that fix the legs and box to your truck are not. UWS states plainly that you must supply your own hardware to suit your bed.
What is the difference between this and the standard UWS part?
This is the same box as EC30202, supplied with the TBSM-MK2 space-saving leg kit instead of full vertical posts. The angled braces pivot and telescope, so they take up much less of the bed floor and leave usable width alongside the box.
How well does it keep water out?
A MicroSeal gasket runs the full perimeter of the opening and compresses as the lid closes. No tool box is a submarine, and a box that is pressure washed straight at the seam or parked nose-down in standing water can still take some in, but in normal service it stays dry inside. Keep the gasket clean and it will keep sealing.
What is the finish, and how does it hold up?
Gloss Black powder coat over aluminum diamond plate. Powder coat is far tougher than wet paint and, because the substrate underneath is aluminum, a chip does not start rust the way it would on a steel box. The gloss finish keeps a wet look and cleans up easily. The finish carries a one-year warranty; the box itself is covered for a limited lifetime.
Does the lid stay open on its own?
Yes. Release the push-button and the RigidCore lid lifts and holds itself open at close to 90 degrees, so you have both hands free. The foam-filled lid is light enough for the mechanism to manage but stiff enough not to flex on the way up.
