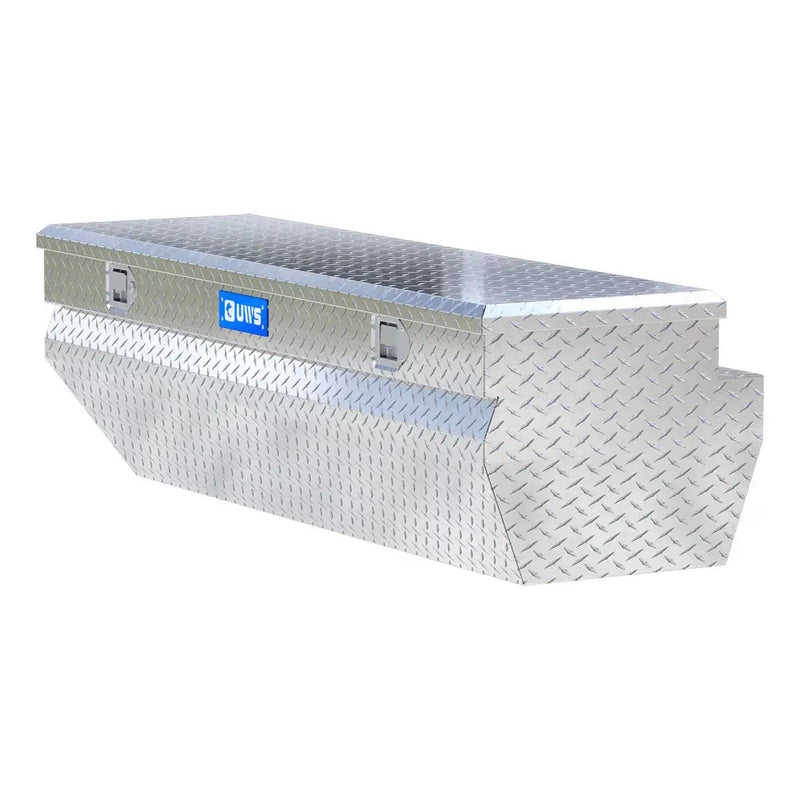

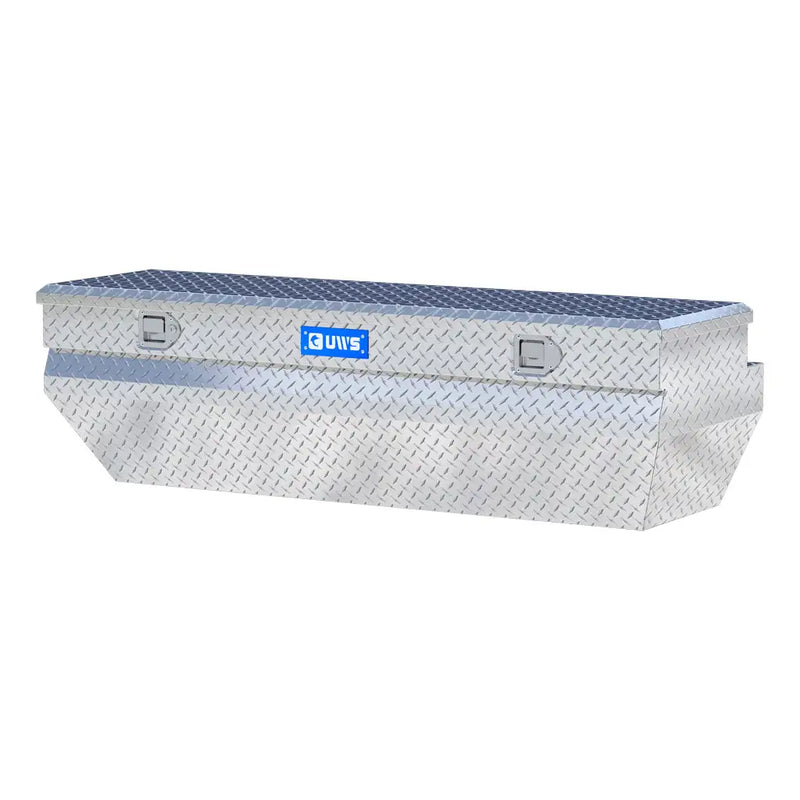

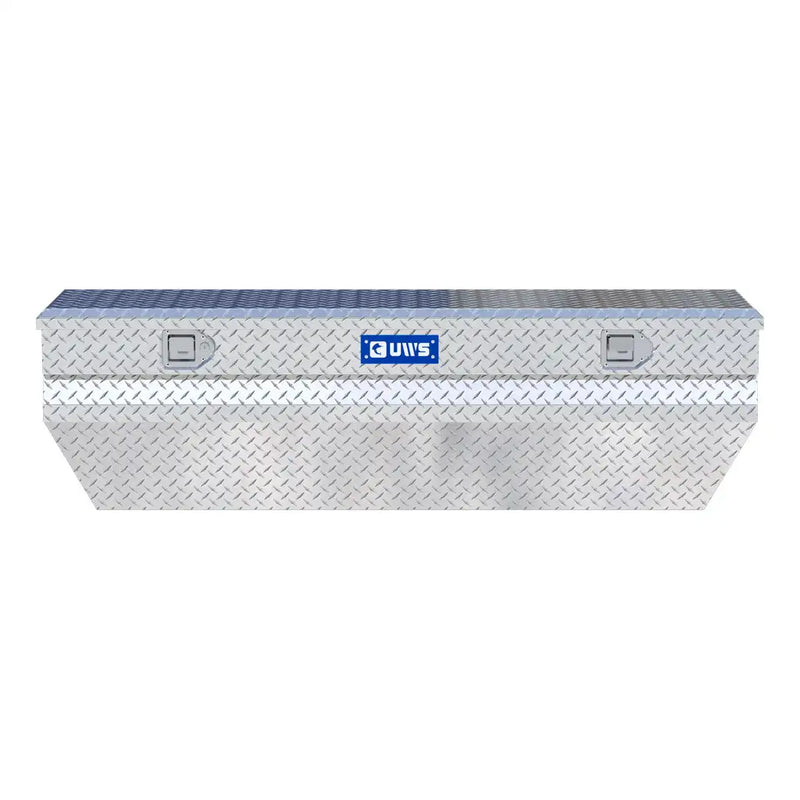

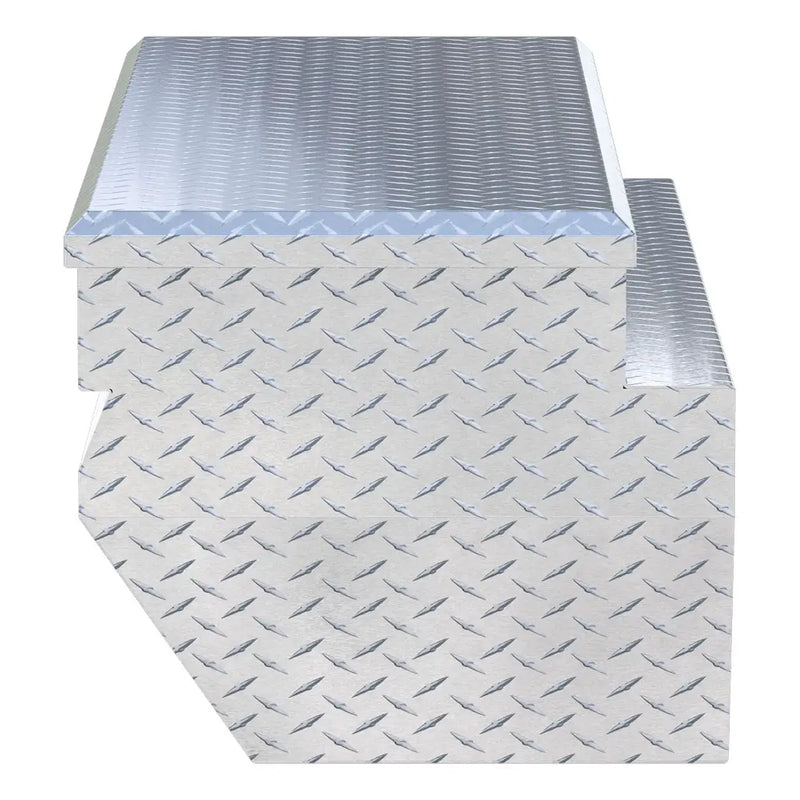

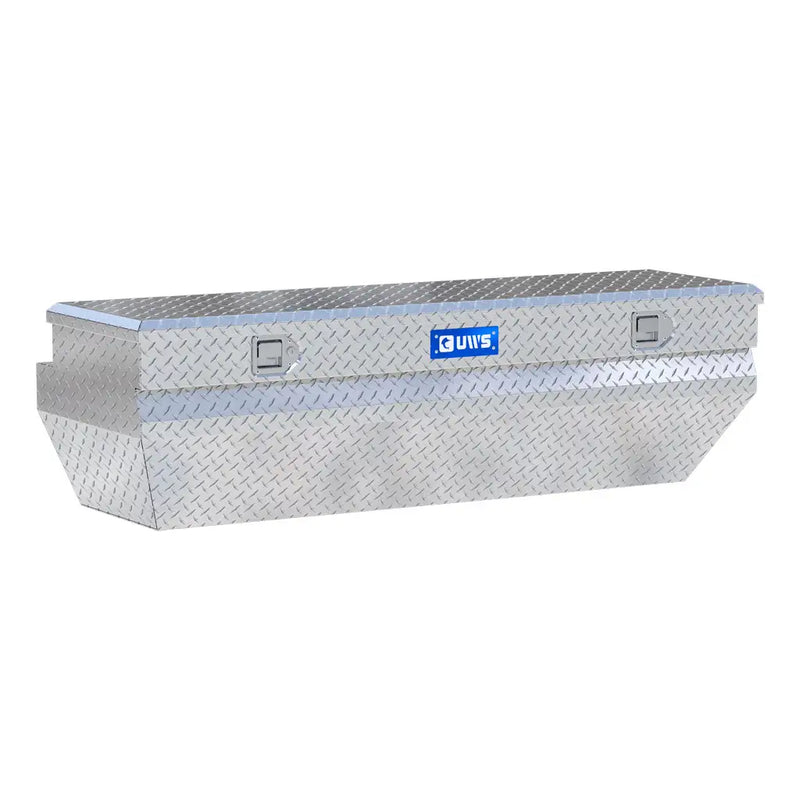

This is the UWS utility chest box, the classic bed-floor tool box, in the 62" size. It gives you 10.8ft³ of locked, sealed storage in a 63" x 21.5" x 18.5" body, with the tapered wedge lower body that lets it sit forward of the wheel wells. The tub is a single piece of 0.058" aluminum, the lid is UWS's patented RigidCore foam-filled design so it will not flex or bind, and a MicroSeal gasket runs the full perimeter of the opening to keep rain and dust out. The finish is bright aluminum diamond plate. This is the heavy-packaging version of the box: mechanically identical to the standard part, but crated for parcel carriage so it can ship without freight. UWS designs, fabricates and welds it in Florida and backs it with a limited lifetime warranty.
What's Included:
UWS 62" Utility Chest Box in Bright Aluminum, part EC20371
2 keys

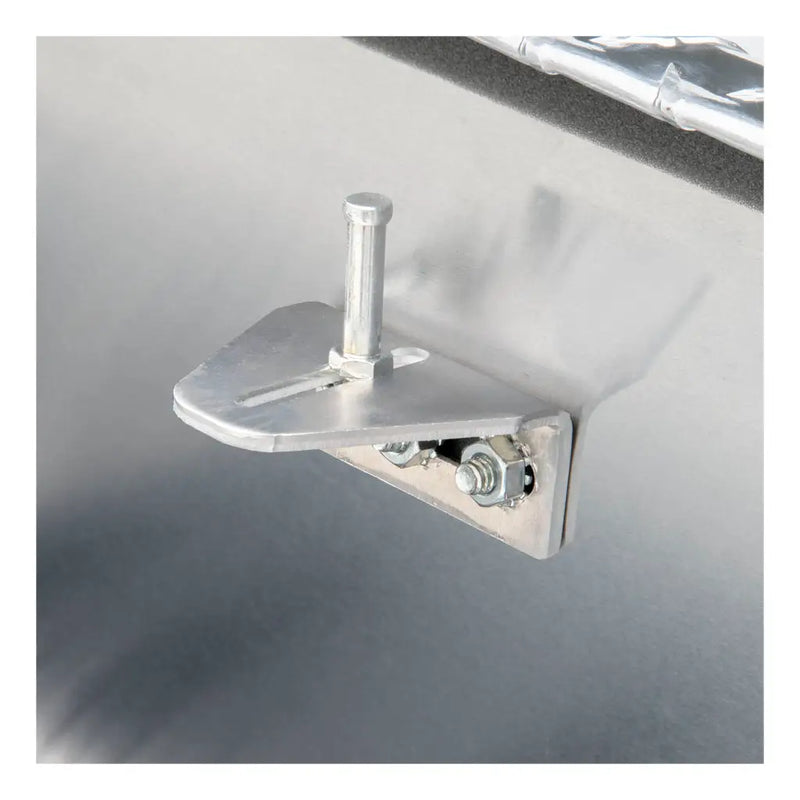

Mounting hardware kit, on the models that include one (see the note below)
MAY NOT BE INCLUDED: UWS states that not all chest box models ship with the mounting hardware kit, and does not say which. Budget for UWS kit #003-CBOXMK, or two 5/16" or M8 bolts with four washers and two lock nuts, in case yours arrives without it
UWS installation sheet, product literature and warranty information
Features

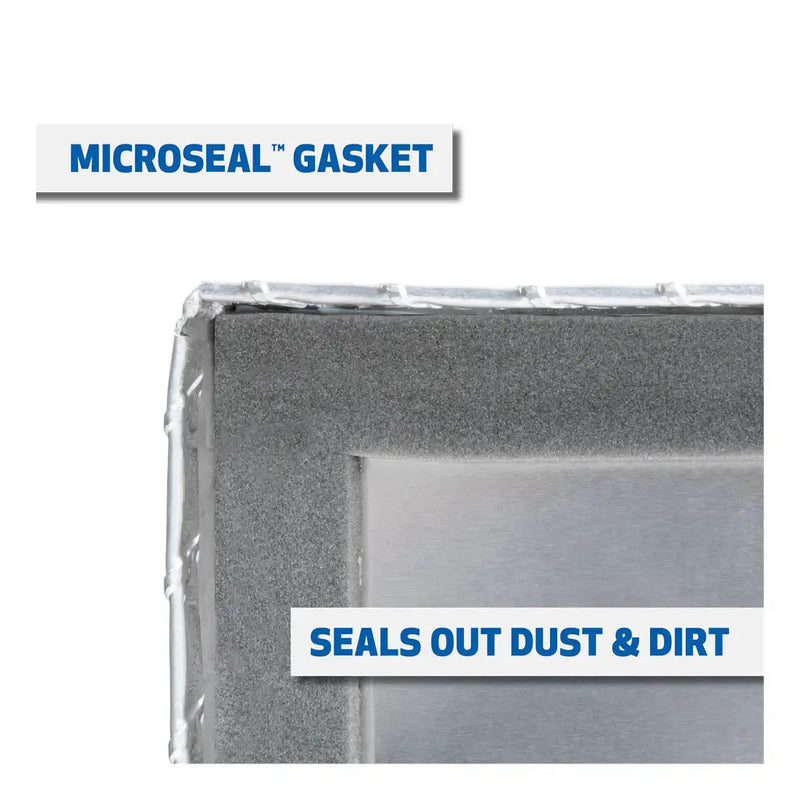

MicroSeal Weather Gasket A MicroSeal gasket runs the full perimeter of the opening and compresses as the lid closes, sealing out rain, road spray, dust and the fine grit that ruins bearings and fastener threads. It is the part of a tool box most owners only think about after they have found standing water inside a cheaper one.

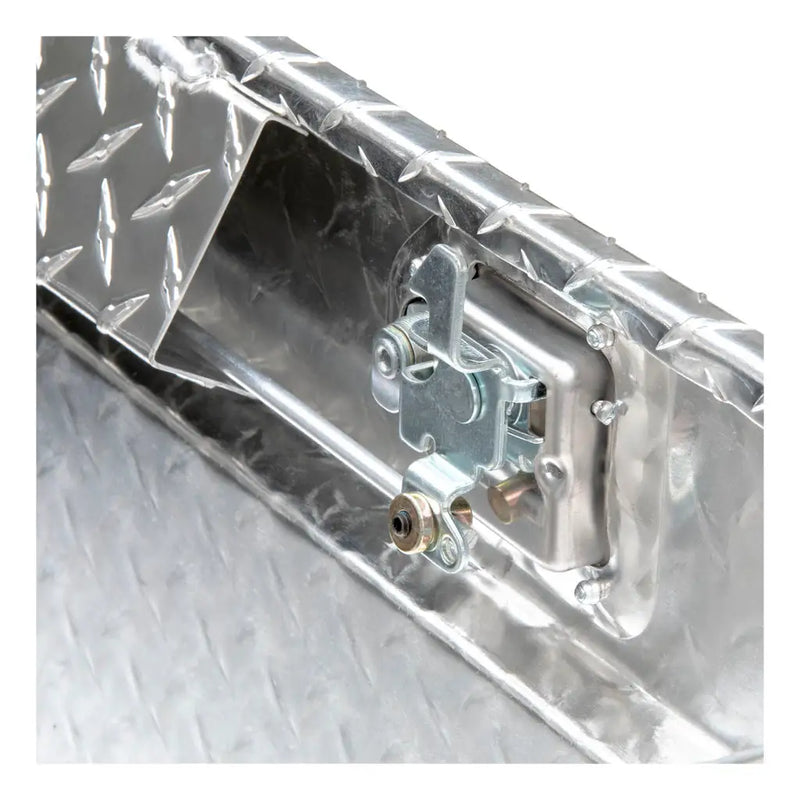

Enclosed Lock Rod The connecting rod runs inside an enclosure rather than exposed across the back of the tub. Loose cargo cannot fall against it and bend it, which is the usual reason a two-handle box eventually stops opening from one side.

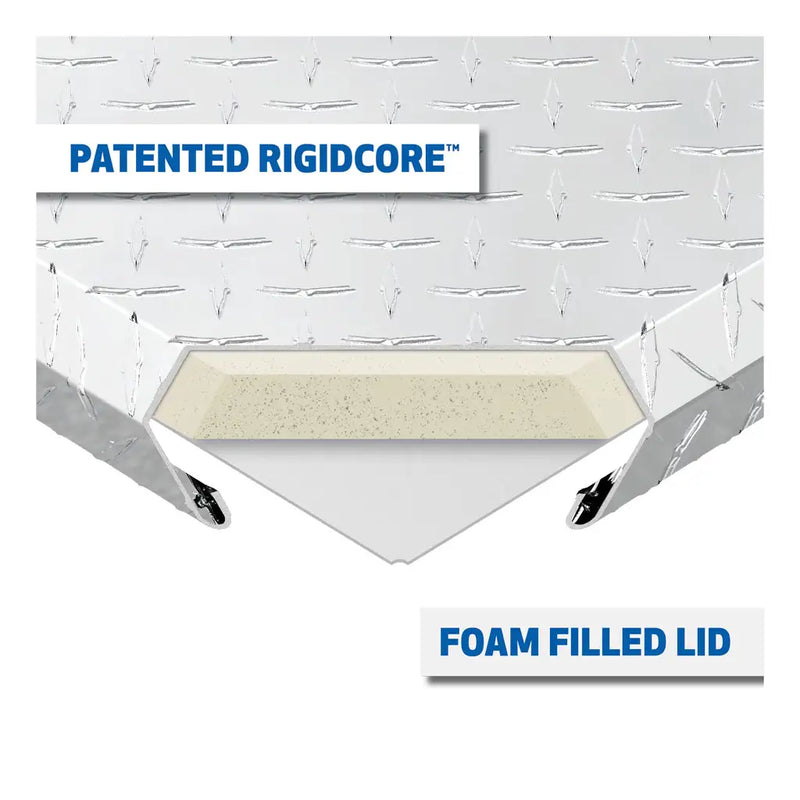

Patented RigidCore Foam-Filled Lid UWS fills the lid with a solid foam core instead of leaving it hollow. That is what stops a long lid from flexing in the middle, binding in its own opening or drumming as you drive. On a 63" lid this is the difference between a box that still latches cleanly after a few years and one that has to be pushed down to catch.
Designed, Fabricated and Welded in Florida UWS designs, fabricates and welds its tool boxes at its own plant in Florida. That is unusual at this price and it shows up in the things that are hard to fix later: consistent weld quality, lids that sit square, and gaskets that actually meet all the way round.
Extra-Thick 0.058" One-Piece Aluminum Tub The tub is formed from a single piece of 0.058" aluminum rather than welded up from thinner panels, so there are fewer seams to leak or split and the box keeps its shape when it is loaded with heavy hand tools, cordless kits and chain. Aluminum also means it will not rust out from the inside the way a painted steel box does once the coating is chipped, which matters on a box that lives outdoors and gets road salt thrown at it every winter.
Connecting Rod for Either-Side Operation The two handles are tied together by an internal rod, so the box opens from the driver side or the passenger side without walking around the truck. On a wide bed that is the difference between grabbing a tool and climbing up into the bed to get it.

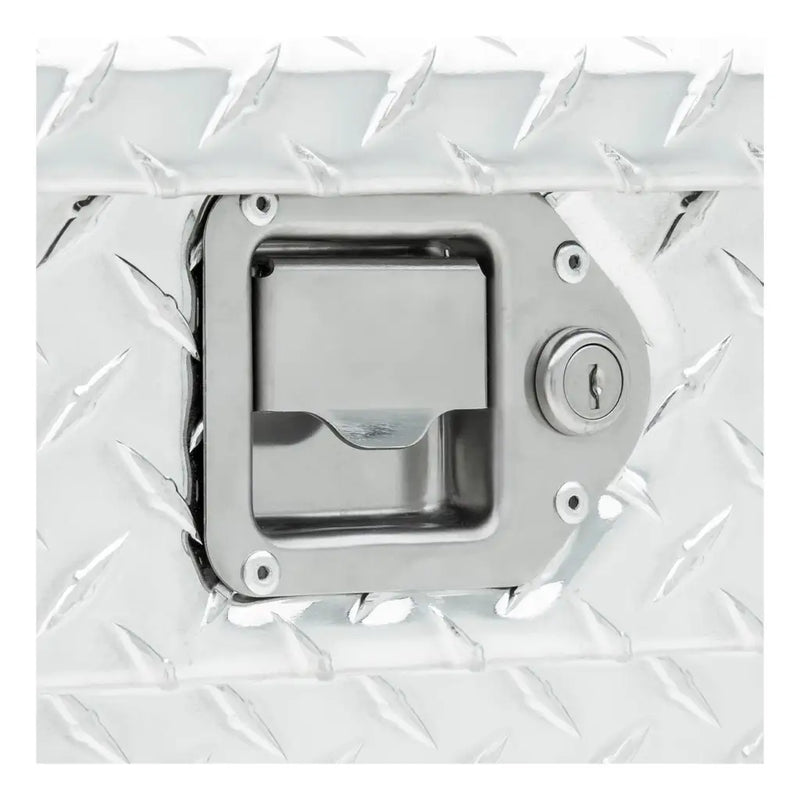

Stainless Steel Lock Handles The lock handles are stainless steel, not plated pot metal, so they keep working after a few winters of salt and do not seize or bloom with rust. Both handles lock.
Limited Lifetime Warranty UWS backs the box with a limited lifetime warranty, with one year on the finish and one year on parts. That is the manufacturer telling you what it expects the welded aluminum structure to do over the life of the truck.
Fitment & Compatibility
Bed Type
Fit
Full-size pickup, 6.5' or 8' bed
✓ Yes, ideal application
Full-size pickup, 5.5' short bed
● Measure first, a 62" box is a tight fit in a short bed
Mid-size pickup (Tacoma, Ranger, Colorado)
● Often too long, measure between the wheel wells first
Trailer deck, flatbed or workshop floor
✓ Yes, it does not have to go in a truck
Fit guidance: This is a bed-floor chest box, not a rail-mounted crossover, so what matters is the flat floor space you have available, not the bed rail width. It measures 63" x 21.5" x 18.5". The tapered lower body is designed to sit forward of or around the wheel wells. Measure your own bed before ordering. Mounting hardware is sold separately unless stated otherwise above.
Specifications
UWS Part Number: EC20371
Equivalent Standard Part Number: TBC-62-WN (same box, standard packaging)
Box Style: Utility Chest Box, Standard Profile
Finish: Bright Aluminum diamond plate
Material: 0.058" one-piece aluminum
Storage Capacity: 10.8ft³

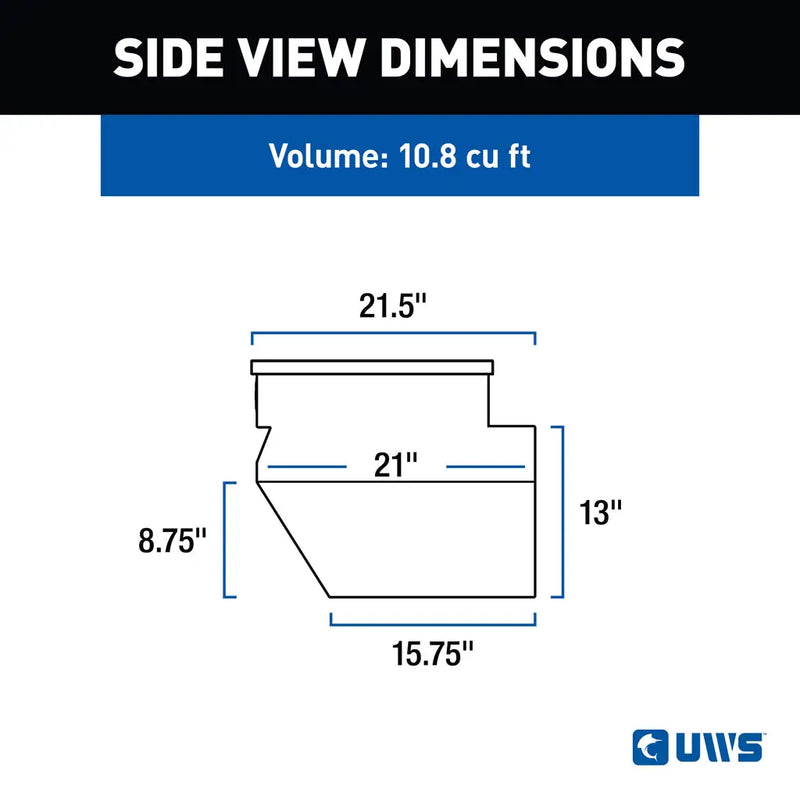

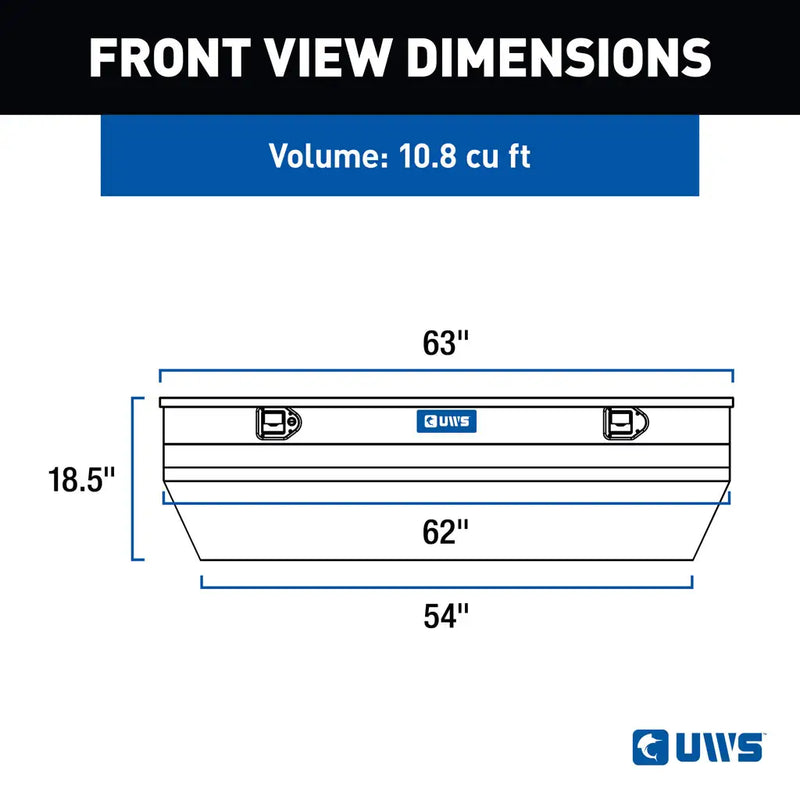

Overall Length: 63"
Overall Width: 21.5"
Overall Height: 18.5"
Interior Tub Length: 62"
Interior Tub Width: 21"
Lower Tub Width: 15.75"
Angled Section Height: 8.75"
Chest Box Height: 13"
Lid Type: Single Lid
Latch / Handle: Paddle Handle
Lid Core: Patented RigidCore foam-filled
Weather Sealing: MicroSeal full-perimeter gasket
Carrying Handles: Without Carrying Handles
Installation Difficulty: Easy
Product Weight: 42.2 lb
Shipping Weight: 60.12 lb
UPC: 672078081207
Warranty: Limited lifetime, one-year finish, one-year parts
Origin: Designed, fabricated and welded in Florida, USA
Installation
Type: Bolt-in · Time: About 30 to 60 minutes · Tools: Socket set, drill and bit if your application is not pre-drilled, tape measure, marker; a second person to lift and hold the box · Difficulty: Easy, DIY-friendly
Set the box on the bed floor, slide it forward to where it clears the wheel wells, and mark through the pre-drilled mounting slots. Most owners clamp a chest box down with J-hooks or bolt through the bed floor. Check underneath for the fuel tank, filler neck, brake and fuel lines and the spare wheel winch before you drill anything.
Resources
Everything you need for your UWS 62" Wedged Angled Utility Chest Box, Bright Aluminum, in one place.
Warranty. UWS limited lifetime warranty on the box, with one year on the finish and one year on parts. Damage from overloading, accident, modification or improper installation is not covered, and the warranty is offered to the original purchaser.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About UWS
UWS, United Welding Services, has been welding aluminum truck boxes in Florida since 1988. It is now part of the Lippert and CURT Group family, which is what gives a box at this price a real dealer network, real parts support and a warranty that means something years later. What has not changed is where the boxes are made: UWS designs, fabricates and welds them at its own plant rather than importing finished bodies, and that is visible in the details that cannot be fixed after the fact, such as square lids, consistent welds and gaskets that meet cleanly all the way around the opening.
Two UWS features do most of the work in this utility chest box. The first is the patented RigidCore lid, filled with a solid foam core instead of left hollow, which is what stops a long lid flexing in the middle, drumming at speed or binding in its own opening as the box ages. The second is MicroSeal, a full-perimeter gasket that compresses as the lid closes and keeps out the rain, road spray and fine grit that ruin the contents of a cheaper box. Underneath both is a 0.058" one-piece aluminum tub, thicker than most of the competition and immune to the rust that eventually kills a painted steel box.
Prestige Truck is an authorized UWS dealer. Every box we ship is new, factory-packed, covered by the full UWS limited lifetime warranty and supported by UWS's US-based parts and service team.
Compare The Range
How this compares to similar models
The closest alternatives side by side, so you do not have to keep tabs open.
RigidCore Strength Test: Tool Box Vs. Pickup Truck
UWS drives a pickup onto one of its RigidCore lids.
It is a marketing stunt and it is also the clearest demonstration of what the foam core actually does, which is stop a long lid flexing, denting or binding in its own opening. This box uses the same RigidCore lid.
MicroSeal Weather Test: Mud And A Pressure Washer
UWS buries a box in mud and then turns a pressure washer on it to show what the MicroSeal gasket keeps out.
Worth two minutes if you are deciding between this and a cheaper box with a plain foam strip, because sealing is the thing you only notice once it has failed.
How To Measure Your Truck Bed Before You Order
UWS walks through measuring a truck bed properly, which is the step that prevents almost every returned tool box.
Do this before you order: the measurement that matters for a box like this is the flat space or rail-to-rail width you actually have, not the advertised bed length.
Frequently Asked Questions
Straight answers on specs, fit and support
What are the actual dimensions, and will it fit my truck?
The box is 63" long, 21.5" deep and 18.5" tall overall, and it holds 10.8ft³. Measure the flat space you have available before ordering.
Is the mounting hardware included?
Possibly, and we would rather tell you plainly than guess. UWS lists a mounting hardware kit in the parts list for this box, then adds that "not all models include mounting hardware kit" without saying which. So budget for UWS kit #003-CBOXMK, or for two 5/16" or M8 bolts with four washers and two lock nuts, in case yours arrives without it. We have asked UWS to confirm.
What is the difference between this and the standard UWS part?
Nothing about the box itself. UWS states that this part is identical to #TBC-62-WN, with the only difference being that it is heavily packaged so it can travel by parcel carrier rather than by freight. You get the same box, the same warranty and, usually, a faster and cheaper delivery.
How well does it keep water out?
A MicroSeal gasket runs the full perimeter of the opening and compresses as the lid closes. No tool box is a submarine, and a box that is pressure washed straight at the seam or parked nose-down in standing water can still take some in, but in normal service it stays dry inside. Keep the gasket clean and it will keep sealing.
What is the finish, and how does it hold up?
Bright aluminum diamond plate, which is the mill finish of the aluminum itself rather than a coating. It cannot chip or peel because there is nothing on top to come off, and aluminum does not rust. It will dull and pick up a patina over the years, which most owners either like or polish back.
Does the lid stay open on its own?
This model uses a twist latch and a manually lifted lid rather than a self-opening mechanism. The lid is the same RigidCore foam-filled construction, so it stays flat and does not bind.
