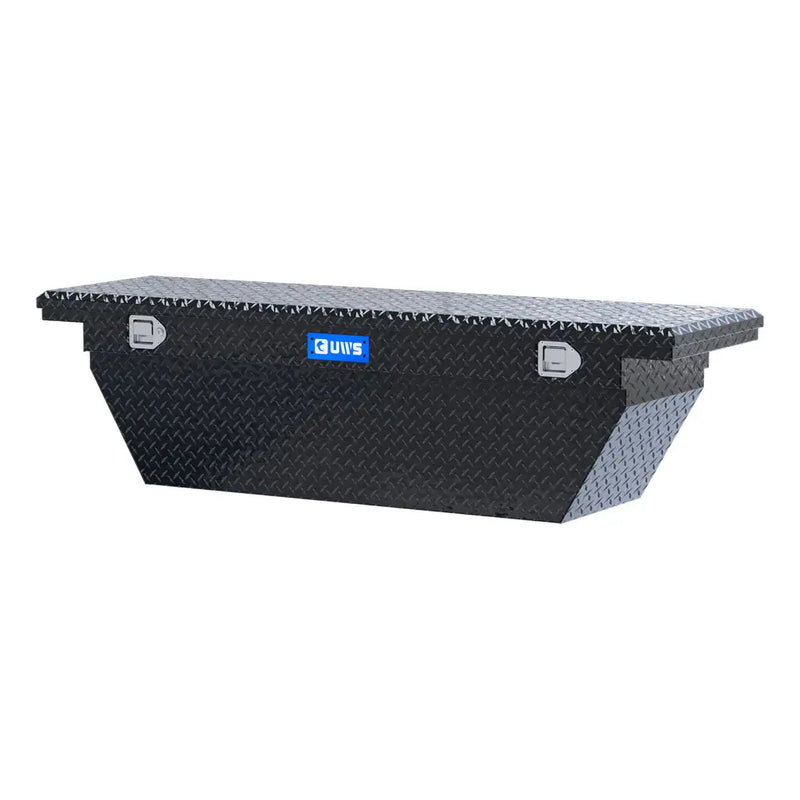

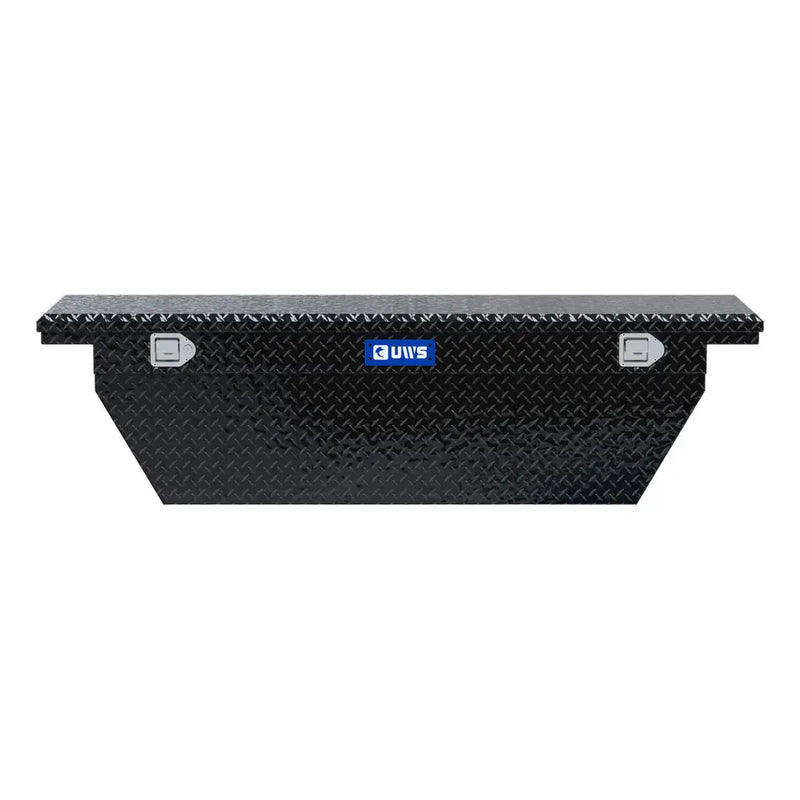

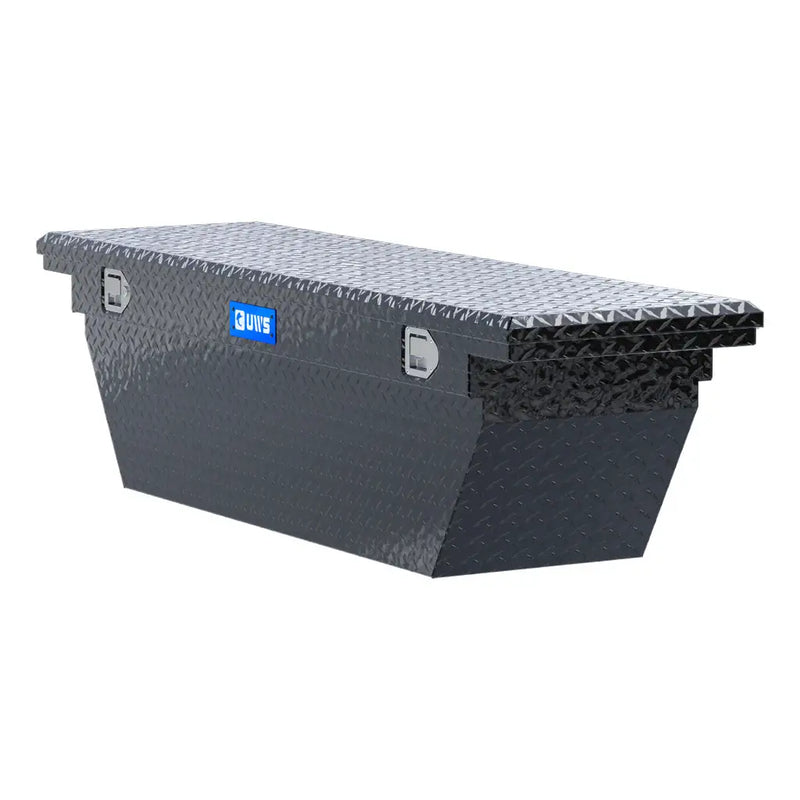

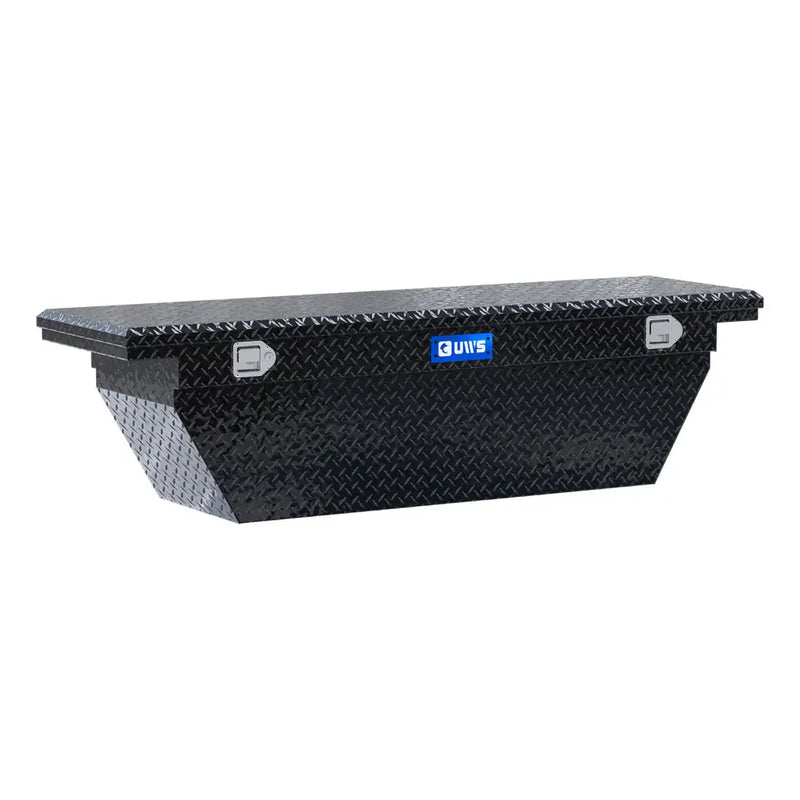

The UWS 69" crossover box mounts across the bed rails right behind the cab, which is the classic truck box position: reachable from either side, out of the way of everything you haul, and it does not cost you the tailgate. This is the deep angled tub, so it holds 10ft³, and the angled ends are cut to clear wheel wells and the narrowing beds that give a straight box trouble. It measures 70" across, 20" front to back and 18.75" tall over a 59" x 17" x 16" tub. The lid is the patented RigidCore foam-filled design and self-opens to 90 degrees. It locks with two stainless steel paddle lock handles. Finished in gloss black powder coat, sealed with the MicroSeal gasket, and it ships with the clamps, rail pads and hardware to fit it without drilling.
What's Included:
UWS 69" deep angled low profile crossover truck tool box
2 keys

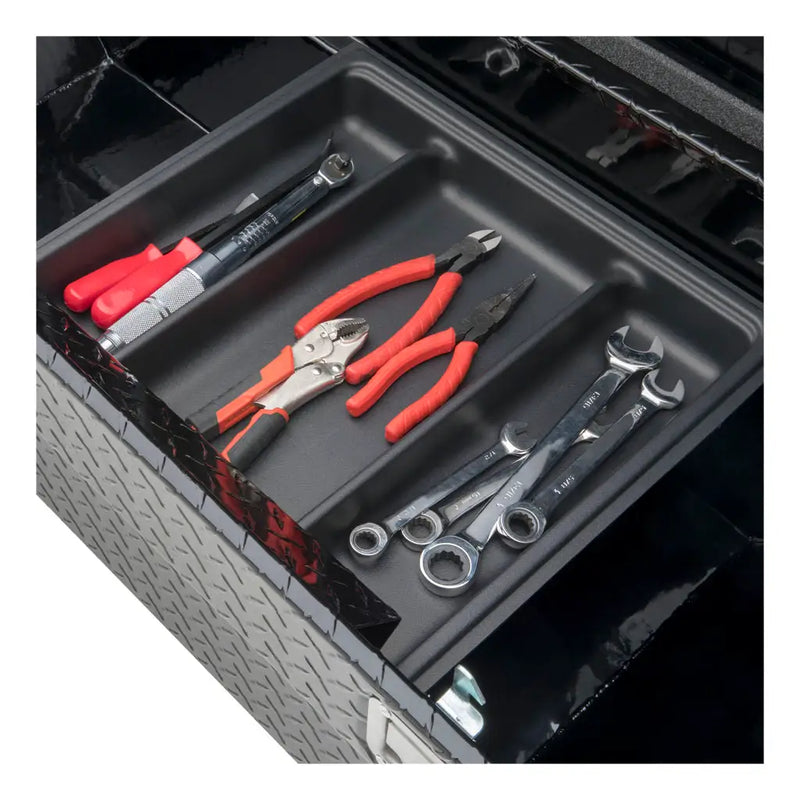

1 divider tray
2 rail pads
2 J-hooks, 3"
2 washers, 1/4"
2 nuts, 1/4"
Features
Deep Angled Tub, 10ft³ The tub is 59" x 17" x 16", noticeably deeper than a standard crossover, so power tools and cases stand up in it instead of lying flat. The angled ends clear the wheel wells and the taper of a modern bed.

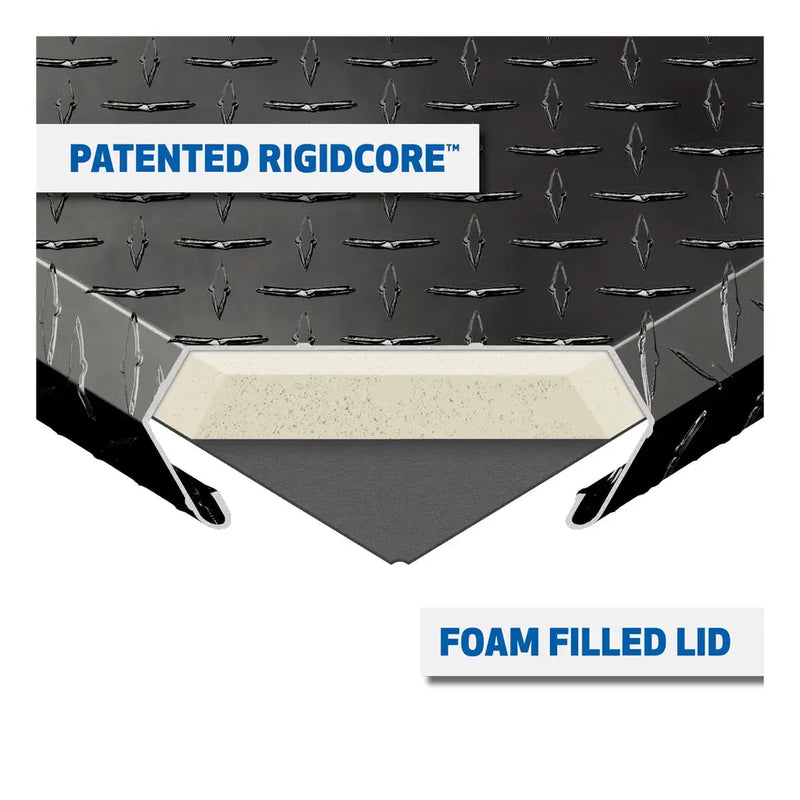

Patented RigidCore Foam-Filled Lid The lid is filled with a solid foam core instead of being left a hollow shell. It resists bending and warping, which is what keeps a lid this wide lining up with its latches years later, and it self-opens to 90 degrees and holds there so you can work with both hands.

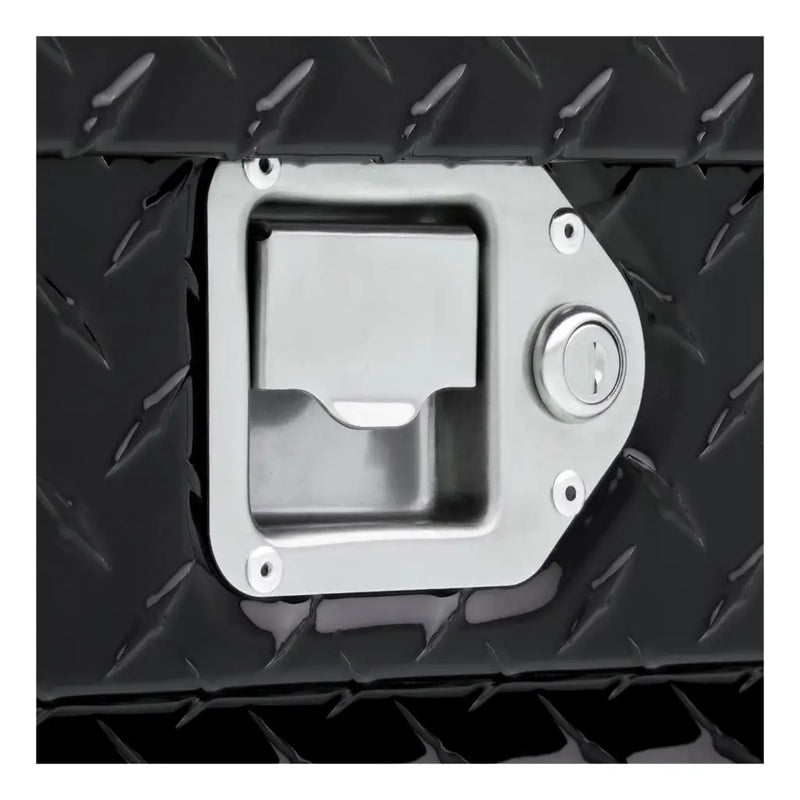

Stainless Steel Paddle Lock Handles Two stainless steel paddle handles, one on each side, linked by an internal connecting rod so the lid opens from wherever you are standing. Stainless keeps them working through salted winters. Two keys are included.
One-Piece 0.058" Aluminum Tub Extra-thick aluminum formed from a single sheet, with no welded seam along the floor for water to work into, and no steel to rust when a dropped tool chips the finish.

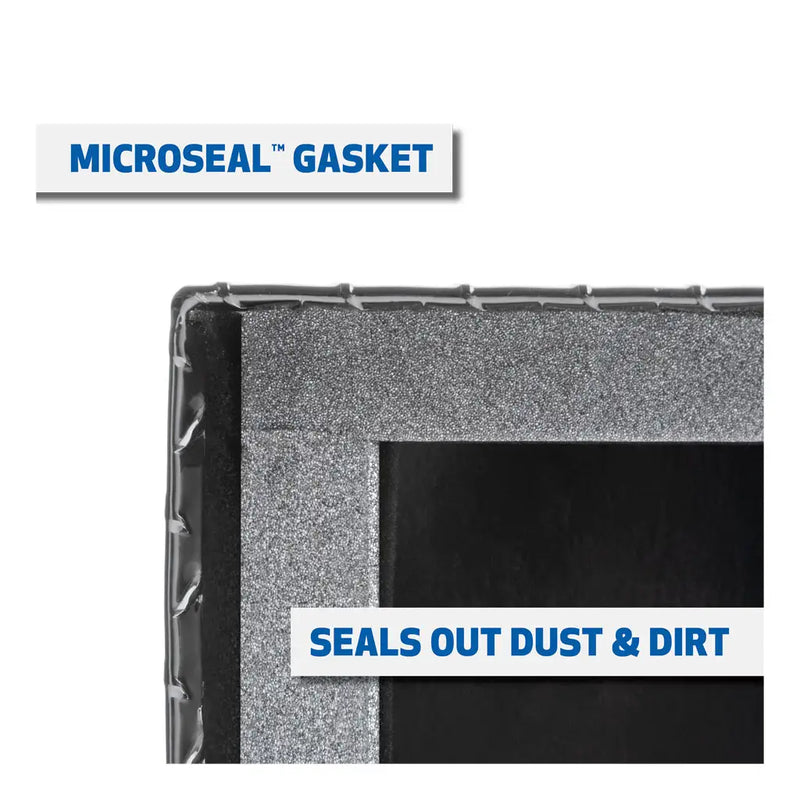

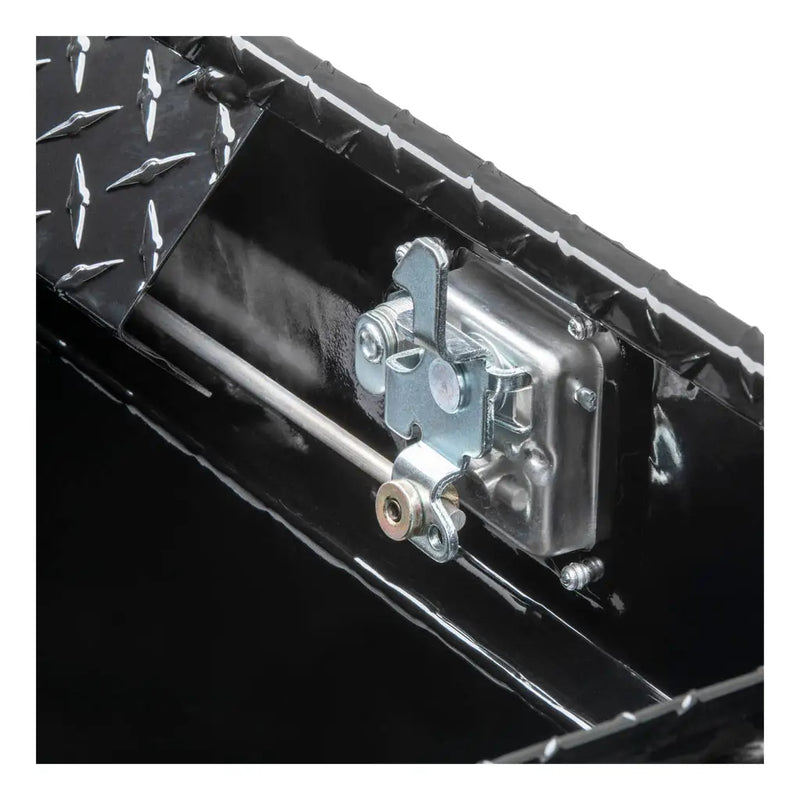

MicroSeal Gasket and Interior Rod Enclosure The MicroSeal gasket seals the lid all the way round against rain, spray and dust. Inside, the latch rod runs in an enclosure that protects it from being bent or jammed by shifting cargo, which is a common way for a crossover box to stop locking.
Clamps On Without Drilling The box ships with rail pads, clamps, washers and nuts, so it fits to the bed rails without a single hole drilled in the truck. The pads also keep the aluminum box from sitting directly on the bed rail.
Fitment & Compatibility
Application
Fit
Full-size pickups, 8' bed
✓ Yes
Full-size pickups, 6'6" bed
✓ Yes
Full-size pickups, 5'8" short bed
✓ Yes, this is a crossover so bed length is not the constraint
● Measure the rail-to-rail width first, this box is 70" across
Trucks with a bed liner or rail caps
✓ Yes, the rail pads sit on top; check the clamps still reach the rail lip
Fit guidance: A crossover fits by bed width, not bed length, so the measurement that matters is the outside-to-outside distance across your bed rails. This box is 70" across, which suits a full-size pickup. On a mid-size truck measure before ordering. It stands 18.75" tall, so check the lid clears the back window when it swings to 90 degrees, and check that a tonneau, if you run one, will sit over a box of this height. The angled tub is shaped to clear wheel wells and the taper of a modern bed. No drilling is needed and all the clamping hardware is in the carton.

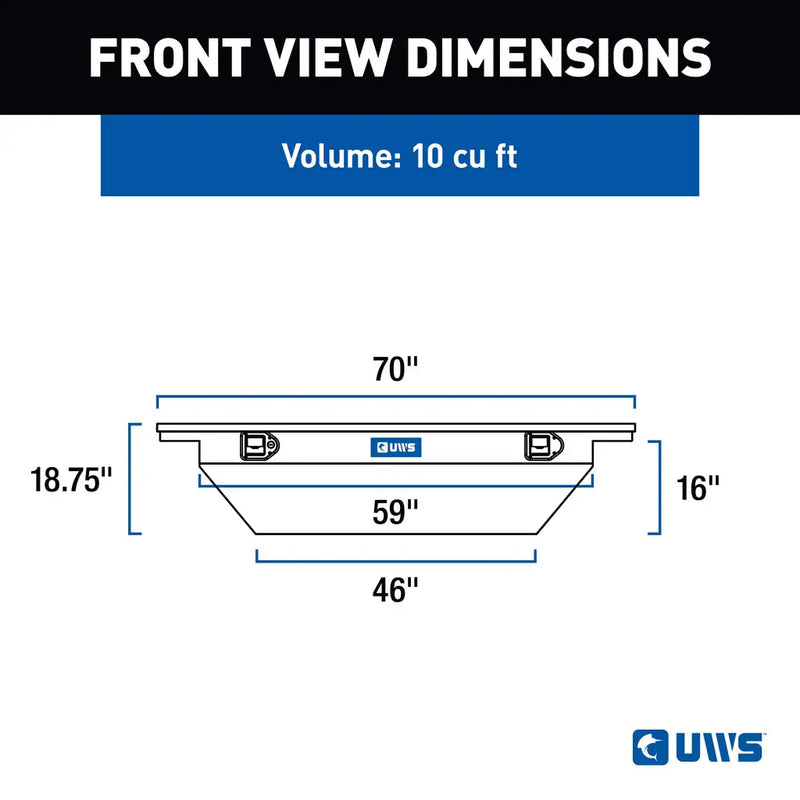

Specifications
Model: 69" Deep Angled Low Profile Crossover Truck Tool Box
UWS Part Number: TBSD-69-A-LP-B
Type: Crossover box, mounts across the bed rails behind the cab
Material: Aluminum, 0.058" one-piece tub
Finish: Gloss black powder coat
Capacity: 10ft³

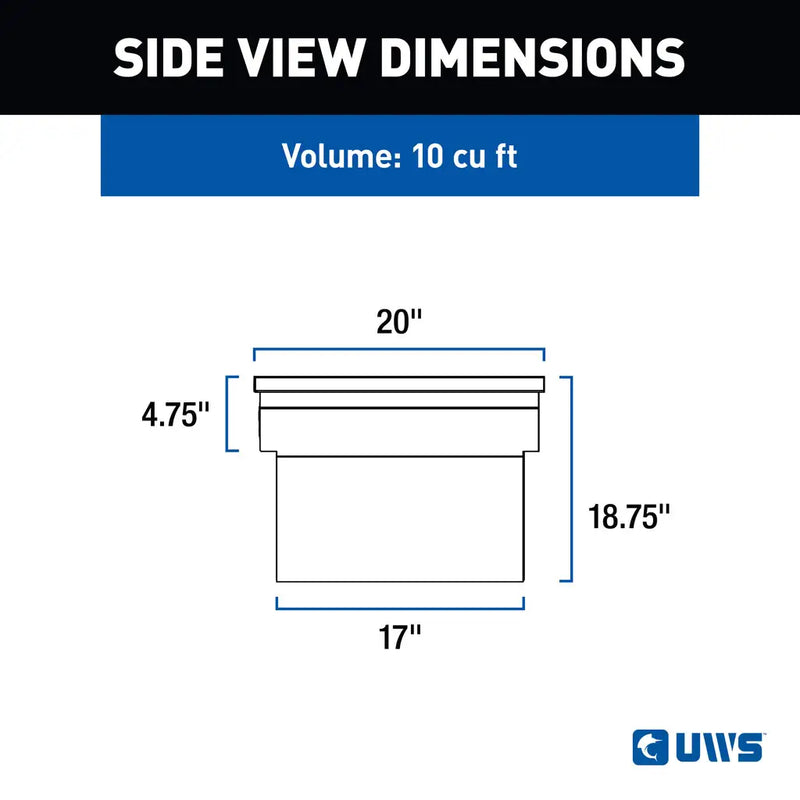

Overall Length: 70"
Overall Width: 20"
Overall Height: 18.75"
Tub Length: 59"
Tub Width: 17"
Tub Height: 16"
Tub Length at the Angle: 46"
Tub Style: Deep Angled
Profile: Low Profile
Lid: Single lid, RigidCore foam-filled, self-opens to 90 degrees
Type: Clamps to the bed rails with the included rail pads and clamps, no drilling · Time: About 30 to 45 minutes · Tools: Ratchet and socket set, tape measure · Difficulty: Easy, DIY-friendly, but a second person makes lifting it into the bed much easier
Set the rail pads on the bed rails, lower the box on with a hand at each end, then draw the clamps up underneath the rail and torque them evenly so the box sits flat and the lid lines up with both latches. Nothing needs drilling. Check the lid clears the back window when it is fully open before you tighten everything down. UWS is explicit that a tool box is not a place for flammables or hazardous material, so no fuel cans, solvents, propane or cutting torches. Never load past the vehicle manufacturer's rated capacity.
Resources
Everything you need for your UWS 69" Deep Angled Low Profile Crossover Truck Tool Box, Gloss Black Aluminum, in one place.
Warranty. Limited Lifetime Warranty (One-Year Finish, One-Year Parts) from UWS, covering workmanship and materials. Normal wear, damage from overloading, and damage from improper installation are not covered. UWS stocks handles, locks, gas struts, gaskets, cables and keys as individual service parts.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About UWS
UWS is short for United Welding Services, and the name is the point. The aluminum boxes in this line are designed, fabricated and welded in Florida rather than assembled from imported panels, and the tub is formed from one piece of extra-thick aluminum so there is no seam along the floor of the box for water to work its way into. UWS is part of the CURT Group, a Lippert company, which is what puts a national warranty and a real replacement-parts program behind a box that is still built in a single plant. Handles, gas struts, lid gaskets, striker brackets and keys are all cataloged parts you can buy years later, which is the practical difference between a box you repair and a box you replace.
The crossover is the box most people picture when they think of a truck box, and the things that separate a good one from a cheap one are all here. The lid is foam-filled rather than hollow, which is what stops a 70" span from flexing and eventually binding on its latches. The tub is pressed from one piece rather than seam-welded along the floor. The two paddle handles are linked by an internal connecting rod so the lid opens from whichever side you are standing on, and the rod runs inside an enclosure that stops it being bent or jammed. It clamps to the bed rails on rail pads, so nothing gets drilled and the box comes off again cleanly when the truck is sold.
Prestige Truck is an authorized UWS dealer. Every box we ship is new and in the factory carton, covered by the full UWS factory warranty, and backed by the UWS replacement-parts program if a handle, strut, gasket or key ever needs renewing.
Compare The Range
How this compares to similar models
The closest alternatives side by side, so you do not have to keep tabs open.
Model
This OneUWS 69" Deep Angled Low Profile Crossover Truck Tool Box, Gloss Black Aluminum (TBSD-69-A-LP-B)
UWS cuts into a RigidCore lid to show the foam core inside the aluminum shell, which is what stops a long lid flexing and eventually binding on its latches.
It is the clearest explanation of why a foam-filled lid costs more than a hollow one.
Tool Box Vs. Mud Vs. Pressure Washer, MicroSeal Weather Test
UWS pressure-washes and mud-blasts a closed tool box to show what the MicroSeal gasket actually keeps out.
Worth two minutes if you are deciding whether a gasket claim is marketing or engineering.
Frequently Asked Questions
Straight answers on specs, fit and support
Will this fit my truck?
Crossovers fit by bed width rather than model. Measure across the outside of your bed rails: this box is 70" wide, which fits a full-size pickup bed. Mid-size trucks are narrower, so measure first. Also check that the 18.75" height clears your back window when the lid swings open.
Do I have to drill the truck?
No. The box clamps to the bed rails using the included rail pads, clamps, washers and nuts. Nothing gets drilled, and the box lifts off cleanly if you sell the truck.
How much deeper is the 'deep' tub?
The tub is 16" deep and holds 10ft³ in total. That is enough for power tool cases to stand upright rather than lie flat, which is usually the difference between everything fitting and having to leave something in the garage.
Can I open it from either side?
Yes. There is a stainless steel paddle handle on each side and an internal connecting rod links them, so the lid opens from the driver or passenger side. The rod runs inside an enclosure so shifting cargo cannot bend or jam it.
Is a liner or tray included?
A divider tray ships with the box. If you want a BedRug carpet liner, UWS sells them separately by box size and style. Velcro hook strip for retaining a liner is a separate part (UWS-HOOK60).
What does the warranty cover?
A limited lifetime warranty on workmanship and materials, one year on the finish and one year on parts. Handles, gas struts, gaskets and keys are all cataloged UWS service parts if you ever need one.
