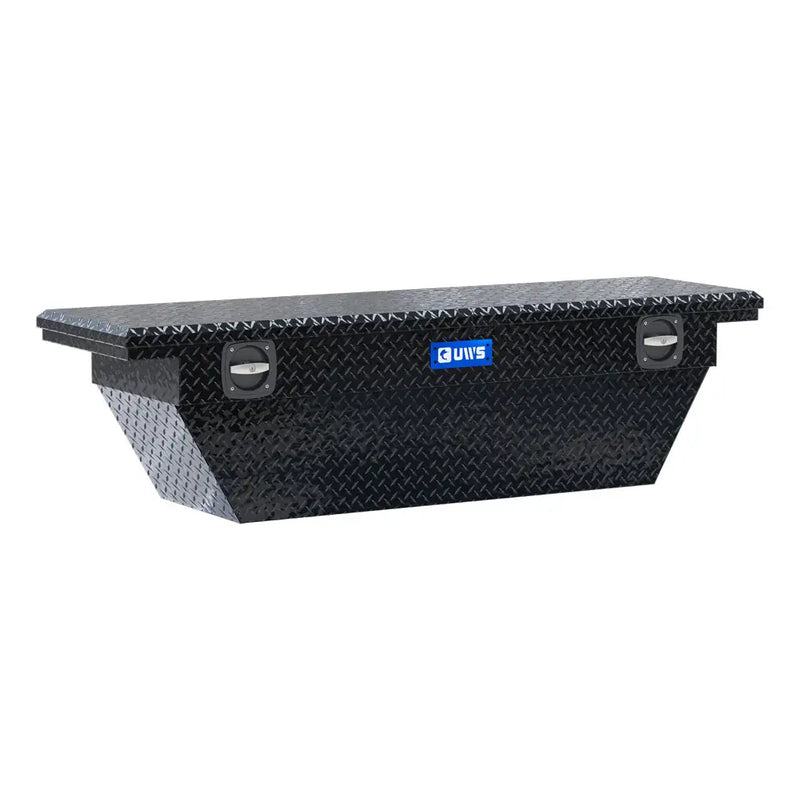

Secure Lock is the UWS crossover for people who actually worry about what is in the box. Instead of a handle you can get a bar behind, it uses two twist handles recessed flush into the lid, each one lockable, joined by a connecting rod so the lid still opens from whichever side of the truck you are standing on. The SLD-69-A-LP-BLK is the 69" deep angled version in a low profile, carrying 10ft³ in a tub lined with BedRug, which keeps tools off bare metal, damps the rattle and keeps dust down. The lid is UWS's patented RigidCore foam-filled panel and it closes itself, the shell is extra-thick aluminum in gloss black powder coat, and at 18.75" tall it sits below the cab line on most full-size trucks.

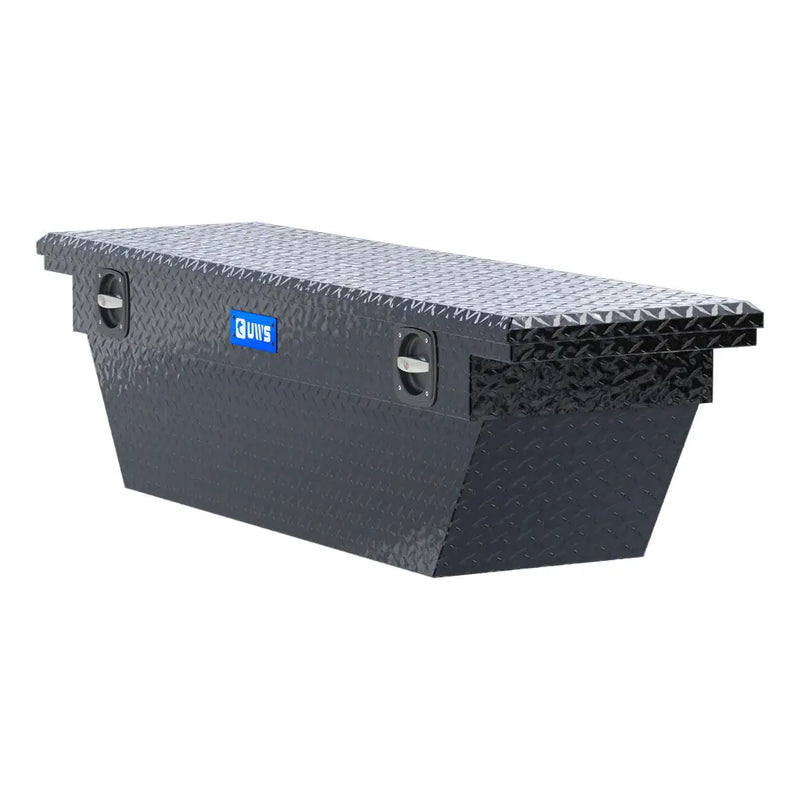

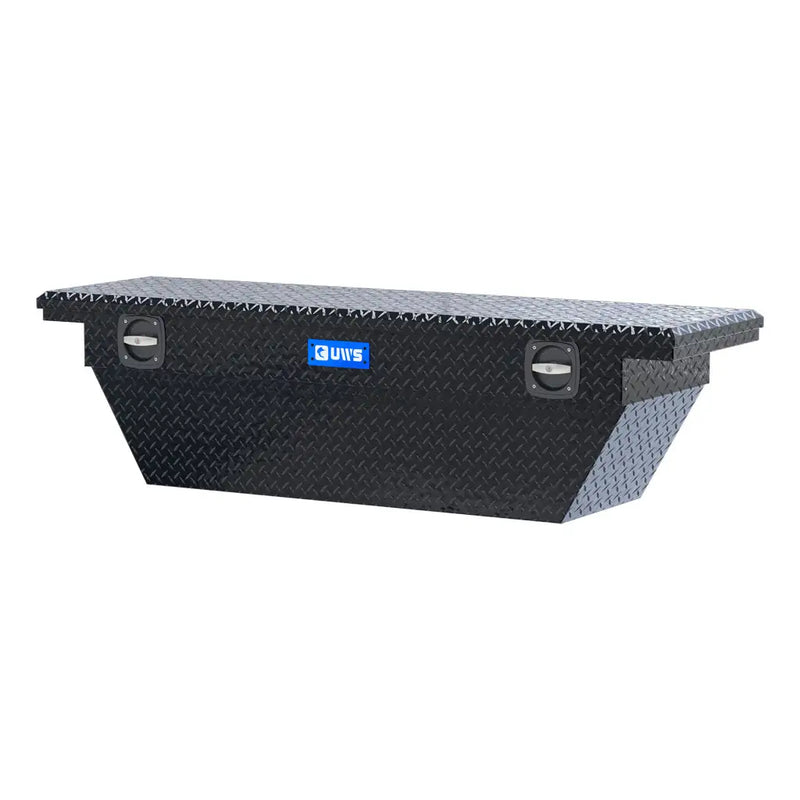

Secure Lock Twist Handles, Lockable Both Sides The handles sit down inside molded pans flush with the lid, so there is very little for a pry bar to grab. Both lock, and a connecting rod ties them together so either side opens the lid once unlocked. That combination is the whole point of the Secure Lock range.
10ft³ in a Low-Profile 69" Body Capacity is 10ft³, and at 18.75" overall the box sits low enough to stay out of the rear window on most full-size trucks. Low profile is about visibility and looks; you give up a little depth to get it.

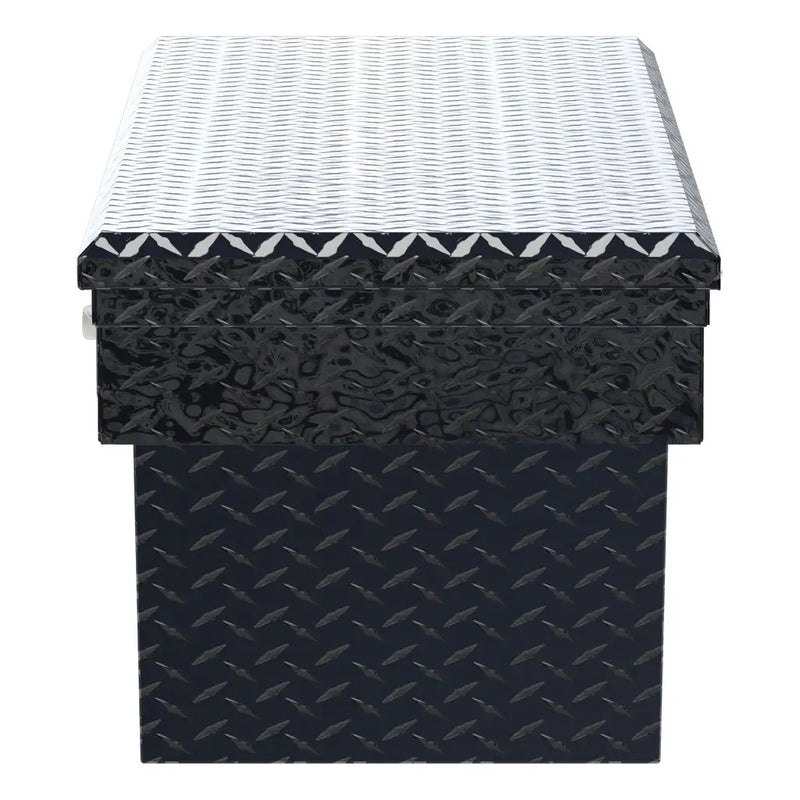

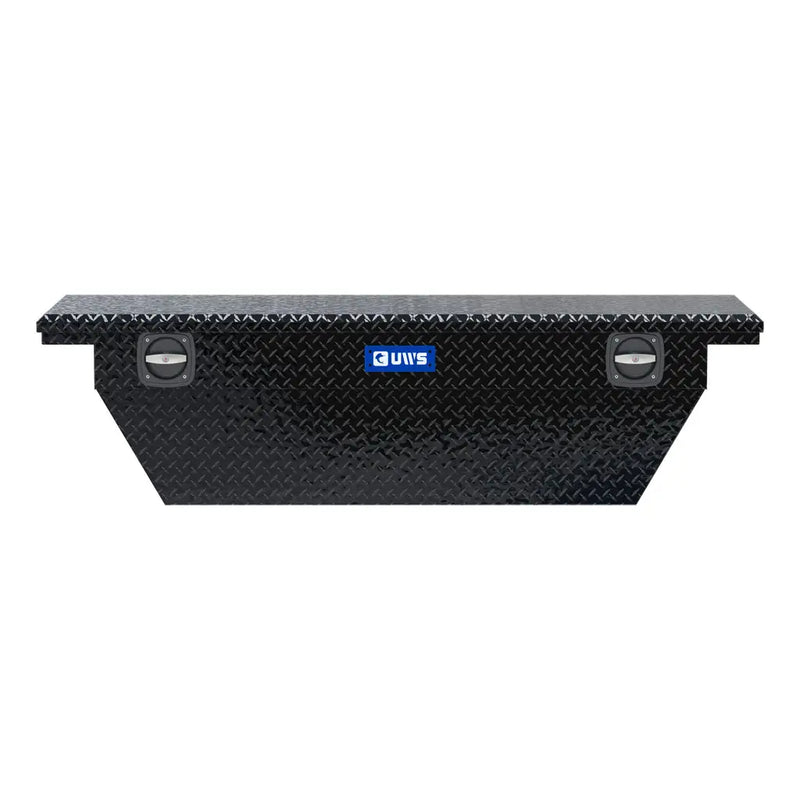

Deep Angled Tub for Real Volume The deep angled tub is what separates this from a standard low-profile box: 16" of tub depth and 10ft³ of capacity, which is more than most low-profile crossovers manage. The angled ends follow the bed sides so the extra depth does not cost you bed space.
BedRug Lined Tub The tub is lined with BedRug rather than left as bare aluminum. It stops tools sliding and rattling, protects the finish of whatever you put in there, keeps dust down and gives the inside of the box a finished look instead of a raw one.

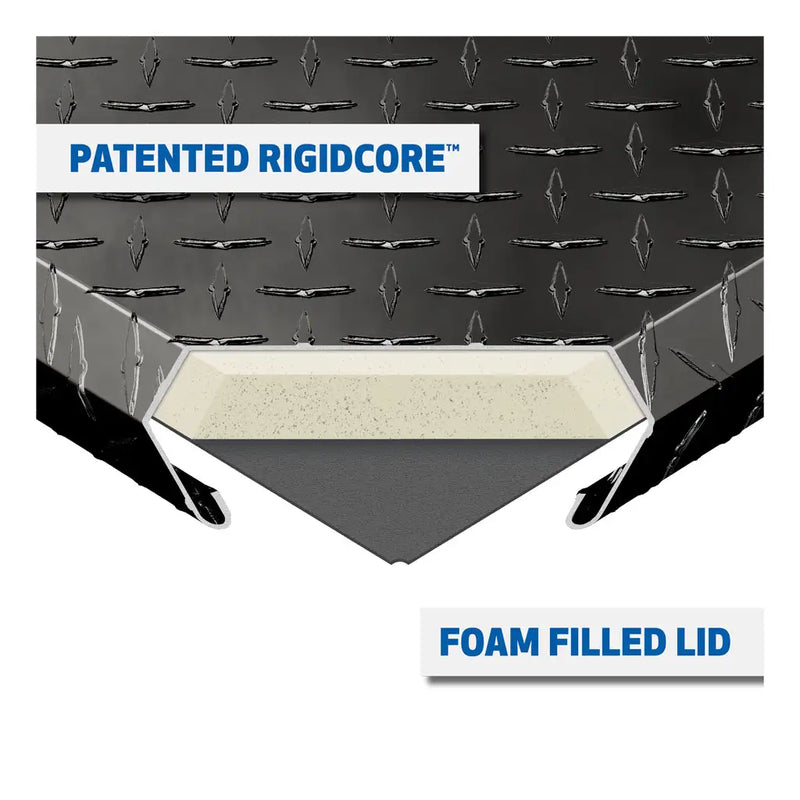

Patented RigidCore Self-Closing Lid Foam-injected rather than hollow, so the lid carries load across its whole area and does not drum at speed. It is also self-closing, which means it comes down under control rather than being dropped.
Extra-Thick Welded Aluminum Heavy-wall aluminum with welded seams finished in gloss black powder coat, 70" long overall and 20" across, weighing 49.2 lb.
Fitment & Compatibility
Application
Fit
Full-size pickups with a standard bed
✓ Yes if you measure at least 70" rail to rail across the top of the bed
Full-size pickups where rear visibility matters
✓ Yes, the low profile is chosen specifically to stay out of the rear window line
Mid-size pickups
● Measure carefully, 70" rail to rail is wide for most mid-size beds
Beds with a bed rail cap or a rail system
● Usually yes, but the cap changes the effective rail width, so measure over whatever the box will actually sit on
Trucks towing a 5th wheel or gooseneck
● Check the trailer swing arc with the trailer hitched, a crossover sits higher than a dedicated 5th wheel box
Fit guidance: Crossover boxes are sized to the bed rails, not the bed floor, so the measurement that decides fit is rail to rail across the top of the bed at the point the box will sit. This one needs 70" and sits 18.75" tall. Measure your own truck rather than trusting a bed length: rail spacing varies between manufacturers and model generations, and a bed liner or a rail cap changes it again. This box is supplied without a rail: it clamps to the bed rails with the J-hooks and rail pads that come in the carton, which is normally a no-drill installation.
Specifications
Part Number: SLD-69-A-LP-BLK
Model: 69" Secure Lock Deep Angled Crossover, Low Profile
Box Style: Crossover truck tool box
Storage Capacity: 10ft³
Lid Type: Single lid, RigidCore foam filled, self-closing
Latch Type: Secure Lock handle, lockable both sides
Liner: BedRug
Material: Aluminum
Finish: Gloss black powder coat
Profile: Low profile
Tub Style: Deep Angled

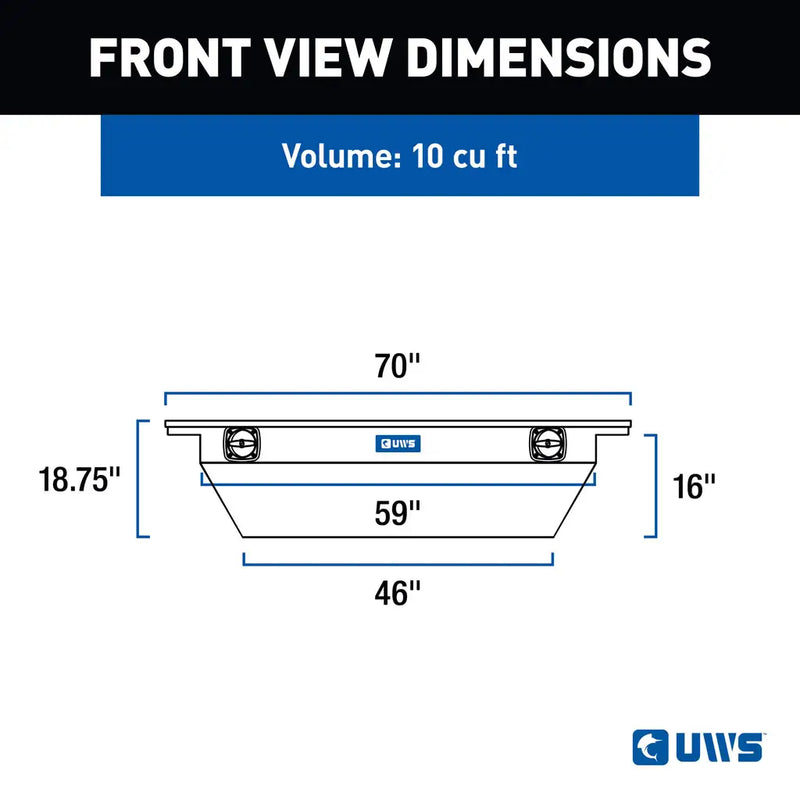

Overall Length: 70"

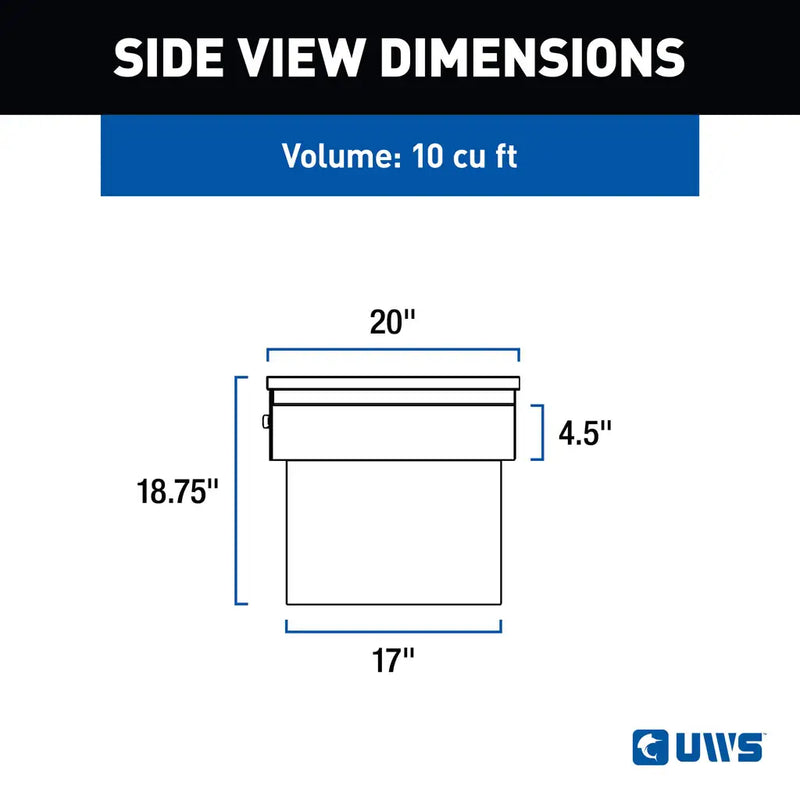

Overall Width: 20"
Overall Height: 18.75"
Tub Length: 59"
Tub Length at Base: 46"
Tub Width: 17"
Tub Height: 16"
Rail Option: Without rail
Product Weight: 49.2 lb
Shipping Weight: 57 lb
Country of Origin: USA
UPC: 672078084741
Warranty: UWS Limited Lifetime Warranty, one-year finish, one-year parts
Installation
Type: Clamp or J-hook mounting onto the bed rails, no drilling required in most applications · Time: About 30 minutes · Tools: Socket set, tape measure, and a second person for the lift · Difficulty: Easy, DIY-friendly
Measure rail to rail before the box arrives, not after. Set the box down onto the rails with a blanket underneath if you care about the paint, center it, and check the lid opens fully without hitting the rear window or the cab. Fit the supplied J-hooks and rail pads and tighten evenly from side to side so the box is not pulled out of square. Open and close both Secure Lock handles and confirm the connecting rod releases the latch from either side before you load anything. At 57 lb this is a two-person lift onto the rails.
Resources
Everything you need for your UWS 69" Secure Lock Deep Angled Crossover Truck Tool Box, Low Profile, Gloss Black, in one place.
Warranty. UWS Limited Lifetime Warranty on the box, with one year on finish and one year on parts. Normal wear, cosmetic damage and damage from overloading or improper installation are not covered.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About UWS
UWS has been building aluminum truck storage since 1997, and today it sits inside the CURT Group under Lippert, alongside CURT towing and Luverne steps. That matters mainly for what it buys you as an owner: a real engineering department, a published warranty, and a parts counter that still stocks handles, cylinders and strikers for boxes sold years ago. UWS builds tool boxes the way a fleet buyer would spec them, out of heavy-wall aluminum with fully welded seams rather than folded and riveted corners.

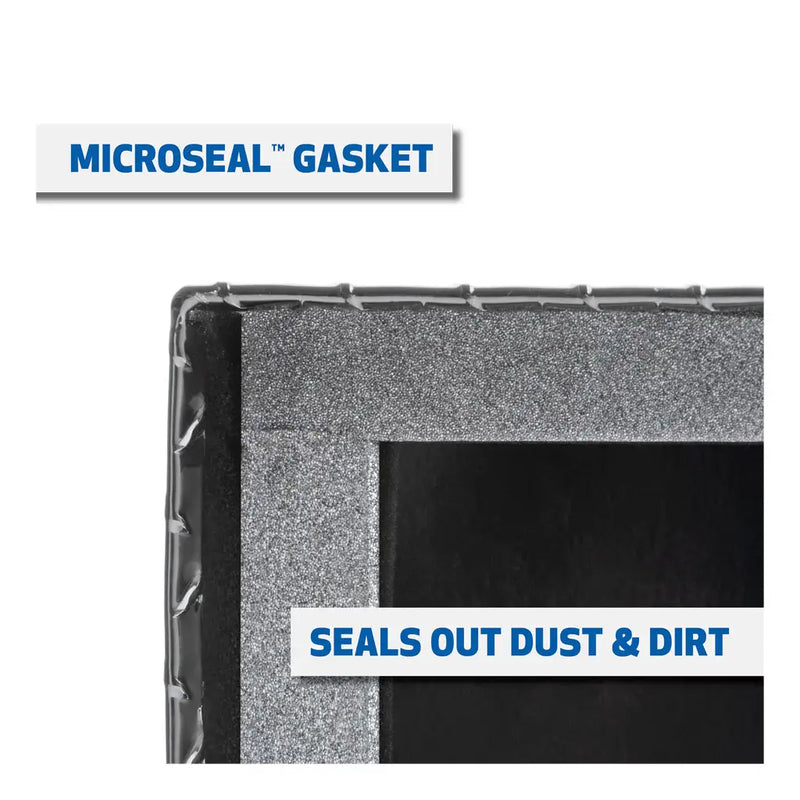

Two things separate a UWS box from a bargain box on a shelf. The first is the patented RigidCore lid, a foam-injected core that fills the lid cavity so the panel does not oil-can, drum or dish when somebody stands on it. The second is MicroSeal weather stripping, a thick automotive-style seal that runs the full perimeter and keeps dust and water out of the tub on washboard roads and in driving rain. Add stainless hardware, a lock that is actually worth locking and a lid that holds itself open, and you have a box that still works after the winters that finish cheaper boxes.
Prestige Truck is an authorized UWS dealer. Every box we ship is new, factory-packed, covered by the full UWS factory warranty, and backed by a parts supply that means a lost key or a tired handle never turns into a replaced tool box.
Compare The Range
How this compares to similar models
The closest alternatives side by side, so you do not have to keep tabs open.
Model
This OneUWS 69" Secure Lock Deep Angled Crossover Truck Tool Box, Low Profile, Gloss Black (SLD-69-A-LP-BLK)
A closer look at the low-profile version of the Secure Lock crossover, which is the profile this box is built in.
Useful for judging how far a low-profile box actually sits below the cab line, which is the whole reason to choose one over a standard-profile box.
RigidCore Strength Test: Tool Box Vs. Pickup Truck
UWS drives a pickup onto one of its RigidCore lids.
It is a stunt, but it demonstrates the actual point of a foam-injected lid: the core fills the cavity so the panel spreads load across its whole area instead of dishing in the middle the way a hollow lid does.
How To Measure Your Truck Bed For A Crossover Tool Box
UWS shows where to take the measurement that actually matters, which is rail to rail across the top of the bed rather than the width of the bed floor.
Do this before you order: crossover boxes are sized to the rails, and a box that is too wide simply will not drop in.
Frequently Asked Questions
Straight answers on specs, fit and support
How do I know it will fit my truck?
Measure rail to rail across the top of your bed, at the point where the box will sit. This box needs 70". Do not go by bed length or model year, because rail spacing varies between manufacturers and generations, and a bed liner or rail cap changes it again.
What makes Secure Lock different from a normal crossover?
The handles. Secure Lock uses round twist handles recessed flush into the lid, so there is very little for a pry bar to catch. Both handles lock, and a connecting rod means the lid still opens from either side of the truck once you have unlocked it.
How much does it hold?
10ft³. That is a large figure for a low-profile box, and it comes from the deep angled tub, which is 16" deep.
What is the BedRug liner for?
It lines the tub instead of leaving bare aluminum. Practically, it stops tools sliding around and rattling, protects both the box and whatever you put in it, and keeps dust down. It also stops the inside of the box looking raw.
Will it block my rear window?
It is the low-profile version at 18.75" tall, which is chosen specifically to sit below the cab line on most full-size trucks. Cab height varies, so if rear visibility is critical to you, measure from your bed rail to the bottom of your rear window and compare.
Is mounting hardware included?
Yes. This box's own install sheet lists two 3" J-hooks, two rail pads, two 1/4" washers and two 1/4" nuts in the carton, along with two keys. That is a no-drill rail mount, so in most applications you need nothing beyond a socket set.
