An HVAC van carries an awkward mix. Small fittings by the hundred, gauges and vacuum pumps that have to stay clean, cylinders that must be secured and the occasional condenser that will not fit anywhere sensible. The layout has to serve all four.
Where Do You Start?
Start with the cylinders and the heavy items, because their position is the least negotiable. Refrigerant cylinders, recovery machines and vacuum pumps belong low, against a wall and strapped. Everything else is arranged around them. Getting that wrong once is enough to convince anyone.
Choose Shelf Depth Before Anything Else
Van shelving is commonly offered in 13.5 inch and 16 inch depths, and the choice sets how much aisle you keep. In a mid-roof cargo van, 13.5 inch shelving down both sides leaves a workable centre aisle. Sixteen inch shelving on both sides makes the aisle tight enough that you turn sideways to pass.
- 13.5 inch both sides: comfortable aisle, suits fittings and hand tools.
- 16 inch one side, 13.5 inch the other: depth where you need it, aisle preserved.
- 16 inch both sides: only in a larger van or where you rarely walk through.
Height and Shelf Count
Units are typically offered in 3-shelf configurations around 44 inches tall and 4-shelf configurations around 60 inches. The taller units suit the forward section where you stand and work. Shorter units near the rear doors keep the load height down and let you reach across the floor.
Adjustable shelves are worth having on at least one unit. Fitting stock, gauges and a recovery machine do not share a sensible spacing, and a fixed layout forces one of them into wasted space.
Keep the mass low while you are at it. Shelving loaded heavy at the top raises the centre of gravity of a van that is already tall, and it is felt most on the sort of quick lane change nobody plans. Cylinders, spare compressors and boxed stock belong on the bottom shelf or the floor.
Small Parts Are the Real Problem

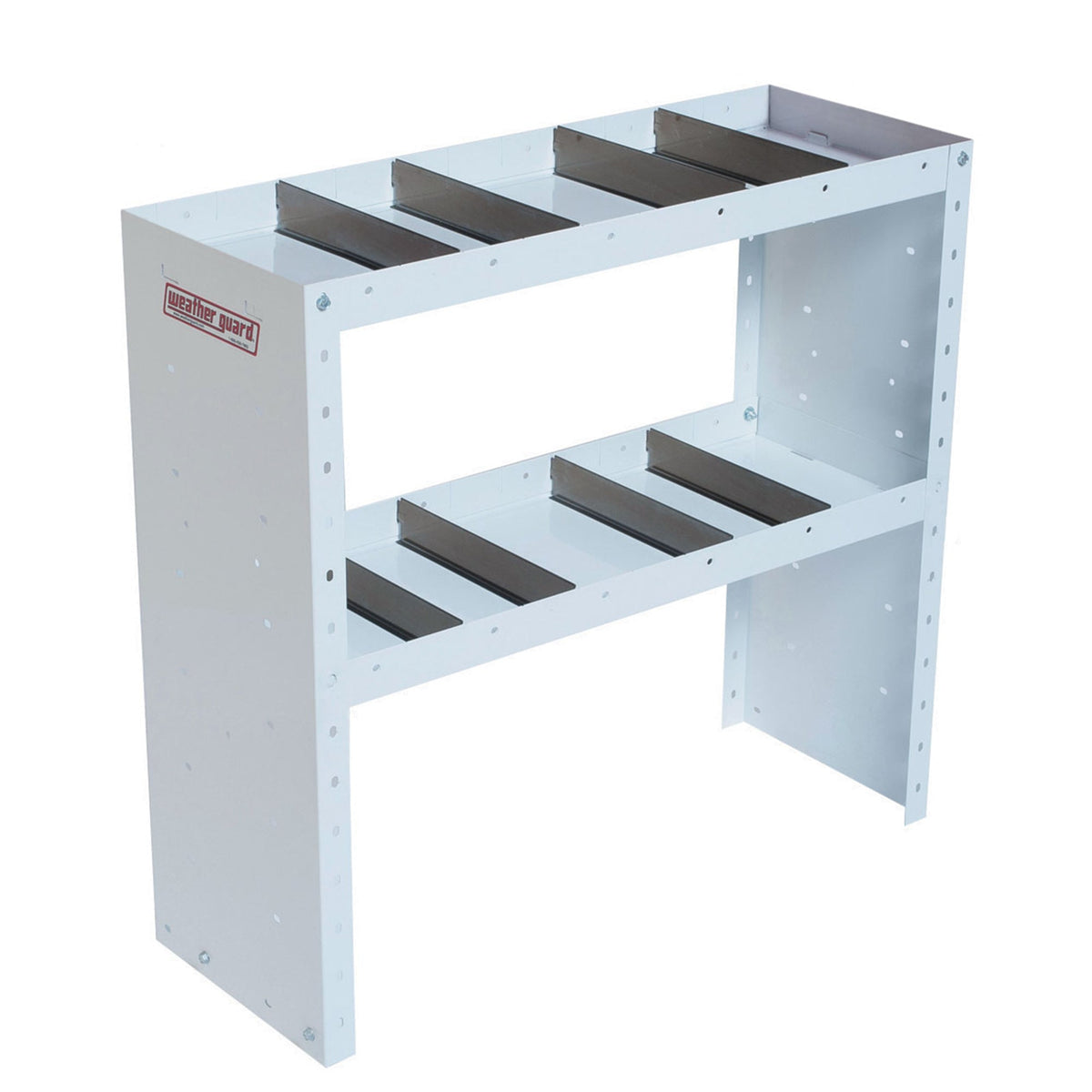

Fittings, valves, driers and electrical spares outnumber everything else and are the reason technicians end up back at the counter. Divided shelves and drawer units keep them sorted, and a shelf with dividers stops a whole row emptying itself into the aisle on the first roundabout.
Label the divisions rather than trusting memory, particularly if the van is shared or covered by someone else at the weekend. A layout that only one person can navigate stops being a layout the moment that person takes a holiday.
A bulkhead is worth fitting if the van does not have one. It keeps a shifting load out of the cab and gives you a solid wall to hang the items you reach for first, and swing door conversion kits let you keep access through it rather than walking around the van.
Mounting It Properly
Shelving should bolt to the van's structure using a mounting kit matched to the model and wheelbase, since Transit, Sprinter and ProMaster all have different rail positions and different wheelbase lengths. Fitting a folding aluminum unit rated around 300 lb per shelf into an unsupported panel puts the load in the wrong place entirely.
