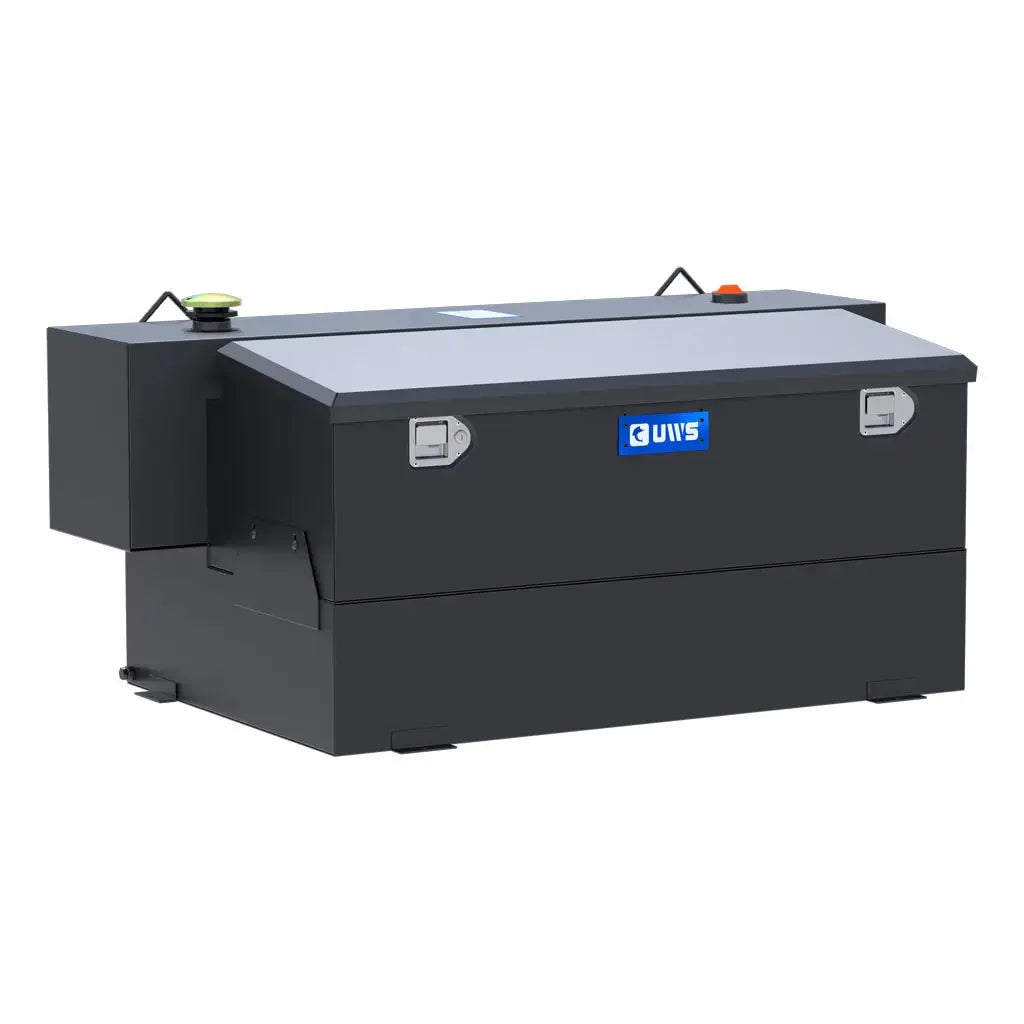

A combo unit puts a tool box on top of a transfer tank so the two share one footprint at the front of the bed. On a truck that needs fuel and secure storage, it solves both with a single install and leaves more floor than two separate items would.
Is a Combo Worth It?
Usually yes if you need both anyway. A combo takes the bed space of a tank alone, mounts once, and costs less than buying a tank and a crossover box separately. It becomes the wrong answer when you need a large tank and a large box, since the combo compromises on one to make room for the other.
What Capacity to Expect
Combos are commonly built around a 100 gallon tank with a tool box compartment in the region of 6 to 7 cubic feet. That box is smaller than a full-size crossover but large enough for hand tools, hose, nozzles and the consumables that go with fuelling equipment.
Think about what actually needs to live there. A combo box that ends up holding the fuel gear alone is doing its job. One expected to replace a full tool box will feel tight from the first week.
Weight Is the Real Constraint
Diesel weighs roughly 7 lb per gallon, so a full 100 gallon tank is about 700 lb of fuel. Add the tank, the box and a box full of tools and you are near half a ton sitting at the front of the bed, high and forward.
- Check the payload rating of the truck before choosing a capacity.
- Remember passengers and bed cargo count against the same number.
- A part filled tank sloshes, which shifts weight under braking.
- Bolt the unit down. A strap alone does not hold 700 lb in a hard stop.
Access and Layout
The tool box sits on top, so its lid opens at a comfortable height and the pump and nozzle live below it. Check where the fill point and the pump outlet sit relative to the box lid, since a combo that makes you close the box to reach the nozzle gets irritating quickly.
Steel is the common construction for combos because the unit is structural, carrying fuel weight and box weight together. Finishes tend to follow fleet convention, with white and matte black the usual pair.
When to Split Them Instead
If you need a 50 gallon tank and a large crossover box, buy both separately and mount the tank behind the box. You keep full box capacity, carry less fuel weight and can change either one later without replacing the other.
Compare the options in transfer tanks and crossover tool boxes, or see the full tool box range.
