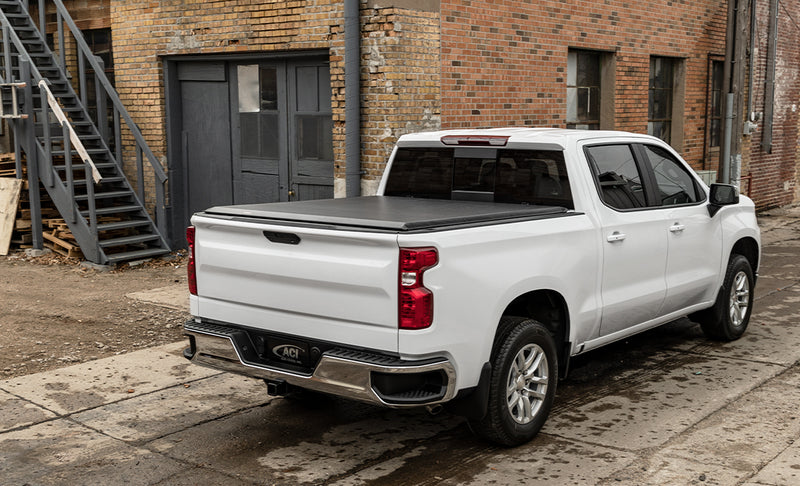

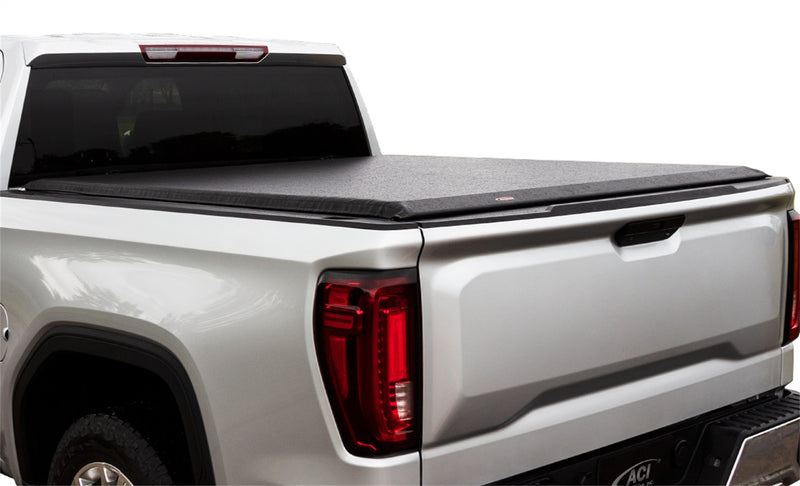

Access Limited Edition part 22419 is the 6'10" bed application for the 2020-2026 Chevrolet Silverado 2500 HD and Silverado 3500 HD and GMC Sierra 2500 HD and Sierra 3500 HD. Both AutoLatch II latches release with one pull of the cord from either side and relatch as soon as the rear bar goes down. Check the fitment table for the exact trucks, and the Installation tab for the mounting method and any extra hardware this truck calls for.
What's Included:
- Pre-rolled cover assembly with front bar and EZ-Dial adjusters, Slantback rear bar, support bows and AutoLatch II latches
- Driver and passenger side rails
- Tight Bite rail clamps, with tie-down rings on clamp-on applications (quantity set by bed length)
- Bulkhead seal gasket and rear seals
- Premium nylon storage straps
- TrailSeal tailgate gasket
- 18" AA battery peel-and-stick light
- EZ-Retriever II cargo reaching tool with EZ-Holder kit
- 2 oz Cover Care cleaner sample
- Alcohol prep pad
Tools and sealant for factory holes and stake pockets are not included, and tie-down ring clamps are not supplied on utility-rail or bolt-on applications.
Features
Accessories in the box
A TrailSeal tailgate gasket, an 18" AA battery light, the EZ-Retriever II reaching tool with its EZ-Holder kit and a 2 oz Cover Care sample ship with every Limited Edition.

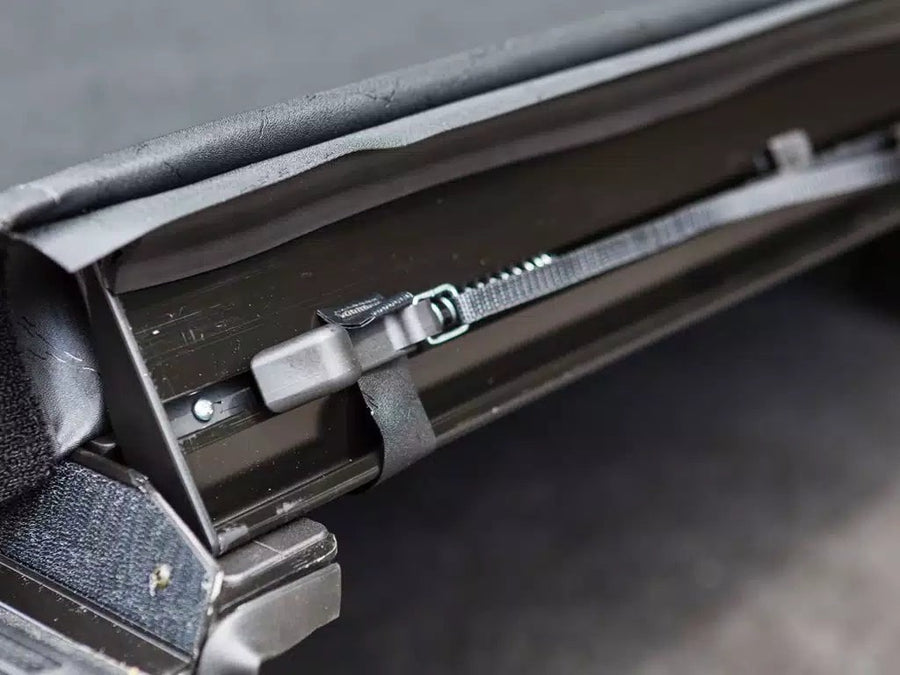

EZ-Dial tension adjusters
Built-in dials let you fine-tune how tight the vinyl sits by hand. Turn each side the same amount; no tools are required.
AutoLatch II dual latches
A single pull on the cord from either side opens both nylon latches together, and they lock again automatically when the cover closes, with 1/2" of latch engagement.

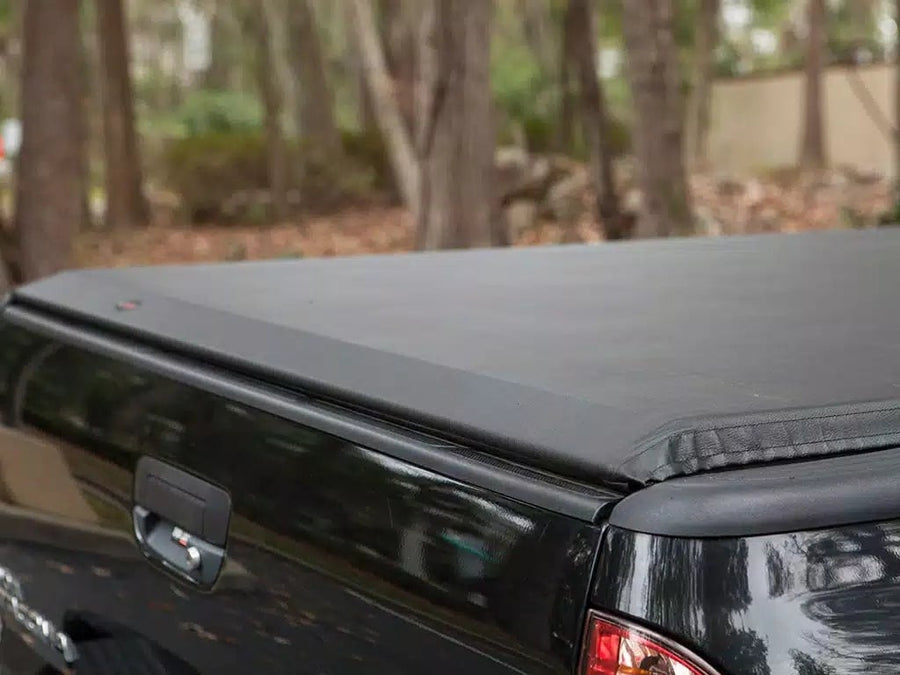

Sealed on four sides
Vinyl seals front and rear, foam along the side rails, an Element Seal gasket across the bulkhead and rear corner seals guard the edges where weather gets in.

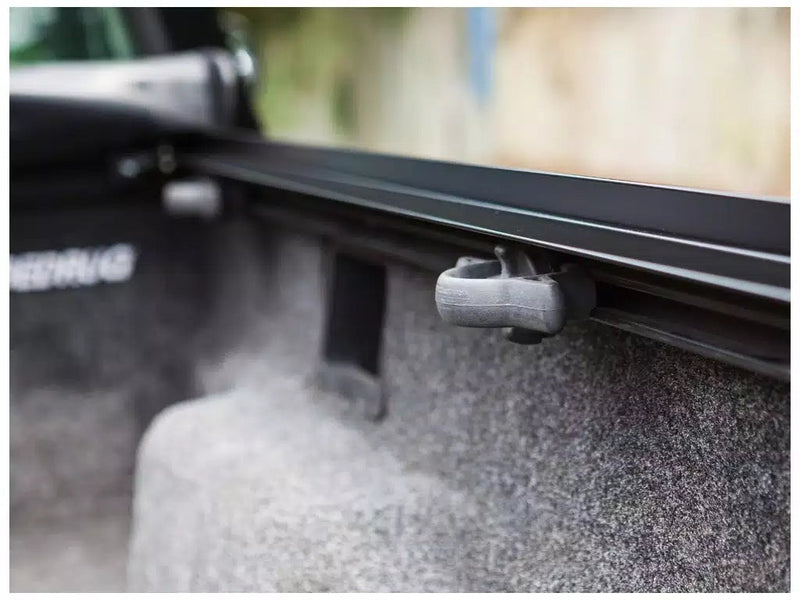

Tie-down ring clamps
On clamp-on applications the rail clamps include tie-down rings for anchoring loads under the cover. They are not offered on utility-rail or bolt-on applications.
Increased capacity profile
Black aluminum rails, bars and 3 bows hold the vinyl 1-1/2" above the bed rails, finished with the Slantback rear bar.

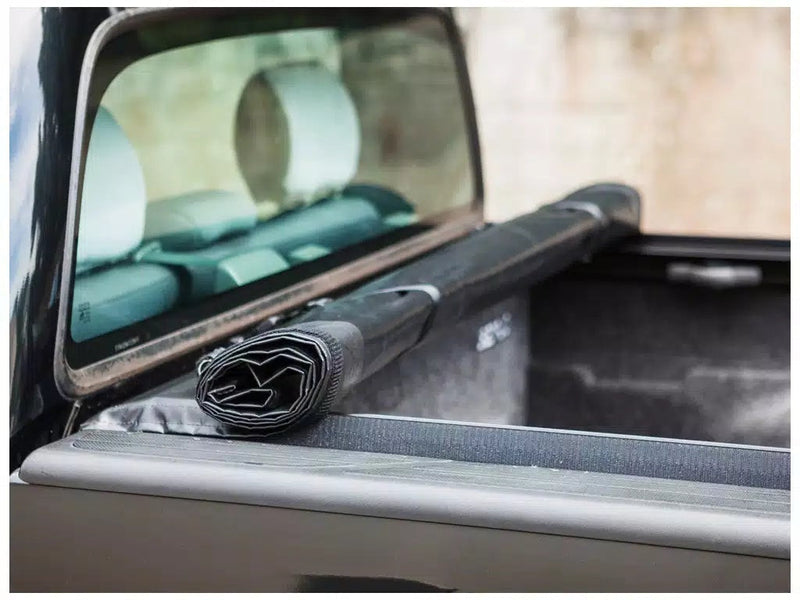

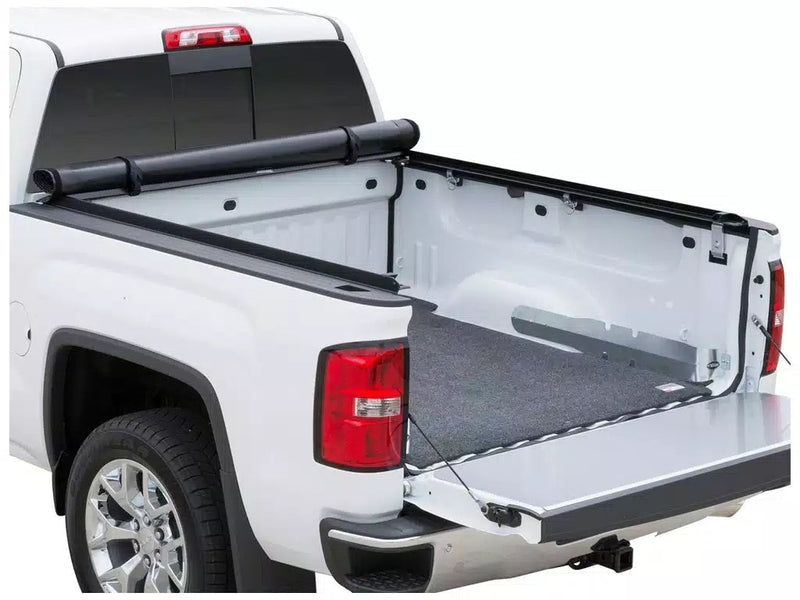

Cab guard storage straps
Heavy-duty nylon straps hold the rolled cover at the front of the bed and keep it off the cab, then buckle away underneath when the cover is closed.
Fitment & Compatibility
Fit guidance: Fits the 2020-2026 Chevrolet Silverado 2500 HD and Silverado 3500 HD and GMC Sierra 2500 HD and Sierra 3500 HD with the 6'10" (82.2") bed, GM's "6'9" Standard Bed" (with or without Multi Tailgate; without bed-side storage boxes). GM names its boxes by a rounded figure; measure the bed floor if you are unsure which box you have. Will not fit trucks with bed-side storage boxes.
Specifications
-
Brand: Access
-
Series: Limited Edition
-
Cover style: Soft roll-up tonneau cover
-
Cover material: Textured vinyl, reinforced, commercial grade, UV protected
-
Color: Black
-
Cold weather: Vinyl stays flexible to -40°F
-
Profile: 1-1/2" above the bed rails
-
Latch: AutoLatch II dual locking system, nylon latches
-
Tension adjustment: EZ-Dial tension adjusters, tool-free
-
Sealing: Front and rear vinyl seals, side-rail foam, Element Seal bulkhead gasket, rear corner seals
-

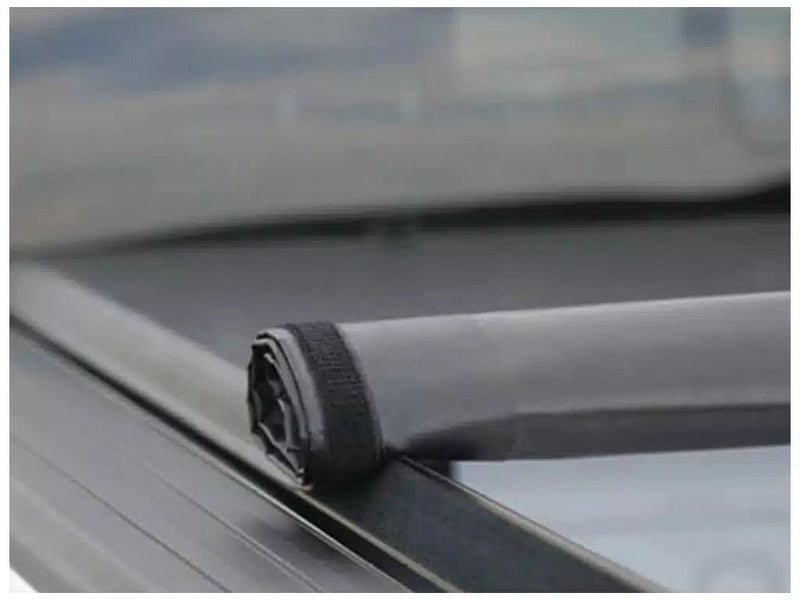

Side fastening: 1-1/2" wide slide-in hook and loop
-
Frame: Black aluminum side rails, bars and 3 bows
-
Rear bar: Slantback rear design
-
Storage straps: Premium nylon straps with cab guard design
-
Mounting: Tight Bite clamps with tie-down rings on clamp-on applications; some trucks use special hardware (see Installation tab)
-
Included accessories: TrailSeal tailgate gasket, 18" AA battery light, EZ-Retriever II with EZ-Holder kit, 2 oz Cover Care cleaner
-
Warranty: 5-year limited
-
Fits: 2020-2026 Chevrolet Silverado 2500 HD and Silverado 3500 HD and GMC Sierra 2500 HD and Sierra 3500 HD
-
Bed: 6'10" (82.2") bed, GM's "6'9" Standard Bed"
-
Truck requirements: with or without Multi Tailgate; without bed-side storage boxes
-
Part number: 22419
Installation
Type: Clamp-on for most trucks, special hardware on some · Install: side rails, bulkhead and rear seals, then the pre-rolled cover with EZ-Dial adjusters, then the included accessories
Use the standard Limited Edition manual along with any truck-specific sheet listed on the Installation tab. Check the clamps periodically once the cover has been in service.
What the instructions for this truck call for:
-
Tools listed: 1/2" Wrench, Marking pen, Protective eyewear, Tape measure or ruler, Ft-lb Torque wrench with 1/2" socket, Scissors, Spring clamp - optional, Ft-lbs torque wrench with 1/2" socket
-
Torque: B. Ensure side rail is level, then torque clamps to 20 ft-lbs.
-
Drilling: the instructions for this truck include no drilling step.
-
Bed liners: Under the rail drop-in bed liner requires minimal modification at front corner of box and back by tailgate. Over the rail drop-in bed liner requires considerable modification.
-
After installing: For trucks with electric tailgates, cover and tailgate should remain closed after installation for at least 24 hours. (electric tailgates only)
Resources
Warranty, Shipping & Returns
Warranty. Agri-Cover covers the Access Limited Edition with a 5-year limited warranty against defects under normal use on the truck it was made for. It repairs or replaces defective parts at its option; labor is not covered. Shipping. Shipping options and delivery estimates for this cover are shown at checkout. Inspect on delivery. On arrival, unpack the cover and check the rails, bars, vinyl and hardware against the component list in the manual before you start the install. Keep every carton and piece of packing until the cover is installed and working correctly.
Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
About Access
Access roll-up covers are designed and built by Agri-Cover, Inc., a Jamestown, North Dakota manufacturer that has made roll-up truck bed covers since 1991 alongside its racks, hard covers and farm roll tarps.
The Limited Edition sits at the top of the Access roll-up range. It starts from the Original cover and adds EZ-Dial adjusters, tie-down ring clamps and a set of bed accessories that are optional extras on the other Access covers.
The serial number is printed on a decal under the rear bar by the tailgate; keep it on hand for warranty claims and replacement parts. Agri-Cover repairs or replaces defective parts under the 5-year limited warranty, with no labor allowance.
