Access Lorado part 44249 is the 6'4" bed application for the 2019-2027 Ram 1500. Both AutoLatch II latches release together from either side with one pull of the cord, then relock when the rear bar is pressed down. Exact trucks are in the fitment table, and the Installation tab shows the mounting method and any extra hardware this truck calls for.
What's Included:
- Pre-rolled cover assembly with front bar, Slantback rear bar, support bows and AutoLatch II latches
- Driver and passenger side rails
- Left and right XT-Dial tension adjusters with bolts and nuts
- Tight Bite rail clamps (quantity set by bed length)
- Bulkhead seal gasket and rear seals
- Premium nylon storage straps
- Alcohol prep pad
Tools, sealant for factory holes and stake pockets, optional add-ons such as a tailgate gasket or bed light, and any adapter kit named in a listing's fitment notes are not included.
Features
Low 1" profile

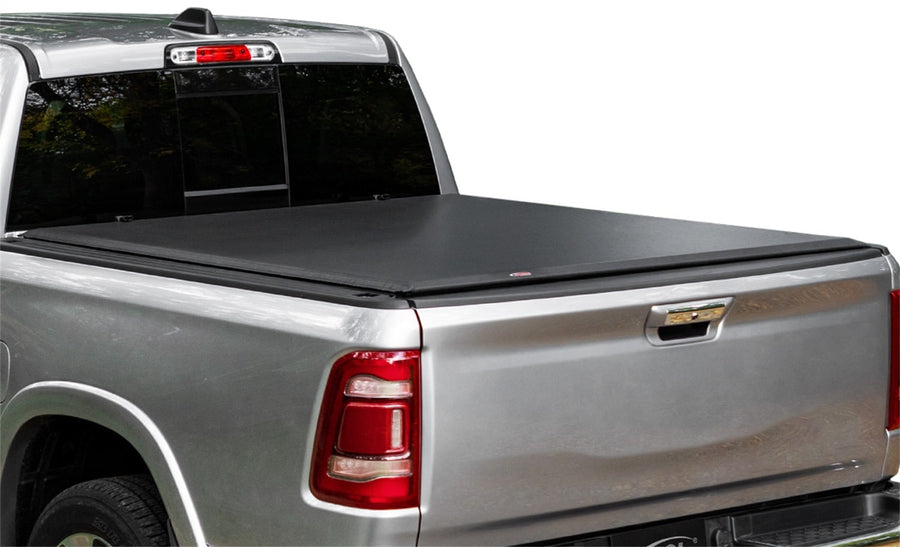

The Lorado sits 1" above the bed rails on black aluminum rails, bars and 3 bows, for a lower, flatter look than the 1-1/2" Access covers.
AutoLatch II dual latches
One pull of the cord from either side releases both nylon latches, and closing the cover relocks them automatically with 1/2" of latch engagement.
XT-Dial tension control
Easy-grip dials give direct control over how tight the vinyl sits. Adjust both sides equally by hand; no tools are required.
Sealed on four sides
Front and rear vinyl seals, foam on the side rails, an Element Seal gasket along the bulkhead and rear corner seals close the gaps around the bed.
Hook-and-loop side closure

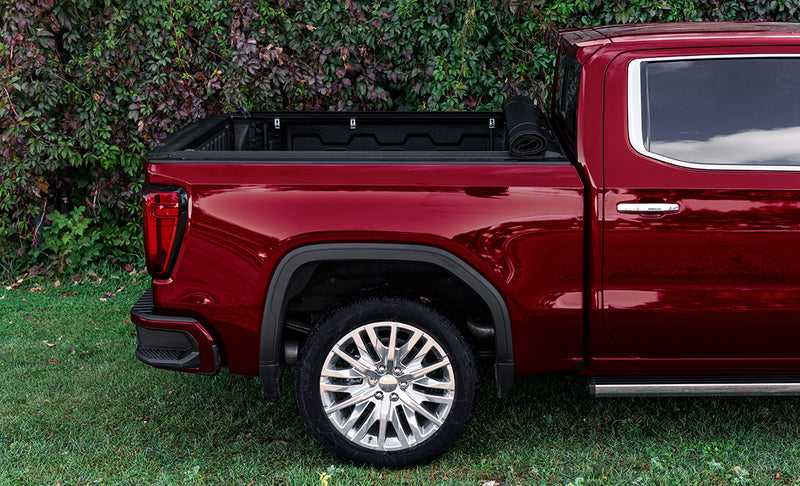

A 1-1/2" wide slide-in hook strip works with the angled rail to seal each side, and the cover rolls up tight for one-person use.
Cab guard storage straps

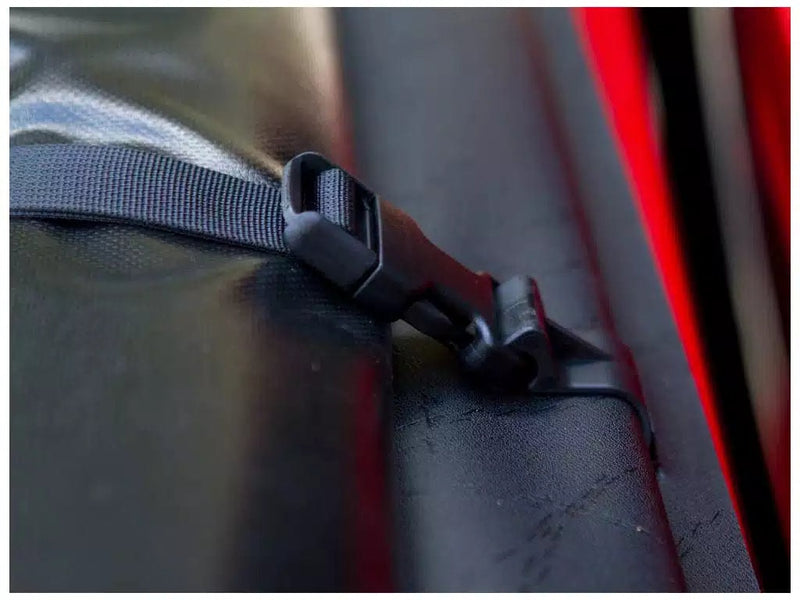

Nylon straps and buckles keep the rolled cover at the front of the bed and off the cab, then tuck away beneath the cover when it is closed.
Fitment & Compatibility
Fit guidance: Fits the 2019-2027 Ram 1500 with the 6'4" (76.3") bed (without RamBox; without Multifunction Tailgate). Will not fit trucks with the Multifunction Tailgate.
Specifications
-
Brand: Access
-
Series: Lorado
-
Cover style: Soft roll-up tonneau cover
-

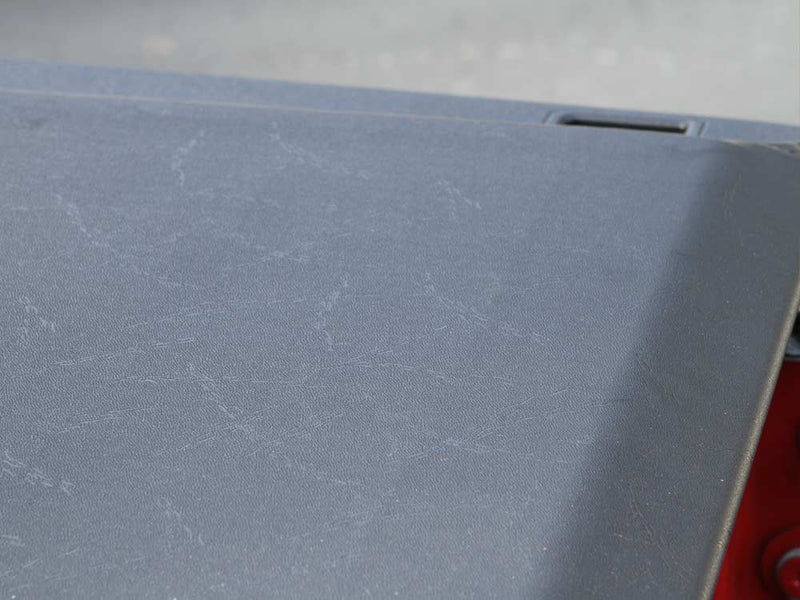

Cover material: Textured vinyl, reinforced, commercial grade, UV protected
-
Color: Black
-
Cold weather: Vinyl stays flexible to -40°F
-
Profile: 1" above the bed rails (low profile)
-
Latch: AutoLatch II dual locking system, nylon latches
-
Tension adjustment: XT-Dial tension adjusters, tool-free
-
Sealing: Front and rear vinyl seals, side-rail foam, Element Seal bulkhead gasket, rear corner seals
-
Side fastening: 1-1/2" wide slide-in hook and loop
-
Frame: Black aluminum side rails, bars and 3 bows
-
Rear bar: Slantback rear design
-
Storage straps: Premium nylon straps with cab guard design
-
Mounting: Tight Bite clamps on most trucks; some applications use special or bolt-on hardware (see Installation tab)
-
Warranty: 5-year limited
-
Fits: 2019-2027 Ram 1500
-
Bed: 6'4" (76.3") bed
-
Truck requirements: without RamBox; without Multifunction Tailgate
-
Part number: 44249
Installation
Type: Clamp-on for most trucks, special or bolt-on hardware on some · Install: side rails, bulkhead and rear seals, then the pre-rolled cover and XT-Dial adjusters
Work from the standard Lorado manual plus any truck-specific sheet listed on the Installation tab. Retighten the clamps and front bar bolts periodically as needed.
What the instructions for this truck call for:
-
Tools listed: (2) 1/2" Wrenches, Marking pen, Protective eyewear, Scissors, Tape measure or ruler, Ft-lb Torque wrench with 1/2" socket, Spring clamp - optional
-
Torque: Torque all clamps to 20 ft-lbs or, if supplied, a value specified in special instructions.
-
Torque: Verify each clamp is torqued to 20 ft-lbs or value specified in special instructions (if supplied).
-
Drilling: the instructions for this truck include no drilling step.
-
Bed liners: Under the rail drop-in bed liner requires minimal modification at front corner of box and back by tailgate. Over the rail drop-in bed liner requires considerable modification.
-
After installing: For trucks with electric tailgates, cover and tailgate should remain closed after installation for at least 24 hours. (electric tailgates only)
Resources
Warranty, Shipping & Returns
Warranty. Agri-Cover covers the Access Lorado with a 5-year limited warranty against defects under normal use on the truck it was made for. It repairs or replaces defective parts at its option; labor is not covered. Shipping. Shipping options and delivery estimates for this cover are shown at checkout. Inspect on delivery. On arrival, unpack the cover and check the rails, bars, vinyl and hardware against the component list in the manual before you start the install. Keep every carton and piece of packing until the cover is installed and working correctly.
Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
About Access
Access roll-up covers are designed and built by Agri-Cover, Inc., a Jamestown, North Dakota manufacturer that has made roll-up truck bed covers since 1991 alongside its racks, hard covers and farm roll tarps.
The Lorado is the low-profile option in the Access roll-up line. It keeps the Original's latches, XT-Dial adjusters, sealing and Slantback rear bar, and lowers the cover to 1" above the bed rails.
Look for the serial number on a decal beneath the rear bar by the tailgate; you will need it for warranty claims and replacement parts. Agri-Cover repairs or replaces defective parts under the 5-year limited warranty, and labor is excluded.
