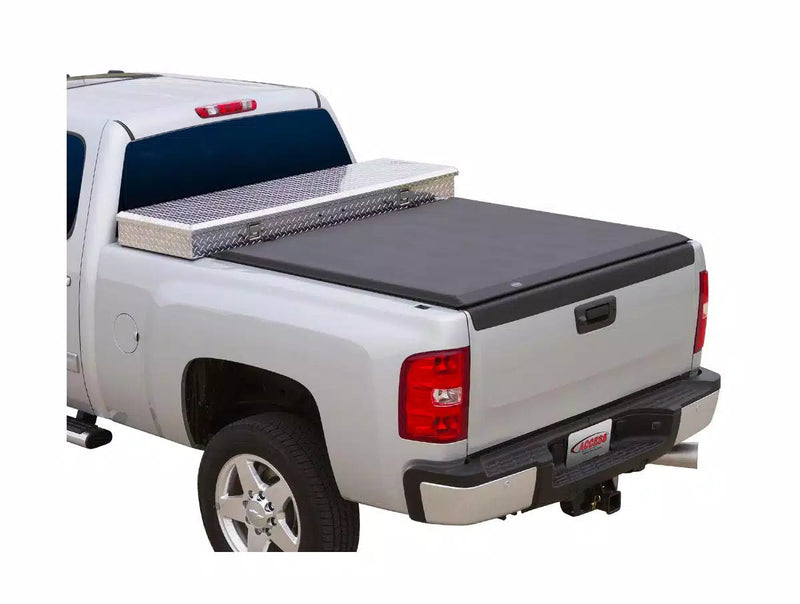

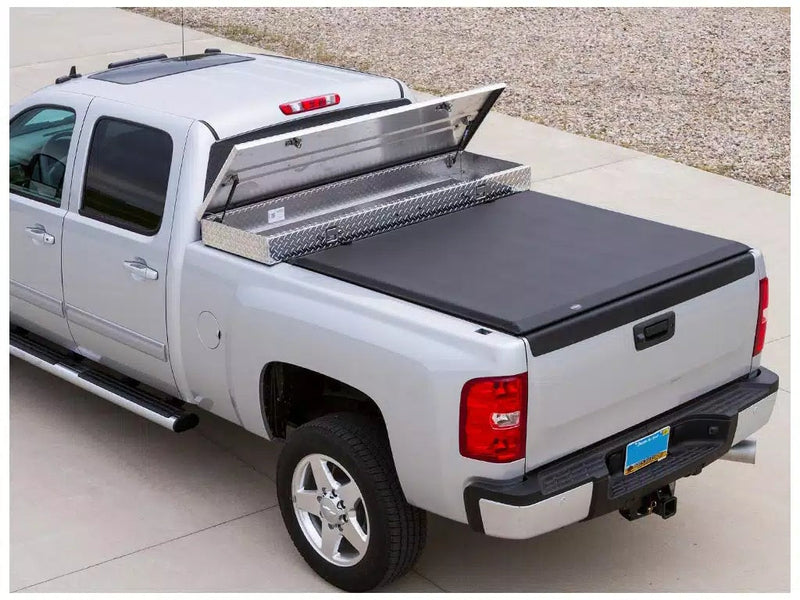

Access Toolbox Edition part 62369 is the 5'10" bed application for the 2019-2026 Chevrolet Silverado 1500 and GMC Sierra 1500, made to work behind an over-the-rail toolbox in the 19" to 21" size range (not included). The cover sits 1-1/2" above the bed rails, adding a little headroom over the covered part of the bed. Exact trucks are in the fitment table, and the Installation tab shows the mounting method and any extra hardware this truck calls for.
What's Included:
- Pre-rolled cover assembly with front bar, Slantback rear bar, support bows and AutoLatch II latches
- Driver and passenger side rails
- Left and right XT-Dial tension adjusters with bolts and nuts
- Header bar with molded brackets and seals for the toolbox side
- Weather seal for the bulkhead behind the toolbox
- Tight Bite rail clamps (quantity set by bed length)
- Seal gasket, rear seals and alcohol prep pad
- Premium nylon storage straps
The toolbox is not included; this cover is made to work with an over-the-rail toolbox of 19" to 21" that you supply, and tools and extra sealant are not included either.
Features

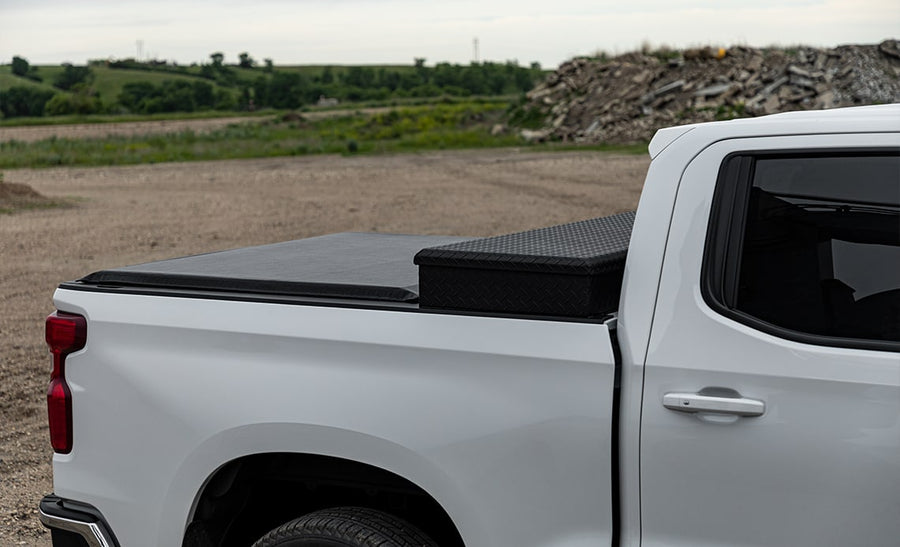

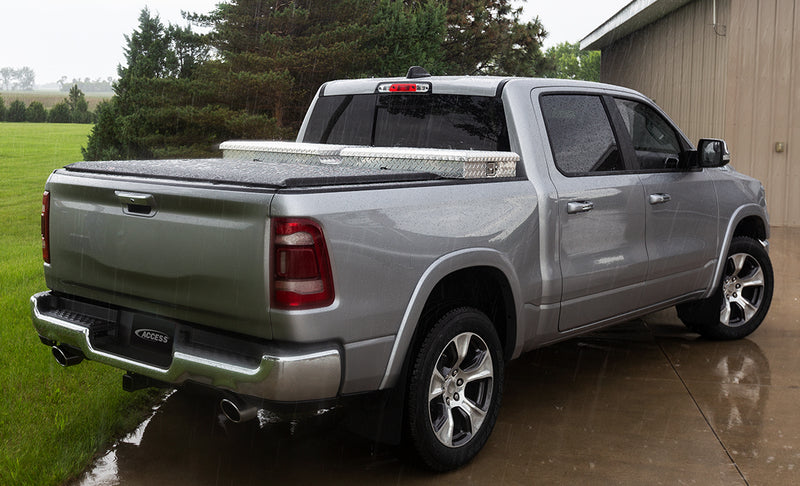

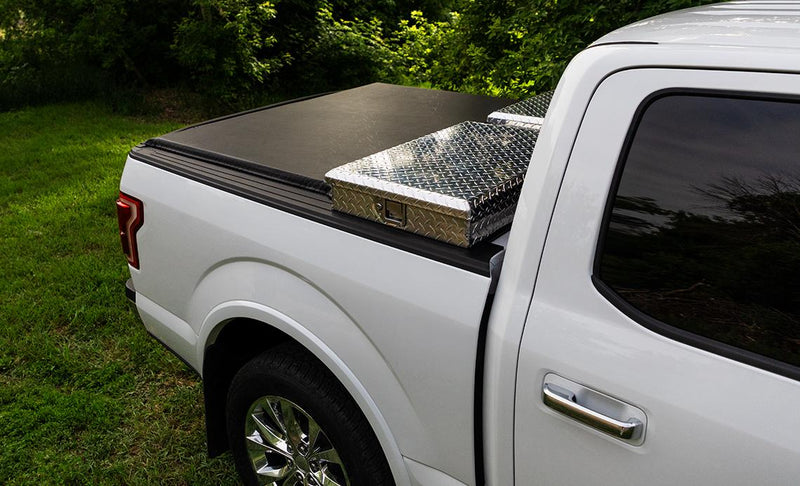

Made for over-the-rail toolboxes

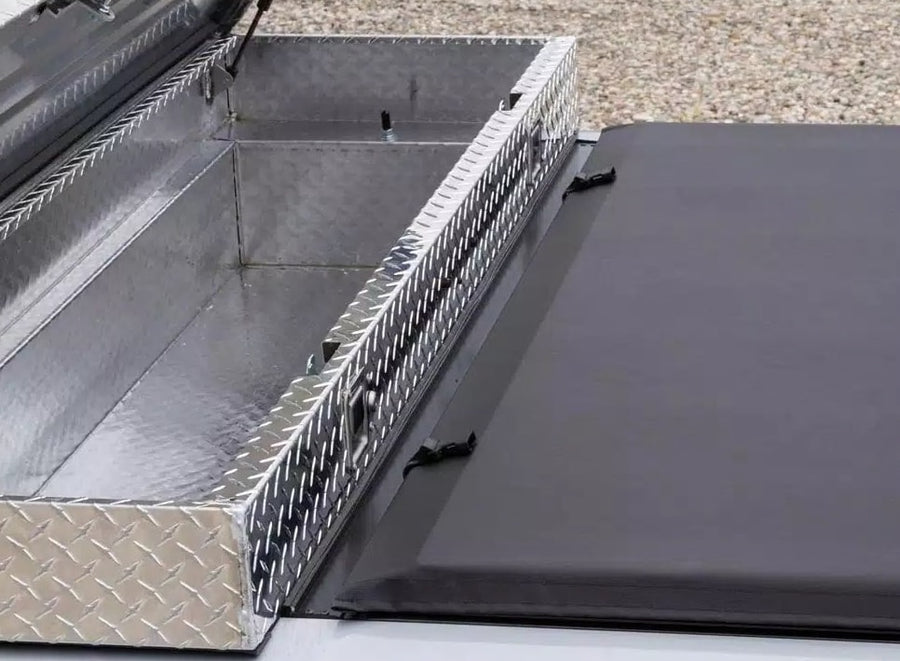

The cover fits most 19" to 21" over-the-rail toolboxes and starts right behind the box, so you keep the toolbox and still cover the bed. The toolbox handle's lowest point must sit at least 1" above the bed caps.
Header bar seals the front

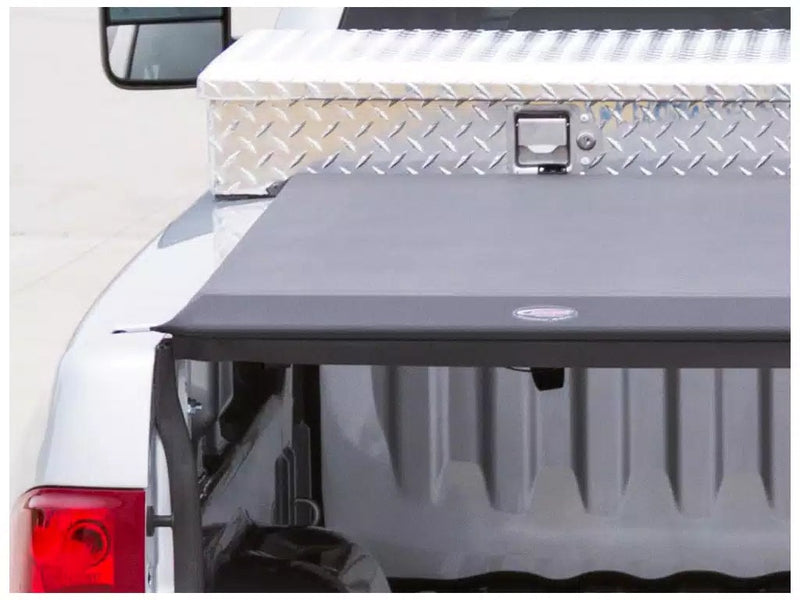

A header bar with molded brackets and its own seals butts against the toolbox wall, and a weather seal goes on the bulkhead behind the box.
AutoLatch II dual latches
One pull of the cord from either side opens both nylon latches, and they relock by themselves when the cover closes, with 1/2" of latch engagement.
XT-Dial tension control
Easy-grip dials adjust the tension in small steps. Turn both sides equally by hand; no tools needed.

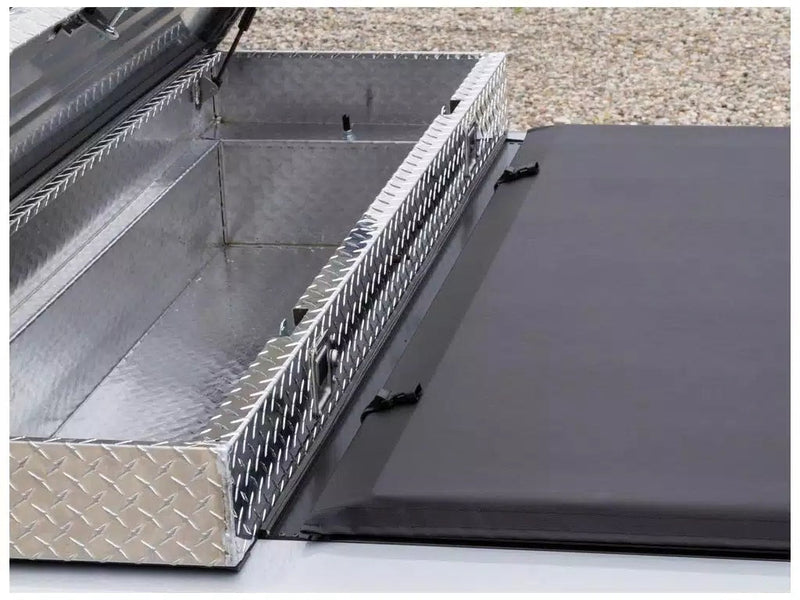

Toolbox and corner seals
Front and rear vinyl seals, side-rail foam and added seals at the front and rear of the toolbox and the rear bed corners guard the edges.
Straps that spare the toolbox

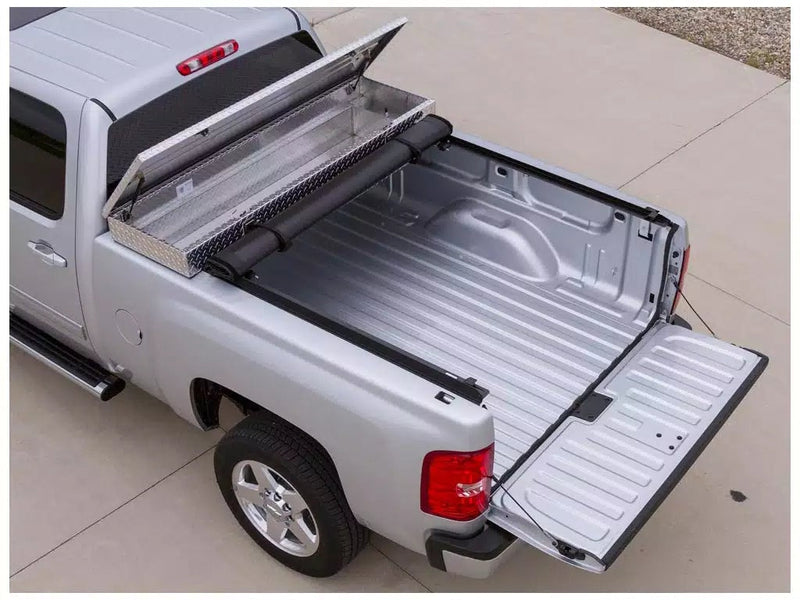

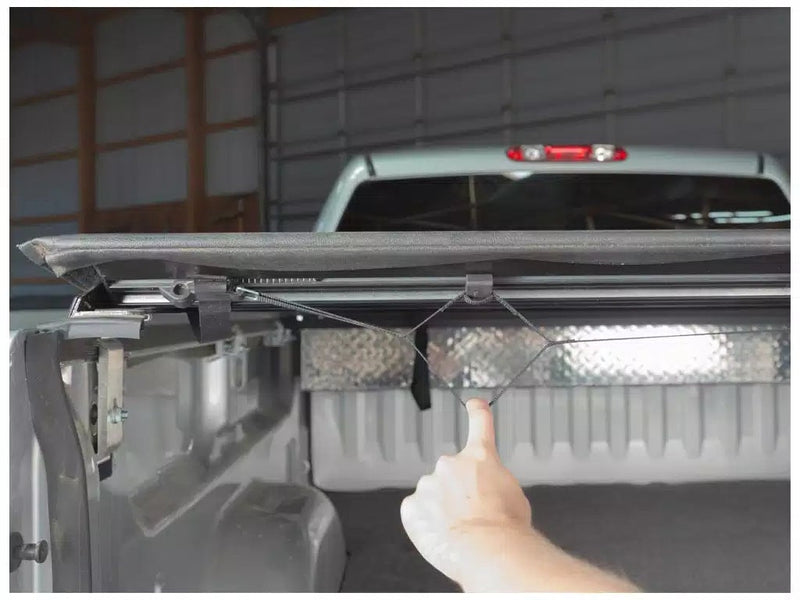

Heavy-duty nylon straps hold the rolled cover in place and keep it from rubbing the toolbox, then buckle away underneath when the cover is closed.
Increased capacity profile
The vinyl rides 1-1/2" above the bed rails on black aluminum rails, bars and 2 bows, with 3 bows on most long beds.
Fitment & Compatibility
Fit guidance: Fits the 2019-2026 Chevrolet Silverado 1500 and GMC Sierra 1500 with the 5'10" (69.9") bed, GM's "5'8" Short Box" (with or without Multi Tailgate; without CarbonPro Box; without bed-side storage boxes). GM names its boxes by a rounded figure; measure the bed floor if you are unsure which box you have. Will not fit trucks with the CarbonPro box. Will not fit trucks with bed-side storage boxes.
Specifications
-
Brand: Access
-
Series: Toolbox Edition
-
Cover style: Soft roll-up tonneau cover
-
Cover material: Textured vinyl, reinforced, commercial grade, UV protected
-
Color: Black
-
Cold weather: Vinyl stays flexible to -40°F
-
Toolbox compatibility: Most 19" to 21" over-the-rail toolboxes (toolbox not included); handle lowest point at least 1" above bed caps
-
Profile: 1-1/2" above the bed rails
-
Latch: AutoLatch II dual locking system, nylon latches
-
Tension adjustment: XT-Dial tension adjusters, tool-free
-
Sealing: Front and rear vinyl seals, side-rail foam, toolbox seals, rear corner seals
-
Side fastening: 1-1/2" wide slide-in hook and loop
-
Frame: Black aluminum side rails, bars and 2 bows (most long beds get 3)
-
Rear bar: Slantback rear design
-
Storage straps: Premium nylon straps with cab guard design
-
Mounting: Header bar and Tight Bite clamps on most trucks; some applications use a bolt-on header bar (see Installation tab)
-
Warranty: 5-year limited
-
Fits: 2019-2026 Chevrolet Silverado 1500 and GMC Sierra 1500
-
Bed: 5'10" (69.9") bed, GM's "5'8" Short Box"
-
Truck requirements: with or without Multi Tailgate; without CarbonPro Box; without bed-side storage boxes
-
Part number: 62369
Installation
Type: Clamp-on header bar and side rails on most trucks, bolt-on header bar on some · Install: place the toolbox, fit the header bar, then side rails, seals and the pre-rolled cover
Use the toolbox special instructions together with the standard cover manual and any truck-specific sheet listed on the Installation tab. Confirm the toolbox handle clears the bed caps before you begin.
What the instructions for this truck call for:
-
Tools listed: 1/2" Wrench, Protective eyewear, Tape measure or ruler, Clamps (optional), (2) 1/2" Wrenches, Marking pen, Ft-lb Torque wrench with 1/2" socket, Scissors, Spring clamp - optional, Ft-lbs torque wrench with 1/2" socket
-
Torque: B. Ensure side rail is level, then torque clamps to 20 ft-lbs.
-
Drilling: the instructions for this truck include no drilling step.
-
Bed liners: Under the rail drop-in bed liner requires minimal modification at front corner of box and back by tailgate. Over the rail drop-in bed liner requires considerable modification.
-
After installing: For trucks with electric tailgates, cover and tailgate should remain closed after installation for at least 24 hours. (electric tailgates only)
Resources
Warranty, Shipping & Returns
Warranty. Agri-Cover covers the Access Toolbox Edition with a 5-year limited warranty against defects under normal use on the truck it was made for. It repairs or replaces defective parts at its option; labor is not covered. Shipping. Shipping options and delivery estimates for this cover are shown at checkout. Inspect on delivery. On arrival, unpack the cover and check the rails, bars, vinyl and hardware against the component list in the manual before you start the install. Keep every carton and piece of packing until the cover is installed and working correctly.
Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
About Access
Access roll-up covers are designed and built by Agri-Cover, Inc., a Jamestown, North Dakota manufacturer that has made roll-up truck bed covers since 1991 alongside its racks, hard covers and farm roll tarps.
The Toolbox Edition is the Access roll-up for trucks that carry an over-the-rail toolbox. It shares the Original's AutoLatch II latches, XT-Dial adjusters and Slantback rear bar, and adds a header bar and toolbox seals so the cover can start behind the box.
The serial number sits on a decal under the rear bar by the tailgate; keep it ready for warranty claims and replacement parts. Agri-Cover repairs or replaces defective parts under the 5-year limited warranty, without a labor allowance.
