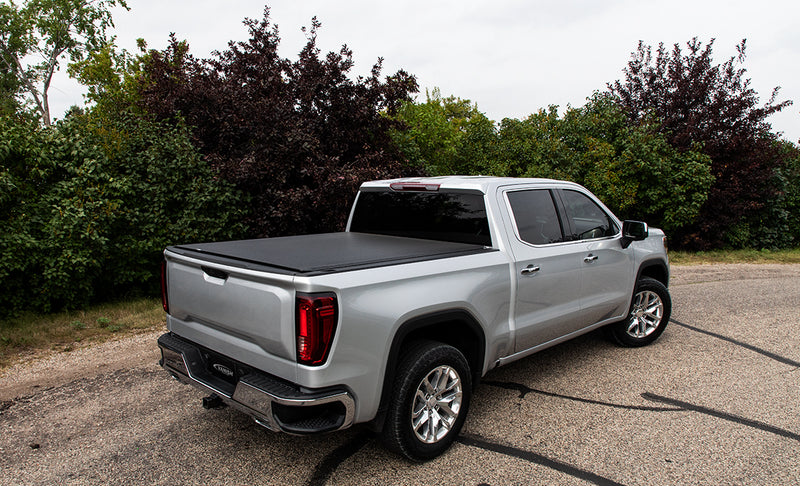

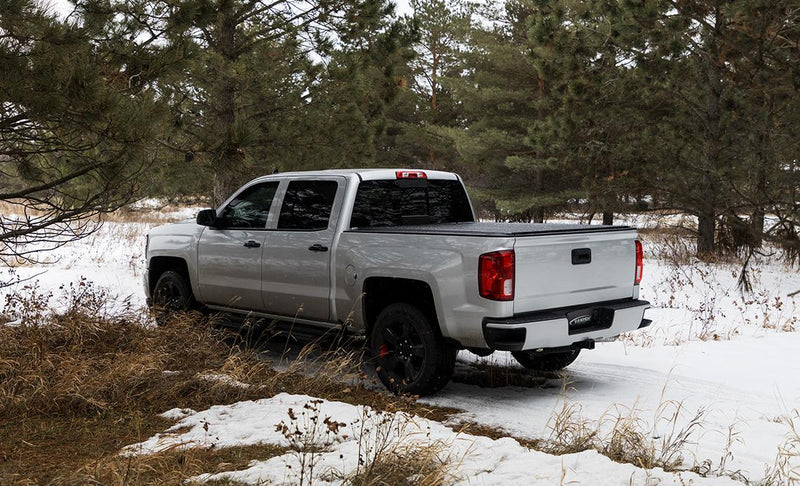

Access Vanish part 92479 is the 5'2" bed application for the 2023-2027 Chevrolet Colorado and GMC Canyon. The vinyl stays flexible in hard cold and resists fading in strong sun.
What's Included:
- Pre-rolled Vanish vinyl cover assembly with front bar, bows and rear bar
- Driver and passenger side rails (longer boxes typically get two-piece rails on each side)
- Left and right XT-Dial tension adjusters with nuts and bolts
- Tight Bite rail clamps
- Element Seal bulkhead seal gasket
- Alcohol prep pad for gasket installation
- Storage straps, attached to the cover
The TrailSeal tailgate gasket, sealant for factory box holes, bed liner and any cargo lighting or tools are sold separately and are not in the box.
Features
Trigger latch and dual slide locks
A one-finger trigger on the driver side releases the rear bar, and the latch engages automatically when the cover closes. Slide locks on both sides push in to lock and pull out to release.
XT-Dial tension adjusters
Easy-grip dials tighten or loosen the fabric with no tools. Setting both sides equally keeps the cover drum tight, which helps it shed water and run quieter.
Element Seal bulkhead gasket
A seal gasket runs the full width of the bulkhead as standard equipment, on top of the front and rear fabric seals and foam on the side rails. That gives the Vanish sealing on all four sides with extra coverage at the front of the box.
1/2" low profile
The cover sits 1/2" above the box, the lowest height Access offers on a roll-up. Black aluminum bars and rails carry silver bows, and most long boxes get three bows instead of two.
Full-length hook-and-loop sealing
A 1" slide-in hook strip fastens the fabric along the entire length of each side rail. One person can roll the cover up tight and use the whole bed.
Fitment & Compatibility
Fit guidance: Fits the 2023-2027 Chevrolet Colorado and GMC Canyon with the 5'2" (61.7") bed.
Specifications
-
Brand: Access
-
Series: Vanish
-
Cover style: Soft roll-up tonneau cover
-
Material: Textured vinyl, reinforced, commercial grade, UV protected
-
Cold-weather flexibility: Vinyl stays flexible to -40°F
-
Color: Black
-
Profile height: 1/2" above the box
-
Latch: Trigger latch, one-finger driver-side release, latches automatically on closing
-
Secondary locks: 2 manual slide locks, one on each side
-
Tension adjustment: XT-Dial tension adjusters, tool-free
-
Side sealing: 1" slide-in hook-and-loop, full length of both rails
-
Weather sealing: Seals on all 4 sides: front and rear fabric seals, foam on side rails, Element Seal bulkhead gasket
-
Frame: Black aluminum bars and rails, 2 silver bows (most long boxes get 3)
-
Rear bar: Flat rear bar
-
Mounting: Tight Bite clamp-on side rails; some trucks need special hardware (see Installation tab)
-
Warranty: 3-year limited
-
Fits: 2023-2027 Chevrolet Colorado and GMC Canyon
-
Bed: 5'2" (61.7") bed
-
Part number: 92479
Installation
Type: Clamp-on side rails with Tight Bite clamps; some trucks add special hardware · Install: Hand tools and a torque wrench, truck-specific steps on each listing's Installation tab
The cover mounts to side rails fixed along the inside of the box, with the bulkhead gasket in front and tension set at the front bar. Steps, torque values and any extra hardware for this truck are on the Installation tab below.
What the instructions for this truck call for:
-
Tools listed: (2) 1/2" Wrenches, Protective eyewear, Tape measure or ruler, Scissors, Ft-lb Torque wrench with 1/2" socket, Spring clamp - optional
-
Torque: Torque all clamps to 20 ft-lbs or value specified in special instructions (if supplied).
-
Torque: Verify each clamp is torqued to 20 ft-lbs or value specified in special instructions (if supplied).
-
Drilling: the instructions for this truck include no drilling step.
-
Bed liners: Under the rail drop-in bed liner requires minimal modification at front corner of box and back by tailgate. Over the rail drop-in bed liner requires considerable modification.
-
After installing: For trucks with electric tailgates, cover and tailgate should remain closed after installation for at least 24 hours. (electric tailgates only)
Resources
Warranty, Shipping & Returns
Warranty. Agri-Cover backs the Vanish with a 3-year limited warranty against defects in material and workmanship, counted from the date of receipt or manufacture. It covers repair or replacement of defective parts, not labor, and excludes accident, misuse, improper installation and normal wear. Shipping. The cover arrives pre-rolled with its side rails, gasket and mounting hardware packed alongside. Inspect on delivery. Check every component against the parts list and look over the rails and fabric for shipping damage before you start the install.
Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
About Access
Access roll-up covers are designed and built by Agri-Cover, Inc., a Jamestown, North Dakota company whose lineup also spans mud flaps, snow plows, ag tarps, pickup racks, truck toppers and hard covers. The Access Original roll-up has been in the catalog since 1991, and every Access roll-up since has kept the same rail-mounted, hook-and-loop sealed layout.
Access builds seven roll-up lines. The Vanish sits at the low end of the height range at 1/2" above the box, and it pairs that trim look with a trigger latch, dual slide locks, XT-Dial tension adjusters and a standard Element Seal bulkhead gasket, the sealing package of the premium lines.
Agri-Cover supports the Vanish with a 3-year limited warranty. The serial number is on a decal under the rear bar; have it ready for warranty claims and when ordering original replacement parts through Agri-Cover customer service.
