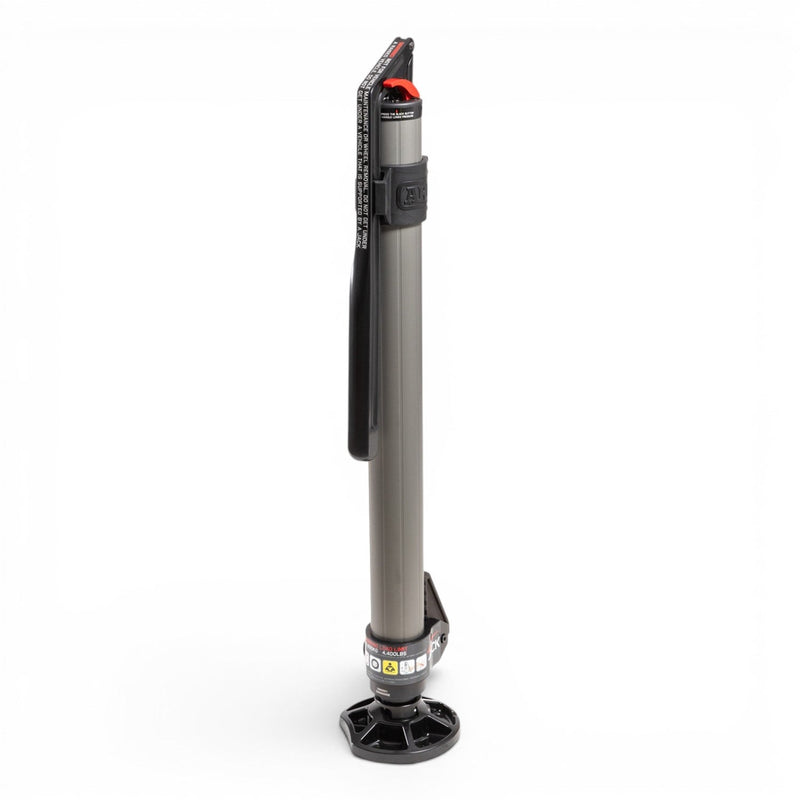

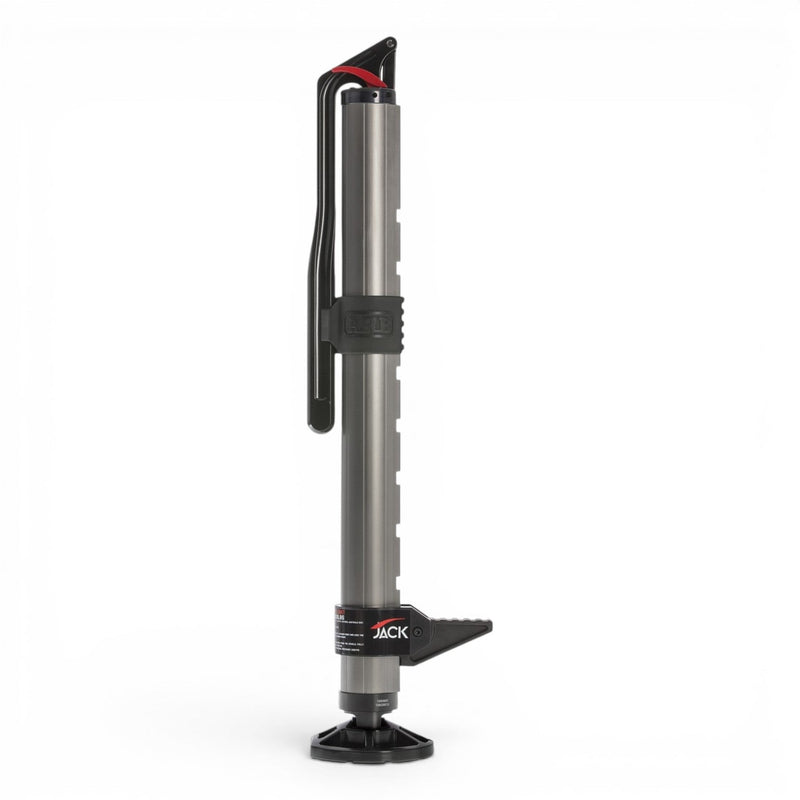

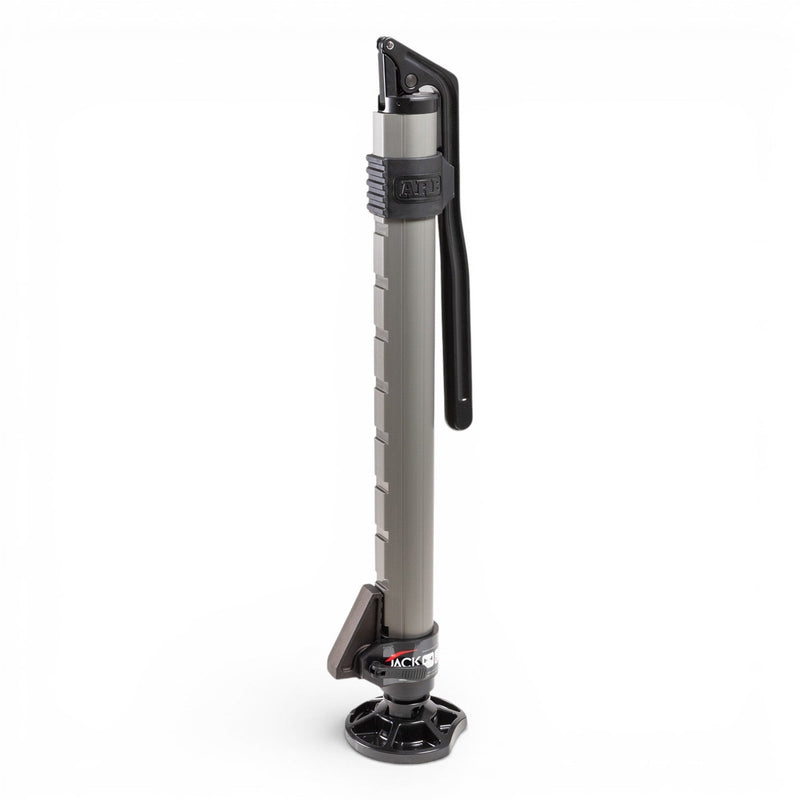

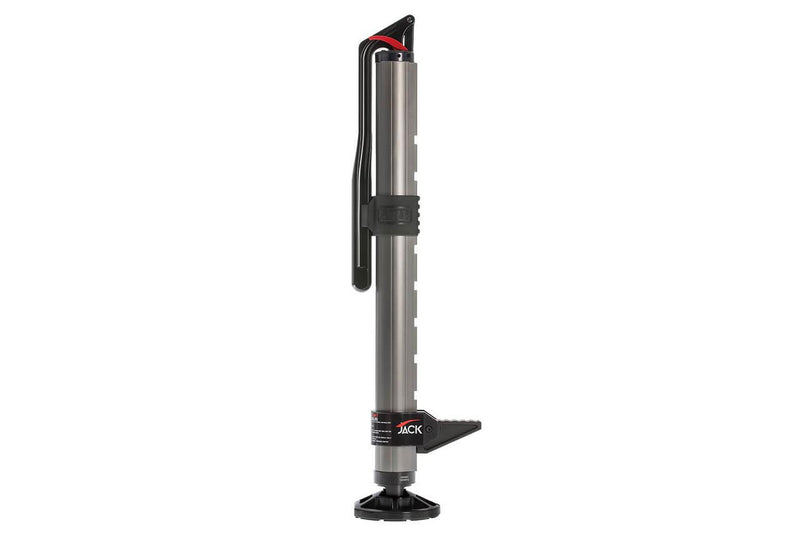

The ARB JACK exists because farm jacks hurt people. They are genuinely useful and genuinely unstable, and the internet is full of footage of rogue handles and trapped hands. ARB's engineers set out to keep the long travel and lose the danger, and the answer was hydraulics.
Light pressure on the handle lifts the vehicle in 0.5" increments per stroke, smoothly, with no flying handle and no ratchet to skip. The red lowering lever gives a two stage descent so you can choose slow or rapid, and there is a safety stop. The body is aircraft grade 6061 T6 aluminum, the foot rotates a full 360 degrees to sit flat on uneven ground, and nine locating points give the adjustable hook a wide working range. ARB rates it to 4,409 lb, with a 6" to 48" lifting range, and builds it to AS/NZ 2693-2007 and ASME B30.1-2015.
What's Included:
ARB JACK hydraulic long travel jack
Handle

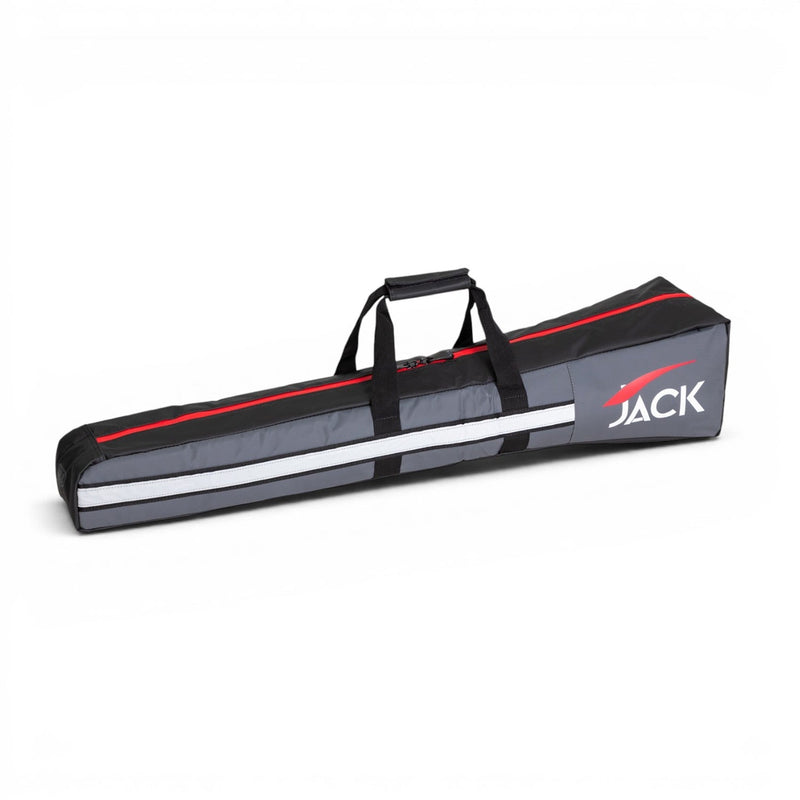

Carry bag
Owner's manual
Features
Hydraulic, Not Mechanical The core of the design. Light force on the handle lifts the vehicle in 0.5" increments per downward stroke. There is no ratchet to skip and no sprung handle waiting to come around and hit you.

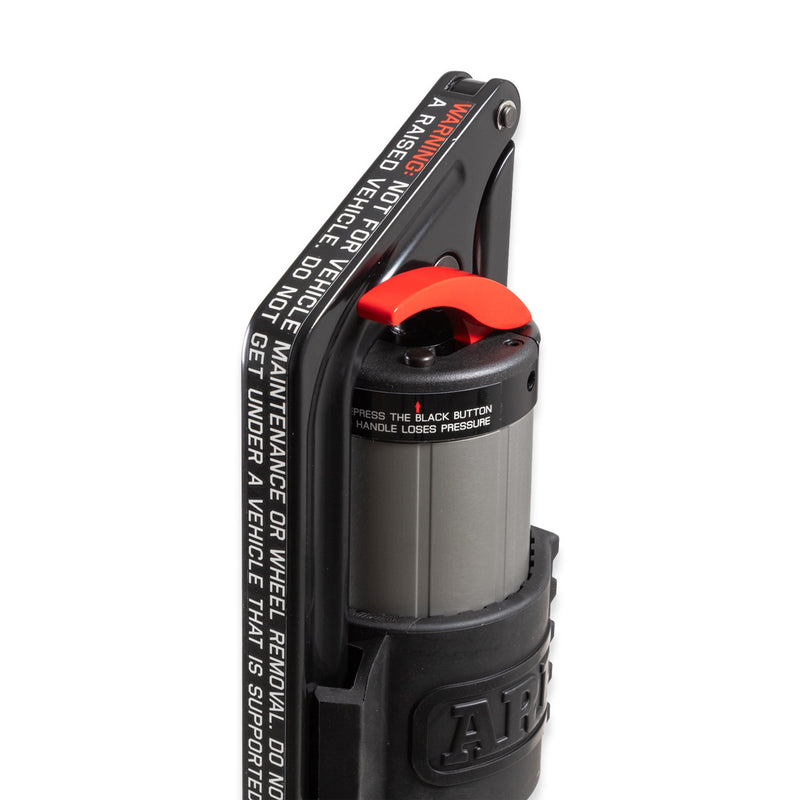

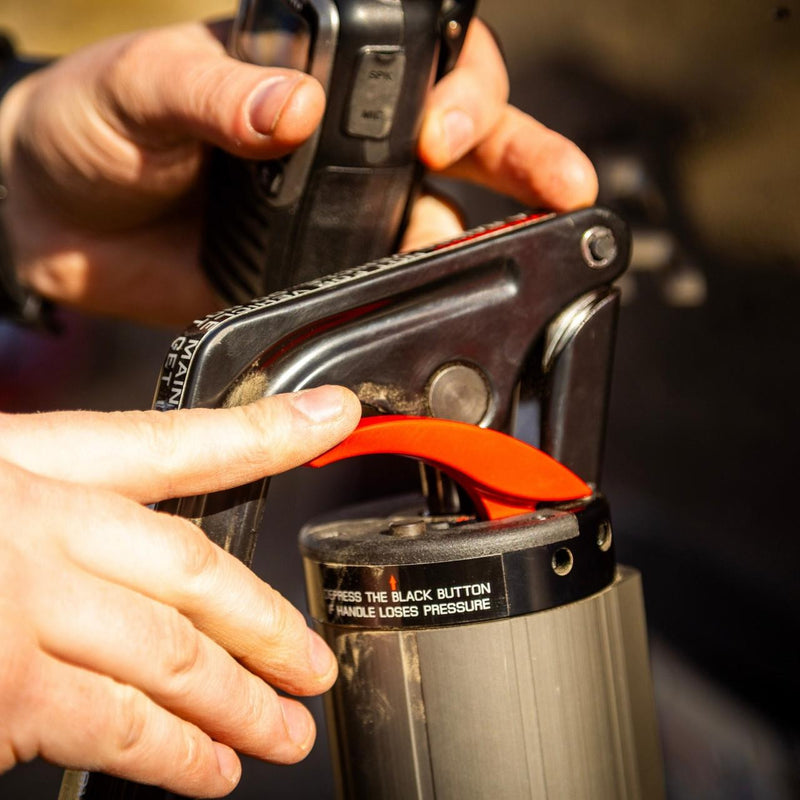

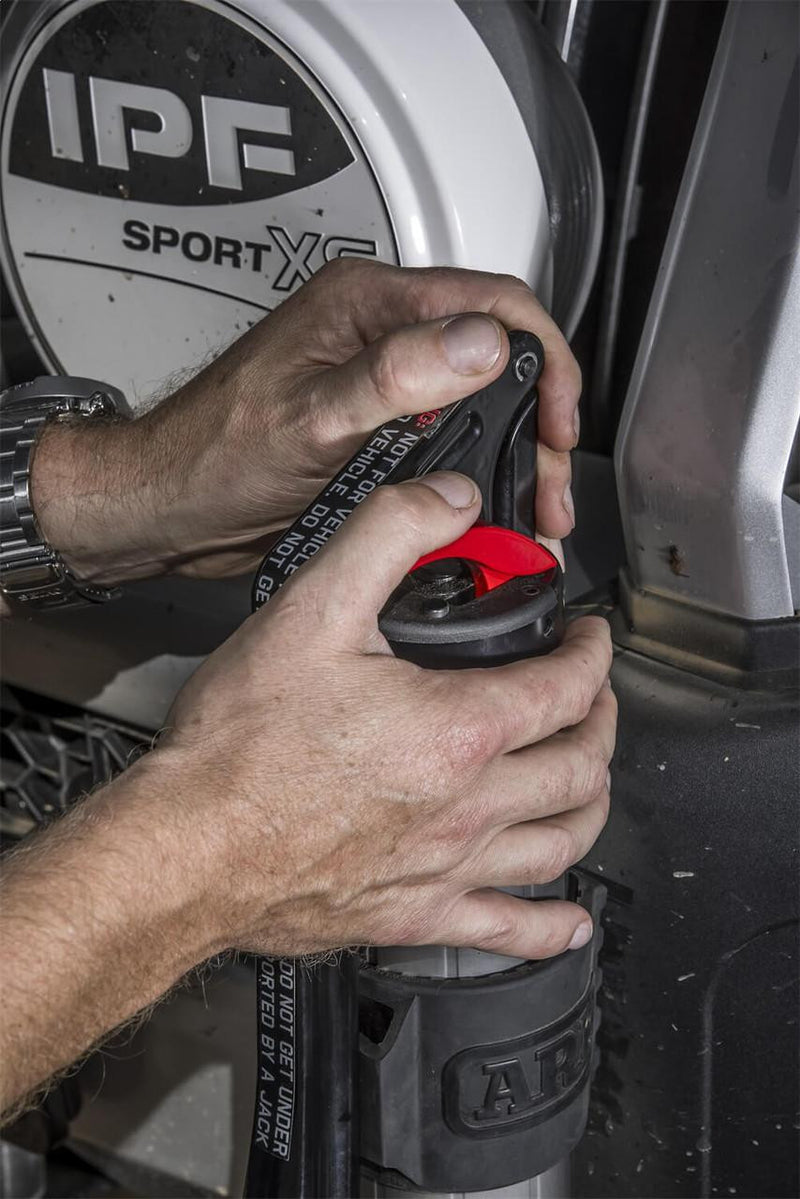

Two Stage Descent And Safety Stop The red lowering lever gives a controlled two stage descent, slow or rapid, plus a safety stop. Lowering is where mechanical jacks are at their worst and where this design earns its price.

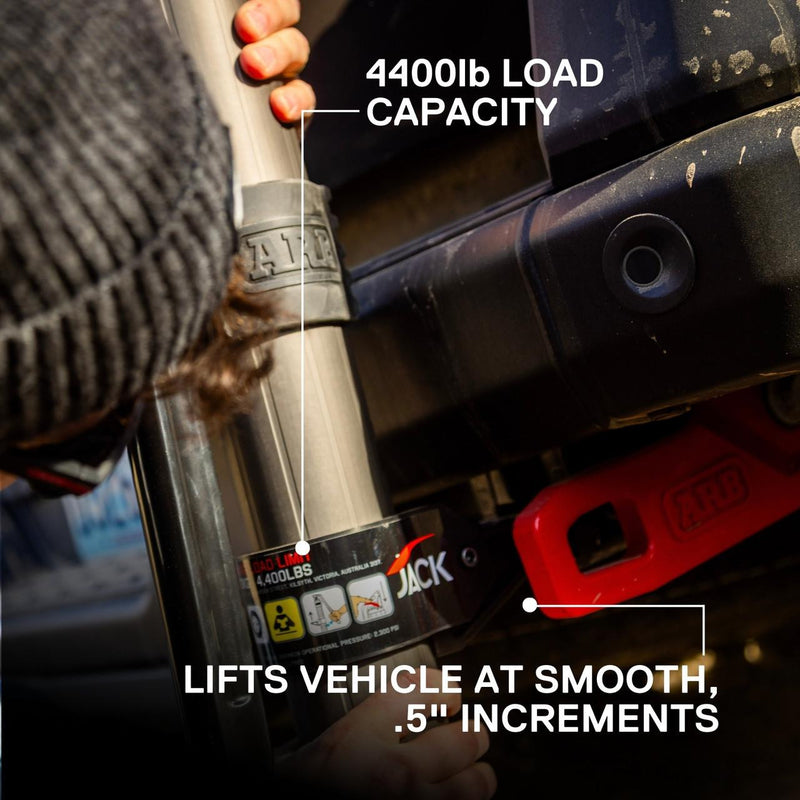

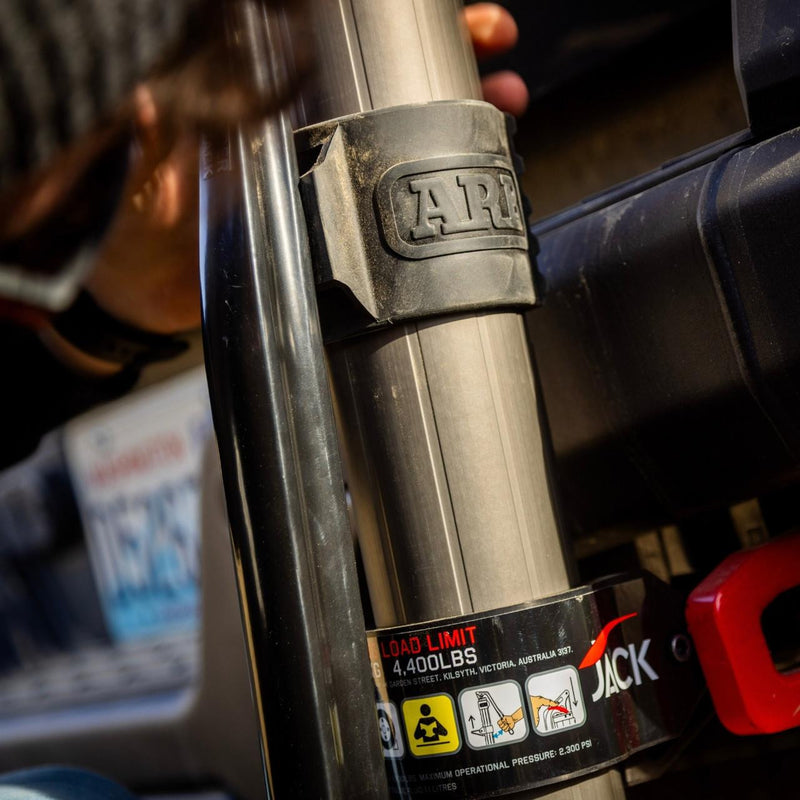

4,409 lb Capacity ARB rates the JACK to 4,409 lb, which is 2,000 kg. That is the lifting capacity of the jack, not the weight of a vehicle it can support: a jack lifts a corner, not the whole rig.

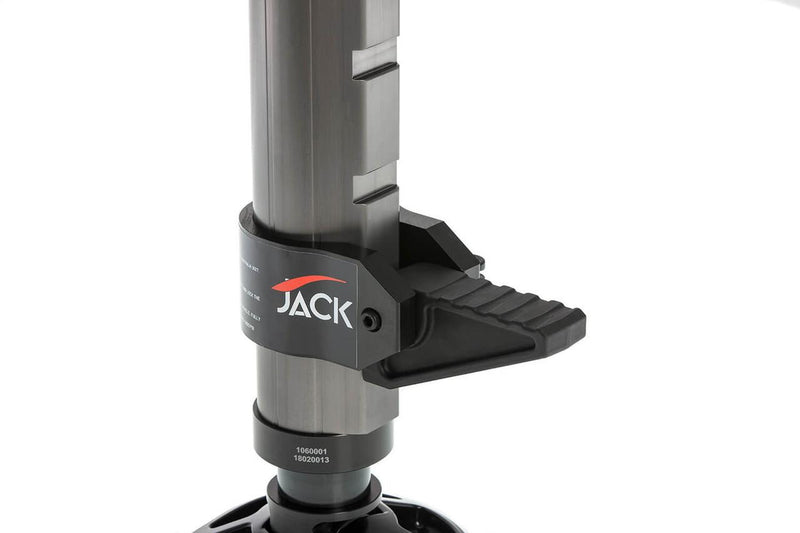

6" To 48" Lifting Range A 6" starting height and 48" of lift, with 21" to 22" of travel per cylinder unit and nine locating points for the adjustable hook. That covers a stock vehicle and a heavily lifted one.

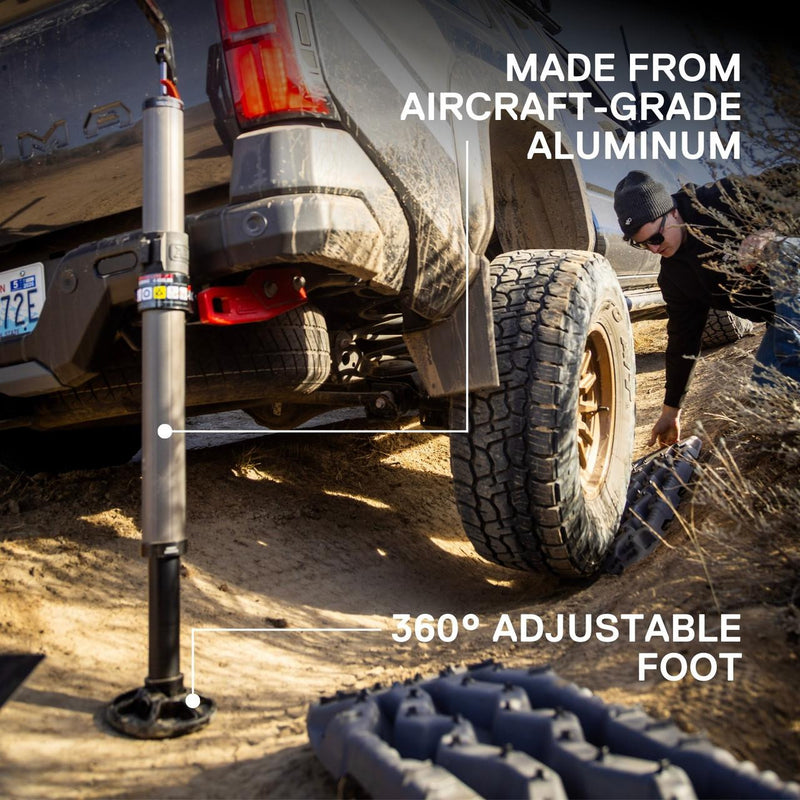

Aircraft Grade Aluminum Body A 6061 T6 aluminum body, which is why a jack with this travel is still liftable with one hand. A steel farm jack of the same reach is a two hand item.

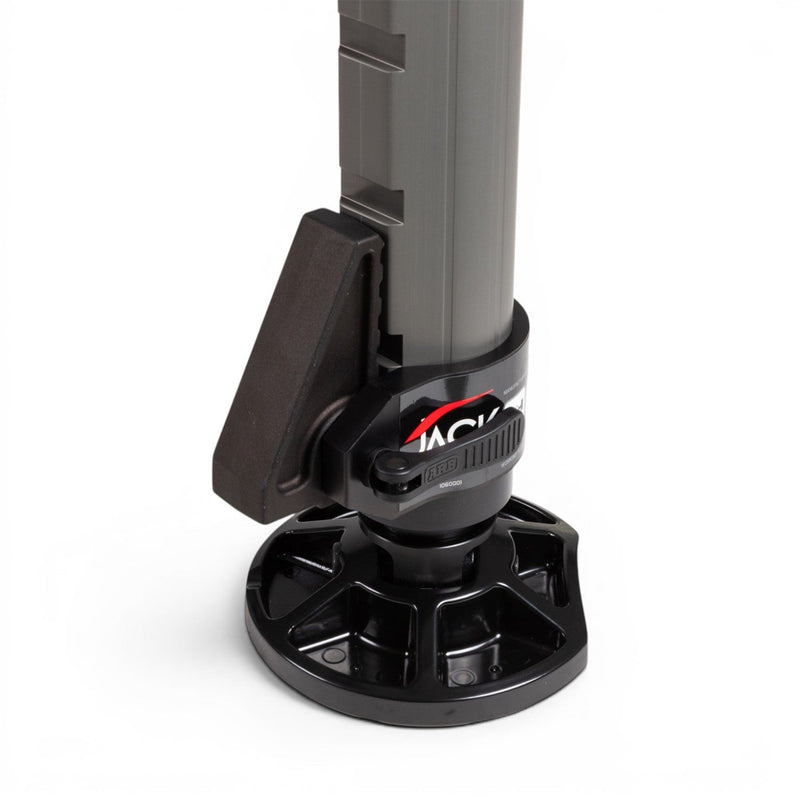

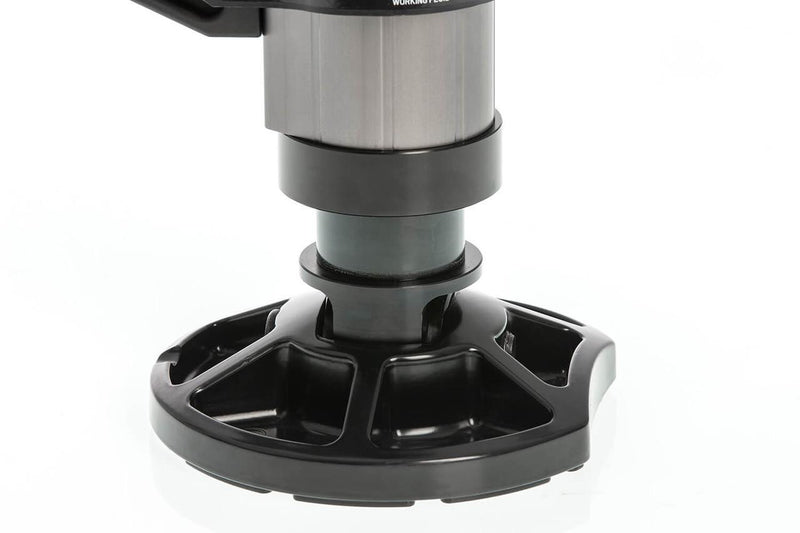

360 Degree Adjustable Foot The foot rotates a full 360 degrees so it can sit flat on ground that is not flat, which is the situation you are actually in when you need it.
Fitment & Compatibility
Use case
Fit
Lifting a bogged vehicle to fill voids under the tires
✓ Fits, this is the primary recovery use
Breaking a tire bead for a trail repair
✓ Fits, the same job a farm jack does
Vehicles needing a lift point between 6" and 48"
✓ Fits, ARB's published range
Lifting loads above 4,409 lb
● Exceeds ARB's published capacity
Working underneath a raised vehicle
● Never, on any jack. Use rated stands

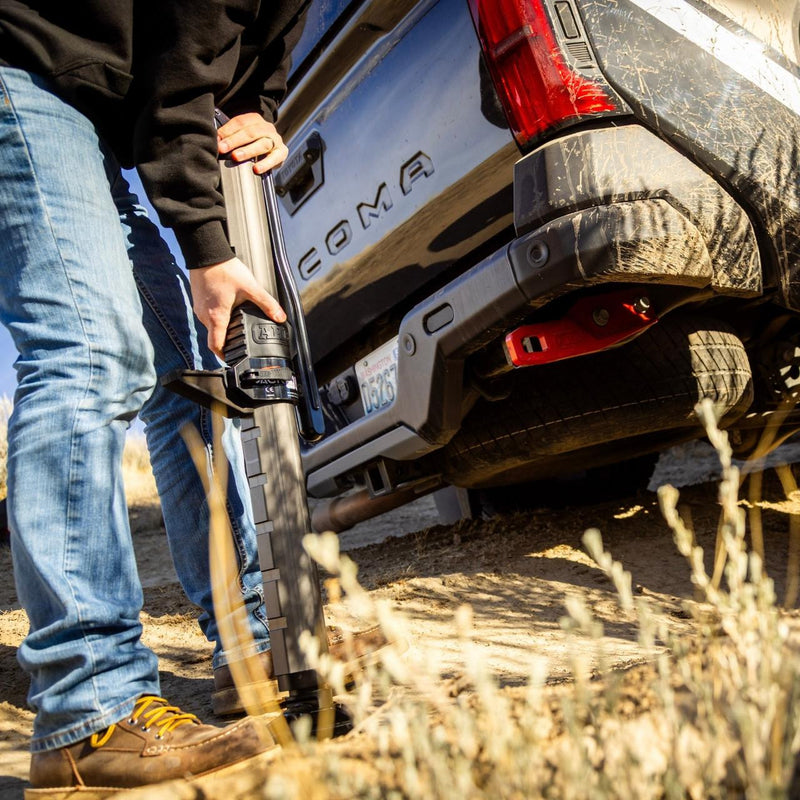

Fit guidance: The JACK is universal equipment, not a fitted part. What it needs is a solid lift point on the vehicle: a rated recovery point, a sliders rail, or a purpose made jack point. Do not lift on a plastic bumper or a body panel.
Specifications
Model: ARB JACK, hydraulic long travel
Part Number: 1060001
Maximum Capacity: 4,409 lb (2,000 kg)
Lifting Range: 6"-48"
Stroke Extension: 0.5" per stroke
Travel: 21"-22" per cylinder unit
Compressed Height: 35"
Extended Height: 56"
Lifting Stages: 9
Operating Mode: Hydraulic
Body Material: Aircraft grade 6061 T6 aluminum
Standards: AS/NZ 2693-2007; ASME B30.1-2015
Product Weight: 23.15 lb
Shipping Weight: 30 lb
Warranty: 3 years
UPC: 9332018054098
Installation
Type: No installation. Recovery tool used at the point of use · Time: Minutes · Tools: None beyond the supplied handle. A jack base is strongly recommended on soft ground · Difficulty: Moderate
Never work under a vehicle supported only by a jack. On sand, mud or gravel, use a base plate; a jack that sinks or tips under load is the failure mode that hurts people. The owner's manual covers lift points and technique.
Resources
Everything you need for your ARB JACK Hydraulic Recovery Jack, 4,409 lb, 6"-48" Lift Range, in one place.
ARB JACK Owner's Manual (PDF), the manufacturer's step-by-step guide covering mounting, included hardware and adjustment.
Warranty, Shipping & Returns
Warranty. ARB publishes a 3 year unlimited mileage warranty on the ARB JACK, administered in North America by ARB North America (Air Locker Inc., Auburn, WA) and honored through authorized US dealers like us. ARB's schedule places wear items such as bushes, bearings, shackles, pins and gas struts on a 1 year or 25,000 mile term. We describe ARB's warranty exactly as published and do not extend or restate it.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
Compliance. ARB states the JACK is built to AS/NZ 2693-2007 and ASME B30.1-2015.
About ARB
ARB started in 1975 in a Melbourne garage, when Tony Brown began building bull bars for the four wheel drives crossing Australia's outback, and it has grown into the largest 4x4 accessories maker in the southern hemisphere. Recovery gear is the part of the range where that history matters most: ARB's straps, shackles, blocks and boards are built for country where a failed recovery is measured in days of walking, and the company publishes its ratings rather than leaving buyers to guess.
In North America ARB operates from Auburn, Washington as Air Locker Inc., backing every product with a US warranty program. Prestige Truck is an authorized ARB dealer. Every piece of recovery gear we ship is a genuine US-market unit with full ARB North America warranty coverage and the rating printed on it by the people who tested it.
The ARB JACK
ARB's US walkthrough of the JACK: the hydraulic action, the two stage descent lever and the adjustable foot.
A minute long and it shows the lifting motion better than any description does.
The ARB Story
How a Melbourne garage operation building bull bars for outback tourers in 1975 became the southern hemisphere's biggest 4x4 accessories maker.
Seven minutes on the company behind this product, filmed by ARB itself across its Australian factories and proving grounds.
Frequently Asked Questions
Straight answers on specs, fit and support
How is this different from a farm jack?
It is hydraulic rather than mechanical. Light pressure on the handle lifts in 0.5" increments with no ratchet to skip and no sprung handle. Lowering is controlled by a lever with a two stage descent rather than by carefully backing off a mechanism under load. It is also lighter and more compact for the same reach.
How much will it lift?
ARB rates it at 4,409 lb, which is 2,000 kg. Remember that a jack lifts one corner of a vehicle, so the rating is not the same as vehicle weight, but do not treat it as licence to exceed the figure.
What is the lifting range?
6" to 48", from a 35" compressed height to 56" extended, with nine locating points for the adjustable hook. That suits stock height vehicles through to substantially lifted ones.

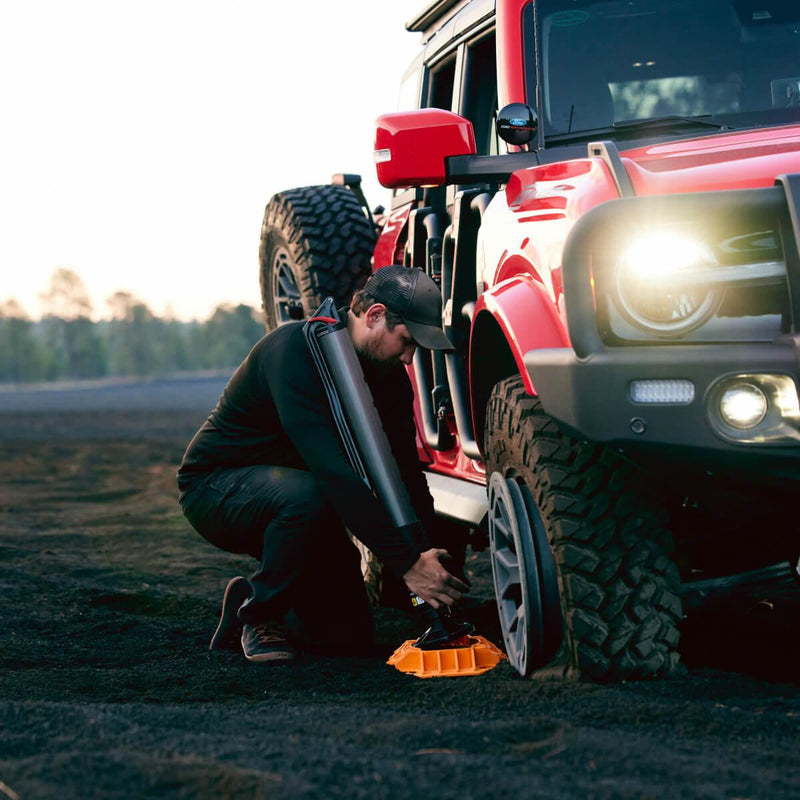

Do I need a base plate?
On anything softer than pavement, yes. ARB makes the Jack Base (10100111) for this, and it is the single accessory that most changes how safely this jack works on sand, mud or gravel.
Does the ARB Handle Keeper fit it?
No. ARB is explicit that the Handle Keeper (10100112) is for farm and Hi-Lift style jacks and is not compatible with the ARB JACK.
What is the warranty?
ARB publishes a 3 year warranty on the JACK.
