The 1.25M is the small ARB awning, and it is the one that makes sense on a short-wheelbase truck, a Jeep, or anywhere you only want shade over the door and the tailgate rather than half the campsite. It gives 49" of frontage along the vehicle and reaches 83" out from it, off a roof rack or roof bars, and it self-supports on anodized telescopic legs so nothing has to be tied to the vehicle.
The canvas is PU-coated 300GSM poly-cotton ripstop, fully waterproof with a UPF 50+ rating, and it stows in a heavy-duty nylon-reinforced bag with reinforced extrusions, molded ARB end caps and sail-track protection. ARB rates setup at five minutes and includes pegs, guy ropes, stainless mounting hardware and instructions, so the only decision left is which side of the vehicle it lives on.
What's Included:
ARB 1.25M awning assembly with 300GSM PU-coated poly-cotton ripstop canvas
Anodized height-adjustable telescopic legs
Reinforced aluminum mounting and front extrusions with molded ARB end caps

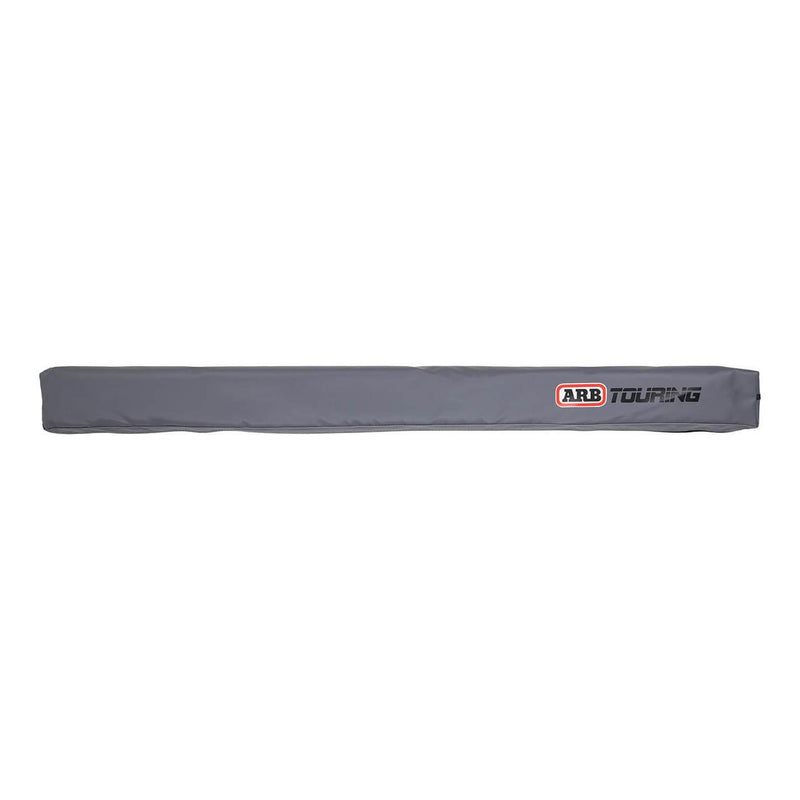

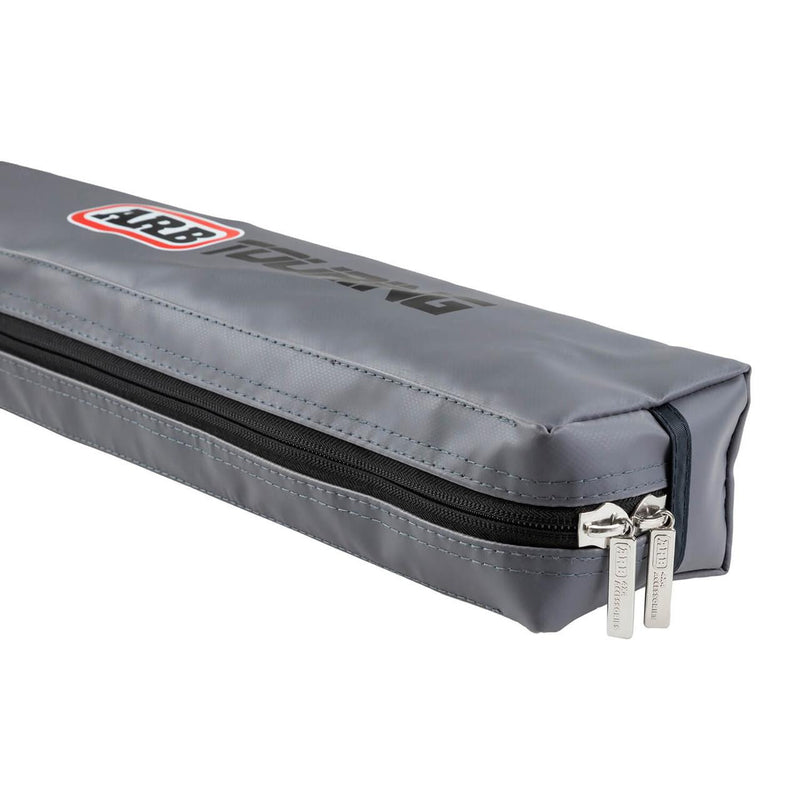

Heavy-duty nylon-reinforced storage bag

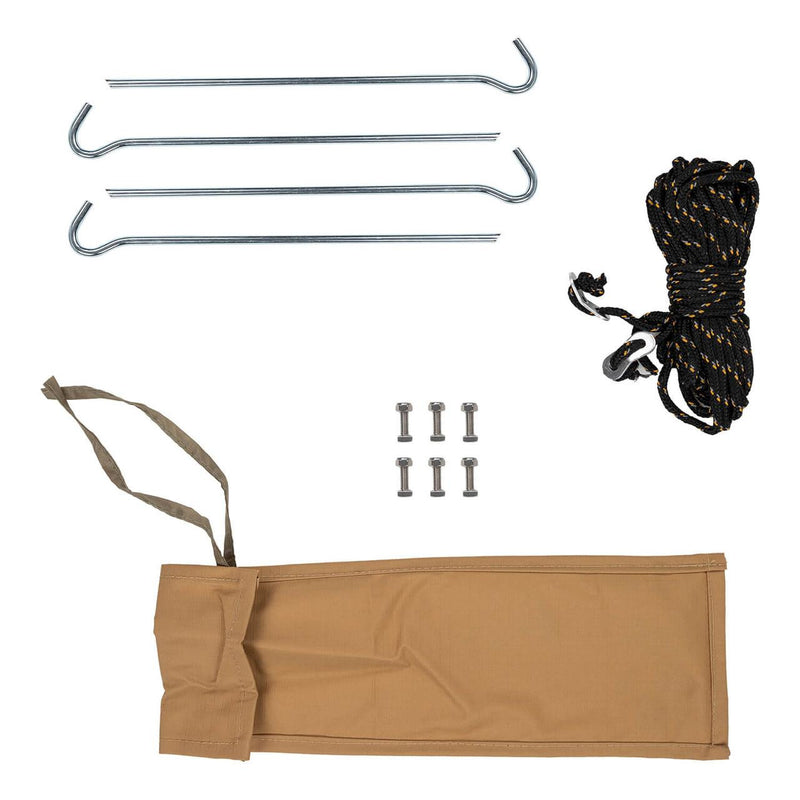

Pegs and guy ropes for securing the legs
Stainless steel mounting nuts and bolts
Fitting instructions
Features
Shade Where A Short Vehicle Needs It 49" of frontage and 83" of reach covers a door and a work area without hanging past the ends of a short-wheelbase vehicle, which is exactly where the larger awnings become awkward.

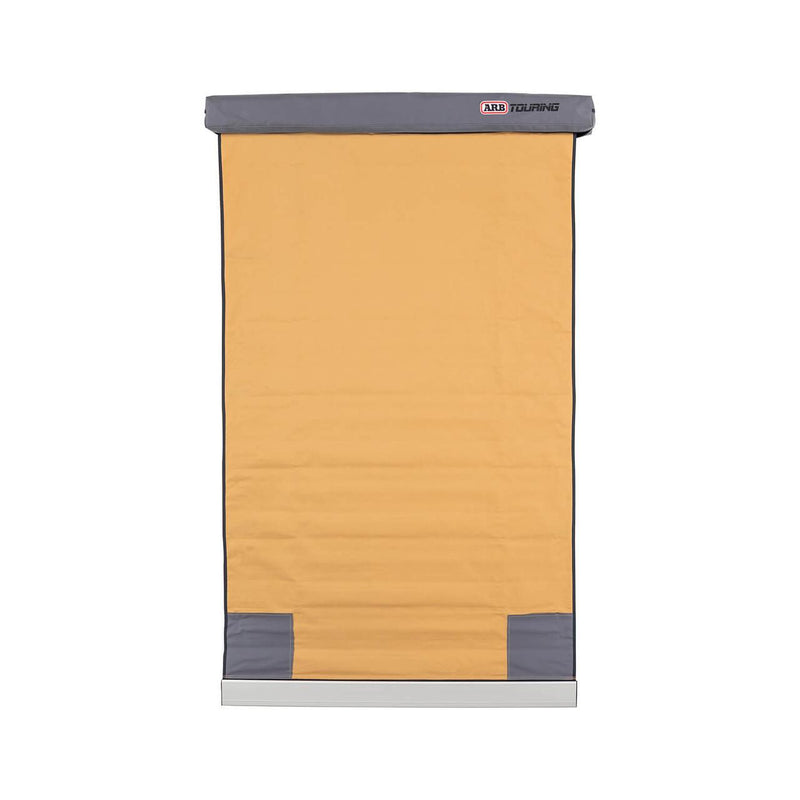

300GSM Ripstop, Waterproof, UPF 50+ PU-coated 300GSM poly-cotton ripstop canvas is fully waterproof and rated UPF 50+, and a reinforced panel is sewn in where wear shows up first in severe conditions.

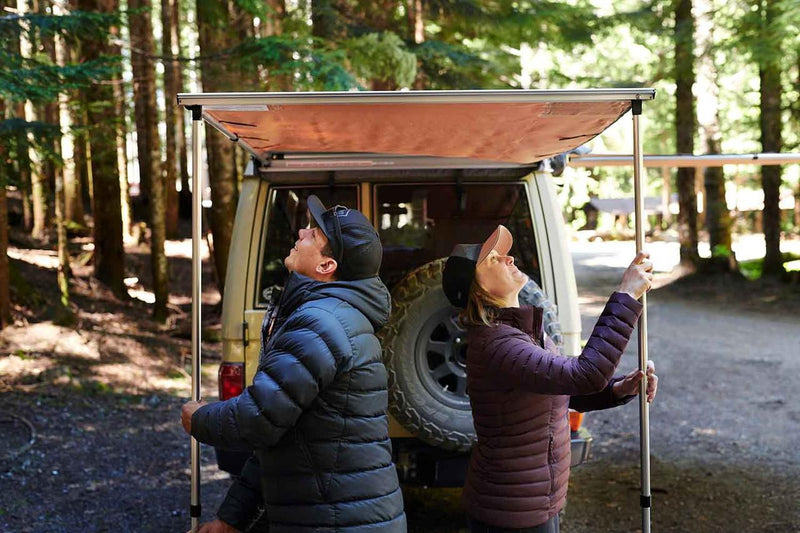

Self-Standing In Five Minutes Anodized height-adjustable telescopic legs let the awning stand on its own, adjust to sloping ground and set up in about five minutes. It suits mounting points up to 6.9' high.
Built To Be Left Outside Thick reinforced aluminum extrusions with additional bolts to reduce flex, molded end caps with ARB branding and sail-track protection, all stored in a heavy-duty nylon-reinforced bag.
Fits Most Racks And Bars Mounts to the side of most roof racks and roof bars with the supplied stainless hardware, and ARB's quick-release brackets are available if you want it removable in one bolt.
Fitment & Compatibility
Application
Fit
Roof racks and roof bars with a mounting height up to 6.9'
✓ Fits
ARB Touring and Flat roof racks
✓ Fits, quick-release brackets 813405 or 813408 available
ARB cage roof racks drilled for awnings
✓ Fits, quick-release bracket 813409 available
Thule and Rhino crossbars
✓ Fits via ARB awning brackets 813401 or 813402
Vehicles with no roof rack or crossbars fitted
● Requires a rack or bars first
Fit guidance: The awning is universal, the mounting is what varies. ARB publishes L brackets, gusseted brackets and one-bolt quick-release brackets for different rack types, and the right one depends on the rack you already own rather than on the vehicle underneath it. Mounting points up to 6.9' high are supported.
Type: Bolts to the side of a roof rack or roof bars using the supplied stainless hardware or ARB awning brackets · Time: 30 to 60 minutes for the initial mount · Tools: Socket set and wrenches; a second person to hold the awning against the rack · Difficulty: Easy
The awning bolts through its mounting extrusion to the rack. Get the height and fore-aft position right before you torque anything, because that decides whether the legs land on level ground and whether the doors clear the deployed canvas. Setup at camp after that is about five minutes.
Watch the installation walkthrough:
Warranty, Shipping & Returns
Warranty. ARB covers this product with a 3-year unlimited-mileage warranty through ARB North America (Air Locker Inc., Auburn, WA), which is the term ARB publishes for this part. Canvas and fabric goods are covered against manufacturing defects rather than wear, storm damage or UV degradation over time. We describe ARB's warranty exactly as ARB publishes it and make no additions to it; claims are handled through any authorized US dealer, including us.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
Compliance. ARB rates the canvas UPF 50+.
About ARB
ARB began in 1975 when Tony Brown came home from a Cape York trip convinced the four-wheel drives crossing Australia needed better equipment than anyone was selling, and started hand-building bull bars and roof racks in his Melbourne driveway. Fifty years on, ARB is the largest 4x4 accessories manufacturer and distributor in Australia, with an engineering campus at Kilsyth in Victoria, offices in the USA, Europe and the Middle East, and an export network reaching more than 100 countries.
The touring and camping range grew out of the same place the bull bars did: long trips across the Simpson Desert and the Kimberley, where a failed zipper or a cracked pole is a genuine problem rather than an inconvenience. In North America ARB operates from Auburn, Washington as Air Locker Inc., which handles warranty and support for US buyers. Prestige Truck is an authorized ARB dealer. What ships from us is genuine US-market ARB stock with full ARB North America warranty coverage.
The Long-Form Awning Walkthrough
ARB's nine-minute film on its awning range: how the canvas is cut and sewn, how the extrusions and telescopic legs are put together, and what the awning looks like deployed at a real camp.
It is the most detailed look ARB has published at how these awnings are built, and it covers the same parts and construction this component belongs to.
The ARB Story
How a Melbourne driveway operation building bull bars for outback tourers in 1975 became the largest 4x4 accessories maker in the southern hemisphere.
Seven minutes filmed by ARB across its own factories and proving grounds, for anyone curious who is behind the gear.
Frequently Asked Questions
Straight answers on specs, fit and support
How much shade does the 1.25M actually give?
It runs 49" along the vehicle and reaches 83" out from it, so it shades a door, a person standing at the vehicle and a small work area. If you want to cover a table and chairs for a group, the 2.0M or 2.5M awnings are the ones to look at.
Does it need to be tied to the vehicle?
No. It is self-standing on anodized telescopic legs, and pegs and guy ropes are included to secure those legs. That is what lets you drive away from a deployed awning setup on some rack arrangements, and what stops a gust taking it in the first place.
What do I need to mount it?
A roof rack or roof bars, with a mounting height up to 6.9'. Stainless mounting nuts and bolts come in the box. If your rack is an ARB Touring, Flat or cage rack, ARB's one-bolt quick-release brackets make the awning removable in seconds.
Is the canvas waterproof or just shade?
Both. It is PU-coated 300GSM poly-cotton ripstop, which ARB rates as fully waterproof, with a UPF 50+ sun rating. There is also a reinforced panel sewn into the area that wears first in severe conditions.
Can I get spare parts for it later?
Yes, and that is a genuine advantage of this range. ARB publishes the canvas, arms, legs, beams, end caps, guy ropes and web straps as individual part numbers, so a storm-damaged awning does not have to be replaced whole.
What is the warranty?
3 years, unlimited mileage, through ARB North America, which is the term ARB publishes for this part. Fabric goods are covered against manufacturing defects rather than storm damage or UV wear over time.
