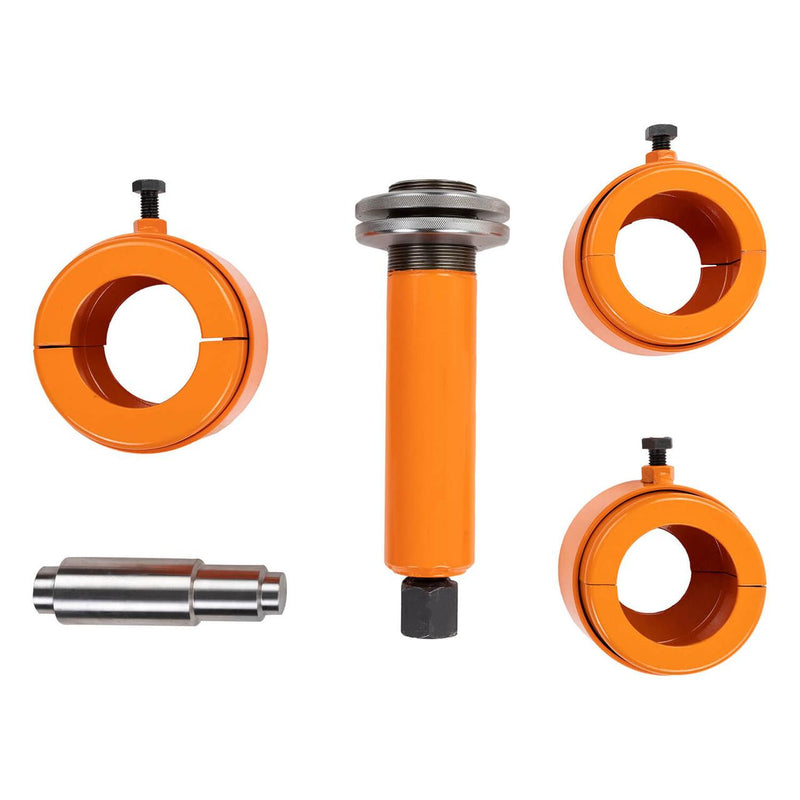

ARB 0770001 Air Locker bearing puller components laid out: three orange split bearing cups, the orange puller body with its knurled thrust bearing and hex drive, and the steel adapter shaft

ARB Air Locker Differential Bearing Puller, Three Bearing Cups with Case (0770001)

Brand: ARB FREE Shipping Low Stock

$550.00

Free Shipping Across the US
30-Day Return Policy
Secure Checkout

Calculating delivery estimate…

Pulling a carrier bearing normally means getting a puller under the seating face of the bearing cone, and on a differential that is either awkward or impossible without marking something you did not want to mark. ARB built this tool to work the other way around: three split collars clamp the bearing from outside, and the center screw does the pulling, so nothing has to reach under the cone.

That matters most on an Air Locker install, because the carrier bearing sits right next to the seal surface the locker depends on. Scoring that face during a bearing pull is a mistake you find out about later as a slow air leak. The kit covers most automotive differentials, works with ARB Air Locker centers and OE centers alike, and comes in a case with its own powder coated parts tray so the collars are still together next time.

What's Included:

Bearing puller body with center screw and thrust bearing
Three split bearing cups covering a range of bearing sizes
Adapter shaft
Durable carry case with a powder coated parts tray

Features

Pulls From Outside The Cone
Clamps the bearing with a split collar instead of reaching under the seating face, which is what makes it usable where a conventional puller will not go.

Protects The Air Locker Seal Face
Lower risk of damaging the carrier bearing and, more importantly, the seal surface an Air Locker relies on to hold air.

Three Bearing Cups
Three different collar sizes cover a wide range of carrier and pinion bearings across most automotive differentials.

Works On OE Centers Too
Suits most models of ARB Air Locker and most OEM differential centers, so it is not a single purpose tool.

Stays A Set
Supplied in a durable carry case with a dedicated powder coated parts tray, so the collars and the shaft are still together the next time you need them.

Fitment & Compatibility

Application	Fit
Carrier bearing removal on most automotive differentials	✓ Fits
Pinion bearing removal	✓ Fits
ARB Air Locker differential centers	✓ Fits, this is the tool ARB built for it
OEM differential centers	✓ Fits most
Vehicle	● Universal. A workshop tool, not a vehicle specific part

Fit guidance: This is a tool, not a vehicle part. The fitment question is bearing size, not truck. Three collar sizes cover most common carrier and pinion bearings; check your bearing outside diameter against the collars if you are working on something unusual.

Specifications

Model: ARB Air Locker Bearing Puller
Part Number: 0770001
Type: Split collar carrier and pinion bearing puller
Bearing Cups: Three sizes supplied
Compatibility: Most ARB Air Locker models and most OEM differential centers
Supplied In: Carry case with powder coated parts tray
Shipping Weight: 35 lb
Warranty: 3 years
UPC: 9332018010186

Installation

Type: Workshop tool, no installation · Time: Not applicable · Tools: A wrench for the center screw · Difficulty: Professional differential work

Differential setup is not a beginner job. If you are pulling carrier bearings you are already committed to resetting pre-load and backlash, and the shim driver 0770004 and adjuster nut pliers 0770002 are the companion tools for that half of the work.

Resources

Everything you need for your ARB Air Locker Differential Bearing Puller, Three Bearing Cups with Case, in one place.

ARB 0770001 Differential Bearing Puller Instructions (PDF), the manufacturer's step-by-step guide covering mounting, included hardware and adjustment.

Warranty, Shipping & Returns

Warranty. ARB covers this product with a 3-year unlimited-mileage warranty through ARB North America (Air Locker Inc., Auburn, WA), the term ARB publishes for it in its own product record. Wear items such as filter elements and seals fall under ARB's 1-year wear-item schedule. We describe ARB's warranty exactly as published and it is honored through any ARB-authorized dealer in the US.

Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.

Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.

About ARB

ARB started in 1975 in a Melbourne garage, when Tony Brown began building bull bars for the four-wheel drives crossing Australia's outback, and the company has grown into the largest 4x4 accessories maker in the southern hemisphere. Its engineering campus in Kilsyth, Victoria still designs and builds the products the brand is known for, and ARB now runs offices in the USA, Europe and the Middle East with an export network reaching more than 100 countries.

The Air Locker is the product that made ARB's name in North America, and the brand supports it the way a driveline component has to be supported: with the setup tools, service parts and spares that let a workshop or a competent mechanic do the job properly instead of improvising. In North America ARB operates from Auburn, Washington as Air Locker Inc., backing every product with a US warranty program. Prestige Truck is an authorized ARB dealer. Every part we ship is a genuine US-market unit with full ARB North America warranty coverage.

Frequently Asked Questions

Straight answers on specs, fit and support

What makes this different from a generic bearing puller?

A conventional puller has to get its jaws under the seating face of the bearing cone. On a differential carrier there is often no room to do that, and forcing it is how seal surfaces get scored. This tool clamps the bearing from the outside with a split collar and pulls from there, so it works in the space you actually have.

Will it work on my differential?

ARB rates it for most automotive differentials, both its own Air Locker centers and OEM centers. Three collar sizes are supplied to cover the common carrier and pinion bearing diameters. It is a size question rather than a vehicle question, so check your bearing OD if you are on something unusual.

Why does the seal face matter so much on an Air Locker?

Because an Air Locker holds air through that area. A scratch that would be cosmetic on an open differential can become a slow leak that makes the locker inconsistent, and diagnosing that after the axle is back together is expensive.

Does it come with a case?

Yes, a durable carry case with a dedicated powder coated parts tray. That is not packaging padding: three loose split collars and a shaft are exactly the sort of thing that goes missing between jobs.

Do I need the rest of the ARB tool range as well?

Not necessarily, but they cover different steps. This tool removes bearings. The shim driver 0770004 seats pre-load shims, the adjuster nut pliers 0770002 set pre-load on adjuster nut axles, and the differential spreader 0770003 opens Salisbury style housings. Which you need depends on the axle in front of you.

Is this a professional tool or something I can use at home?

It is a professional tool and ARB sells it into workshops, but there is nothing stopping a competent home mechanic using it. The real barrier is not the tool, it is that differential setup requires measuring and resetting pre-load and backlash correctly afterwards.
