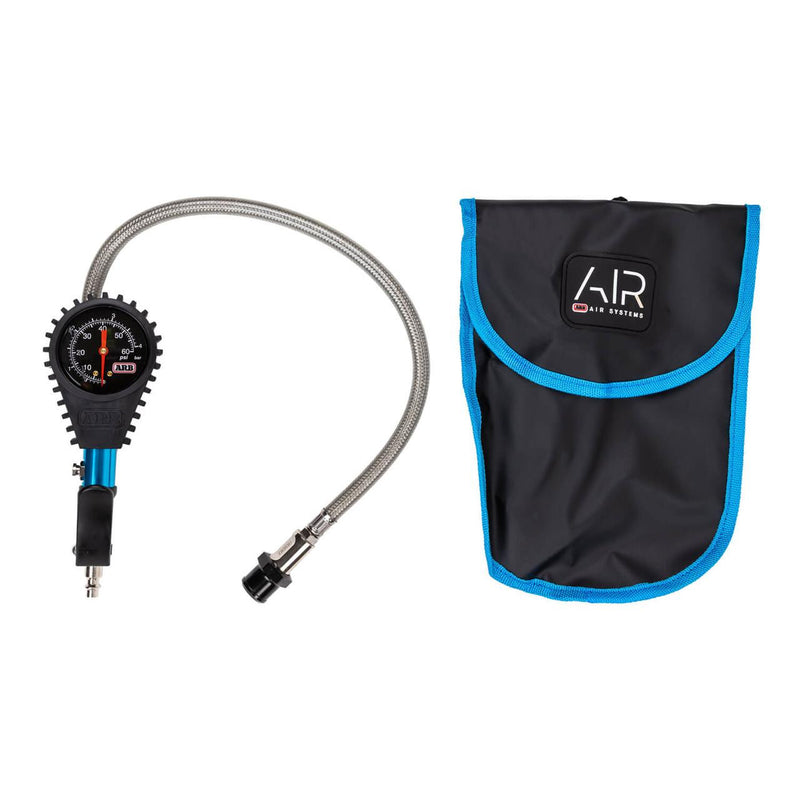

Some people want a screen and some people want a needle. The ARB605B is the analog half of ARB's updated inflator range: a bronze bourdon tube gauge with a fully geared solid brass movement, a protective rubber guard around the dial, a braided PVC coated hose and an air bleed button for deflating.
There are no batteries to go flat and nothing to wake up, which is the argument for an analog gauge in a vehicle that sits for months between trips. An internal air shut off valve holds the reading steady while the supply is connected, so what you read is the tire rather than the line.
What's Included:

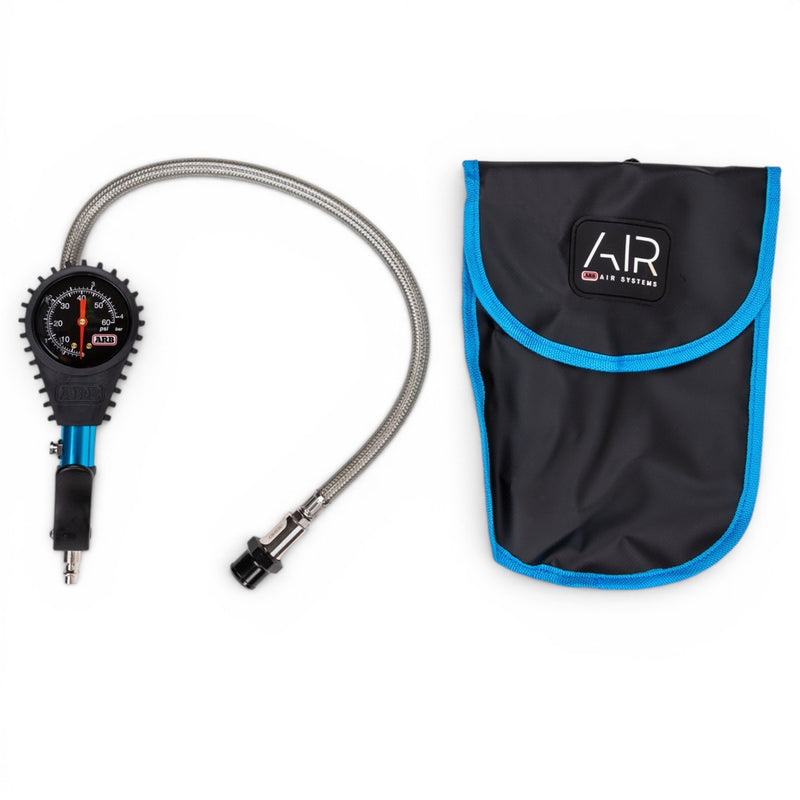

- ARB605B analog tire inflator with braided hose and inflation chuck

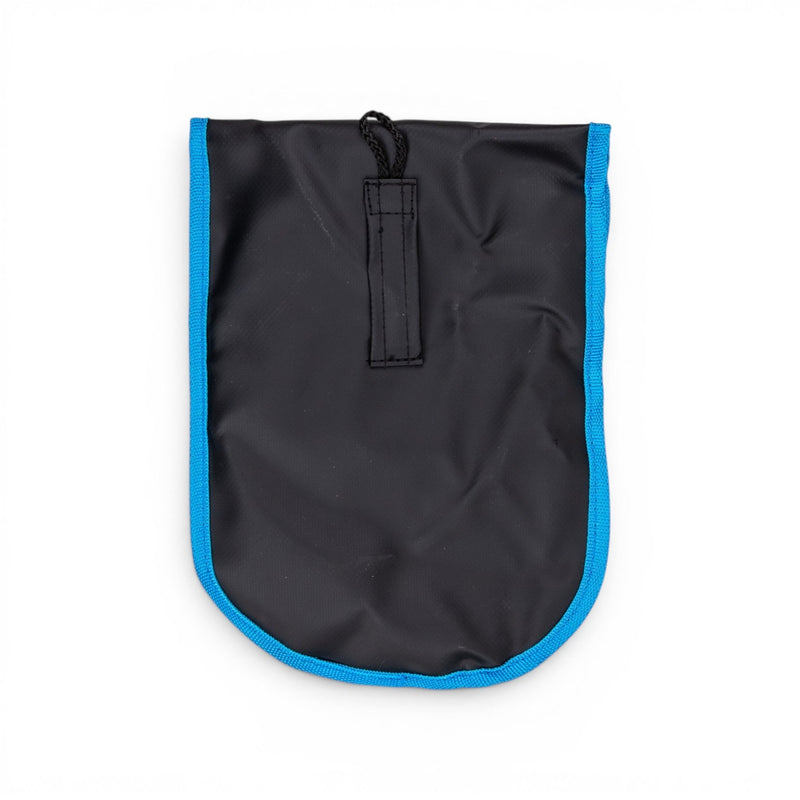

- ARB Air Systems carry pouch
Features
No Batteries To Fail
A mechanical gauge is ready whenever you pick it up, which matters in a vehicle that sits between trips.
Solid Brass Movement
A fully geared, solid brass precision movement behind a bronze bourdon tube design, which is the construction that keeps an analog gauge honest over years.

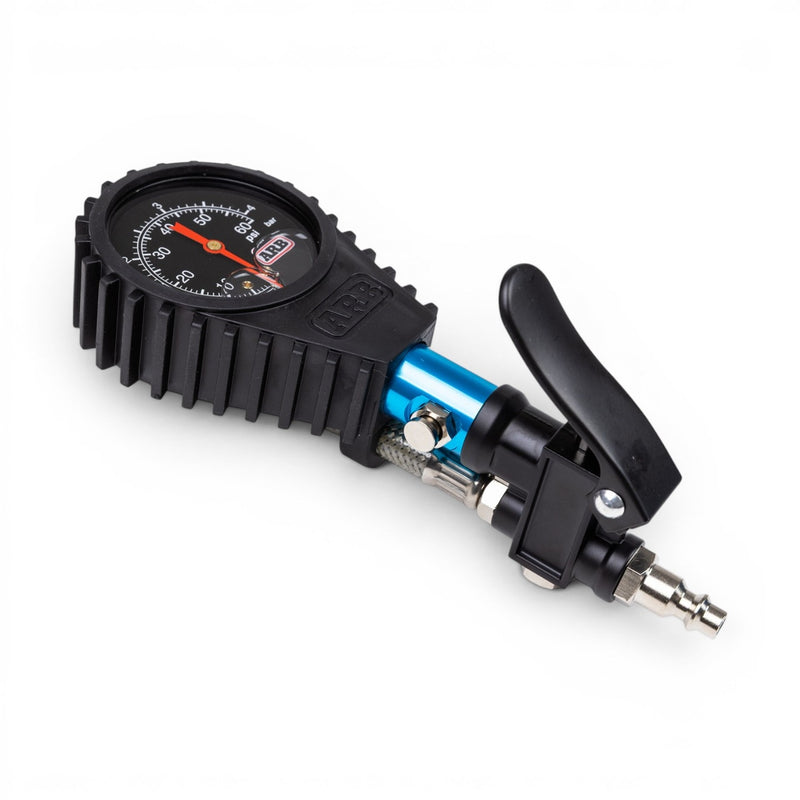

Protected Dial
A rubber gauge guard around the dial, because the first thing that happens to a tire gauge on a trail is a drop onto rock.
Internal Air Shut Off
An internal shut off valve isolates the gauge so the reading you take is the tire pressure, not the supply line.
Bleed Button
An air bleed button lets you come back down past your target instead of starting again.

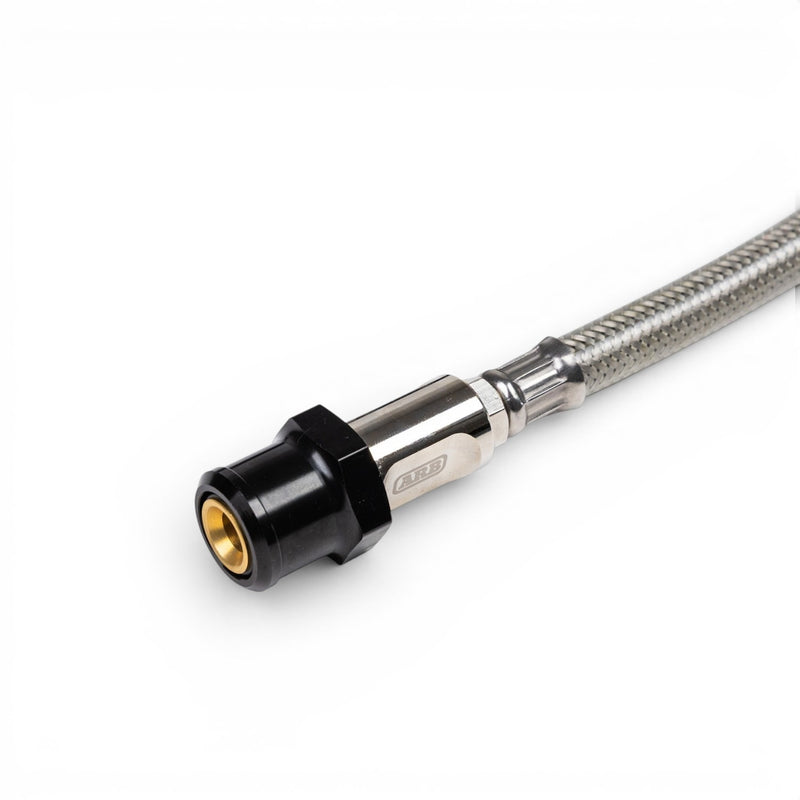

Braided Flexible Hose
A braided PVC coated hose that stays flexible and resists abrasion in a load space.
Fitment & Compatibility
| Application |
Fit |
| ARB air compressors and air systems |
✓ Fits |
| Shop air supply |
✓ Fits |
| Schrader valves on cars, trucks and trailers |
✓ Fits |
| Vehicle |
● Universal. A hand tool, not a vehicle specific part |
Fit guidance: An inflator needs an air supply behind it. If you want a reading tool with no supply, that is the ARB506A pressure gauge; if you want a digital readout, that is the ARB601A.
Specifications
-
Model: ARB Analog Tire Inflator, psi
-
Part Number: ARB605B
-
Display: Analog dial, psi
-
Gauge Design: Bronze bourdon tube, fully geared solid brass movement
-
Hose: Braided PVC coated, flexible
-
Valve: Internal air shut off, with bleed button
-
Body Material: Nickel plated brass
-
Color: Black and blue, satin finish
-
Shipping Weight: 3 lb
-
Warranty: 3 years
-
UPC: 9332018150196
Installation
Type: Hand tool, no installation · Time: Seconds to connect · Tools: None · Difficulty: Easy
Connect to your compressor line, fit the chuck to the valve, inflate and use the bleed button to settle on your target. Store it in the pouch: a dropped bourdon tube gauge can read wrong without looking broken.
Warranty, Shipping & Returns
Warranty. ARB covers this product with a 3-year unlimited-mileage warranty through ARB North America (Air Locker Inc., Auburn, WA), the term ARB publishes for it in its own product record. Wear items such as filter elements and seals fall under ARB's 1-year wear-item schedule. We describe ARB's warranty exactly as published and it is honored through any ARB-authorized dealer in the US.
Free shipping. This item ships free to the lower 48 states and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect your order on arrival. If anything is damaged or missing, contact us right away and we will make it right.
