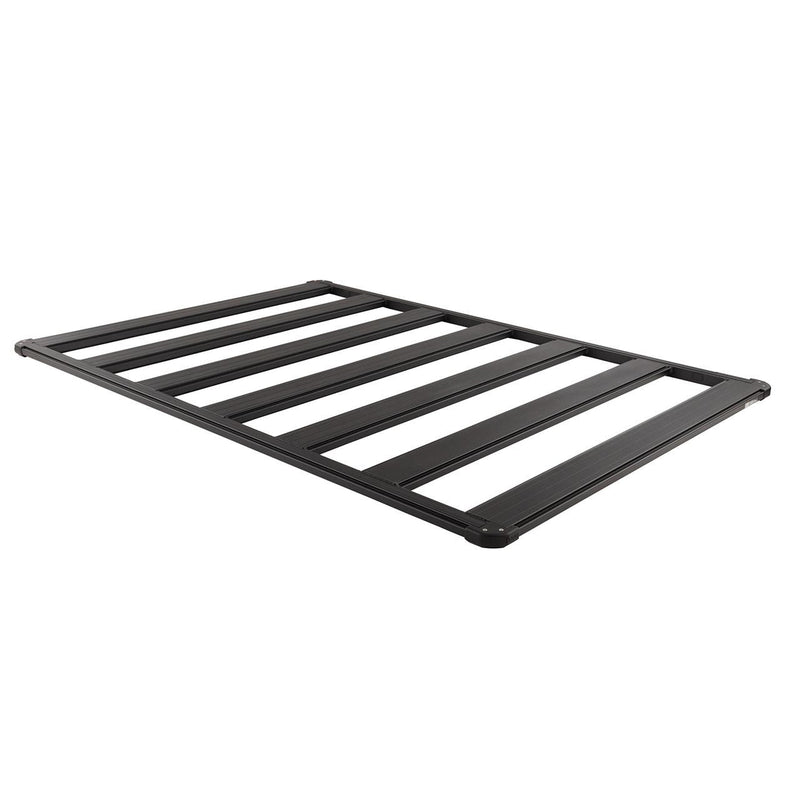

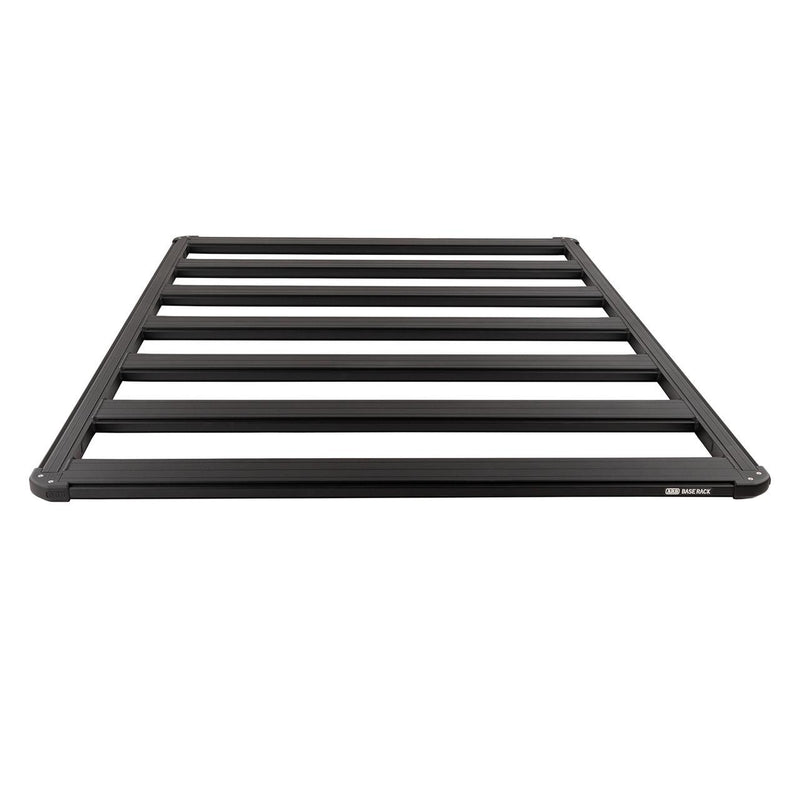

The ARB BASE Rack is a one piece, fully welded aluminum platform that trades the tall basket look for a low profile deck you can bolt almost anything to. This is the 72" x 51" version, built from extruded aluminum beams with internal bracing running the length of every perimeter and cross beam, so it carries load without a supporting subframe and without flexing. A dovetail extrusion runs around the full perimeter and along both edges of each internal beam, which is what separates it from a channel rack: accessories clamp in anywhere along the rail and come off again without sliding anything else out of the way. Removable corner caps let you run wiring inside the rack instead of cable tying it to the outside.
This listing is the rack platform on its own. It does not include the vehicle mounting kit, and without that kit there is no way to attach it to a roof. ARB sells the mount kit separately for each vehicle, and ARB also offers complete BASE Rack kits that bundle a platform, its mount and a deflector for one named vehicle. Order the matching mount kit for your truck at the same time, or you will receive a rack you cannot install.
What's Included:
BASE Rack 72" x 51" platform, fully welded and assembled
Corner caps fitted (removable for internal cable routing)
Fasteners for joining the platform to an ARB BASE Rack mount kit
ARB fitting instructions
Features

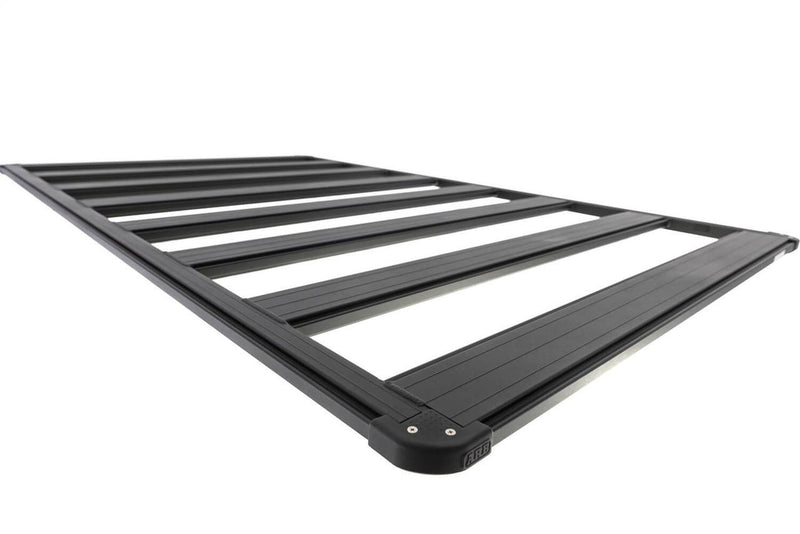

Dovetail Mounting, Not A Channel A dovetail extrusion runs the full perimeter and both edges of every internal beam. Accessory clamps drop in at any point and lift out again without disturbing the rest of the load, and the profile does not pack with dust and grit the way an open channel does.
One Piece Welded Aluminum The platform is fully welded from extruded aluminum beams, corner caps excepted, with rigid internal bracing down the length of each beam. ARB builds it to need no supporting subframe and no additional cross bars.
Genuinely Low Profile A flat deck rather than a basket, sitting on low blade style mounts. It gives back the garage and drive through clearance that a tall cage rack costs you, and it looks like part of the truck instead of an add on.

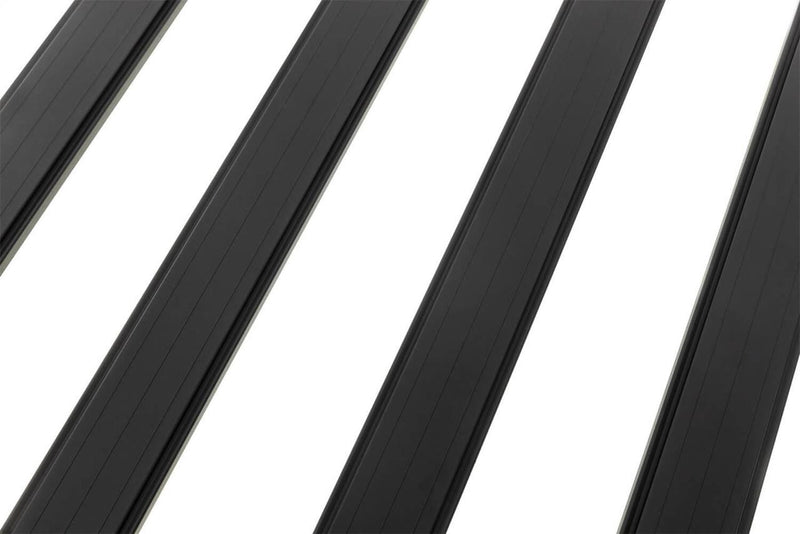

Cross Beam Deck For Awkward Loads The beams run across the rack rather than along it, which gives long thin cargo such as timber, ladders and recovery boards a continuous surface to sit on instead of bridging a gap.

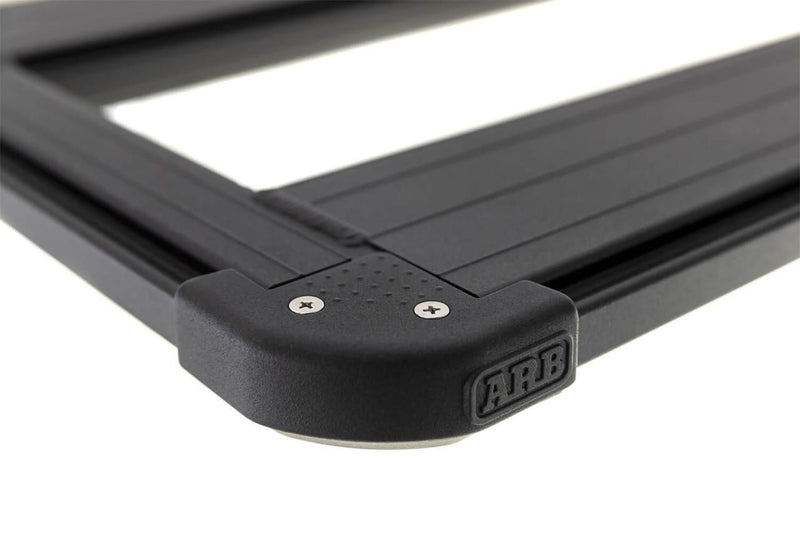

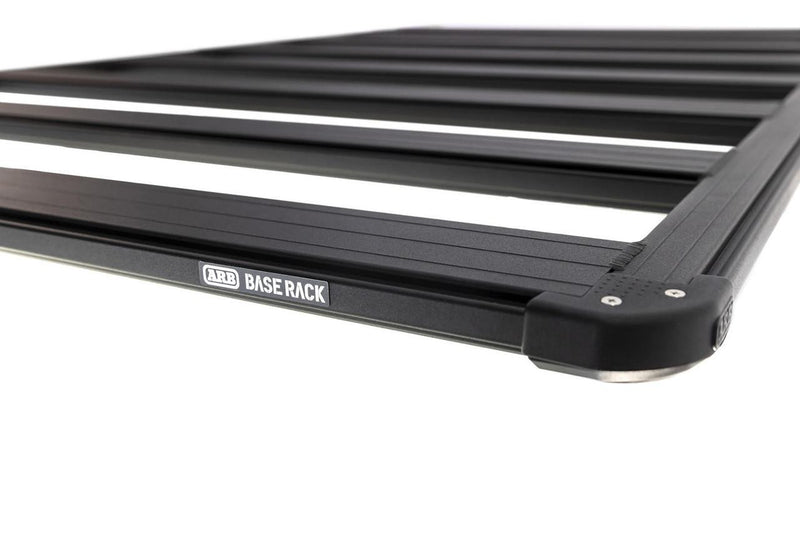

Wiring Runs Inside The Rack The corner caps come off so lighting and accessory cable can be fed through the beams and out of sight, rather than being cable tied along the outside of the rail.
Integrit Textured Black Powder Coat ARB's textured black finish over the whole platform. It hides the scuffs that roof loads inevitably leave and cleans up without showing swirl marks.
Fitment & Compatibility
Application
Fit
Any vehicle with an ARB BASE Rack mount kit sized for a 72" x 51" platform
✓ Fits, mount kit sold separately
Vehicle with no ARB BASE Rack mount kit fitted
● Cannot be installed. Order the vehicle mount kit
ARB BASE Rack accessories (rails, holders, brackets, roller, light mounts)
✓ Fits, clamps to the dovetail
Factory crossbars or a third party channel rack
✗ Does not fit
Rooftop tents using ARB bridge plates
✓ Fits, bridge plates sold separately
Fit guidance: The BASE Rack is sold by deck size, not by vehicle. The vehicle specific part is the mount kit underneath it, which ARB builds per truck as gutter mount, blade rail or canopy track versions. ARB rates payload as a dynamic figure. The real ceiling is whichever is lower, the rack rating or your vehicle roof rating, and roof ratings are usually the lower of the two.
Specifications
Model: ARB BASE Rack platform
Part Number: 1770030
Deck Size: 72" x 51" (1835mm x 1285mm)
Material: Extruded aluminum, fully welded
Finish: Integrit textured black powder coat
Accessory Attachment: ARB dovetail extrusion, full perimeter plus both edges of each internal beam
Internal Beams: 7
Rated Payload (Dynamic): 386 lb (175 kg)
Product Weight: 43.9 lb (19.9 kg)
Shipping Weight: 61 lb
Mounting: ARB BASE Rack vehicle mount kit, sold separately
Warranty: 3 years
UPC: 9332018068538
Installation
Type: Bolts to an ARB BASE Rack vehicle mount kit · Time: 1-2 hours with the mount kit already fitted; allow longer if the mount kit is going on at the same time · Tools: Metric socket set, torx drivers, torque wrench; a second person to lift the platform onto the roof · Difficulty: Moderate
The platform arrives assembled, so the work is fitting the vehicle mount kit and then setting the rack onto it and torquing the fasteners. Follow ARB's fitting instructions for the mount kit, which is where the vehicle specific steps live. Two people make the lift far safer.
Warranty, Shipping & Returns
Warranty. ARB covers this product with a 3-year, unlimited mileage warranty through ARB North America (Air Locker Inc., Auburn, WA). ARB's own schedule puts wear items such as bushes, bearings, shackles, pins and U-bolts on a shorter 1-year term. We describe ARB's warranty exactly as ARB publishes it rather than restating or extending it, and it is honored through any ARB-authorized dealer in the US.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About ARB
ARB started in 1975 when Tony Brown came home from a Cape York trip convinced that the four wheel drives crossing Australia deserved better equipment than anything then on sale. He began hand building roof racks and bull bars in his Melbourne driveway, and the initials of Anthony Ronald Brown ended up on what is now the largest 4x4 accessory manufacturer and distributor in the southern hemisphere. The engineering campus at Kilsyth in Victoria still designs and tests the load carrying, air and recovery equipment the brand is known for, and ARB now runs offices in the USA, Europe and the Middle East with an export network reaching more than 100 countries.
In North America ARB trades as Air Locker Inc. from Auburn, Washington, and backs its products with a published US and Canada warranty program. Prestige Truck is an authorized ARB dealer. Every rack, rail and bracket we ship is genuine US market stock covered by ARB North America's warranty and supported by ARB's own fitting instructions.
The Dovetail Mounting System
ARB's own short walkthrough of the dovetail extrusion that makes the BASE Rack what it is: a clamp that drops in anywhere along the rail instead of a channel you have to thread accessories onto from one end.
It is the clearest thirty seconds available on why accessories come on and off this rack without disturbing the rest of the load.
The ARB Story
How a Melbourne driveway operation building roof racks and bull bars in 1975 grew into the southern hemisphere's largest 4x4 accessory manufacturer.
Filmed by ARB across its own Australian factories and proving grounds, it is worth seven minutes if you want to know who builds the gear before you bolt it to your roof.
Frequently Asked Questions
Straight answers on specs, fit and support
Will this rack fit my truck?
Not on its own. The BASE Rack is sold by deck size, and the vehicle specific part is the ARB BASE Rack mount kit that goes underneath it. You need the mount kit built for your vehicle plus this 72" x 51" platform. If you order only the platform you will receive a rack with no way to attach it.
How much can it carry?
ARB rates this platform at 386 lb (175 kg) dynamic. That is the rack's figure, not your truck's. ARB rates payload as a dynamic figure. The real ceiling is whichever is lower, the rack rating or your vehicle roof rating, and roof ratings are usually the lower of the two. Static load, when parked, is far higher, which is why rooftop tents work.
What makes the dovetail better than a T-slot channel?
You can clamp an accessory in at any point along the rail and take it off again without sliding everything else off the end first. The dovetail profile also sheds dirt instead of collecting it, so accessories still move months later.
Can I run wiring for lights through it?
Yes. The corner caps are removable so cable can be fed inside the beams and exit at a hidden point, which is how ARB intends light bars and work lights to be wired rather than cable tying a loom along the outside.
Do I need extra cross bars?
No. ARB builds strength into the beam design and states the rack needs no additional cross bars and no supporting subframe. The cross beam deck is the load surface.
What is the warranty?
Three years unlimited mileage through ARB North America. Register with ARB after purchase and keep your invoice; warranty is honored through authorized dealers like us.
