The Slimline light bar and the wiring loom needed to run it, in one part number. Buying the bar on its own leaves you sourcing a loom, a relay and a switch; this kit removes that step. The bar is the same 36" combo beam unit, tuned so its reflector does not throw glare back off the hood and bar work, delivering 1 lux at 2388 ft with up to 196 ft of spread from an extruded aluminum body with die cast end caps and a virtually indestructible polycarbonate lens.
The multi position mounts give three choices: in front of the rack, above it, or tucked underneath where the rack shields the light. ARB states these mounts suit the BASE Rack as well as ARB trade and touring racks. A rack is still required, and this kit does not include one.

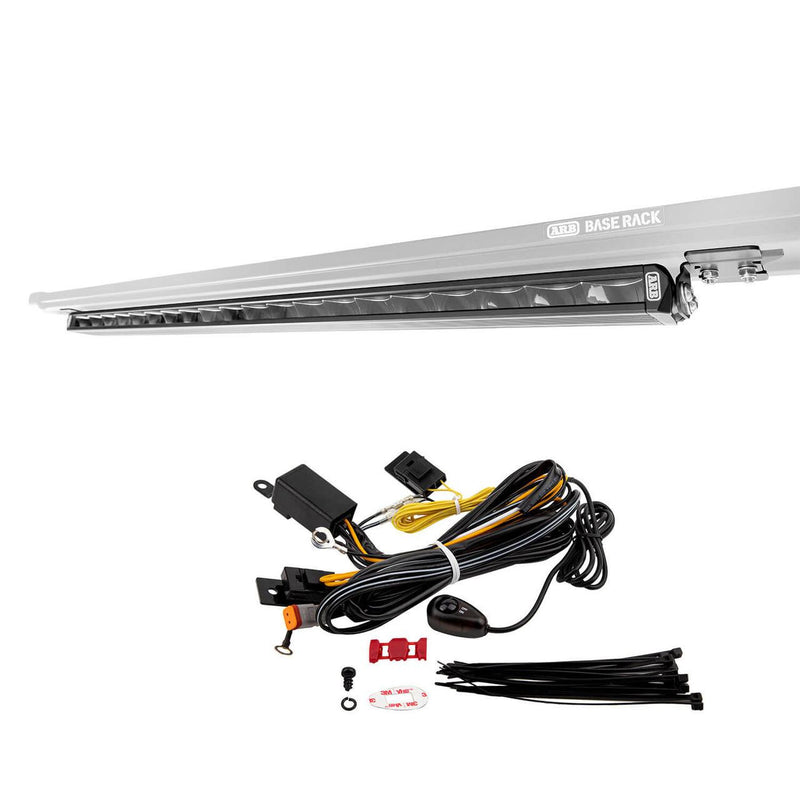

What's Included:
- ARB Slimline roof rack LED light bar, 36"
- Wiring loom with relay, switch and fuse
- Multi-position mounting brackets
- Cable ties and mounting hardware
- ARB fitting instructions
Features
Bar And Loom Together
The kit is the complete electrical answer: light bar plus the wiring loom, relay and switch. Buying the bar alone means sourcing all of that separately.
Reflector Tuned For Roof Mounting
Roof mounted bars normally reflect off the hood and bar work. ARB tuned this reflector to limit that, which is the difference at night.
1 Lux At 2388 ft, 196 ft Spread
Published distance and spread figures from a combo spot and flood beam, not a bare lumen number.
Three Mounting Positions
In front of the rack, above it, or underneath for protection and a hidden look. ARB lists the multi position mounts as suiting BASE Rack plus trade and touring racks.
Aluminum Body, Polycarbonate Lens
Extruded aluminum with high pressure die cast end caps for heat management and impact resistance, behind a virtually indestructible polycarbonate lens.
Rack Not Included
The kit covers the light and its wiring. The ARB rack it mounts to is a separate purchase.
Fitment & Compatibility
| Application |
Fit |
| ARB BASE Rack platform |
✓ Fits, using the rack mounting system |
| ARB trade and touring racks |
✓ Fits, ARB lists the multi-position mounts as suitable |
| ARB BASE Rack with a front section guard rail |
✓ Fits, requires the 1780515 bracket pair |
| Vehicle with no compatible rack fitted |
● Cannot be installed |
| Factory crossbars |
✗ Does not fit |
Fit guidance: Designed around ARB rack mounting systems rather than as a bumper or bull bar light. If a BASE Rack front section guard rail is fitted, add the 1780515 bracket pair.
Specifications
-
Model: ARB BASE Rack Slimline LED light bar kit
-
Part Number: 1780500K
-
Kit Contents: 1x Slimline roof rack light bar (1780500), 1x wiring loom
-
Beam: Combo, spot and flood
-
1 Lux Distance: 2388 ft
-
Spread: Up to 196 ft
-
Body: Extruded aluminum with high pressure die cast aluminum end caps
-
Lens: Polycarbonate, lightly tinted
-
Finish: Black powder coat
-
Width: 36"
-
Mounting: Multi-position: in front of, above or below the rack
-
Compatible Racks: ARB BASE Rack, ARB trade and touring racks
-
Shipping Weight: 9 lb
-
Warranty: 3 years
-
UPC: 9332018095114
Installation
Type: Mounts to an ARB rack; wiring loom supplied · Time: 2-3 hours including wiring · Tools: Hex keys, metric sockets, crimper and basic 12 V wiring competence · Difficulty: Moderate
Mechanical mounting is quick. The wiring is the bulk of the job, and the supplied loom, relay and switch cover it. Route the cable through the BASE Rack corner caps so it runs inside the beams rather than cable tied along the outside.
Resources
Everything you need for your ARB BASE Rack Slimline LED Light Bar Kit, 36" Bar plus Wiring Loom, in one place.
Warranty, Shipping & Returns
Warranty. ARB covers this product with a 3-year, unlimited mileage warranty through ARB North America (Air Locker Inc., Auburn, WA). ARB's own schedule puts wear items such as bushes, bearings, shackles, pins and U-bolts on a shorter 1-year term. We describe ARB's warranty exactly as ARB publishes it rather than restating or extending it, and it is honored through any ARB-authorized dealer in the US.
Free shipping. This item ships free to the lower 48 states and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect your order on arrival. If anything is damaged or missing, contact us right away and we will make it right.
