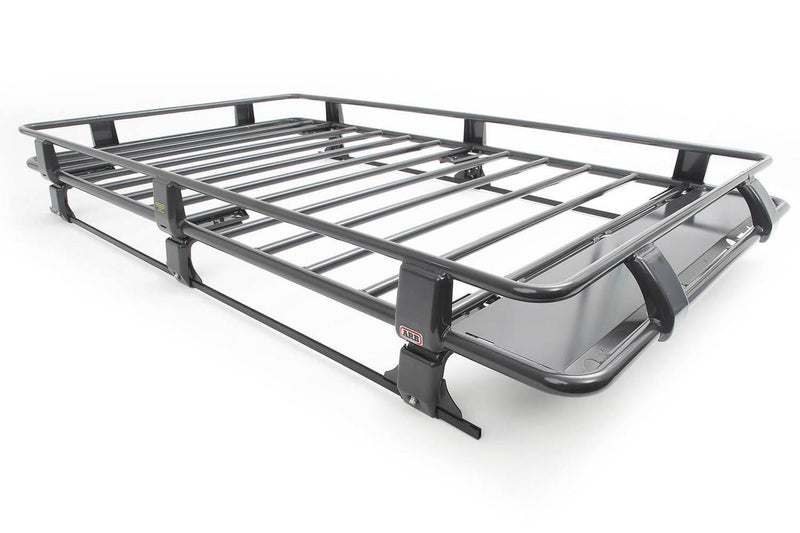

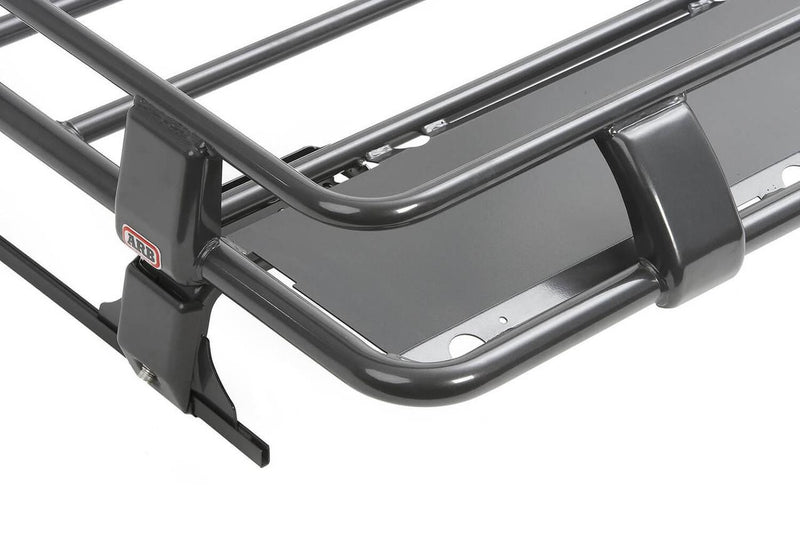

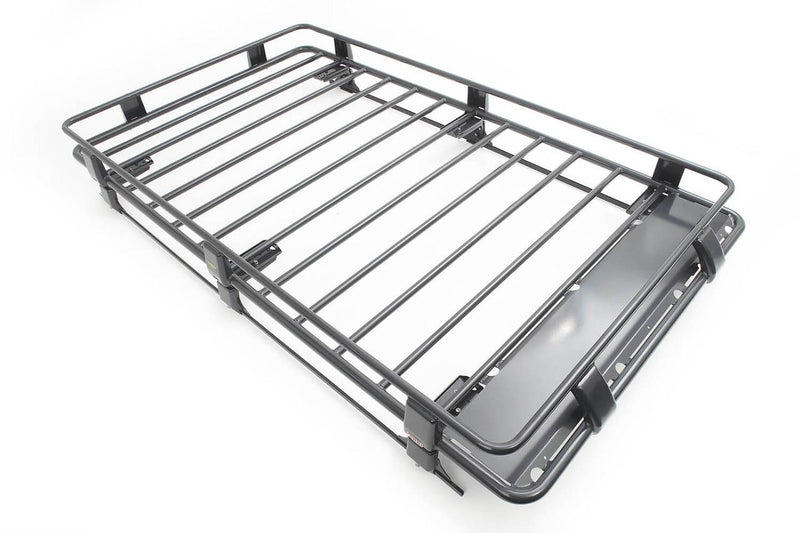

The full size ARB steel cage rack, 87" x 50", built around round steel tube for strength and airflow with raised perimeter rails that contain a load rather than merely supporting it. It is shot blasted, coated in zinc rich primer and finished in Millennium grey powder coat with zinc plated mounting legs, and a full length support channel spreads weight along the vehicle instead of loading the mounting points. A wind deflection panel is fitted to cut the highway noise that a rack this size otherwise generates.
This listing is the rack only. ARB states plainly that a vehicle mounting kit is required and is sold separately, so a rack ordered on its own cannot be fitted to a roof. ARB builds gutter mount and variable height fitting kits per vehicle; get the mounting kit that suits your truck alongside the rack.
What's Included:
- ARB Classic roof rack cage, 87" x 50"
- Stainless steel hardware
- Wind deflection panel
- ARB fitting instructions
Features
Vehicle Mounting Kit Required
ARB states it directly: the vehicle mounting kit is required and sold separately. The rack is sized, the mount is vehicle specific, and you need both.

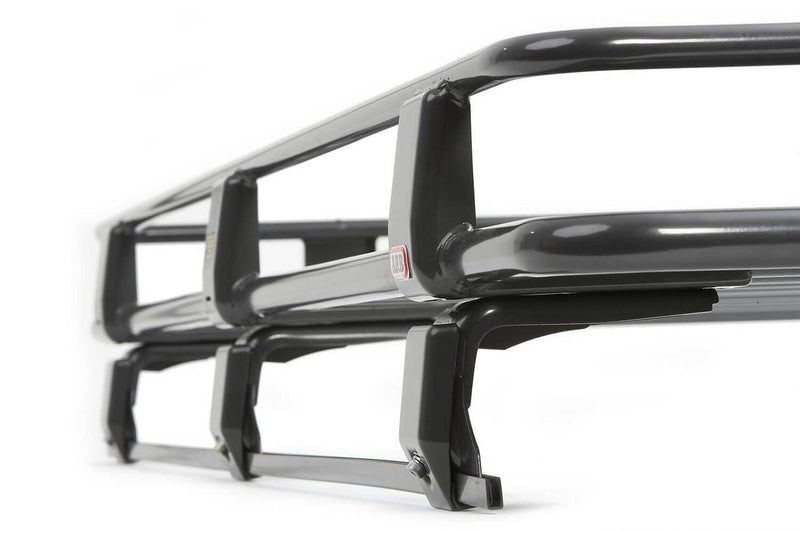

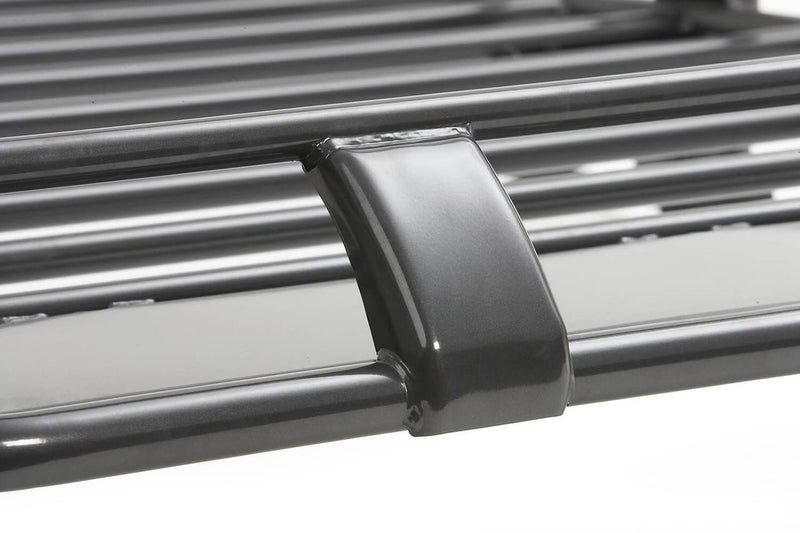

Round Steel Tube Construction
Round tube for strength and for airflow. It is the shape that has kept these racks on Land Cruisers for decades.
Zinc Rich Primer Under The Powder Coat

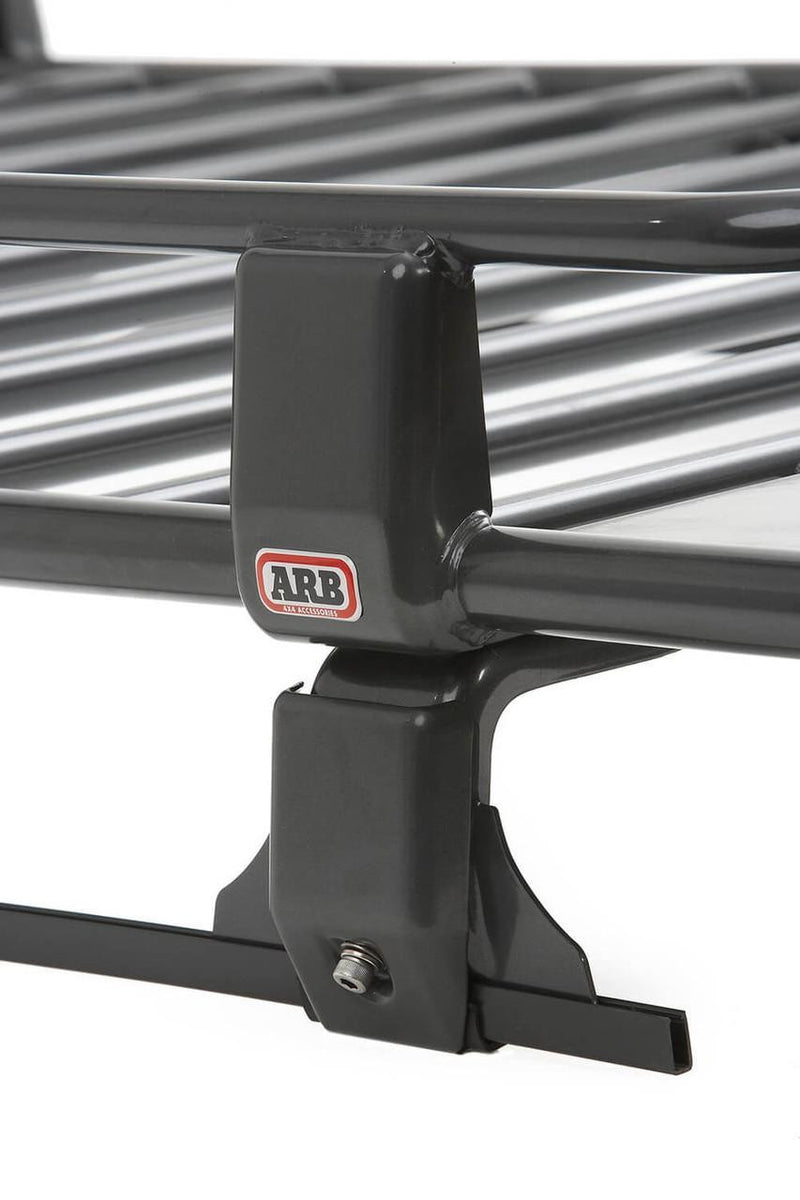

Shot blasted, primed in a zinc rich primer and finished in Millennium grey powder coat, with zinc plated mounting legs. That is a corrosion system rather than just paint.
Full Length Support Channel
A support channel runs the length of the rack to distribute weight evenly along the vehicle rather than concentrating it at the mounting legs.
Rated To The Vehicle Roof Capacity
ARB builds these to support the full rated roof load capacity of the vehicle, so the limit is your roof rating rather than a lower rack figure.
Wind Deflector Included
A wind deflection panel that reduces the interior noise a roof rack generates at highway speed, which is the single most common complaint about full size racks.
Fitment & Compatibility
| Application |
Fit |
| Any vehicle with the matching ARB Classic roof rack mounting kit |
✓ Fits, mounting kit sold separately |
| Vehicle with no ARB mounting kit fitted |
● Cannot be installed. ARB states the mounting kit is required |

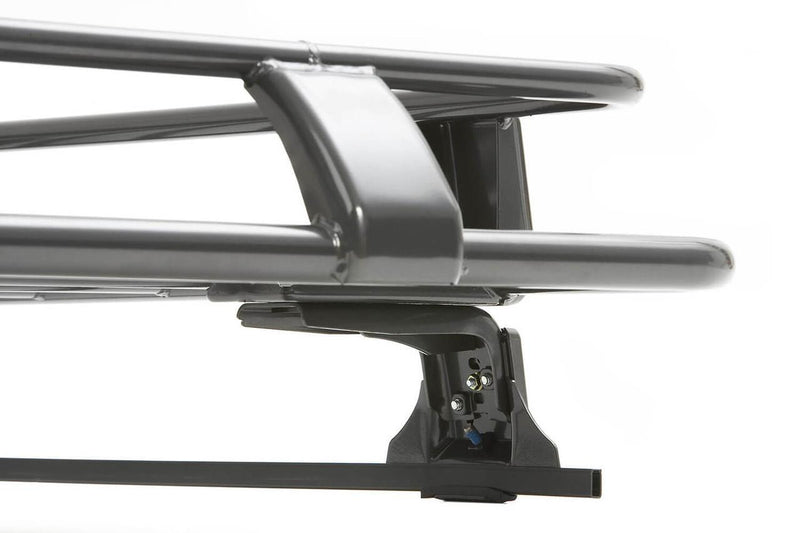

| Gutter mount vehicles |
● ARB builds gutter mount fitting kits; check availability for your vehicle |
| Existing ARB roof rack of the same dimensions |
● Uses the same mounting kits where dimensions match |
| ARB BASE Rack accessories |
● Do not fit. The BASE Rack dovetail is a different system |
| Factory crossbars |
✗ Does not fit |
Fit guidance: ARB Classic racks are sold by size, and the vehicle specific part is the mounting kit underneath. ARB says plainly that the vehicle mounting kit is required and sold separately. BASE Rack accessories do not fit these racks; the Classic range has its own accessories.
Specifications
-
Model: ARB Classic roof rack cage
-
Part Number: 3800010
-
Style: Cage with raised perimeter rails
-
Size: 87" x 50"
-
Material: Steel
-
Floor: Spaced cross bars
-
Finish: Millennium grey powder coat over zinc rich primer
-
Wind Deflector: Included
-
Hardware: Stainless steel
-
Mounting: ARB vehicle mounting kit required, sold separately
-
Product Weight: Not published by ARB for this SKU
-
Shipping Weight: 147 lb
-
Freight: Ships LTL
-
Shipping Weight: 147 lb
-
Warranty: 3 years
-
UPC: 837290002823
Installation
Type: Bolts to an ARB Classic roof rack vehicle mounting kit · Time: 2-4 hours including the mounting kit · Tools: Metric socket set, torque wrench; two or more people for the lift · Difficulty: Moderate
This is a heavy rack that ships LTL. Fit the vehicle mounting kit first, then lift the rack onto it. At 147 lb shipped this is not a one person job, and ARB supplies variable height fitting kits so the rack sits level.
Warranty, Shipping & Returns
Warranty. ARB covers this product with a 3-year, unlimited mileage warranty through ARB North America (Air Locker Inc., Auburn, WA). ARB's own schedule puts wear items such as bushes, bearings, shackles, pins and U-bolts on a shorter 1-year term. We describe ARB's warranty exactly as ARB publishes it rather than restating or extending it, and it is honored through any ARB-authorized dealer in the US.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About ARB
ARB started in 1975 when Tony Brown came home from a Cape York trip convinced that the four wheel drives crossing Australia deserved better equipment than anything then on sale. He began hand building roof racks and bull bars in his Melbourne driveway, and the initials of Anthony Ronald Brown ended up on what is now the largest 4x4 accessory manufacturer and distributor in the southern hemisphere. The engineering campus at Kilsyth in Victoria still designs and tests the load carrying, air and recovery equipment the brand is known for, and ARB now runs offices in the USA, Europe and the Middle East with an export network reaching more than 100 countries.
In North America ARB trades as Air Locker Inc. from Auburn, Washington, and backs its products with a published US and Canada warranty program. Prestige Truck is an authorized ARB dealer. Every rack, rail and bracket we ship is genuine US market stock covered by ARB North America's warranty and supported by ARB's own fitting instructions.
