A loaded fridge in the back of a truck is heavy, awkward and buried behind everything else you packed. The ARB Elements fridge slide fixes both problems at once: it bolts the fridge down so it cannot move on corrugations, and it runs the whole cabinet out to you on sealed roller bearings when you want a drink.

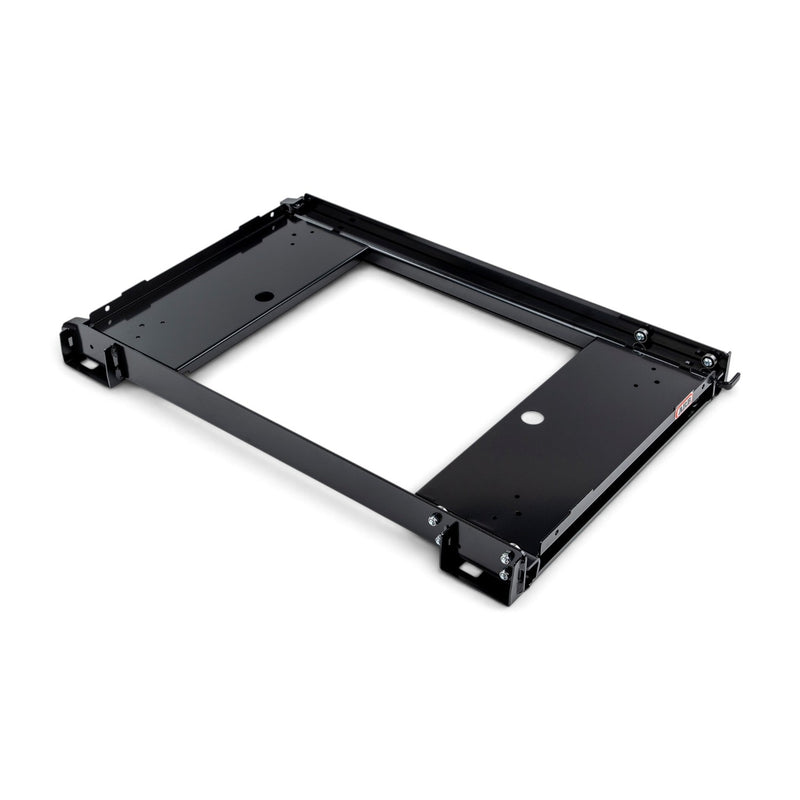

This slide is built for the 63 qt Elements fridge and nothing else, because a slide that nearly fits is a slide that lets a heavy lb load move. The frame is steel, zinc plated and finished in a black e-coat, the runners use sealed heavy duty roller bearings that keep dust and grit out, and the latch holds the tray locked whether it is fully in or fully out, so it stays where you put it no matter what angle the vehicle is sitting at.
What's Included:
ARB fridge slide, part 10900040
Fridge foot locator plates
Carriage bolts, nyloc nuts and washers for mounting
Features
Built For One Fridge Family Sized for the 63 qt Elements cabinet. The foot locator plates sit where that fridge's feet sit, so it is held rather than just resting on a tray.
Locks Open And Locks Closed A quick release catch holds the tray locked in either the fully closed or fully open position, so a slope or a side angle does not let a loaded fridge run away from you.

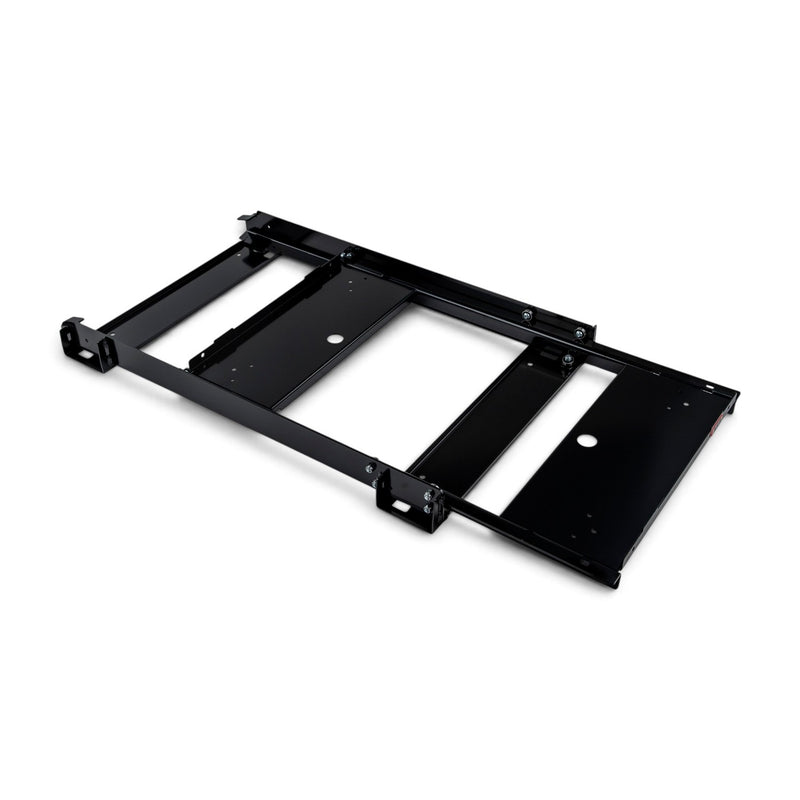

Sealed Roller Bearings Heavy duty sealed bearings run the carriage and keep dust and grit out of the mechanism, which is the part that kills cheaper slides on unsealed roads.
Steel And E-Coated Solid steel construction, zinc plated then finished in a black epoxy e-coat for corrosion resistance under a wet, salty load floor.
Flat Mounting Base A flat mounting base with corner feet lets it sit directly on a load floor or on top of a low drawer system without packing pieces.
Fits Either Side Mounts on the passenger or driver side, and the catch can go on whichever side you can actually reach.
Fitment & Compatibility
Fridge
Fit
ARB 63 qt Elements
✓ Fits, this is the matched slide
ARB ZERO range fridges
✗ Does not fit, the ZERO cabinets use slides 10900047 and 10900048
Any non ARB portable fridge
✗ Not supported, the foot locators are cut for ARB cabinets
Vehicle
● Universal. The slide bolts to a flat load floor, a drawer top or a tray, and is not a vehicle specific part
Fit guidance: The fitment decision here is the fridge, not the truck. Match the slide to the exact ARB cabinet you own, then check you have 35.4" of clear travel behind the tailgate for the tray to run out into.
Specifications
Model: ARB Elements Fridge Slide
Part Number: 10900040
Fits: ARB 63 qt Elements fridge freezers
Material: Steel, zinc plated with black e-coat
Color: Black
Dimensions Extended: 35.4"L x 22.9"W x 3.1"H
Product Weight: 37.5 lb
Shipping Weight: 38 lb
Warranty: 3 years
UPC: 9332018047946
Installation
Type: Bolt down to a load floor, drawer top or tray · Time: 1 to 2 hours including tidy wiring · Tools: Drill, socket set and a spanner. A helper for positioning the loaded fridge · Difficulty: Moderate
Mount to something structural, not to a trim panel. Position the slide so the fully extended tray clears the tailgate or door, check the fridge feet drop into the locator plates before you commit to the hole positions, and route the fridge power lead so it is not pinched by the carriage at either end of the travel.
Watch the installation walkthrough:
Resources
Everything you need for your ARB Elements Fridge Slide for the 63 qt Elements Fridge Freezer, in one place.
Warranty. ARB covers this product with a 3-year unlimited-mileage warranty through ARB North America (Air Locker Inc., Auburn, WA), the term ARB publishes for it in its own product record. Wear items such as filter elements and seals fall under ARB's 1-year wear-item schedule. We describe ARB's warranty exactly as published and it is honored through any ARB-authorized dealer in the US.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About ARB
ARB started in 1975 in a Melbourne garage, when Tony Brown began building bull bars for the four-wheel drives crossing Australia's outback, and the company has grown into the largest 4x4 accessories maker in the southern hemisphere. Its engineering campus in Kilsyth, Victoria still designs and builds the products the brand is known for, and ARB now runs offices in the USA, Europe and the Middle East with an export network reaching more than 100 countries.
ARB has been building portable refrigeration for touring vehicles for decades, and the ZERO, Elements and Classic ranges are the result of that history: compressor fridges designed around vehicle power, corrugated roads and long-distance heat and dust rather than around a domestic kitchen. In North America ARB operates from Auburn, Washington as Air Locker Inc., backing every product with a US warranty program. Prestige Truck is an authorized ARB dealer. Every fridge and accessory we ship is a genuine US-market unit with full ARB North America warranty coverage.
The ARB Story
How a Melbourne garage operation building bull bars for outback tourers in 1975 became the southern hemisphere's biggest 4x4 accessories maker.
Seven minutes on the company behind this product, filmed by ARB itself across its Australian factories and proving grounds.
Frequently Asked Questions
Straight answers on specs, fit and support
Will this slide fit my fridge?
It fits the ARB 63 qt Elements fridge and is not adjustable to other cabinets. The foot locator plates are cut for those models, which is what stops the fridge shifting in transit, so a slide from a different part of the range will not hold your cabinet properly even if it physically sits on the tray.
Does it lock in place?
Yes. The quick release catch locks the tray in the fully closed and the fully open position, and the catch can be fitted on the left or right side so it falls where you can reach it.
What load will it carry?
ARB does not publish a load rating for this slide. It is built from the same steel and bearing system as the rest of the range and is sized for the Elements 63 qt cabinet, which weighs 70 lb before you load it.
Where can I mount it?
Anywhere flat and structural: a load floor, the top of a drawer system, or a tray or canopy floor. It mounts on either the passenger or the driver side. What it must not go on is trim or unsupported plastic, because the whole point is to restrain a heavy load in a crash or a rollover.
How much space does it need when it is open?
Extended it measures 35.4"L x 22.9"W x 3.1"H. Add clearance behind the vehicle for the tray to run into, and remember you need to be able to open the fridge lid once the tray is out, not just get the tray out.
What comes in the box?
The slide assembly, the fridge foot locator plates and the carriage bolts, nyloc nuts and washers to mount it. The fitting instructions are in the Resources tab. You supply the fasteners into your own vehicle floor, because what those need to be depends entirely on what you are bolting into.
