The ARB Slide Kitchen is a full outdoor kitchen that lives in the back of the vehicle and rolls out of it: a two-burner propane stove with 8,530 BTU/h per burner and battery ignition, a 304 stainless steel bench measuring 19" by 36.5", a 7.3 quart collapsible silicone sink that folds out on either side of the stove, and a utensil drawer underneath. ARB rates setup at fifteen seconds.
The part that makes it work is the extension roller design. Fully extended, the kitchen clears the vehicle completely and locks into place standing on its own, with no support leg to fuss with and nothing resting on the tailgate. It shares the dimensions of ARB's full-height Outback Solutions drawer profiles, so it can sit alongside ARB drawers as one integrated system or go in as a standalone unit in a custom build.
What's Included:
ARB Slide Kitchen 1045mm module in steel with 304 stainless steel bench top
Two-burner propane stove with 1.5V DC battery igniter
7.3 quart collapsible silicone sink with plug
Propane hose
Built-in utensil drawer
Fully retractable extension roller slides with lock-out
ARB Slide Kitchen instructions
Features

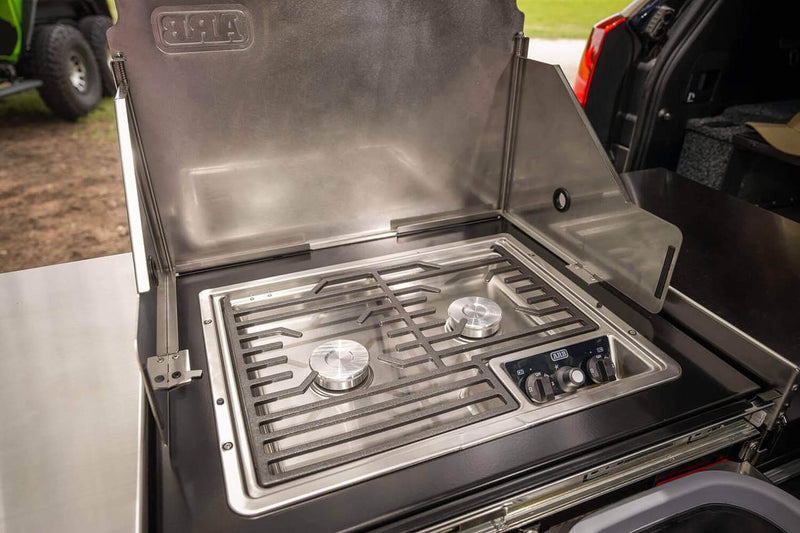

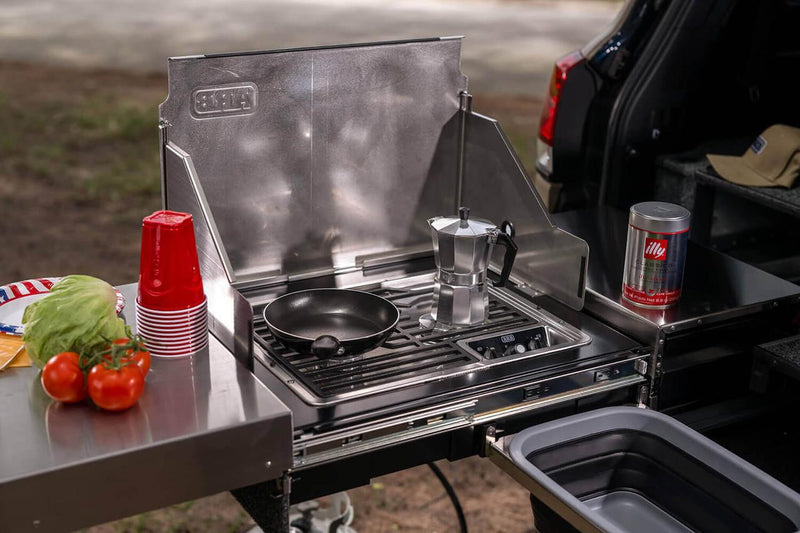

Two Real Burners Twin propane burners at 8,530 BTU/h each with a 1.5V DC battery igniter, so it lights on a button and puts out enough heat to actually cook for a group rather than warm a can.

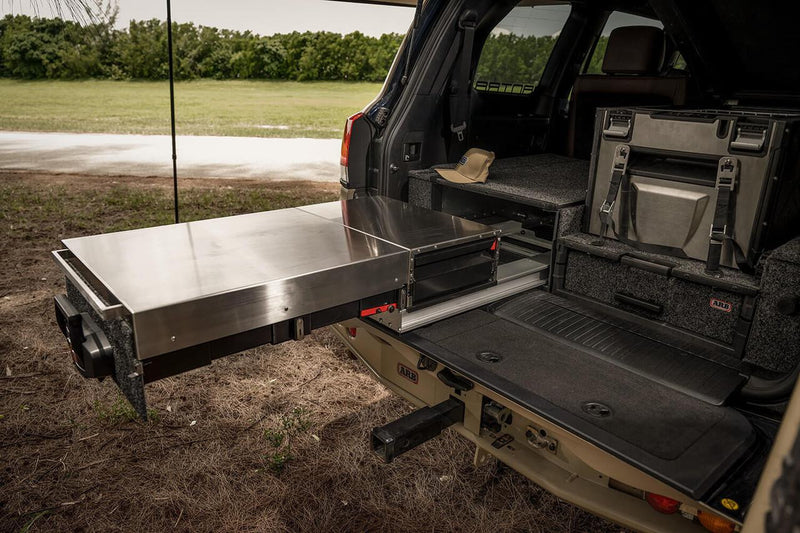

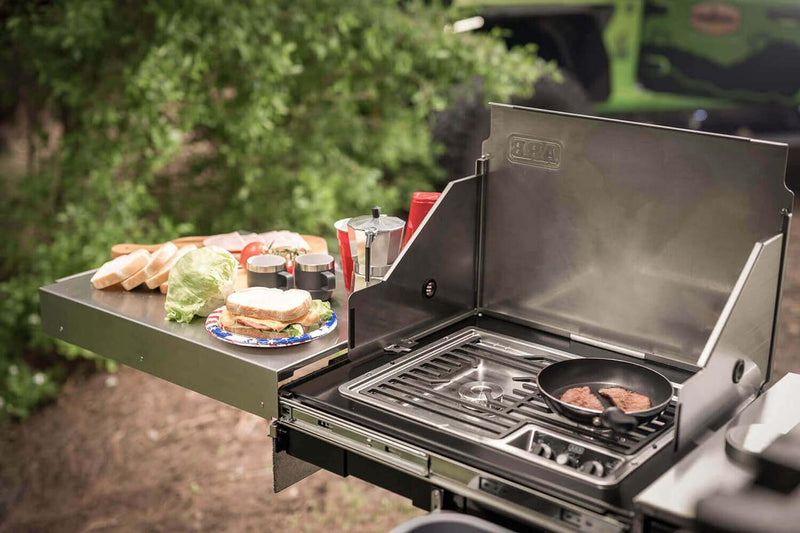

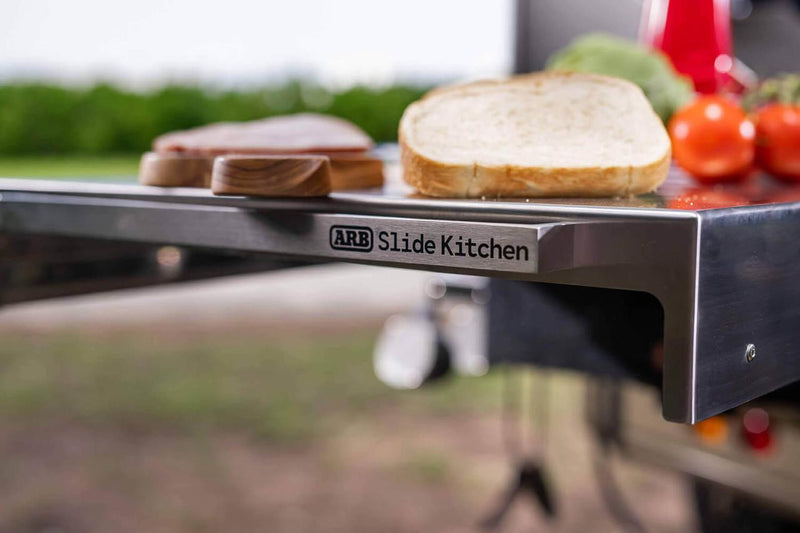

Stainless Bench You Can Work On A 304 stainless steel kitchen-grade bench top, 19" wide by 36.5" long. It cleans down properly and it is large enough to prep on while both burners are in use.
Collapsible Sink A 7.3 quart silicone sink with a plug folds out on either side of the stove for washing up, then collapses flat into the drawer when you pack down.

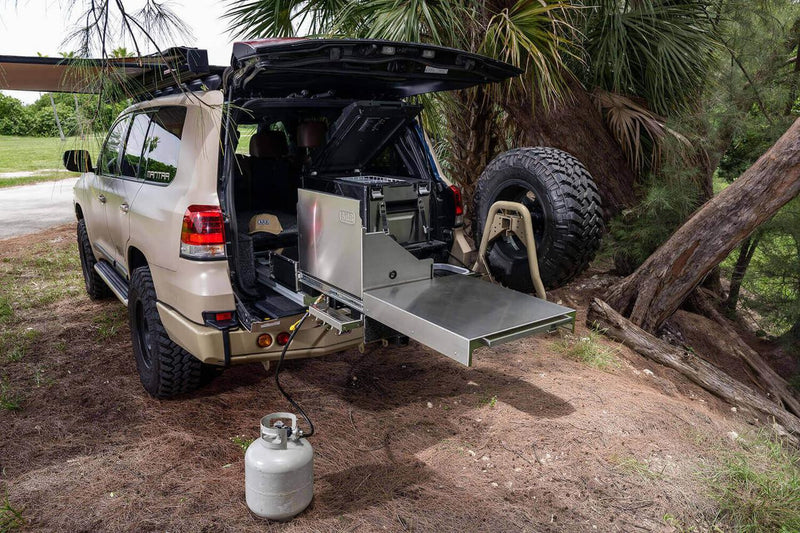

Freestanding When Extended The retractable extension rollers give complete clearance of the vehicle. Once out and locked, the kitchen stands on its own with no support leg required and nothing loaded onto the tailgate.

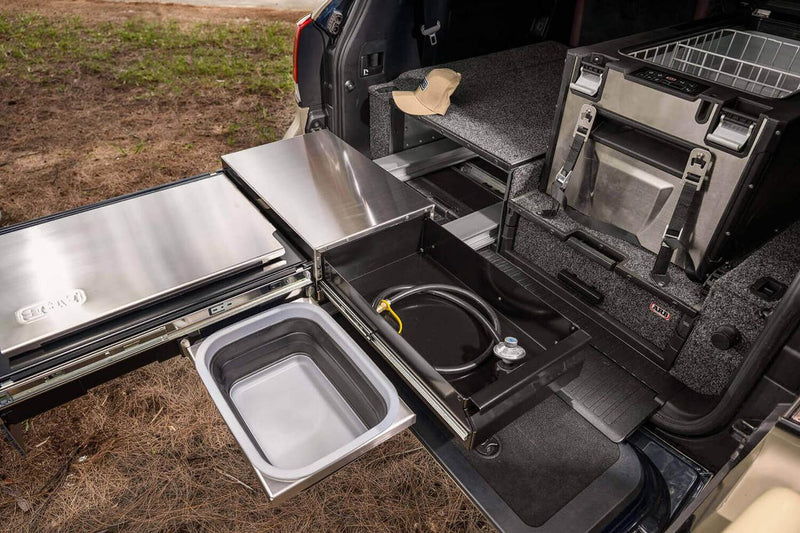

Everything Stows In The Drawer A utensil drawer under the bench top doubles as the home for the propane hose and the collapsed sink, so the kitchen travels as one closed unit.
Modular Or Standalone It shares the dimensions of ARB's full-height Outback Solutions drawer profiles, so it can be built into a drawer system or installed on its own for a custom cargo layout.
Fitment & Compatibility
Application
Fit
ARB Outback Solutions full-height drawer systems
✓ Fits, shares the drawer profile dimensions
Standalone installation in a truck bed, wagon or canopy
✓ Fits, mounts independently
Cargo areas with at least 41.1" of usable length for the module
✓ Fits, measure before ordering
Cargo areas shorter than the module
● Consider the vehicle layout carefully before ordering
Fit guidance: The 1045mm module is the shorter of the two Slide Kitchens. What decides fit is the length, width and height of your cargo area and how the module is secured to the floor, not the vehicle make. Measure the usable floor length and the height available under a closed rear door before ordering, and remember that the kitchen slides fully clear of the vehicle in use, so you also need room behind it.
Specifications
Model: ARB Slide Kitchen 1045mm
Part Number: RDKNA1045
Burners: Two, propane, 8,530 BTU/h each
Ignition: 1.5V DC battery igniter
Bench Top: 304 stainless steel, 19" W x 36.5" L
Sink: 7.3 qt collapsible silicone with plug, mounts either side of the stove
Drawer Internal Dimensions: 17.7" L x 13.5" W x 4.3" H
Drawer Load Rating: 55 lb
Body Material: Steel
Color: Silver
Setup Time: About 15 seconds
Product Weight: 158 lb
Shipping Weight: 159 lb, ships LTL freight
Warranty: 3 years
UPC: 9332018108838
Installation
Type: Mounts to the cargo floor, either into an ARB drawer system or standalone · Time: Half a day for a standalone install · Tools: Drill, socket set, wrenches; a hoist or several people for a 158 lb module · Difficulty: Moderate to hard, mostly because of the weight
A 158 lb steel module needs proper anchoring to the vehicle floor, not just placing in the back. Plan the mounting points and the fore-aft position so the slides clear the rear door aperture fully when extended, and follow the ARB instructions supplied with the unit.
Resources
Everything you need for your ARB Slide Kitchen 1045mm, Twin 8,530 BTU Stove, Stainless Bench, Collapsible Sink, Freestanding, in one place.
Warranty. ARB covers this product with a 3-year unlimited-mileage warranty through ARB North America (Air Locker Inc., Auburn, WA), which is the term ARB publishes for this part. We describe ARB's warranty exactly as ARB publishes it and make no additions to it; claims are handled through any authorized US dealer, including us.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About ARB
ARB began in 1975 when Tony Brown came home from a Cape York trip convinced the four-wheel drives crossing Australia needed better equipment than anyone was selling, and started hand-building bull bars and roof racks in his Melbourne driveway. Fifty years on, ARB is the largest 4x4 accessories manufacturer and distributor in Australia, with an engineering campus at Kilsyth in Victoria, offices in the USA, Europe and the Middle East, and an export network reaching more than 100 countries.
The touring and camping range grew out of the same place the bull bars did: long trips across the Simpson Desert and the Kimberley, where a failed zipper or a cracked pole is a genuine problem rather than an inconvenience. In North America ARB operates from Auburn, Washington as Air Locker Inc., which handles warranty and support for US buyers. Prestige Truck is an authorized ARB dealer. What ships from us is genuine US-market ARB stock with full ARB North America warranty coverage.
Camp Complete, Start To Finish
ARB runs the Slide Kitchen through a full camp cycle: rolling it out, locking it down, lighting both burners, filling the sink and packing the whole thing back into the vehicle.
This is the clearest demonstration of the fifteen-second setup claim, filmed by ARB rather than a reviewer.
The Drawer System It Bolts Into
ARB's tour of the Outback Solutions roller drawer range, the modular system the Slide Kitchen shares its profile and mounting pattern with.
Useful if you are planning the rest of the cargo area around the kitchen, because it shows how the modules stack and mount together.
The ARB Story
How a Melbourne driveway operation building bull bars for outback tourers in 1975 became the largest 4x4 accessories maker in the southern hemisphere.
Seven minutes filmed by ARB across its own factories and proving grounds, for anyone curious who is behind the gear.
Frequently Asked Questions
Straight answers on specs, fit and support
Does it need a support leg when it is out?
No. The retractable extension roller design gives full clearance of the vehicle and locks out, and ARB states it is completely freestanding at that point. Nothing rests on the tailgate or the bumper.
1045mm or 1355mm, which one do I need?
Measure your cargo floor. The 1045 needs roughly 41" of length and gives a 36.5" bench with a 7.3 quart sink; the 1355 needs roughly 53" and gives a 49" bench with a 12.6 quart sink and a deeper drawer. Both use the same twin 8,530 BTU/h burners.
What fuel does the stove run on?

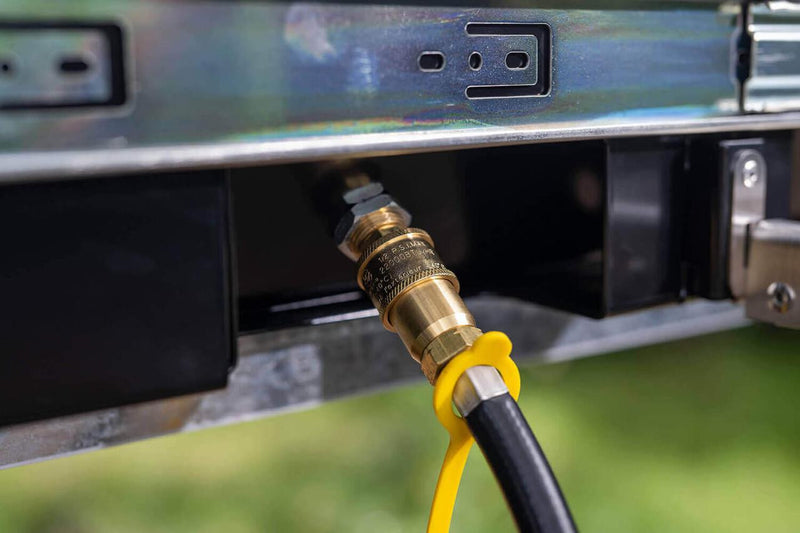

Propane. The hose is included and lives in the utensil drawer with the collapsed sink when the kitchen is packed. The igniter runs on a 1.5V DC battery, so there is no pilot to light manually.
Can I install it without an ARB drawer system?
Yes. It shares the dimensions of ARB's full-height Outback Solutions drawer profiles so it can be integrated with them, but ARB explicitly supports installing it as a standalone unit for custom builds.
How heavy is it and can I install it alone?
The module is 158 lb, so plan on a hoist or several people. It also needs to be properly anchored to the cargo floor rather than simply set in place, because 158 lb of steel loose in a vehicle is a serious hazard in a collision.
How does it ship?
It ships LTL freight at 159 lb packed. That means a freight carrier and a delivery appointment rather than a parcel service, so make sure someone can receive it and help move it.
