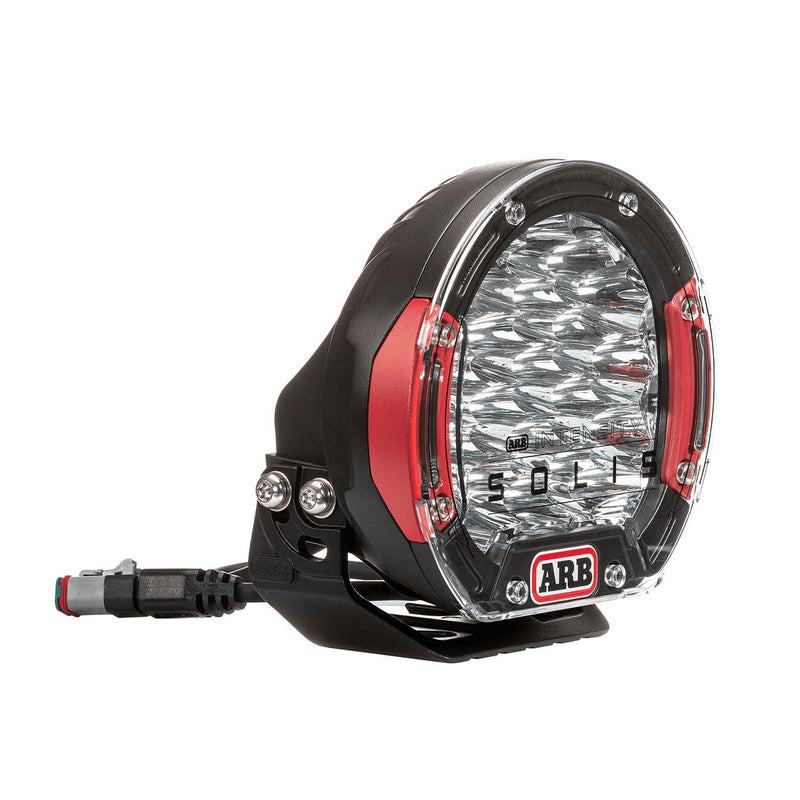

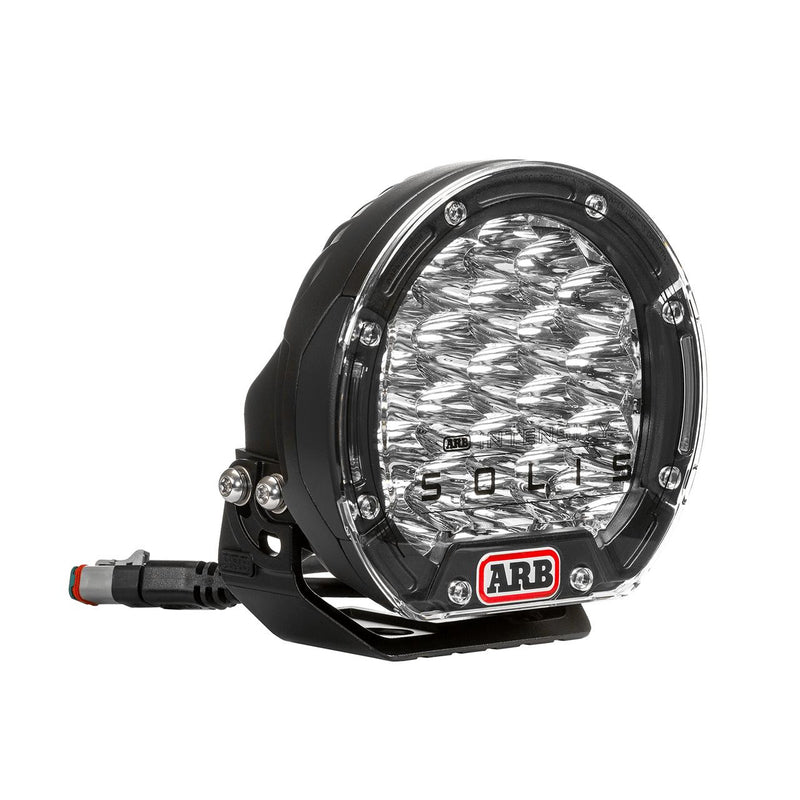

ARB Intensity Solis 21 7" LED Driving Light, Flood Beam, 80W, Dimmable, IP68 (SJB21F)

The Intensity Solis is the driving light in ARB's range with a brightness control, and that turns out to matter more than it sounds. A digital touchpad gives you five preset brightness levels, so you can wind the output down when you are crawling through dust or reflective scrub and wind it back up when the road opens out, instead of choosing between blinding yourself and switching the lights off.

The SJB21F is the 7" Solis 21 in flood configuration: 21 LEDs drawing 80 W and reaching 620 m (2,034 ft) at 1 lux. ARB gave the Solis a deliberately squat body, which sits better on a bull bar pan and lowers the center of gravity so the light oscillates less over corrugations. Sealed to IP68 and covered by ARB's 3-year warranty.

What's Included:

• One Intensity Solis 21 flood driving light
• Mounting bracket and hardware
• Security Torx hardware

Features

Five-Level Touchpad Dimming
The digital touchpad lets you select from five preset brightness levels on the move. Reduce glare in dust or reflective conditions, then unleash full power when the road clears. This is the Solis feature people actually buy it for.

21 LEDs, 6,000 Effective Lumens
9,133 raw lumens at the diodes and 6,000 effective lumens out the front, reaching 620 m (2,034 ft) at 1 lux in flood configuration.

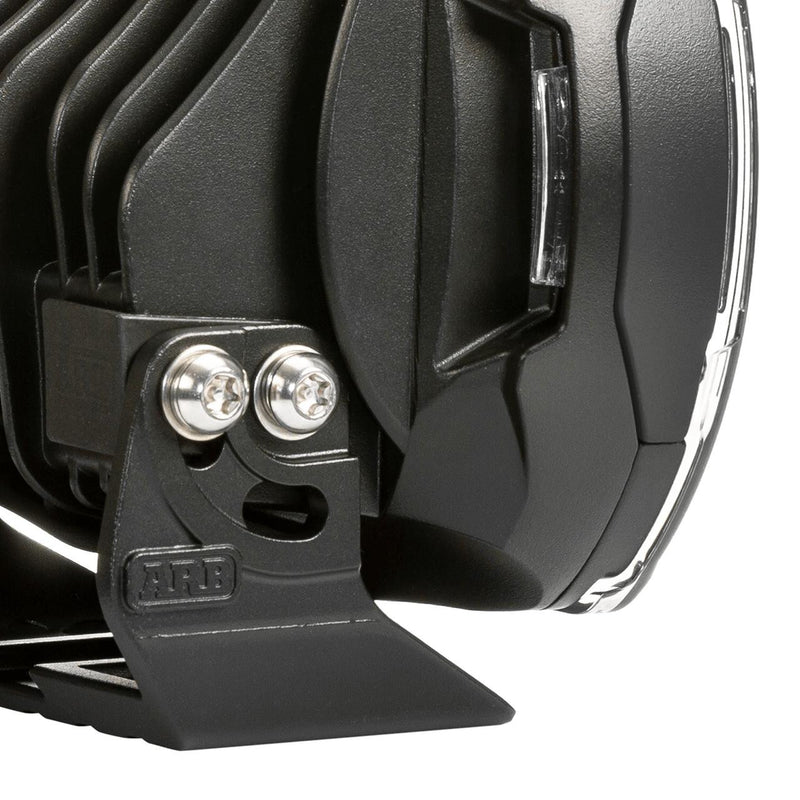

Squat Body For Bar Mounting
ARB shaped the Solis lower and wider than a conventional round driving light. That suits bull bar pan mounting, lowers the center of gravity and reduces the oscillation that stresses both light and bar over washboard.

Die-Cast Aluminum And IP68

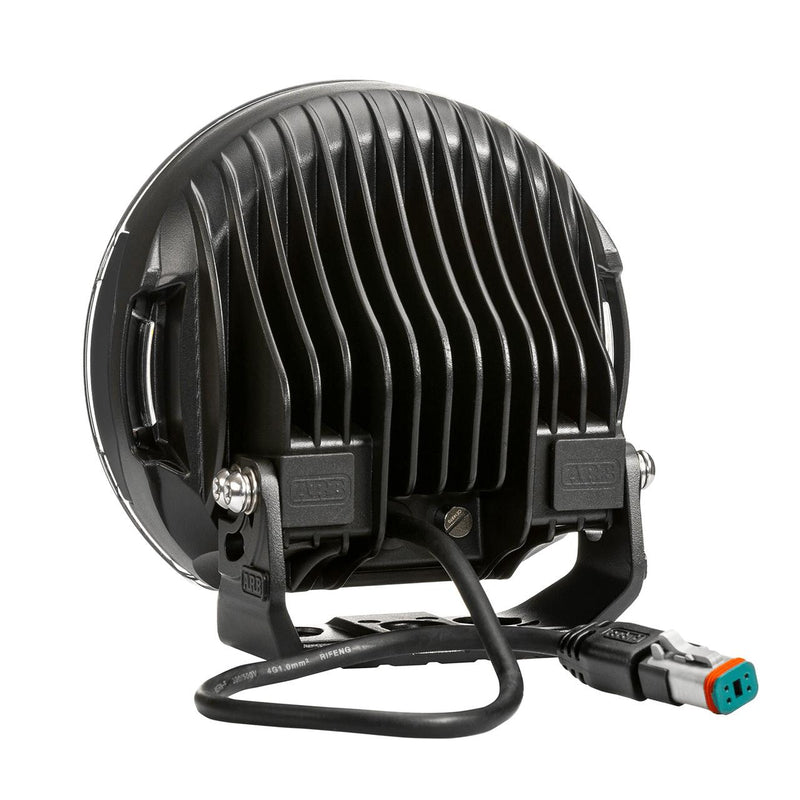

High-pressure die-cast aluminum body and mount, sealed to IP68 against dust and water, with a UV-stable molded polycarbonate lens cover over the optics.

Built-In Digital Driver
The LED driver control is inside the light rather than in a separate box on the loom, which is one less thing to find a dry home for during the install.

Refined Color Temperature
5700K, tuned to reduce the eye strain that comes from hours behind a cold blue-white beam, and close enough to daylight to keep colors readable at distance.

Fitment & Compatibility

Specifications

• Model: ARB Intensity Solis 21, 7" round
• Part Number: SJB21F
• Beam Pattern: Flood
• Beam Spread: 9 degrees
• LEDs: 21
• Power: 80 W
• Raw Lumens: 9,133 lm
• Effective Lumens: 6,000 lm
• Distance at 1 Lux: 620 m (2,034 ft)
• Color Temperature: 5700K
• Operating Voltage: 10 V to 30 V DC
• Current Draw: 6 A at 20 C
• Ingress Protection: IP68
• Dimming: Digital touchpad, five preset levels
• Housing: High-pressure die-cast aluminum
• Lens Cover: UV-stable molded polycarbonate
• Operating Temperature: -40 F to 149 F
• Product Weight: 6.0 lb (2.7 kg)
• Shipping Weight: 10 lb
• Warranty: 3 years
• UPC: 9332018087256

Installation

Type: Bolt-on to a bull bar, bumper or rack, plus the ARB Solis loom  ·  Time: 1-2 hours per pair including switch and touchpad routing  ·  Tools: Socket set, security Torx bit (supplied), crimper, trim tools, cable ties  ·  Difficulty: Moderate

Mechanically simple. The planning is in the cabin: the touchpad needs somewhere you can reach without looking, and the loom needs a clean route from battery to lights. Aim the lights on a dark straight road once everything is bolted down.
