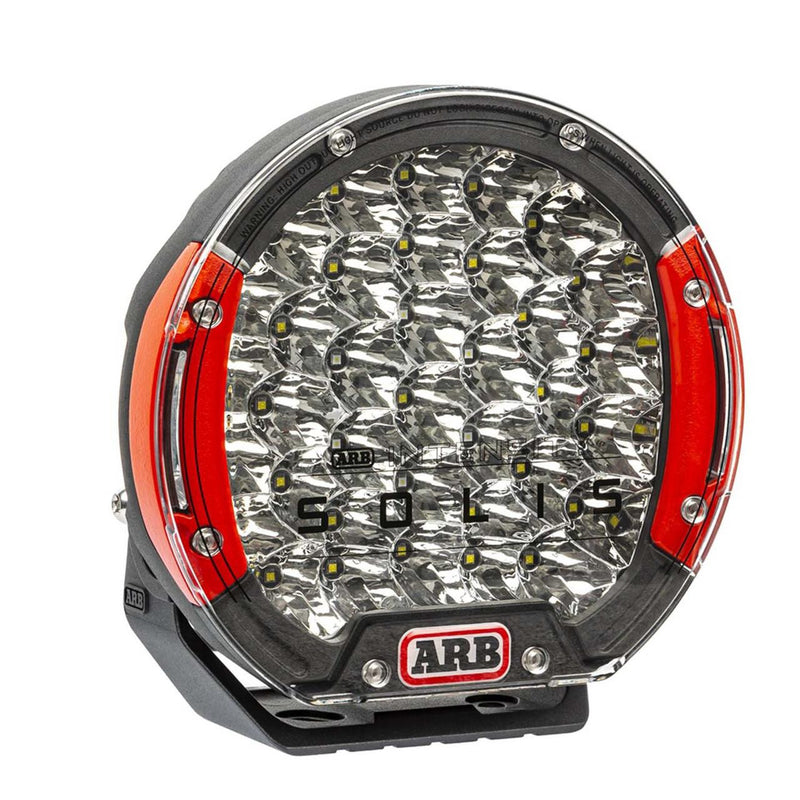

ARB Intensity Solis 36 9" LED Driving Light, Spot Beam, 165W, Dimmable, IP68 (SJB36S)

The Intensity Solis is the driving light in ARB's range with a brightness control, and that turns out to matter more than it sounds. A digital touchpad gives you five preset brightness levels, so you can wind the output down when you are crawling through dust or reflective scrub and wind it back up when the road opens out, instead of choosing between blinding yourself and switching the lights off.

The SJB36S is the 9" Solis 36 in spot configuration: 36 LEDs drawing 165 W and reaching 1032 m (3,386 ft) at 1 lux. ARB gave the Solis a deliberately squat body, which sits better on a bull bar pan and lowers the center of gravity so the light oscillates less over corrugations. Sealed to IP68 and covered by ARB's 3-year warranty.

What's Included:

• One Intensity Solis 36 spot driving light
• Mounting bracket and hardware
• Security Torx hardware

Features

Five-Level Touchpad Dimming
The digital touchpad lets you select from five preset brightness levels on the move. Reduce glare in dust or reflective conditions, then unleash full power when the road clears. This is the Solis feature people actually buy it for.

36 LEDs, 8,546 Effective Lumens
18,178 raw lumens at the diodes and 8,546 effective lumens out the front, reaching 1032 m (3,386 ft) at 1 lux in spot configuration.

Squat Body For Bar Mounting
ARB shaped the Solis lower and wider than a conventional round driving light. That suits bull bar pan mounting, lowers the center of gravity and reduces the oscillation that stresses both light and bar over washboard.

Die-Cast Aluminum And IP68
High-pressure die-cast aluminum body and mount, sealed to IP68 against dust and water, with a UV-stable molded polycarbonate lens cover over the optics.

Built-In Digital Driver
The LED driver control is inside the light rather than in a separate box on the loom, which is one less thing to find a dry home for during the install.

Refined Color Temperature
5700K, tuned to reduce the eye strain that comes from hours behind a cold blue-white beam, and close enough to daylight to keep colors readable at distance.

Fitment & Compatibility

Specifications

• Model: ARB Intensity Solis 36, 9" round
• Part Number: SJB36S
• Beam Pattern: Spot
• Beam Spread: 6 degrees
• LEDs: 36
• Power: 165 W
• Raw Lumens: 18,178 lm
• Effective Lumens: 8,546 lm (see note)
• Distance at 1 Lux: 1032 m (3,386 ft)
• Color Temperature: 5700K
• Operating Voltage: 10 V to 30 V DC
• Current Draw: 12.4 A at 20 C
• Ingress Protection: IP68
• Dimming: Digital touchpad, five preset levels
• Housing: High-pressure die-cast aluminum
• Lens Cover: UV-stable molded polycarbonate
• Operating Temperature: -40 F to 149 F
• Product Weight: 7.3 lb (3.3 kg)
• Shipping Weight: 10 lb
• Warranty: 3 years
• UPC: 9332018070272

Installation

Type: Bolt-on to a bull bar, bumper or rack, plus the ARB Solis loom  ·  Time: 1-2 hours per pair including switch and touchpad routing  ·  Tools: Socket set, security Torx bit (supplied), crimper, trim tools, cable ties  ·  Difficulty: Moderate

Mechanically simple. The planning is in the cabin: the touchpad needs somewhere you can reach without looking, and the loom needs a clean route from battery to lights. Aim the lights on a dark straight road once everything is bolted down.

Resources

Everything you need for your ARB Intensity Solis 36 9" LED Driving Light, Spot Beam, 165W, Dimmable, IP68, in one place.

• ARB Intensity Solis 36 Instruction Manual (PDF), the manufacturer's step-by-step guide covering mounting, included hardware and adjustment.

Warranty, Shipping & Returns

Warranty. ARB covers the SJB36S with a 3-year warranty, the term ARB publishes for this part. In North America it is administered by ARB (Air Locker Inc., Auburn, WA) and honored through authorized dealers like us. We describe ARB's warranty exactly as ARB publishes it and do not extend or restate its terms.

Free shipping. This item ships free to the lower 48 states and typically arrives in 3 to 7 business days.

Inspect on delivery. Please inspect your order on arrival. If anything is damaged or missing, contact us right away and we will make it right.

Compliance. RoHS and CE, with ECE R10 on the Solis 36. ARB does not publish an SAE or DOT rating for this light, so it is sold as an off-road auxiliary driving light.

Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
