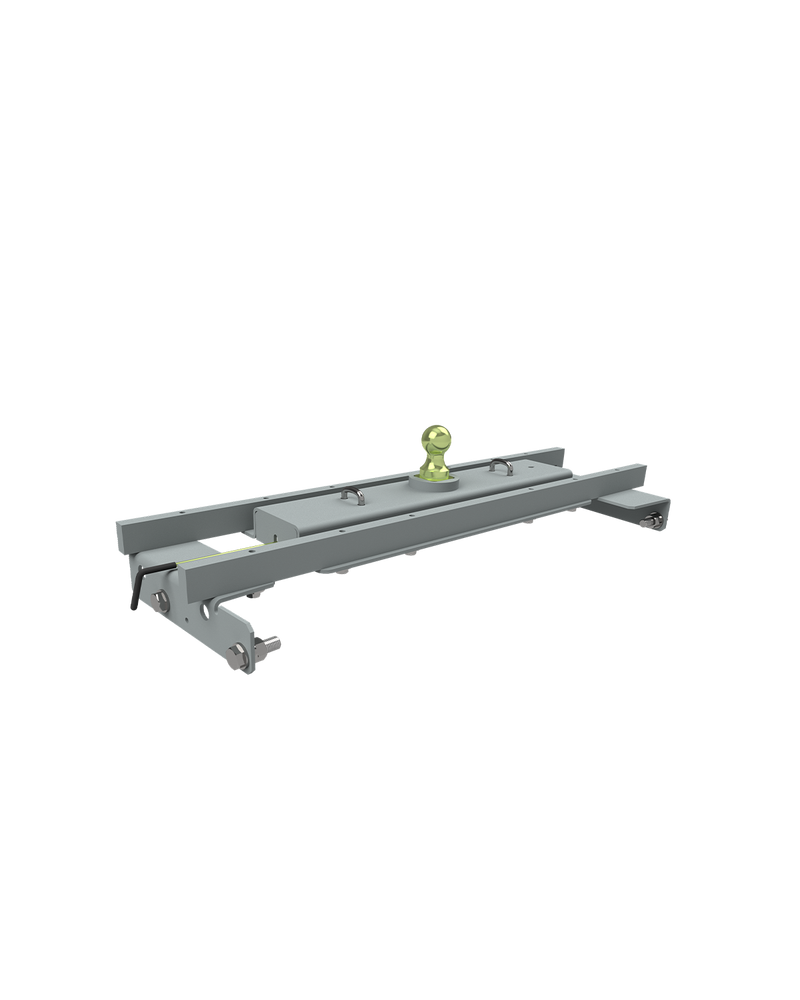

This is the center section ONLY, and it is not a complete hitch. The complete kit is GNRK1251. What is in this box is the center section: the machined receiver socket, the 2-5/16" gooseneck ball, the 5/8" steel locking pin, the spring loaded latch handle and the safety chain u-bolts. The under-bed frame and the vehicle specific brackets that hold it to the truck are in the mounting kit, which is the other box and is not included here. To end up with a working hitch you need this part and the GNRM1251. B&W ships the Turnoverball as separate boxes, which is why these halves can be bought on their own and are stocked as service parts. That makes this the right listing if you are replacing a damaged or worn half, moving a hitch between trucks of the same make, or completing a two box shipment where one box did not arrive. It is the wrong listing if you are buying a gooseneck hitch for the first time: order GNRK1251 instead. It suits the same trucks as GNRK1251: 2000-2006 Toyota Tundra Trucks. Assembled into its complete kit, the hitch is rated 30,000 lb gross trailer weight and 7,500 lb vertical tongue weight with the included 2-5/16" gooseneck ball, and never more than your own truck's tow and weight ratings.
What's Included:
Center section with solid one-piece machined receiver socket
2-5/16" solid machined gooseneck ball, stows inverted in the receiver
5/8" steel locking pin with spring loaded latch handle
Two spring loaded safety chain u-bolts
NOT INCLUDED: the vehicle specific under-bed mounting kit (GNRM1251)
NOT INCLUDED: this is not a complete hitch. The complete kit is GNRK1251.
Features
Center Section Only, Not a Complete Hitch This is the center section ONLY, and it is not a complete hitch. The complete kit is GNRK1251. We are saying this first and saying it plainly because it is the one thing that goes wrong when these parts are sold online. The other half is the GNRM1251. Buying this alone gets you a socket, ball and latch with nothing holding them to the truck. If you want a hitch, order GNRK1251.
Where the Socket, Ball and Latch Live The center section carries every moving part of a Turnoverball: the solid one-piece machined receiver socket, the solid machined 2-5/16" gooseneck ball, the 5/8" steel locking pin that passes all the way through that ball, the spring loaded handle that drives it, and the two spring loaded safety chain u-bolts. It is also the half that actually wears, which is why it is kept as a service part.
Turns Over and Stows in Its Own Socket The Turnoverball behavior this part is named for works the same whichever half you are replacing. Pull the handle in the wheel well toward you and rotate it slightly left to lock the pin out, lift the ball, turn it over and drop it back into the same receiver upside down. The bed goes flat. Rotate or push the handle right and the spring pops the latch back into place, ready to tow.
Rated 30,000 lb gross trailer weight and 7,500 lb vertical tongue weight with the 2-5/16" gooseneck ball Capacity on a gooseneck depends on which ball is in the socket, so the number always carries the ball with it. With the 2-5/16" gooseneck ball supplied in this kit the rating is 30,000 lb gross trailer weight and 7,500 lb vertical tongue weight. B&W's own position, printed in the Turnoverball owner's manual, is that the hitch is rated to tow what your truck is rated to tow. Look up your truck's GVWR, GCWR and maximum tow rating before you load a trailer, and treat the hitch numbers as a ceiling you work under rather than a target.
Fits the Same Trucks as GNRK1251 This part belongs to GNRK1251, which B&W lists for 2000-2006 Toyota Tundra Trucks. Confirm your truck against that kit before ordering, because the fitment of a component is the fitment of its kit.
Made in the USA, Built by B&W in Humboldt, Kansas The hitch is manufactured in B&W's own plant in Humboldt, Kansas, from American steel, by a workforce that owns the company. It is tested to SAE J2638, the gooseneck and fifth wheel standard, with B&W's stricter internal rule that one sample has to pass all three 300,000 cycle dynamic tests and then the six static tests as well. It carries B&W's Lifetime Exclusive Limited Warranty.
Fitment & Compatibility
Years
Make
Model
Bed
2000-2006
Toyota
Tundra
● Standard
Fit guidance: This is the center section ONLY, and it is not a complete hitch. The complete kit is GNRK1251. The fitment below is the fitment of the complete GNRK1251 kit, because a component fits exactly the trucks its kit fits and nothing else. B&W lists GNRK1251 for 2000-2006 Toyota Tundra Trucks. Confirm your truck against the complete kit before ordering. B&W's own position, printed in the Turnoverball owner's manual, is that the hitch is rated to tow what your truck is rated to tow. Look up your truck's GVWR, GCWR and maximum tow rating before you load a trailer, and treat the hitch numbers as a ceiling you work under rather than a target.
Specifications
Part Type: Center Section only, not a complete hitch
B&W Part Number: GNRC1250
Complete Kit: GNRK1251
Other Half of the Kit: GNRM1251
Series: B&W Turnoverball, under-bed gooseneck
Fits: 2000-2006 Toyota Tundra Trucks
Included in This Box: Center section with machined receiver socket, 2-5/16" gooseneck ball, 5/8" locking pin, spring loaded latch handle, two safety chain u-bolts
Not Included: Under-bed frame and vehicle specific mounting brackets, which are in the mounting kit
Gross Trailer Weight of the Complete Hitch: 30,000 lb with the 2-5/16" ball, and not more than your truck's rating
Vertical Tongue Weight of the Complete Hitch: 7,500 lb with the 2-5/16" ball, and not more than your truck's rating
Finish: Powder coat
Shipping Weight: About 50 lb
B&W In-Kit Carton Weight: About 51 lb
UPC: 852089001740
Country of Origin: USA, built by B&W in Humboldt, Kansas
Warranty: B&W Lifetime Exclusive Limited Warranty
Installation
Type: Service part. It installs as part of a complete B&W Turnoverball, GNRK1251 · Time: About 1 hour as a replacement, longer as part of a first install · Tools: Socket set and torque wrench, plus a 4" hole saw if the bed has not already been cut; a floor jack or a second person to support the weight · Difficulty: Intermediate, DIY-friendly with normal hand tools
This is the center section ONLY, and it is not a complete hitch. The complete kit is GNRK1251. There is no standalone installation sheet for this part, and B&W does not publish one, because it is installed as part of its kit. Work from the GNRK1251 installation instructions linked in Resources, which cover where the center section drops in and how the latch is set. Torque values and hole locations come from that sheet, not from this page.
Watch the installation walkthrough:
Resources
Everything you need for your B&W Turnoverball Center Section Only, 2000-2006 Toyota Tundra, for GNRK1251, in one place.
Warranty. B&W covers this product under its Lifetime Exclusive Limited Warranty. B&W's published terms cover defects in material or workmanship for the original consumer purchaser, for as long as that purchaser owns the product, with B&W choosing to replace the product or, at its option, repair it or refund the purchase price. Installation, removal and shipping costs are not covered, and normal wear, finish aging and damage from accident or misuse fall outside it. A return authorization from B&W is required before sending anything back, on 800-248-6564. B&W does not authorize dealers or distributors to create any other warranty on its products, so the terms above are B&W's own and are described here rather than extended by us.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About B&W Trailer Hitches
B&W Trailer Hitches started in a Humboldt, Kansas garage in 1987, with two men and an idea. Roger Baker and Joe Works, the B and the W, were building custom truck beds when they got tired of the one thing every gooseneck customer complained about: a ball welded permanently into the bed, in the way every day of the year for the few days a year it was actually towing. They designed a hitch that mounted underneath the bed and a ball that turned over and stowed in its own receiver, and the Turnoverball Gooseneck Hitch was born. A few years later the same under-bed mounting system became the single-point Companion fifth wheel hitch, which is why a Turnoverball socket still accepts a Companion today.
Everything B&W sells is still made in Humboldt. Roger retired in 1999, and in 2007 Joe began transferring ownership of the company to its employees, so the roughly 600 people working in the plant today are also its owners. They buy American steel on purpose and say why: the sheet steel comes out of Burns Harbor, Indiana, and the round bar that becomes the gooseneck ball is drawn at a mill in Norfolk, Nebraska, because when the strength of a piece of steel is the only thing between a truck and a loose trailer, B&W wants a mill it can hold to a specification.
Their testing story is worth knowing before you compare hitches on price. SAE J2638 is the performance standard for gooseneck and fifth wheel hitches, and B&W is blunt that it is only a recommended practice, not a legal requirement to sell one. The standard allows a manufacturer to use a fresh sample for each of its nine tests. B&W's own engineering requirement is stricter: a single hitch has to survive all three 300,000 cycle dynamic tests and then still pass the six static tests, because, as their director of engineering puts it, an accident rarely happens when a hitch is brand new, it happens after years of wear from the road.
Prestige Truck is an authorized B&W dealer. Every hitch we ship is new, in the factory carton, and covered by B&W's Lifetime Exclusive Limited Warranty direct from Humboldt.
B&W Turnoverball Maintenance
B&W's maintenance guide for the Turnoverball: greasing the four corners of the square post, keeping the latch spring clean by popping the handle a few times, and freeing a ball that has started to stick.
Relevant to the center section in particular, since that is where every moving part lives.
From Steel To Hitch In 60 Seconds
A timelapse ride through B&W's Humboldt plant as American steel becomes a finished hitch: laser cutting, forming, robotic welding, powder coat and assembly.
Every product B&W sells takes this same route through the same building, built by the employee-owners who stand behind it.
Trailer Tires Matter
What B&W wants every hauler to know about trailer tires: load range, age, and pressure, and how each one changes how a trailer behaves behind your truck.
Tire trouble is the most common roadside failure in towing, and most of it is preventable at the walk-around.
Frequently Asked Questions
Straight answers on specs, fit and support
Is this a complete gooseneck hitch?
No. This listing is the center section only, part number GNRC1250, and on its own it will not tow anything. It is one of the two boxes that make up a complete B&W Turnoverball. The complete kit is GNRK1251. To build a hitch from parts you also need the GNRM1251 mounting kit for your truck. If you are buying a hitch rather than replacing or completing one, order the complete kit instead.
Who should buy this part on its own?
Someone replacing the part of a Turnoverball that actually wears: the socket, the ball, the latch pin and the handle all live in the center section. Buying it separately lets you keep frame brackets that are already installed and bolted up under the bed. Someone completing a two box shipment where only the mounting kit arrived is the other case. A first time buyer wants the complete kit.
What is in the box?
The center section with the machined receiver socket, the 2-5/16" gooseneck ball, the 5/8" steel locking pin, the spring loaded latch handle and the safety chain u-bolts. The vehicle specific under-bed frame and brackets are not in this box, they are in the mounting kit.
What trucks does it suit?
The same trucks as GNRK1251: 2000-2006 Toyota Tundra Trucks
How much can the finished hitch tow?
Assembled into its complete kit and with the 2-5/16" gooseneck ball fitted, the Turnoverball is rated at 30,000 lb gross trailer weight and 7,500 lb vertical tongue weight. Capacity on a gooseneck always belongs to the ball that is in the socket, so that number goes with the 2-5/16" ball and not with any other. B&W's own position, printed in the Turnoverball owner's manual, is that the hitch is rated to tow what your truck is rated to tow. Look up your truck's GVWR, GCWR and maximum tow rating before you load a trailer, and treat the hitch numbers as a ceiling you work under rather than a target.
Why is the weight on this page different from the number B&W prints?
B&W quotes the weight of this part as it sits inside the complete kit, which is about 51 lb. The packed carton it ships in weighs about 50 lb. We publish the shipping weight because that is what turns up on your dock. Both numbers describe the same part.
