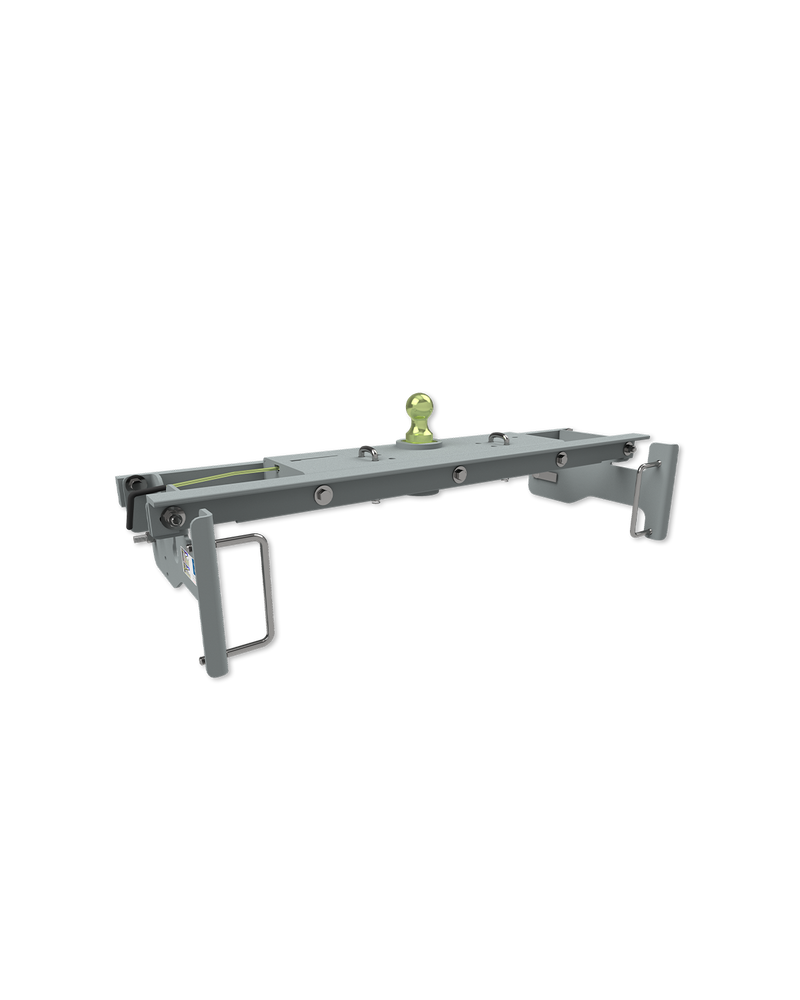

B&W Turnoverball Gooseneck Hitch, 2003-2013 Dodge & Ram 2500 & 3500 Diesel, 2-5/16" Ball (GNRK1313)
$599.00
Verify fitment with your vehicle
GO
Clear
$40 OFFOrders $500+
Apply at checkout. One use per customer.
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Ball Turns Over to Stow: Reach into the wheel well, pull the handle out toward you and rotate it a little to the left. The latch pin now stays open, so the 2-5/16" ball lifts out, flips over and drops back into the socket upside down. Turn the handle back to the right and the spring snaps the pin home.
- Square Post, Round Socket: B&W seats a square ball post in a round receiver hole. B&W says the square shape keeps accessories lined up with the truck, and the open corners give road dirt a place to escape. A little white lithium grease on the four corners keeps the post from seizing.
- One 4" Hole, No Welding: Brackets made for your specific truck mount under the bed and bolt to the frame, with no welding and no bed removal. The bed floor needs just one 4" hole for the ball. A few older-truck kits also need frame holes drilled, and their notes below say so.
- Rated to Your Truck's Limits: B&W prints no separate hitch number: the Turnoverball's limit is the tow rating of the truck it sits in, never more. Check your truck's weight ratings before every heavy pull. B&W tests its hitches for strength and durability to SAE J2638.
- Takes B&W Accessories: The same socket accepts B&W's Turnoverball accessories and its single-point Companion fifth wheel hitch, so one under-bed system serves gooseneck and fifth wheel trailers. A few kits accept only certain accessories; any limit is listed with your part below.
- Made in the USA: B&W builds the Turnoverball in Humboldt, Kansas, from American-made steel. B&W says the steel bar for its gooseneck balls is milled in Norfolk, Nebraska.
Description & Fitment

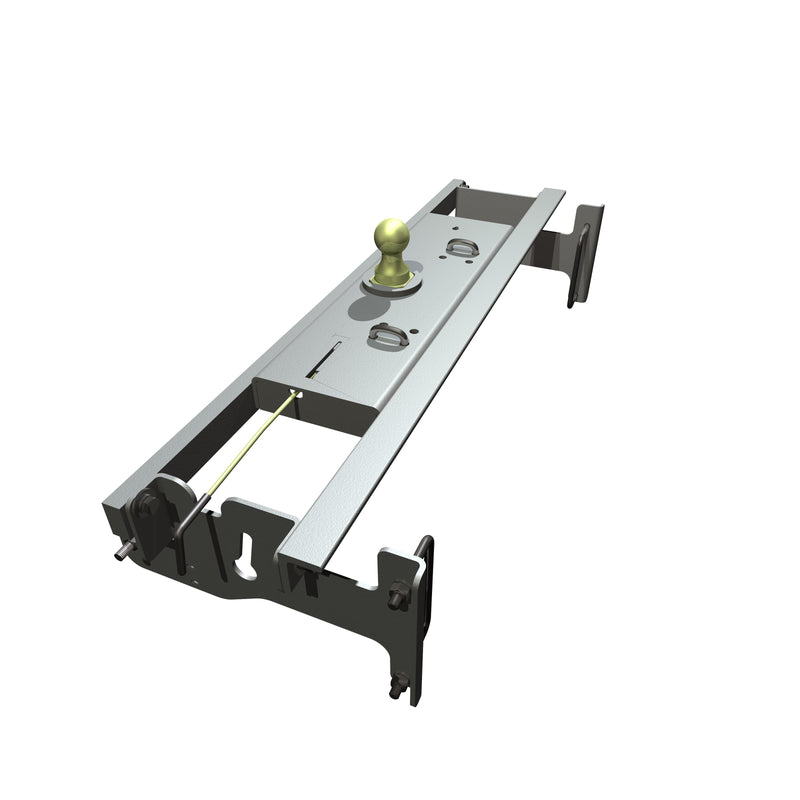

This B&W Turnoverball Gooseneck Hitch, part GNRK1313, is made for 2003-2009 Dodge 2500 and 3500 trucks, 2010 Dodge and 2011-2012 Ram 2500 and 3500 diesel trucks, and 2013 Ram 2500 diesel trucks. B&W packs it as two parts: the GNRM1313 under-bed mounting kit, 68 lb, plus the GNRC900 center section, 42 lb. A 2-5/16" ball rides in the socket for towing and stores inverted in it, and B&W ties the hitch rating to the tow rating of your truck.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2003-2005 | 2500 | — | |
| 2006-2009 | 2500 | Non-Mega Cab | |
| 2010 | 2500 | Diesel Engine | |
| 2003-2005 | 3500 | — | |
| 2006-2009 | 3500 | Non-Mega Cab | |
| 2010 | 3500 | Diesel Engine |
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2011-2013 | 2500 | Diesel Engine | |
| 2011-2012 | 3500 | Diesel Engine |
Check your fit: your truck matches this list exactly, including year, model, bed and frame: 2003-2009 Dodge 2500 and 3500 trucks, 2010 Dodge and 2011-2012 Ram 2500 and 3500 diesel trucks, and 2013 Ram 2500 diesel trucks. B&W's condition: the 2010-2013 trucks must be diesel; GNRK1308 is B&W's kit for Mega Cab and gas engine trucks.
Not for: other trucks, which take a different B&W Turnoverball kit: GNRK1316 (2002-2008 Dodge 1500, not Mega Cab); GNRK1308 (2006-2010 Dodge and 2011-2013 Ram Mega Cab or gas engine, as B&W lists each year); GNRK1309 (2009-2010 Dodge 1500, 2011-2018 Ram 1500 and 2019-2024 Ram 1500 Classic); GNRK1394 (1994-2002 Dodge); GNRK1314 (2013-2018 Ram 3500); GNRK1384 (2014-2018 Ram 2500). A body lift: B&W says a suspension lift is fine, while a body lift rules the Turnoverball out.
About B&W Trailer Hitches
B&W.
Roger Baker and Joe Works founded B&W Trailer Hitches in 1987, working out of a garage where they built custom truck beds; the company name comes from their initials. Customers wanted a gooseneck ball that would not sit welded in the middle of the bed, and their answer was the Turnoverball: it mounts beneath the bed, and the ball flips over to stow in the same hole it tows from. The Companion fifth wheel hitch came next and uses the same under-bed mounting.
B&W still builds its hitches in Humboldt, Kansas, from American-made steel, and Joe Works began handing the company to its workers in 2007; today it is employee-owned. B&W counts itself among the few hitch makers still building in America.
Buying B&W from Prestige Truck. B&W honors its warranty whether or not you register the product, so there is no card to mail. Keep your Prestige Truck order email with your records in case you ever need to make a claim.
Frequently Asked Questions
Which trucks does GNRK1313 fit?
B&W lists it for 2003-2009 Dodge 2500 and 3500 trucks, 2010 Dodge and 2011-2012 Ram 2500 and 3500 diesel trucks, and 2013 Ram 2500 diesel trucks. Condition: the 2010-2013 trucks must be diesel; GNRK1308 is B&W's kit for Mega Cab and gas engine trucks.
What ships when I order GNRK1313?
Two boxes: the GNRM1313 under-bed mounting kit (68 lb) and the GNRC900 center section (42 lb). Together they make the complete hitch with its 2-5/16" ball.
Should I spray-line the bed before or after installing?
B&W says either order works. Lining the bed after the hitch goes in has one advantage: the liner also coats the cut edge of the 4" hole.
Will it work on a lifted truck?
With a suspension lift, yes. With a body lift, no: B&W needs the original gap between the bed and the frame, and a body lift changes it.
Can I move it to my next truck?
Each kit is built for one make and range of years, so it cannot go onto a different make. B&W notes that a hitch can sometimes move up to a later truck from the same maker, and its warranty covers the first installation only.
How do I keep the ball from seizing?
Grease the four corners of the square post with white lithium grease whenever the coating wears off. How often depends on how much you tow and how dirty the roads are.
Installation
Install time
Not printed on B&W's install sheet
DifficultyNot printed on B&W's install sheet
TypeUnder-bed kit bolted to the frame, one 4" hole in the bed (B&W install sheets)
ToolsVaries by truckB&W's sheets list a 4" hole saw, a drill, sockets and box-end wrenches, a torque wrench and a lifting device
Here's the short version. Follow B&W's install sheet (below) for the exact positions and hardware.
- Check cab clearance, optionally remove the spare tire, position the vehicle, prepare a lifting device (optional) and remove or modify the fender liners as needed.
- Mark the 4" hole location, cut the 4" diameter hole and modify the bed flange along the cut line.
- Place the cross members and install the center section.
- Fish the carriage bolts through the frame, install the side plates and U-bolt (move the wire plug first), and replace the cable bracket.
- Tighten the center-section bolts, square the hitch, tighten the side-plate bolts, then torque the 1/2" bolts to 110 ft. lbs and the U-bolts to 60 ft. lbs; install the latch pin release.
- Drill the safety-chain holes, install the U-bolts with springs, replace the spare tire, modify the fender liner, lubricate the 2-5/16" ball and engage the pin.
Stuck on a step?
Specifications
| Brand | B&W Trailer Hitches |
|---|---|
| Part Number | GNRK1313 |
| Product | Turnoverball Gooseneck Hitch, under-bed kit |
| Ball | 2-5/16" |
| Latch | Spring-loaded handle in the wheel well, 5/8" steel locking pin through the ball |
| Mounting | Truck-specific brackets bolted to the frame under the bed |
| Bed modification | One 4" hole |
| Safety chains | Spring-loaded safety chain u-bolts |
| Rating | Rated to your truck's tow rating (B&W) |
| Testing | SAE J2638 |
| Finish | UV-resistant powder coat |
| Made in | Humboldt, Kansas, USA |
| Fits | 2003-2009 Dodge 2500 and 3500 trucks, 2010 Dodge and 2011-2012 Ram 2500 and 3500 diesel trucks, and 2013 Ram 2500 diesel trucks |
| Model | Turnoverball Gooseneck Hitch |
| Fit condition | the 2010-2013 trucks must be diesel; GNRK1308 is B&W's kit for Mega Cab and gas engine trucks |
| Mounting kit | GNRM1313 (68 lb box) |
| Center section | GNRC900 (42 lb box) |
| Packaging | Two boxes |
| Warranty | Limited Lifetime |
| UPC | 843233004588 |
Warranty, shipping & returns
-
Lifetime Limited warranty
B&W Trailer Hitches covers this hitch kit with its Limited Lifetime Warranty. B&W's promise is simple: it stands behind what it builds, and when something goes wrong, it sets it right.- B&W builds its products to be free of design and quality defects. If you believe one falls short of that, B&W wants to make it right with you.
- Accident or misuse: B&W says it will still help you get towing again at the lowest cost and with the least hassle it can.
- Normal wear: the product and its finish age with use, and B&W does not promise to keep them in new condition.
- Use it only as designed and keep up the light maintenance B&W calls for.
- Registration is optional: B&W applies its warranty whether you register the product or not.
- To start a claim, contact us with your order number and photos and we will take it up with B&W for you.
-
Free shipping
Ships free to the lower 48 states, with no minimum order.- Order by 5 PM ET on a business day and it starts processing the same day.
- Most orders arrive within 1-5 business days.
- We email your tracking number as soon as it ships.
-
Inspect on delivery
Before you start, check every box against the parts list on B&W's instruction sheet and trace the fuel lines, brake lines and wiring along the frame rails, which B&W warns can sit right where the hitch goes. Check it as soon as it arrives.- Look for crushed ends, punctures or tears in the carton.
- If something looks wrong, take photos of the box and the parts (and if a driver asks you to sign, note the damage on the receipt).
- Open the box and check the parts against the parts list before you install.
- Email support@prestigetruck.com right away with your order number, a short note and photos. We send a replacement or a full refund at no cost to you.
-
30-day returns
Return it within 30 days of delivery, unused, in the original packaging, with proof of purchase.- Email support@prestigetruck.com with your order number. We reply within 1-2 business days with instructions.
- Damaged, defective or wrong item: we send a prepaid label or arrange a pickup.
- Changed your mind: you pay return shipping. No restocking fee.
- Refunds go back to your original payment method within 7 business days of approval. See our returns policy.
