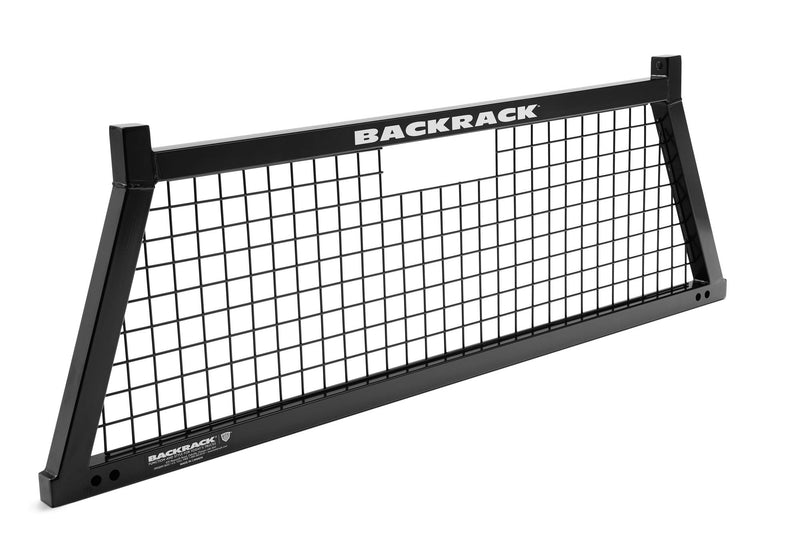

The Utility Body Safety rack fits service and utility bodies with a welded wire mesh screen in a steel frame, sized by width. Pick the frame width that suits your utility body. Choose from width 67.25" x 20" frame, 52.25" x 20" frame, 65.5" x 18" frame or 64.25" x 16" frame and finish black powder coat or white powder coat. This listing covers parts 10570, 10740W, 10560W, 10570W, 10550W, 10550, 10560 and 10740.
Choosing your options:
-
Width, 67.25" x 20" frame: Frame 67.25" x 20"
-
Width, 52.25" x 20" frame: Frame 52.25" x 20"
-
Width, 65.5" x 18" frame: Frame 65.5" x 18"
-
Width, 64.25" x 16" frame: Frame 64.25" x 16"
-
Finish, Black: Black powder coat that pairs with any paint color and resists rust and chips.
-
Finish, White: White powder coat for fleets and white trucks, the same steel frame in a lighter finish.
What's Included:
- Utility Body Safety rack frame with welded wire mesh screen (rack only)
Mounting hardware is not included. Order the BackRack utility-body installation kit separately.
Features
Sized for utility bodies
The frame comes in several widths so it can be matched to the service or utility body it sits on, rather than to a pickup model.

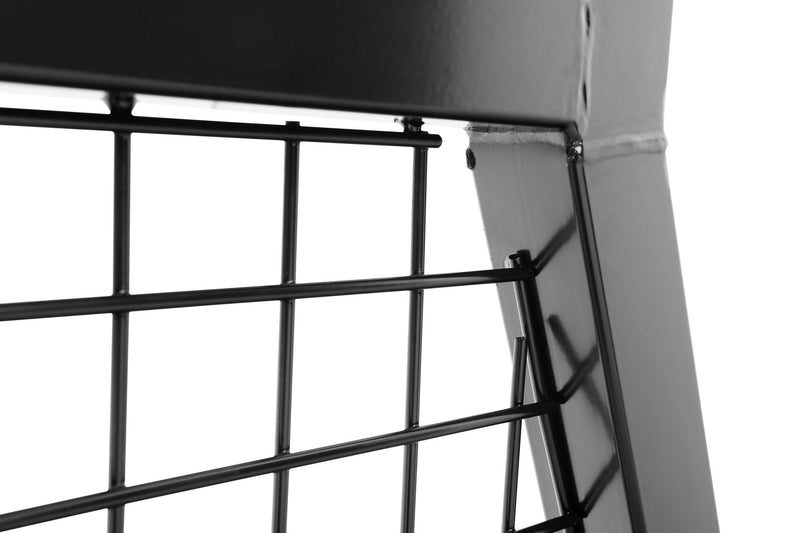

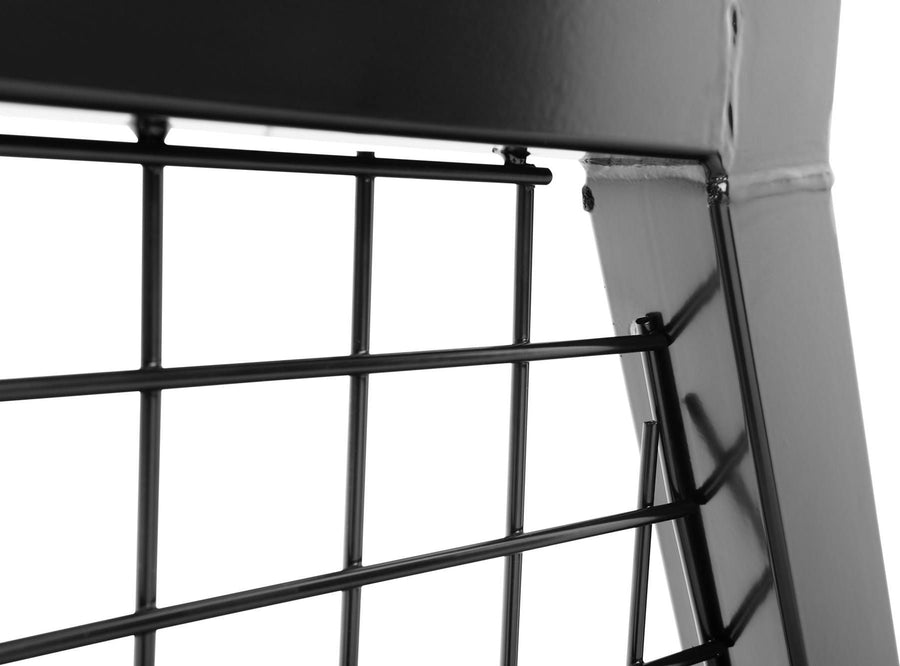

Welded wire mesh screen
The Safety-style wire mesh fills the frame to keep tools and stock away from the cab glass while staying see-through.
Steel frame build
A steel frame holds the mesh and gives you solid points to tie loads to.
Finishes for single trucks or fleets
Black or white powder coat lets the rack match a single truck or a whole fleet.
Specifications
-
Brand: BackRack
-
Series: Utility Body Safety
-
Material: Steel
-
Finish options: Black or white powder coat
-
Warranty: 1-year limited, workmanship; powder coat finish not covered
-
Mounting hardware: Not included; separate BackRack utility-body kit required (drill and bolt)
-
Construction: Steel frame with welded wire mesh screen (Safety style)
-
Fitment basis: Utility or service body, chosen by frame width
-
Part numbers: 10570 (67.25" x 20" frame, Black); 10740W (52.25" x 20" frame, White); 10560W (65.5" x 18" frame, White); 10570W (67.25" x 20" frame, White); 10550W (64.25" x 16" frame, White); 10550 (64.25" x 16" frame, Black); 10560 (65.5" x 18" frame, Black); 10740 (52.25" x 20" frame, Black)
Installation
Type: Bolt-on utility body rack frame · Install: Drill and bolt with a separate BackRack utility-body kit · Tools: Drill and basic hand tools
The frame mounts to the utility body through a BackRack utility-body kit. One kit fastens to the top of the body and the other between its compartments, and both bolt through holes drilled in the body.
Resources
An installation guide for this part number is not available to download. Our team can answer installation questions before you order; contact us with the part number.
Warranty, Shipping & Returns
Warranty. BackRack backs this rack with a 1-year limited warranty covering workmanship. The powder coat finish itself is not covered by the warranty. Inspect on delivery. Inspect the carton and the frame as soon as it arrives, and note any shipping damage with the carrier before you sign or begin the install.
Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
About BackRack
BackRack builds steel headache racks that stand between the truck bed and the cab, guarding the rear window and cab from cargo that slides forward. The racks are made for trucks that work hard during the week and still need to look sharp when the job is done.
Every BackRack frame mounts to the bed through a truck-specific installation kit. Separate kits let the rack live alongside a crossover toolbox, a bedliner or a tonneau cover that clamps to the inside of the bed rail.
Because a BackRack sits low behind the cab, the truck still fits in a home garage and multi-level parking. Light brackets, tool holders, side rails and a rear bar turn the same frame into a platform for lights, long loads and gear, and the steel is finished in a powder coat applied in house.
