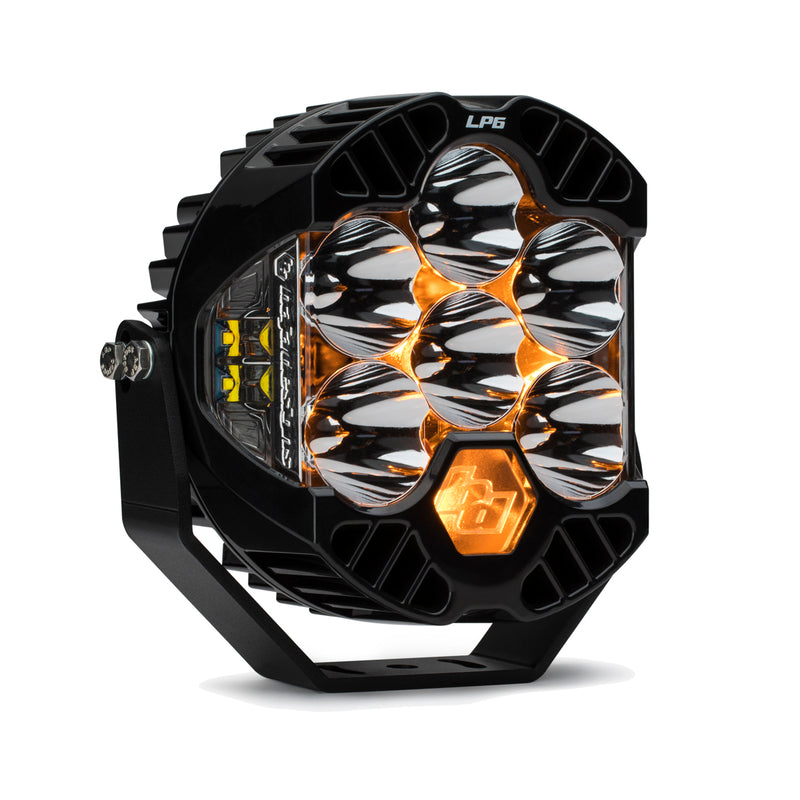

The LP6 Pro LED Auxiliary Light Pod comes from the Baja Designs LP series, a modern round light that pairs forward-projecting LEDs with dedicated side LEDs for a very wide spread of usable light. Peripheral LEDs fill the edges of the trail while the main optics push light far ahead. It ships as Baja Designs part 270014. Choose light pattern, lens color and backlight from the options above; each option is its own Baja Designs part number, listed under Specifications.
Single LP lights ship without a wiring harness, so add the matching Baja Designs LP series harness unless the package contents list one.
Features
Integrated peripheral lighting
Baja Designs Integrated Peripheral Technology adds side-firing LEDs to the forward optics, widening usable light around the front of the vehicle.
Direct ducted cooling
Air enters at the front of the housing and passes over the rear heat sinks, helping the LEDs stay cool under heavy use.
Cast aluminum construction
A powder coated cast aluminum housing and hardcoated polycarbonate lens resist rocks, corrosion and vibration.
Sealed and impact rated
Baja Designs rates its LP lights IP69K for water and dust and IK10 for impact, and tests them beyond MIL-STD-810G.
Replaceable lens design
uService construction lets you swap in an LP lens kit to change the pattern or color, or replace a damaged lens.
Stainless mounting hardware
Stainless steel mounting hardware comes with every LP light.
Specifications
-
Brand: Baja Designs
-
Warranty: Limited lifetime on Baja Designs lights for recreational use (capped at 49,930 hours); brackets, harnesses and switches Baja Designs resells carry their maker's warranty
-
Housing Material: Powder coated cast aluminum
-
Lens Material: Hardcoated polycarbonate
-
Water Resistance: IP69K
-
Impact Resistance: IK10
-
Durability: Exceeds MIL-STD-810G
-
Mounting Hardware: Included, stainless steel
-
Fitment: Universal (not tied to one vehicle)
-
Road use: Baja Designs notes that some of its lights may only be used off-road. Check the lighting laws where you drive before using this light on public roads.
-
Part numbers: 270014, 270001, 270003, 270011, 270013, 270015, 270016
Options and part numbers
| Light Pattern |
Lens Color |
Backlight |
Brightness |
Power draw |
Current draw |
Length |
Weight |
Baja Designs part number |
| Driving/Combo |
Clear |
Red |
|
|
|
|
|
270014 |
| Spot |
Clear |
Amber |
11,225 lumens |
103.5 W |
7.5 A |
6.5" |
4.2 lb |
270001 |
| Driving/Combo |
Clear |
Amber |
11,225 lumens |
103.5 W |
7.5 A |
6.5" |
4.2 lb |
270003 |
| Spot |
Baja Amber |
Amber |
11,225 lumens |
103.5 W |
7.5 A |
6.5" |
4.2 lb |
270011 |
| Driving/Combo |
Baja Amber |
Amber |
11,225 lumens |
103.5 W |
7.5 A |
6.5" |
4.2 lb |
270013 |
| Driving/Combo |
Clear |
Blue |
|
|
|
|
|
270015 |
| Driving/Combo |
Clear |
Green |
|
|
|
|
|
270016 |
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Installation
LP lights mount on a bumper, rack or bracket with the supplied stainless hardware and connect to an LP series harness, which differs by model and by how many lights it powers. Aim each light after mounting and keep the front cooling inlets clear.
Baja Designs's installation instructions for this product are linked under Resources. Read them fully before starting.
