The OnX6 Arc Dual Control LED Light Bar brings Baja Designs light bar performance to the front of the vehicle, with reflector optics tuned to light several zones at once from a single mounting point. Mount it on a bumper, roof rack or cage and aim it to cover the trail ahead. It ships as Baja Designs part 523003DC. Choose size from the options above; each option is its own Baja Designs part number, listed under Specifications.
Wiring varies by bar: OnX6 and S8 bars ship without a harness, while XL Linkable kits include their linking harness, so check the package contents before ordering.
Features
Many zones from one mount
Light bars spread output across a long lens area, covering distance and width from a single location on the vehicle.
Aluminum housing throughout
Every bar in this family is built on an aluminum housing with a durable black or white finish that resists corrosion and trail abuse.
Hardcoated polycarbonate lenses
Lenses are hardcoated polycarbonate to resist scratches, stone chips and impacts.
Replaceable lens design
uService construction seals each lens with an O-ring, so Baja Designs lens kits can change the pattern or color or replace a damaged lens.
Stainless mounting hardware
Stainless steel mounting hardware is included with every bar and kit.
Lifetime warranty coverage
Baja Designs backs its light bars for recreational use with a limited lifetime warranty against defects in design and manufacturing.
Specifications
-
Brand: Baja Designs
-
Warranty: Limited lifetime on Baja Designs lights for recreational use (capped at 49,930 hours); brackets, harnesses and switches Baja Designs resells carry their maker's warranty
-
Lens Material: Hardcoated polycarbonate
-
Mounting Hardware: Included, stainless steel
-
Light Pattern: Driving/Combo
-
Lens Color: Amber/Clear
-
Light source: LED
-
Housing Material: Aircraft Grade Aluminum with Mil-Spec Hard Anodize
-
Housing Color: Black
-
Bezel Material: Billet Machined Aluminum
-
Rated LED life: 49,930 hours
-
Wiring Harness Included: No
-
Mounting Hardware Included: Yes
-
Mounting Hardware Material: Stainless Steel
-
Overvoltage Protection: Built-In
-
Water resistance: IP69K (Waterproof up to 9' & Pressure Washable)
-
Impact resistance: IK10 Compliant (Mechanical Impact Testing)
-
Durability testing: Exceeds MIL-STD810G (Mil-Spec Testing)
-
Height: 2.69"
-
Depth: 4.29"
-
Fitment: Universal (not tied to one vehicle)
-
Road use: Baja Designs notes that some of its lights may only be used off-road. Check the lighting laws where you drive before using this light on public roads.
-
Light type: Light Bar
-
Mount location: Universal
-
Color temperature: 5000K
-
Part numbers: 523003DC, 524003DC, 525003DC
Options and part numbers
| Size |
Brightness |
Power draw |
Current draw |
Length |
Weight |
Baja Designs part number |

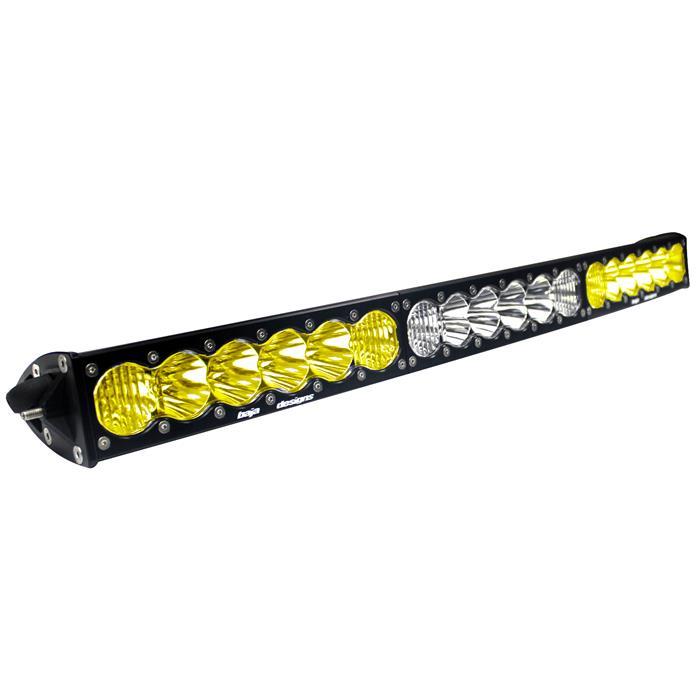

| 30" |
28,938 (High); 23,150 (Low) |
|
|
30" |
11.45 lb |
523003DC |

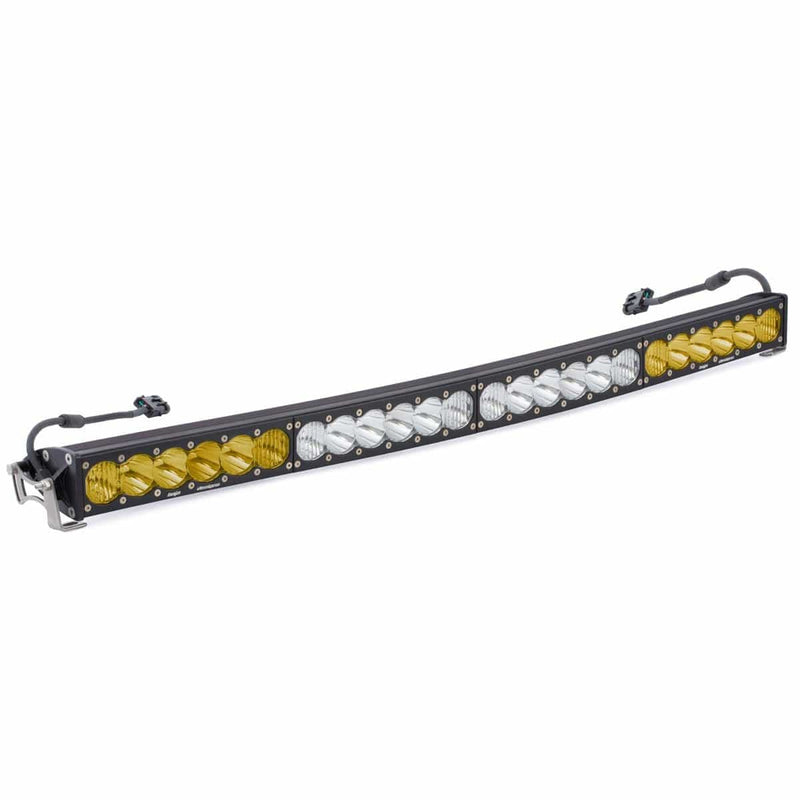

| 40" |
39,220 (high); 32,760 (Low) |
340 (High); 284 (Low) |
26.8 (High); 22.4 (Low) |
40" |
15.05 lb |
524003DC |

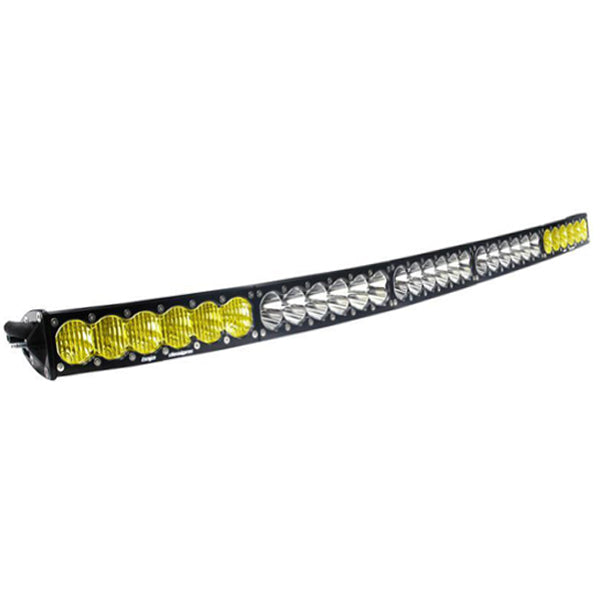

| 50" |
39,910 (high) |
346 (High) |
28.2 (High) |
50" |
18.65 lb |
525003DC |
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Installation
Light bars fasten to a bumper, roof rack, cage or mount with the supplied stainless hardware and connect to a fused, relay-switched harness rated for the bar's length and draw. Set the vertical aim after mounting and route wiring away from heat and moving parts.
Baja Designs's installation instructions for this product are linked under Resources. Read them fully before starting.
Resources
Warranty, Shipping & Returns
Warranty. Baja Designs warranties cover defects in design and manufacturing only, and the term depends on the product type. LED light bars and auxiliary lights for recreational use carry a limited lifetime warranty capped at 49,930 hours of operation. Brackets, wiring harnesses and switches that Baja Designs resells from other makers carry that maker's own warranty, which Baja Designs passes through. Installation errors, wear and tear, misuse, accidents, collisions, modifications and installation labor are not covered, and claims need proof of purchase or product registration. Shipping. The carrier and ship method are set by the size and weight of the carton when the order is placed. Inspect on delivery. Please inspect the package and every part as soon as it arrives, and report shipping damage or missing items before installing so a replacement can be arranged quickly.
Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
About Baja Designs
Baja Designs was founded in San Diego, California in 1992 by Alan Roach, a motorcycle racer who competed in the Baja 1000. The first product was a dual sport kit for off-road motorcycles, and the company went on to build HID race lights that ended up on many winning Baja 1000 bikes, trucks and buggies.
That racing work earned the engineering team the nickname The Scientists of Lighting, and professional teams began asking them to design and aim their lighting. In 2005 Baja Designs raced a forward-projecting LED light bar at the Baja 1000, the starting point for the LED pods and bars in the current range.
The company is now based in San Marcos, California, where it engineers and builds LED lighting for trucks, Jeeps, SUVs, UTVs and motorcycles.
