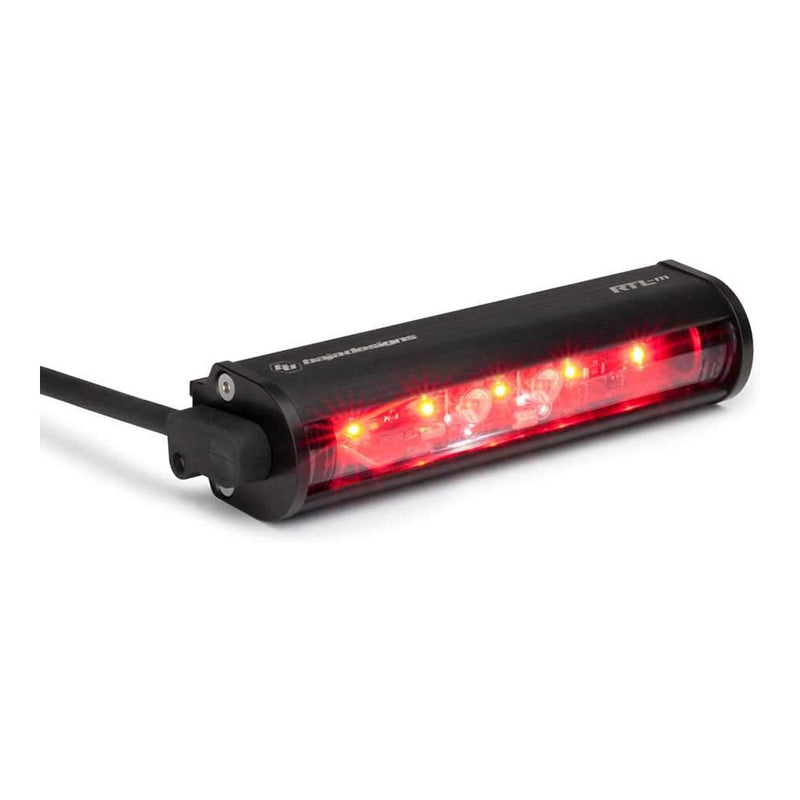

The RTL-M Mini LED Rear Light Bar is a Baja Designs RTL rear light bar that combines running, brake and white cargo light functions in one sealed unit for strong rear visibility. Bright rear LEDs help following drivers spot the vehicle through dust on trails and race courses. It ships as Baja Designs part 100601. Choose license plate light from the options above; each option is its own Baja Designs part number, listed under Specifications.
Contents vary by item, so review the package contents for this listing; RTL rear light bars in particular need a separately sold Baja Designs harness.
Features
Running and brake light
Red LEDs work as running and brake lights for clear rear visibility in dust and darkness.
White cargo lighting
Built-in white LEDs light the area behind the vehicle for loading, camp work and reversing.
Sealed and impact rated
Baja Designs rates its RTL bars IP69K for water and dust and IK10 for impact, and tests them beyond MIL-STD-810G.
Stainless mounting hardware
Stainless steel mounting hardware is included.
Harness sold separately
RTL bars need a Baja Designs RTL harness matched to the model and vehicle type.
Specifications
-
Brand: Baja Designs
-
Warranty: Limited lifetime on Baja Designs lights for recreational use (capped at 49,930 hours); brackets, harnesses and switches Baja Designs resells carry their maker's warranty
-
Water Resistance: IP69K
-
Impact Resistance: IK10
-
Mounting Hardware: Included, stainless steel
-
Light Pattern: Rear Tail Light
-
Brightness: 312 lumens
-
Light source: LED
-
LEDs per light: 5
-
Lighting Modes: Beam
-
Housing Color: Black
-
Rated LED life: 49,930 hours
-
Wiring Harness Included: No
-
Mounting Hardware Included: Yes
-
Mounting Hardware Material: Stainless Steel
-
Overvoltage Protection: Built-In
-
Water resistance: IP69K (Waterproof up to 9' & Pressure Washable)
-
Impact resistance: IK10 Compliant (Mechanical Impact Testing)
-
Durability testing: Exceeds MIL-STD810G (Mil-Spec Testing)
-
Length: 6.69"
-
Height: 1.56"
-
Depth: 2.5"
-
Weight: 1.1 lb
-
Fitment: Universal (not tied to one vehicle)
-
Road use: Baja Designs notes that some of its lights may only be used off-road. Check the lighting laws where you drive before using this light on public roads.
-
Light type: Chase/Backup Light and Light Bar
-
Lens Color: Red
-
Mount location: Rear of vehicle
-
Part numbers: 100601, 100602
Options and part numbers
| License Plate Light |
Power draw |
Baja Designs part number |
| Yes |
5.5 (Brake); 8.5 (Carbo); 2 (License Plate); 0.75 (Tail Light( |
100601 |
| No |
5.5 (Brake); 8.5 (Carbo); 0.75 (Tail Light( |
100602 |
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Installation
These lights mount with hardware suited to their location and connect to a fused, switched circuit. Route wiring clear of heat, suspension travel and moving parts, and confirm every function works before heading out.
Baja Designs's installation instructions for this product are linked under Resources. Read them fully before starting.
