The S8 10" Dual Behind Grille Light Bar Kit places Baja Designs LED lighting in the front-end openings of this vehicle, such as the grille, lower grille or vents, so the lights sit inside the body lines instead of on top of them. Brackets made for this vehicle hold the lights in place behind or within the opening. Lights and brackets come matched in one kit, so there is no fabrication to make them fit the opening. This kit is Baja Designs part 448065 for the 2021-2026 Ford F-150 Raptor. Choose lens color from the options above; each option is its own Baja Designs part number, listed under Specifications.

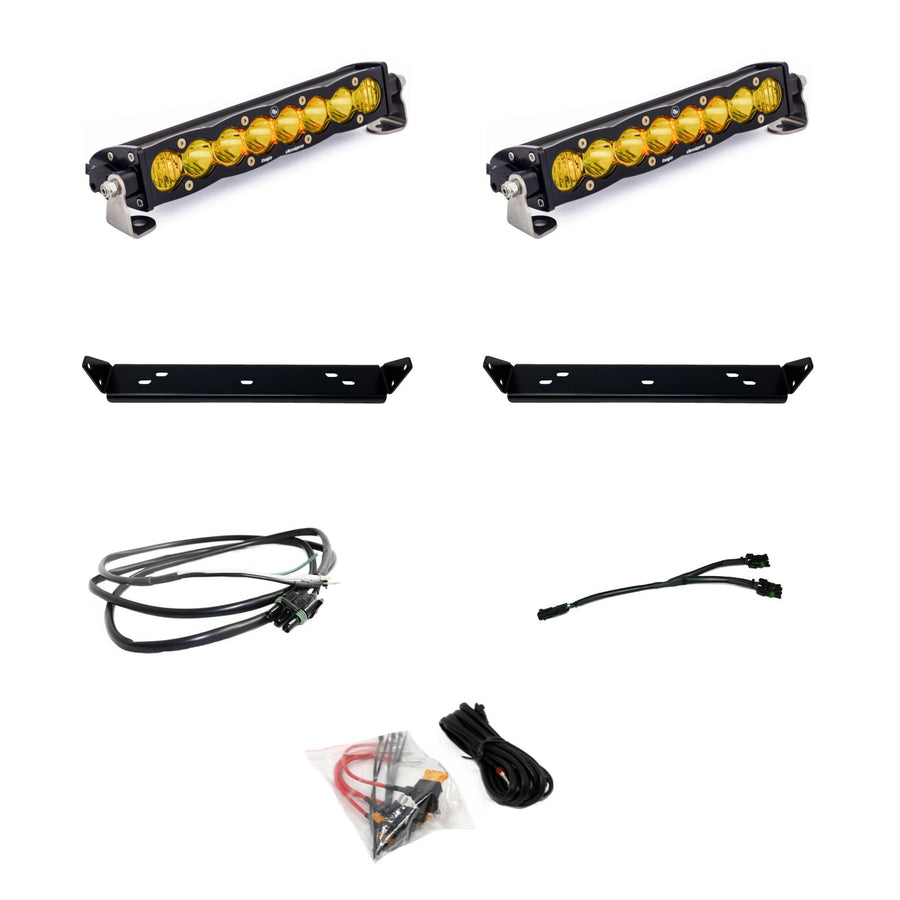

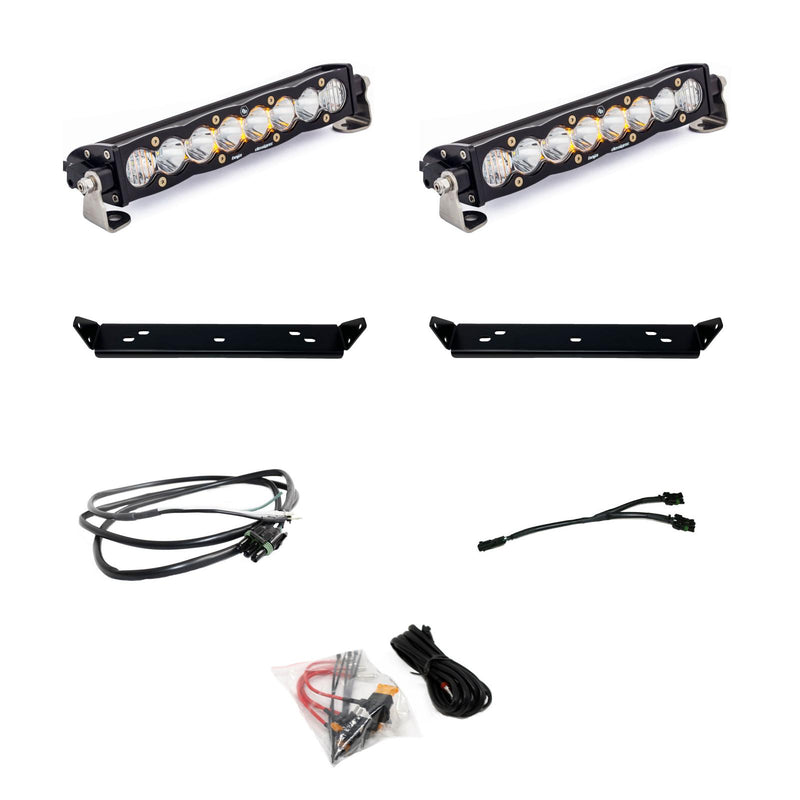

What's Included:
| Item |
Qty |
| S8 10" Light Bar - Driving Combo Clear or Baja Amber |
2 |
| Behind the Grille Mounting Brackets |
2 |
| Splitter Wiring Harness |
1 |
| Upfitter Wiring Harness |
1 |
| S8 Backlit Harness |
1 |
| All Necessary Mounting Hardware |
1 |
Anything a kit needs beyond the box, such as drilling, trimming or a compatible grille, is listed in that kit's fit notes.
Features

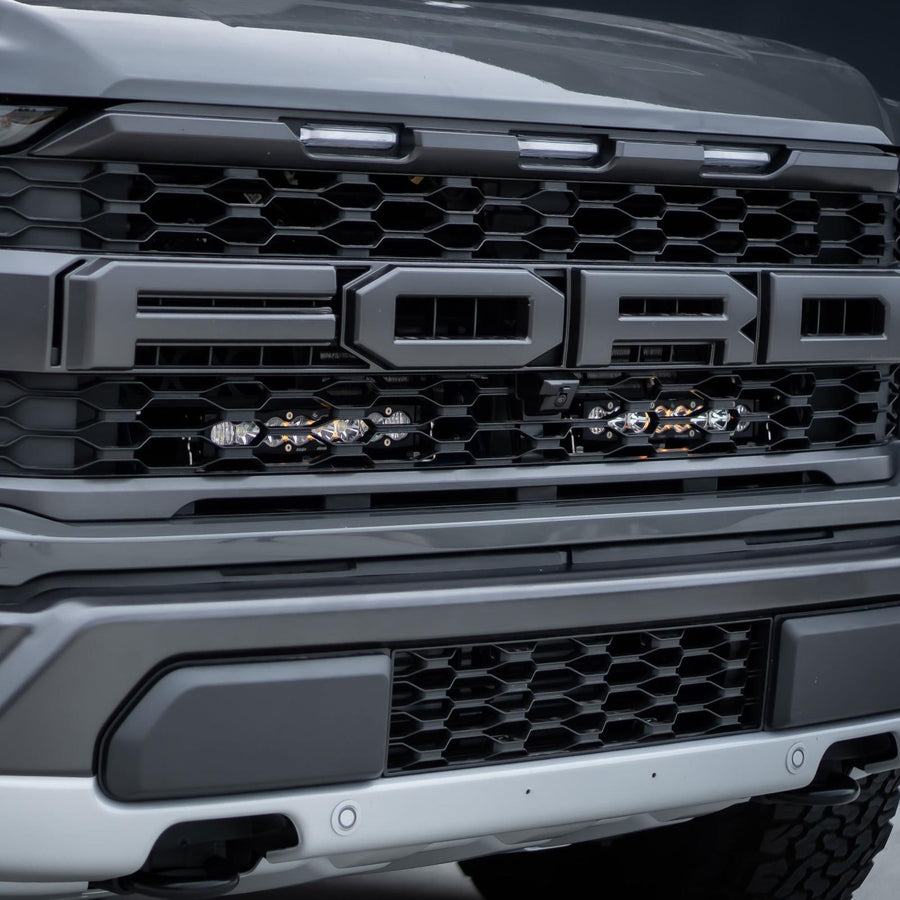

Hidden in the front openings
The lights sit inside the grille or vent openings, keeping the front end clean and the lights protected from brush and branches.
Brackets made for this vehicle
Each bracket is shaped for this vehicle's grille or vent area, so the lights line up with the opening without fabrication.
Baja Designs LED lights included
Each kit comes with Baja Designs LED lights. The series, count and beam pattern for this product are shown in the options and spec table.
Lens patterns sorted by zone
Baja Designs organizes its lens patterns by lighting zone, from wide near-field and cornering light to long-range spot, so a setup can be tuned to how you drive.
Sealed against weather and dust
Baja Designs LED lights use sealed housings and hard lenses meant to keep running through rain, mud, dust and road spray.
Lifetime limited warranty on lights
The lights carry the Baja Designs limited lifetime warranty for recreational use, and brackets and harnesses carry their maker's pass-through warranty.
Fitment & Compatibility
Ford
| Years |
Model |
Notes |
| 2021-2023 |
F-150 Raptor |
— |
| 2024-2026 |
F-150 Raptor |
incl. Raptor R and Raptor 37 |
Fit guidance: Fits: 2021-2026 Ford F-150 Raptor, with the qualifiers shown. Check your vehicle against these notes before ordering.
Specifications
-
Brand: Baja Designs
-
Warranty: Limited lifetime on Baja Designs lights for recreational use (capped at 49,930 hours); brackets, harnesses and switches Baja Designs resells carry their maker's warranty
-
Mount location: Grille / front-end openings
-
Fitment: Vehicle specific (see Fitment & Compatibility)
-
Road use: Baja Designs notes that some of its lights may only be used off-road. Check the lighting laws where you drive before using this light on public roads.
-
Light type: Grille Light Kit
-
Beam pattern: Driving/Combo
-
Light size: 10 in
-
Color temperature: 5000K
-
Brightness: 6,324 lumens per light (12,648 lumens total for 2 lights)
-
Beam distance: 323 ft (Driving/Combo), measured to 10 lux with one 10 in S8 light bar (Baja Designs ELS rating, clear lens)
-
Water resistance: IP69K
-
Wiring Harness Included: Yes
-
Power draw: 57.96 W per light (115.92 W total for 2 lights)
-
Current draw: 4.2 A per light (8.4 A total for 2 lights)
-
Part numbers: 448065, 448066
Options and part numbers
| Lens Color |
Baja Designs part number |
| Clear |
448065 |
| Baja Amber |
448066 |
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Installation
The kit mounts in or behind this vehicle's grille or front openings on brackets made for it. Some installs need the grille or trim pieces removed for access. Route the harness through the engine bay to the switch the kit uses, then aim the lights on level ground. The fit notes below list any drilling, trimming or grille compatibility the kit requires.
Follow the fit notes and the included instructions; our team can answer installation questions before you order.
Resources
An installation guide for this product is not available to download. Our team can answer installation questions before you order; contact us with the part number.
Warranty, Shipping & Returns
Warranty. Baja Designs warranties cover defects in design and manufacturing only, and the term depends on the product type. LED light bars and auxiliary lights for recreational use carry a limited lifetime warranty capped at 49,930 hours of operation. Brackets, wiring harnesses and switches that Baja Designs resells from other makers carry that maker's own warranty, which Baja Designs passes through. Installation errors, wear and tear, misuse, accidents, collisions, modifications and installation labor are not covered, and claims need proof of purchase or product registration. Shipping. The carrier and ship method are set by the size and weight of the carton when the order is placed. Inspect on delivery. Open the carton when it arrives and check every light, bracket, harness and hardware bag against the kit contents before you start the install. Report shipping damage or a missing part right away, before anything is mounted.
Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
About Baja Designs
Baja Designs began in San Diego, California in 1992, started by riders with a habit of racing the Baja 1000. Its first product turned pure dirt motorcycles into minimally street-ready dual-sport bikes, and its work tuning race lights for night stages earned its engineers the name The Scientists of Lighting.
From motorcycle HID race lights the company moved into truck and buggy racing, and in 2005 it ran its first forward-projecting LED light bar in the Baja 1000. That race program still feeds the design of every LED pod and bar the company builds.
Today Baja Designs lights trucks, Jeeps, SUVs, vans, UTVs and motorcycles, using its Lighting Zones method: pick the right lens pattern for each job and put it in the right place on the vehicle.
