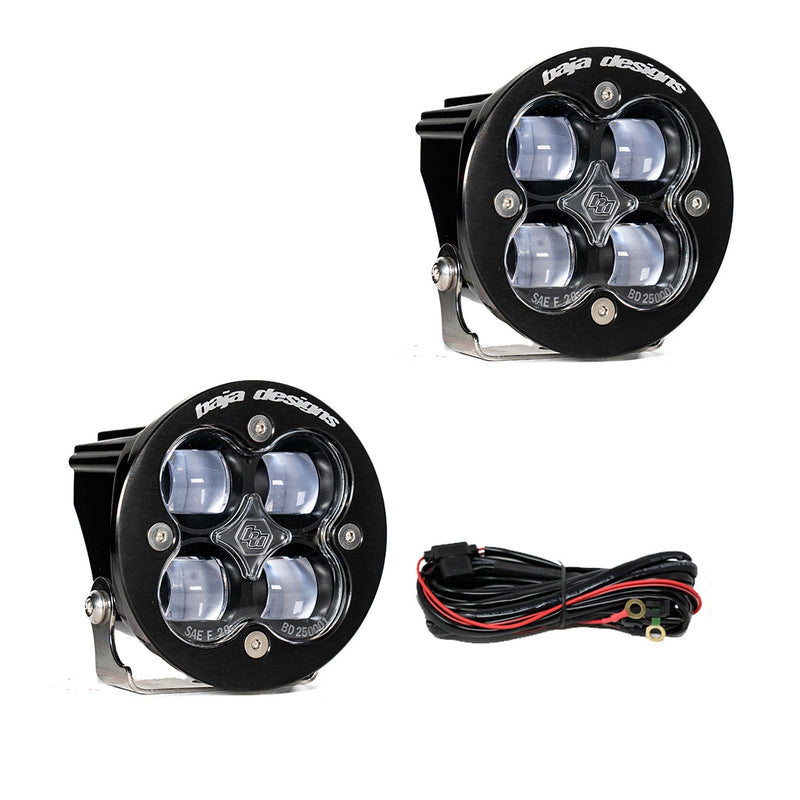

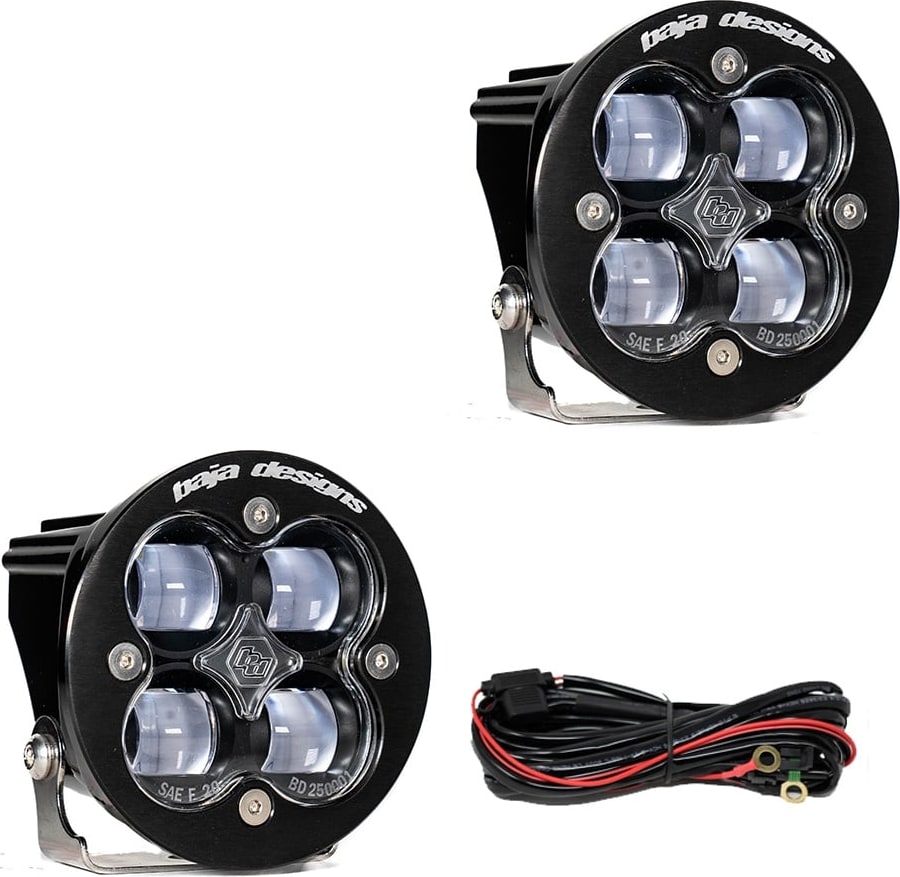

The Squadron-R SAE LED Auxiliary Light Pod Pair is a Squadron-size fog light pair from Baja Designs that uses aspheric projector optics to lay down a wide, low beam with a sharp cutoff for bad weather. The controlled cutoff keeps light low on the road surface, where it helps most in fog, dust and heavy rain. It ships as Baja Designs part 24-7802. Choose lens color from the options above; each option is its own Baja Designs part number, listed under Specifications.
Single Squadron pods ship without a wiring harness and some pairs are sold with or without one, so check the package contents and add a matching Baja Designs harness if you need it.
Features
Fog beam, sharp cutoff
Aspheric projector optics shape a wide, low beam with a crisp upper cutoff, so light stays on the road instead of reflecting back from fog or dust.
Built to SAE fog standard
Baja Designs designs its Squadron SAE pods to the SAE J583 fog lamp requirements.
Tough aluminum housing
A hard anodized, powder coated cast aluminum housing resists corrosion, chips and vibration.
Clear or amber lens choice
Pick a clear lens or Baja Amber. Amber adds contrast and softens glare in dust, fog, rain and snow.
Pair kit with harness
The pair ships with a wiring harness and stainless mounting hardware for both lights.
Lifetime warranty coverage
Baja Designs backs its auxiliary lights for recreational use with a limited lifetime warranty against defects in design and manufacturing.
Specifications
-
Brand: Baja Designs
-
Warranty: Limited lifetime on Baja Designs lights for recreational use (capped at 49,930 hours); brackets, harnesses and switches Baja Designs resells carry their maker's warranty
-
Mounting Hardware Included: Yes
-
Light Pattern: SAE Fog
-
Brightness: 2,420 lumens
-
Power draw: 29 W
-
Current draw: 2.1 A
-
Light source: Forward Projecting
-
LEDs per light: 4
-
Lighting Modes: Beam
-
Lens Material: Hardcoated Polycarbonate
-
Housing Material: Hard Anodized and Powder Coated Cast Aluminum
-
Housing Color: Black
-
Bezel Material: Powder Coated Cast Aluminum
-
Rated LED life: 49930 hours
-
Wiring Harness Included: Yes
-
Mounting Hardware Material: Stainless Steel
-
Overvoltage Protection: Built-In
-
SAE standard: SAE Standard J583
-
Water resistance: IK10 Compliant (Mechanical Impact Testing)
-
Impact resistance: IK10 Compliant (Mechanical Impact Testing)
-
Durability testing: Exceeds MIL-STD810G (Mil-Spec Testing)
-
Length: 3.07"
-
Height: 3.07"
-
Depth: 2.77"
-
Weight: 0.75 lb
-
Fitment: Universal (not tied to one vehicle)
-
Road use: Baja Designs lists this light as SAE compliant; the lens is part of that rating and is not user-replaceable
-
Part numbers: 24-7802, 24-7816
Options and part numbers
| Lens Color |
Baja Designs part number |
| Clear |
24-7802 |
| Baja Amber |
24-7816 |
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Installation
Squadron pods mount to a bracket, bumper or rack with the supplied hardware and run from a fused, relay-switched harness sized for the light's draw. Confirm that the harness matches the pod's connector, since Squadron 2.0 pods use a 4-pin Deutsch-style plug and earlier Squadron pods use a 2-pin plug, then aim each pod once it is mounted.
Follow the fit notes and the included instructions; our team can answer installation questions before you order.
Resources
An installation guide for this product is not available to download. Our team can answer installation questions before you order; contact us with the part number.
Warranty, Shipping & Returns
Warranty. Baja Designs warranties cover defects in design and manufacturing only, and the term depends on the product type. LED light bars and auxiliary lights for recreational use carry a limited lifetime warranty capped at 49,930 hours of operation. Brackets, wiring harnesses and switches that Baja Designs resells from other makers carry that maker's own warranty, which Baja Designs passes through. Installation errors, wear and tear, misuse, accidents, collisions, modifications and installation labor are not covered, and claims need proof of purchase or product registration. Shipping. The carrier and ship method are set by the size and weight of the carton when the order is placed. Inspect on delivery. Please inspect the package and every part as soon as it arrives, and report shipping damage or missing items before installing so a replacement can be arranged quickly.
Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
About Baja Designs
Baja Designs was founded in San Diego, California in 1992 by Alan Roach, a motorcycle racer who competed in the Baja 1000. The first product was a dual sport kit for off-road motorcycles, and the company went on to build HID race lights that ended up on many winning Baja 1000 bikes, trucks and buggies.
That racing work earned the engineering team the nickname The Scientists of Lighting, and professional teams began asking them to design and aim their lighting. In 2005 Baja Designs raced a forward-projecting LED light bar at the Baja 1000, the starting point for the LED pods and bars in the current range.
The company is now based in San Marcos, California, where it engineers and builds LED lighting for trucks, Jeeps, SUVs, UTVs and motorcycles.
