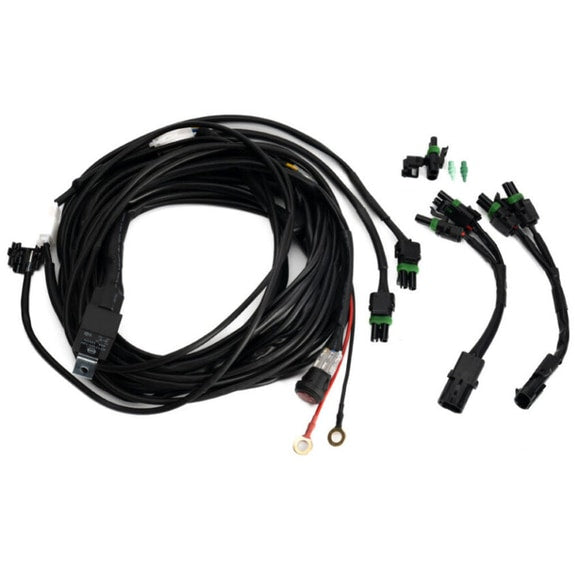

The Squadron/S2/S1 3-Light Splitter is a Baja Designs wiring part made to power, extend or control Baja Designs lights the way they were designed to run. Check the light series named in the title so the connectors and ratings match your lights. It ships as Baja Designs part 613600.
Lights, switch panels and mounting hardware are not included unless the package contents list them.
Features
Made for Baja Designs lighting
Each part is designed around Baja Designs light series and harness systems, matching the connectors, loads or routing those systems use.
Connectors differ by series
Baja Designs lights use different plugs by series: 2-pin for Squadron, S2 and S1, 3-pin for OnX6, S8 and XL, 4-pin Deutsch-style for Squadron 2.0, and dedicated plugs for the LP series.
Ratings stated per part
Harnesses carry a maximum wattage or light count, shown in the title or spec table, so a setup can stay within safe limits.
Build a system over time
Splitters, extensions and add-on leads let you add lights, reach farther or bring in backlight and trigger functions without starting over.
Sold as single parts
Buy only the part you need to replace a damaged lead or add a function to an existing setup.
Specifications
-
Brand: Baja Designs
-
Terminal Connector: 3 Two-Pin Connections
-
Wiring Harness Included: Yes
-
Switch Included: Yes
-
Switch Type: On/Off
-
Mounting Hardware Included: No
-
Fitment: Universal (not tied to one vehicle)
-
Part number: 613600
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Installation
Match the part to the light series named in its title before installing. Complete harnesses connect to the battery through their fuse and relay, while splitters, extensions and add-on leads plug into an existing Baja Designs harness. Route wiring away from heat, sharp edges and moving parts, and stay within the rated load.
Follow the fit notes and the included instructions; our team can answer installation questions before you order.
Resources
An installation guide for this product is not available to download. Our team can answer installation questions before you order; contact us with the part number.
Warranty, Shipping & Returns
Warranty. Baja Designs warranties cover defects in design and manufacturing only, and the term depends on the product type. LED light bars and auxiliary lights for recreational use carry a limited lifetime warranty capped at 49,930 hours of operation. Brackets, wiring harnesses and switches that Baja Designs resells from other makers carry that maker's own warranty, which Baja Designs passes through. Installation errors, wear and tear, misuse, accidents, collisions, modifications and installation labor are not covered, and claims need proof of purchase or product registration. Shipping. The carrier and ship method are set by the size and weight of the carton when the order is placed. Inspect on delivery. Please inspect the package and every part as soon as it arrives, and report shipping damage or missing items before installing so a replacement can be arranged quickly. Returns. Replacement parts are final sale unless defective.
Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
