The Squadron/S2 SAE Pro Fog Pocket Light Kit fits Baja Designs LED lights into the factory fog light location, giving this vehicle low, wide light right in front of the bumper. Kits in this line range from SAE fog lights to off-road pods and combinations of both; the lights and lens options for this kit are listed below. Brackets made for this vehicle's fog openings hold the lights square in the bumper, with no universal clamps. This kit is Baja Designs part 448177 for the 2017-2020 Ford F-150 Raptor.

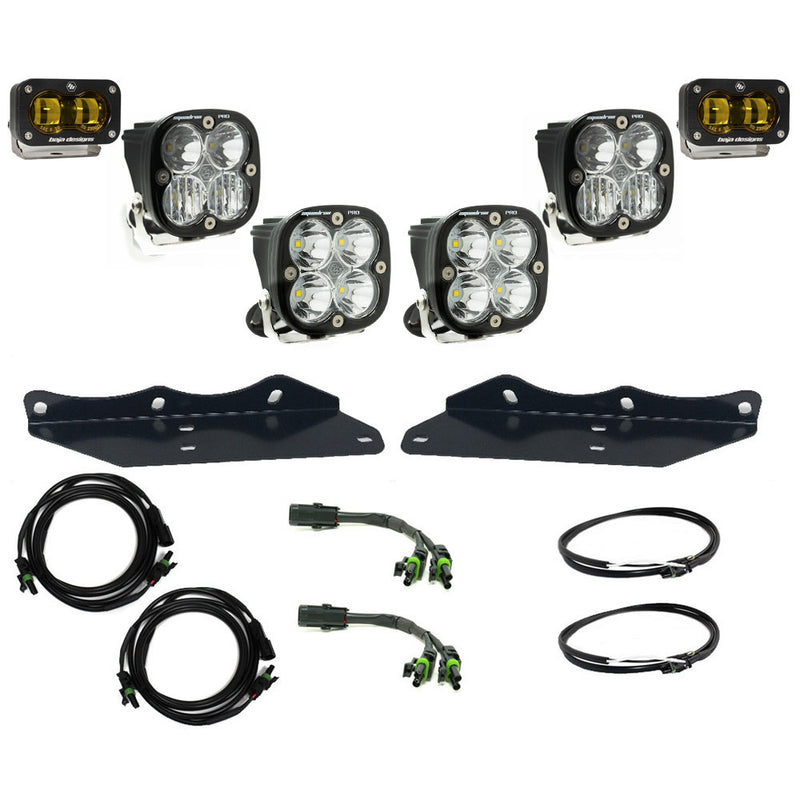

What's Included:
| Item |
Qty |
| Squadron Pro, Driving/Combo |
2 |
| Squadron Pro, Spot |
2 |
| S2 SAE, Clear or Amber |
2 |
| Mounting Bracket |
2 |
| Wiring Harness |
2 |
| Splitter Harness |
4 |
| All necessary hardware |
1 |
Anything a kit needs beyond the box, such as a specific factory bumper, OEM fog brackets or a particular wiring version, is listed in that kit's fit notes.
Features
Built for the factory fog location
The brackets are made for this vehicle's fog light openings, so the lights sit in the bumper where fog lights belong.
Low light for bad weather
A bumper-height beam runs beneath dust, fog, rain and snow rather than lighting it up in front of the windshield, which helps you see the road edge in poor conditions.
SAE fog, off-road pods or both
Some kits use Baja Designs SAE fog lights, some use off-road pods, and some pair the two. This product's light types are shown in its options and spec table.
Lens options by lighting zone
Baja Designs matches lens patterns to lighting zones, from dust and fog light through cornering and driving to spot, and the options for this kit are listed above.
Sealed LED housings
Baja Designs lights use sealed housings and hard lenses meant to keep working through water crossings, mud and trail vibration.
Lifetime limited warranty on lights
The lights carry the Baja Designs limited lifetime warranty for recreational use, and brackets and harnesses carry their maker's pass-through warranty.
Fitment & Compatibility
Fit guidance: Fits: 2017-2020 Ford F-150 Raptor, with the qualifiers shown. Check your vehicle against these notes before ordering.
Qualifier: 2nd gen
Baja Designs fit notes for this product
| Fog pocket kit for the 2nd-gen Raptor; no additional parts required |
Specifications
-
Brand: Baja Designs
-
Warranty: Limited lifetime on Baja Designs lights for recreational use (capped at 49,930 hours); brackets, harnesses and switches Baja Designs resells carry their maker's warranty
-
Mount location: Factory fog light location
-
Fitment: Vehicle specific (see Fitment & Compatibility)
-
Road use: Baja Designs lists the SAE lights in this product as SAE compliant; the lens is part of that rating and is not user-replaceable
-
Light type: Fog Light
-
Beam pattern: Driving/Combo, Spot and SAE Fog
-
Lens Color: Amber
-
Brightness: 4 x Squadron Pro at 4,095 lumens each; 2 x S2 SAE at 1,210 lumens each
-
Wiring Harness Included: Yes
-
Power draw: 4 x Squadron Pro at 41.4 W each; 2 x S2 SAE at 12.42 W each
-
Part number: 448177
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Installation

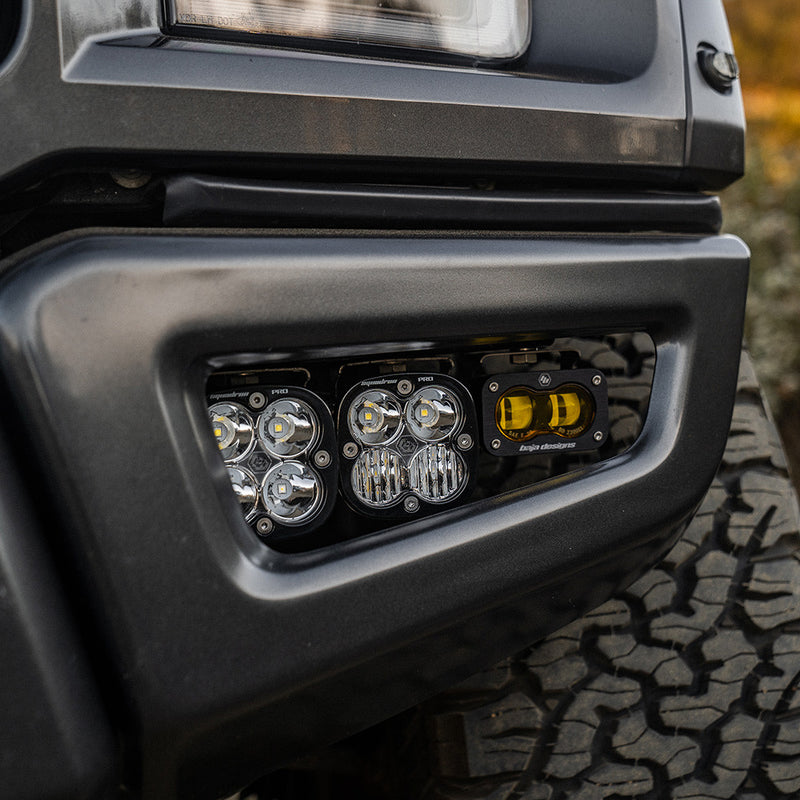

The kit mounts in the factory fog light openings using brackets made for this vehicle. How the lights are switched depends on the kit: some connect to the factory fog circuit and others use a toggle or upfitter harness. Aim the lights low with the vehicle parked on level ground. The fit notes below cover the bumper style the kit needs, any wiring choice and any modification.
Baja Designs's installation instructions for this product are linked under Resources. Read them fully before starting.
