BAK Revolver X4ts Replacement T-Slot Rail Kit for 2007-2021 Toyota Tundra w/ Deck Rails (5'7" Bed)
Free gift included with your order
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Sold as a Set of Two: Both side rails in one box. BAK sells this component only as a set of two, fully assembled.
- Fully Assembled Rails: Each set comes with the inner and outer rails, mounting plate, spring actuators and locking levers already put together.
- Shims Where Needed: Two spacer shims and eight angle shims are included when your truck needs them to sit the rails square.
- Clamps Sold Separately: The set does not include clamps. BAK's rail sheet mounts the new rails with clamps at the front, middle and rear of each rail.
- Made for One Truck: Each rail set is vehicle specific, matched to one truck and bed length, like the cover it goes under.
- X4ts T-Slot Rails: These are the rails for the Revolver X4ts, the version with T-slot rails for racks and cargo accessories, not the plain X4s or X2 rails.
Description & Fitment
The BAK Revolver X4ts Replacement T-Slot Rail Kit is a set of two X4ts side rails made for the 5'7" bed on the 2007-2021 Toyota Tundra with the factory deck rail system. It is for owners who need to replace the rails on an existing Revolver X4ts cover, so match the part number on your current cover before ordering. The rails come fully assembled and mount in the deck-rail holes, with the deck rails going back on top. Clamps are sold separately, and BAK lists a 30-day warranty on these rail sets.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2007-2019 | Tundra | 5'7" | w/ Deck Rail System |
| 2020-2021 | Tundra | 5'7" | w/ Deck Rail System, w/o Trail Edition Package |
Check your bed: measure along the bed rail from the bulkhead to the inside of the closed tailgate. This part is for the 5'7" bed on the 2007-2021 Toyota Tundra; BAK lists the bed by that label and publishes no inch figure. Fit notes from BAK: with the factory deck rail system (2007-2021 Tundra); not the Trail Edition (2007-2021 Tundra).
Not for: the same bed without the factory deck rail system (X4ts rail set RAILS-80409RK, 2007-2021), the 6'7" bed (X4ts rail set RAILS-80410RK, 2007-2021) and the 6'7" bed (X4ts rail set RAILS-80410TRK, 2007-2021).
About BAK Industries
BAK makes hard tonneau covers. BAK bills itself as "America's #1 truck bed cover."
The range splits into BAKFlip hard folding covers (MX4, MX4 EZ-Lift, MX4 TS, G2, F1 and Fibermax) and Revolver hard roll-ups (X2, X4s and X4ts). These rail sets fit the Revolver X4ts.
Authorized BAK dealer. Prestige Truck is an authorized BAK dealer, so what we sell is new and genuine BAK. BAK's warranty "is nontransferable and applies to the original purchaser of the BAK product only," and BAK requires warranty registration on file or proof of original purchase (a detailed, dated receipt) for warranty service. Your Prestige Truck order receipt is that proof.
Frequently Asked Questions
Will this fit my 2007-2021 Toyota Tundra?
Yes, if it has the 5'7" bed and it is with the factory deck rail system and not the Trail Edition. It fits the 2007-2021 Toyota Tundra. Measure along the bed rail from the bulkhead to the closed tailgate, check the fit notes above, and if you are unsure, send us your VIN and we will confirm.
Do I need to buy clamps?
The rail set does not include clamps (BAK: sold separately). BAK's rail sheet installs the new rails with your cover's clamps, so check yours are in good shape; if any are missing, ask us for the matching BAK clamps.
Does the set include clamps?
No. BAK lists clamps as not included (sold separately). BAK's rail sheet installs the new rails with clamps at the front, middle and rear of each rail.
How do I make sure I order the right rails?
Each rail set is made for one truck and bed, so check the part number and your bed before you order, or send us your VIN and the part number on your current cover and we will confirm.
Do I have to take the cover off to replace the rails?
Yes. BAK's rail sheet starts with the cover off the truck and the old rails removed, then the new rails clamp on and the cover goes back on and is squared up.
Are X4ts rails the same as X4s rails?
No. BAK lists separate rail sets for the X4ts (with the T-slot) and the X4s, at the same truck and bed. Order the set that matches your cover.
Installation
- T-30 Torx socket
- Drill or socket wrench
- 1/8" Allen wrench
Here's the short version of swapping rails on an existing Revolver, from the first steps of BAK's sheet for this truck. Keep the S clamps, screws and cargo rails you remove; they go back on.
- Take the cover off. Open the cover, remove the knobs and washers under the slotted brackets (keep them) and lift the cover off with its mounting bolts.
- Remove the old rails. Take off the cargo rails with their strap clamp assemblies and screws, then the old cover rails with their S clamps, and keep all of it.
- Fit the end caps. Put one end cap on the cab end of each new cover rail and tighten its set screw with a 1/8" Allen wrench.
- Fasten the rails into the deck-rail holes. Slide the S clamps into the rail slot so they match the truck-bed hole locations and fasten the rail into those holes with the screws, pushed tight against the front cargo rail and clear of the tailgate.
- Refit the cargo rail. Mount the cargo rail and its strap clamp assembly through the lower hole of the S clamps and tighten to 7.5 Nm (6 ft-lb). Repeat on the driver side.
- Lock it in. Roll the cover open without knocking it out of line and tighten the knobs by hand only. Close it and check the locking levers hold it down on both sides. Refit the cover first: rest it on the rails, drop in the mounting bolts, fit the knobs loosely, line it up with about 1/8" (3.2 mm) on each side.
- BAK Revolver x4ts tonneau cover 14 21 tundra installation sheet v2 (PDF)
- BAK Revolver cover shim supplemental installation sheet (PDF)
Stuck on a step?

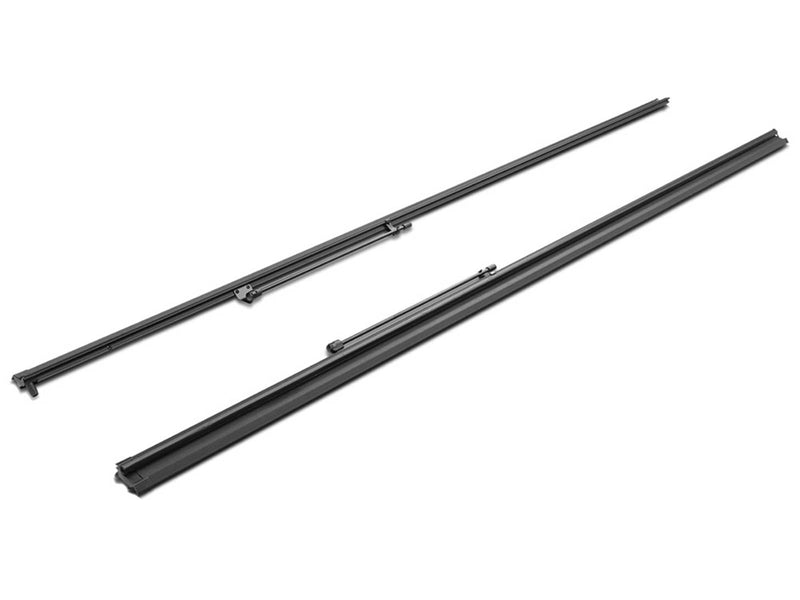

- 2 inner rails and 2 outer rails, fully assembled
- Mounting plate
- Spring actuators
- Locking levers
- 2 spacer shims and 8 angle shims (if necessary)
Specifications
| Brand | BAK |
|---|---|
| Part Number | BAKRAILS-80409TRK |
| Product | Replacement side rail set for the Revolver X4ts |
| Sold As | Set of two (driver and passenger), fully assembled |
| Includes | 2 inner rails, 2 outer rails, mounting plate, spring actuators, locking levers, 2 spacer shims and 8 angle shims (if necessary) |
| Clamps | Not included (sold separately) |
| Bed Length | 5'7" |
| UPC | 192631046837 |
Warranty, shipping & returns
-
Warranty
BAK lists a 30-day warranty for BAK replacement rail sets ("30 Day Warranty").- BAK publishes no other warranty terms for rail sets.
- BAK's claim process applies: proof of purchase must accompany every claim, and BAK accepts no returns without its prior authorization; contact us for help with registration or a claim.
- A claim needs your order number, contact details, vehicle, part number, a description, the receipt and photos.
-
Free shipping
Ships free to the lower 48 states, with no minimum order.- Order by 5 PM ET on a business day and it starts processing the same day.
- This rail set is an oversized item, so it ships by freight or as an oversized parcel.
- Most orders arrive within 1-5 business days.
- We email your tracking number as soon as it ships.
-
Inspect on delivery
This rail set ships in a long box. Check it as soon as it arrives.- Look for crushed ends, punctures or tears in the carton.
- If something looks wrong, take photos of the box and the parts (and if a driver asks you to sign, note the damage on the receipt).
- Open the box and check the parts against the parts list before you install.
- Email support@prestigetruck.com right away with your order number, a short note and photos. We send a replacement or a full refund at no cost to you.
-
30-day returns
Return it within 30 days of delivery, unused, in the original packaging, with proof of purchase.- Email support@prestigetruck.com with your order number. We reply within 1-2 business days with instructions.
- Damaged, defective or wrong item: we send a prepaid label or arrange a pickup.
- Changed your mind: you pay return shipping. No restocking fee.
- Refunds go back to your original payment method within 7 business days of approval. See our returns policy.
