BAK Revolver X4ts Replacement T-Slot Rail Kit for 2021-2027 Ford F-150 (5'7" Bed)
Free gift included with your order
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features

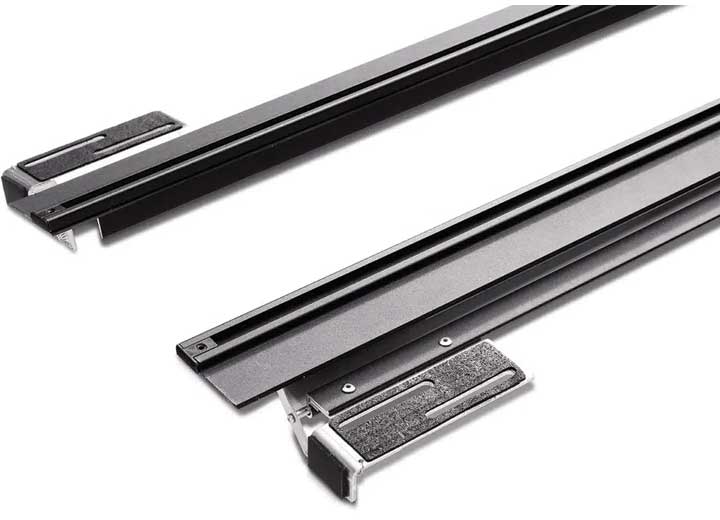

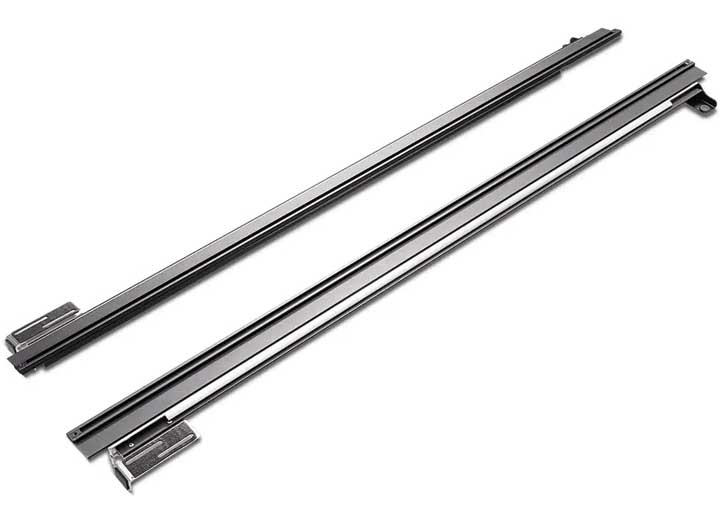

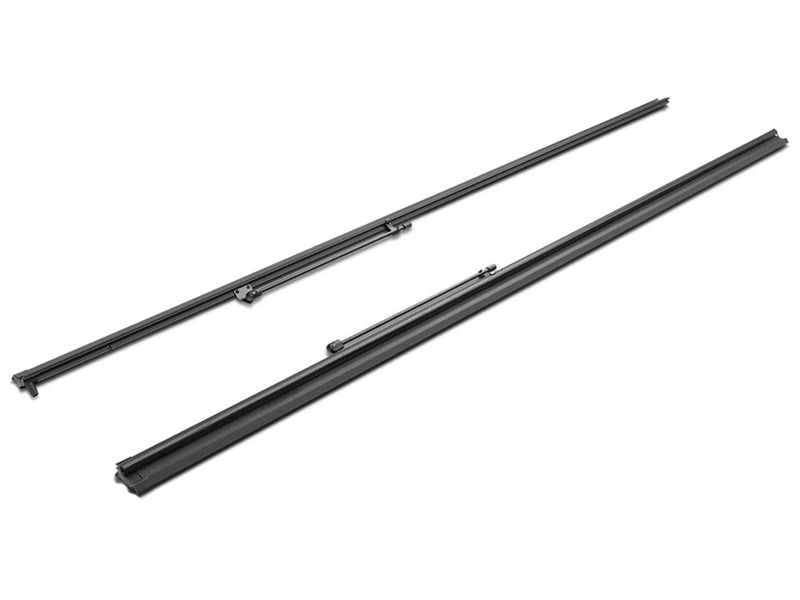

- Sold as a Set of Two: Both side rails in one box. BAK sells this component only as a set of two, fully assembled.
- Fully Assembled Rails: Each set comes with the inner and outer rails, mounting plate, spring actuators and locking levers already put together.
- Shims Where Needed: Two spacer shims and eight angle shims are included when your truck needs them to sit the rails square.
- Clamps Sold Separately: The set does not include clamps. BAK's rail sheet mounts the new rails with clamps at the front, middle and rear of each rail.
- Made for One Truck: Each rail set is vehicle specific, matched to one truck and bed length, like the cover it goes under.

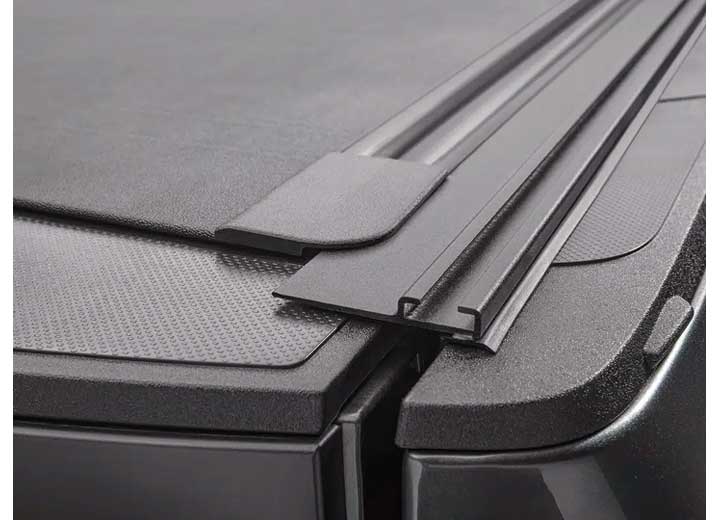

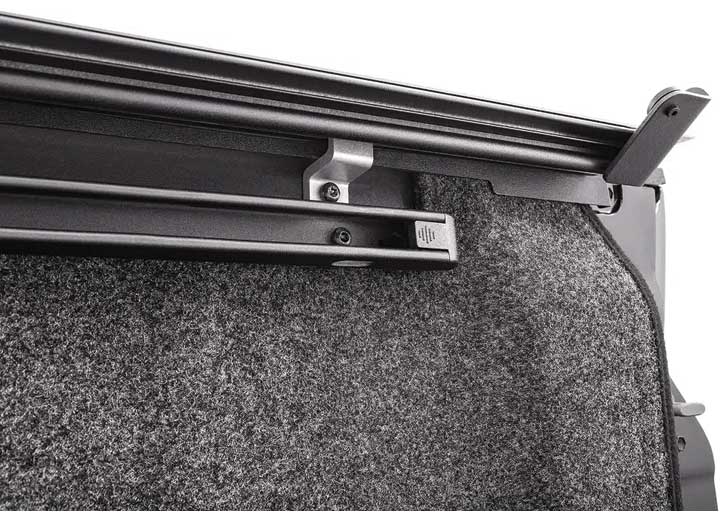

- X4ts T-Slot Rails: These are the rails for the Revolver X4ts, the version with T-slot rails for racks and cargo accessories, not the plain X4s or X2 rails.
Description & Fitment
Replace the side rails of a Revolver X4ts on the 2021-2027 Ford F-150, 2022-2025 Ford F-150 Lightning and 2021-2027 Ford F-150 Raptor, 5'7" bed with this BAK rail set. On the 2015-2020 Ford F-150, the same bed takes X4ts rail set RAILS-80329RK instead. Each rail carries the X4ts T-slot for racks and cargo accessories, which is why X4s rails are a different part. No drilling is involved; the rails clamp to the bed walls and BAK's sheet sets each clamp at 10 ft-lb.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2021-2027 | F-150 | 5'7" | — |
| 2022-2025 | F-150 Lightning | 5'7" | — |
| 2021-2027 | F-150 Raptor | 5'7" | — |
Check your bed: measure along the bed rail from the bulkhead to the inside of the closed tailgate. This part is for the 5'7" bed on the 2021-2027 Ford F-150, 2022-2025 Ford F-150 Lightning and 2021-2027 Ford F-150 Raptor; BAK lists the bed by that label and publishes no inch figure.
Not for: the 6'7" bed (X4ts rail set RAILS-80337RK, 2021-2027). 2015-2020 Ford F-150 trucks with the same bed use X4ts rail set RAILS-80329RK.
About BAK Industries
BAK makes hard tonneau covers. BAK bills itself as "America's #1 truck bed cover."
The range splits into BAKFlip hard folding covers (MX4, MX4 EZ-Lift, MX4 TS, G2, F1 and Fibermax) and Revolver hard roll-ups (X2, X4s and X4ts). These rail sets fit the Revolver X4ts.
Authorized BAK dealer. Prestige Truck is an authorized BAK dealer, so what we sell is new and genuine BAK. BAK's warranty "is nontransferable and applies to the original purchaser of the BAK product only," and BAK requires warranty registration on file or proof of original purchase (a detailed, dated receipt) for warranty service. Your Prestige Truck order receipt is that proof.
Frequently Asked Questions
Will this fit my 2021-2027 Ford F-150?
Yes, if it has the 5'7" bed. It fits the 2021-2027 Ford F-150, 2022-2025 Ford F-150 Lightning and 2021-2027 Ford F-150 Raptor. Measure along the bed rail from the bulkhead to the closed tailgate, check the fit notes above, and if you are unsure, send us your VIN and we will confirm.
Do I need to buy clamps?
The rail set does not include clamps (BAK: sold separately). BAK's rail sheet installs the new rails with your cover's clamps, so check yours are in good shape; if any are missing, ask us for the matching BAK clamps.
Does the set include clamps?
No. BAK lists clamps as not included (sold separately). BAK's rail sheet installs the new rails with clamps at the front, middle and rear of each rail.
How do I make sure I order the right rails?
Each rail set is made for one truck and bed, so check the part number and your bed before you order, or send us your VIN and the part number on your current cover and we will confirm.
Do I have to take the cover off to replace the rails?
Yes. BAK's rail sheet starts with the cover off the truck and the old rails removed, then the new rails clamp on and the cover goes back on and is squared up.
Are X4ts rails the same as X4s rails?
No. BAK lists separate rail sets for the X4ts (with the T-slot) and the X4s, at the same truck and bed. Order the set that matches your cover.
Installation
Here's the short version. BAK's rail sheet (below) starts with the cover off the truck and the old rails removed.
- Take the cover off. BAK's sheet starts with the cover off the truck and the current rails removed.
- Set the new rail. Place the new passenger rail on the bed rail with the slotted bracket pushed all the way to the cab and the bulkhead.
- Clamp it. First clamp about 6" to 9" back from the front, the strap clamp as far forward as possible, the second clamp near the middle (two on 8' beds) and the third about 12" from the tailgate. Hand-tighten them all, then torque every clamp to 10 ft-lb with a 9/16" socket while pressing the rail down. Repeat on the driver side.
- Set the cover on the rails. Rest the rolled cover on the rails at the cab, roll it toward the tailgate and throw away the packaging. Fold the front panel back, drop the two mounting bolts on each side into the slotted brackets, then fit the rubber washer, large flat washer and lock knob underneath, loosely for now.
- Square it up. Roll the cover open and closed a few times so it runs freely. Line up the front vinyl edge with the front of the rails (not the rubber seal) and keep a gap of about 1/8" (3.2 mm) on each side. Both slam latches must meet the locking levers squarely at the tailgate.

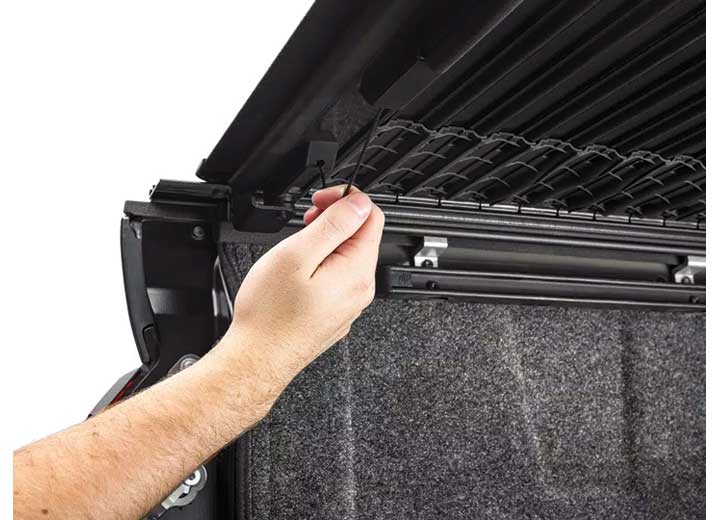

- Lock it in. Roll the cover open without knocking it out of line and tighten the knobs by hand only. Close it and check the locking levers hold it down on both sides. Hook both straps whenever you drive with the cover rolled open.
- BAK Revolver X4ts Replacement Rail Set Installation Sheet (PDF)
- BAK Revolver x4ts tonneau cover standard installation sheet v2 (PDF)
Stuck on a step?
- 2 inner rails and 2 outer rails, fully assembled
- Mounting plate
- Spring actuators
- Locking levers
- 2 spacer shims and 8 angle shims (if necessary)
Specifications
| Brand | BAK |
|---|---|
| Part Number | BAKRAILS-80339RK |
| Product | Replacement side rail set for the Revolver X4ts |
| Sold As | Set of two (driver and passenger), fully assembled |
| Includes | 2 inner rails, 2 outer rails, mounting plate, spring actuators, locking levers, 2 spacer shims and 8 angle shims (if necessary) |
| Clamps | Not included (sold separately) |
| Bed Length | 5'7" |
| UPC | 192631046783 |
