BAK Revolver X4ts Replacement T-Slot Rail Kit for 2022-2026 Toyota Tundra (6'7" Bed)
Free gift included with your order
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features

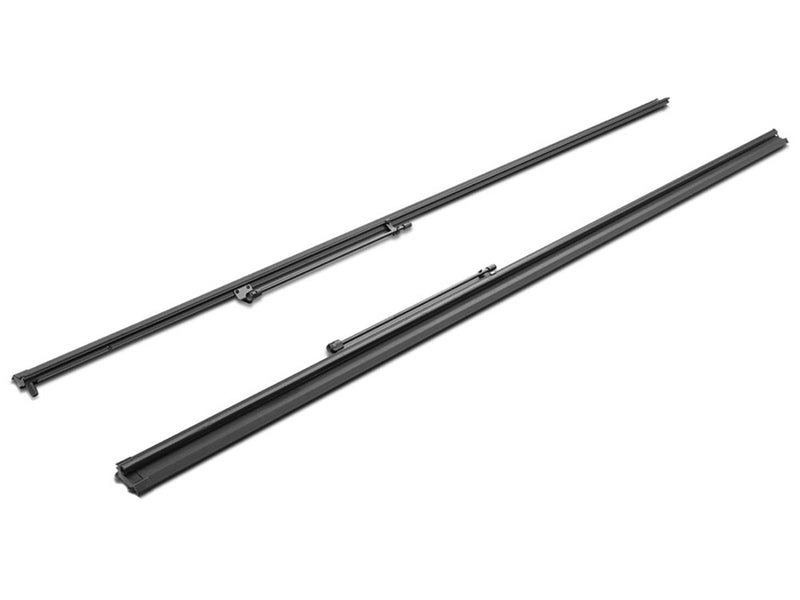

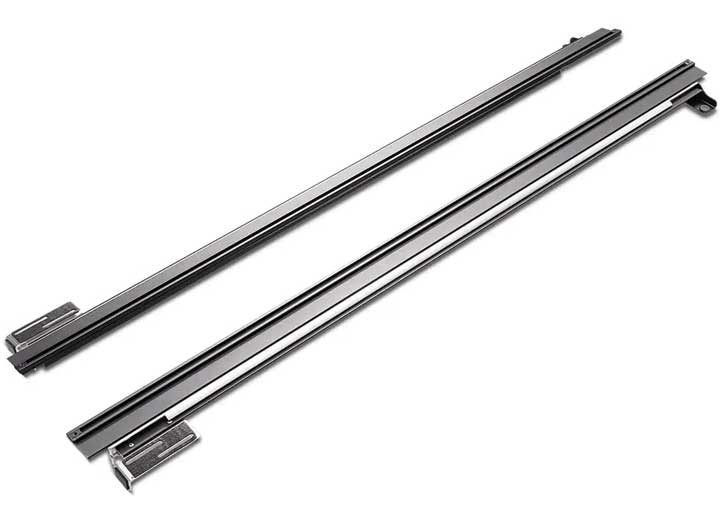

- Sold as a Set of Two: Both side rails in one box. BAK sells this component only as a set of two, fully assembled.
- Fully Assembled Rails: Each set comes with the inner and outer rails, mounting plate, spring actuators and locking levers already put together.
- Shims Where Needed: Two spacer shims and eight angle shims are included when your truck needs them to sit the rails square.
- Clamps Sold Separately: The set does not include clamps. BAK's rail sheet mounts the new rails with clamps at the front, middle and rear of each rail.
- Made for One Truck: Each rail set is vehicle specific, matched to one truck and bed length, like the cover it goes under.

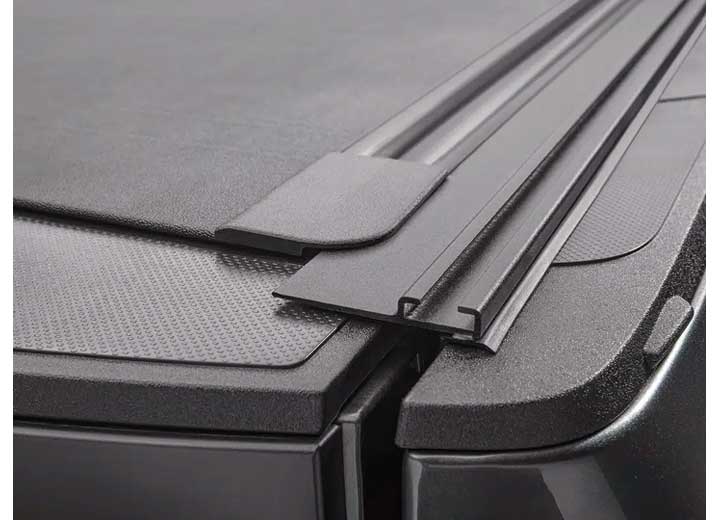

- X4ts T-Slot Rails: These are the rails for the Revolver X4ts, the version with T-slot rails for racks and cargo accessories, not the plain X4s or X2 rails.
Description & Fitment
This is a replacement set of two BAK T-slot rails for a Revolver X4ts on the 2022-2026 Toyota Tundra with the 6'7" bed. It suits Tundra owners who need new rails for that cover. Inner rails, outer rails, mounting plate, spring actuators and locking levers come fully assembled, with shims where needed. On this truck the rails fasten into the existing bed holes with S clamps and no drilling, and the clamps are sold separately.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2022-2026 | Tundra | 6'7" | w/o Trail Edition Package |
Check your bed: measure along the bed rail from the bulkhead to the inside of the closed tailgate. This part is for the 6'7" bed on the 2022-2026 Toyota Tundra; BAK lists the bed by that label and publishes no inch figure. Fit notes from BAK: not the Trail Edition (2022-2026 Tundra).
Not for: the 5'7" bed (X4ts rail set RAILS-80440RK, 2022-2026). 2020-2021 Toyota Tundra trucks with the same bed use X4ts rail set RAILS-80410RK.
About BAK Industries
BAK makes hard tonneau covers. BAK bills itself as "America's #1 truck bed cover."
The range splits into BAKFlip hard folding covers (MX4, MX4 EZ-Lift, MX4 TS, G2, F1 and Fibermax) and Revolver hard roll-ups (X2, X4s and X4ts). These rail sets fit the Revolver X4ts.
Authorized BAK dealer. Prestige Truck is an authorized BAK dealer, so what we sell is new and genuine BAK. BAK's warranty "is nontransferable and applies to the original purchaser of the BAK product only," and BAK requires warranty registration on file or proof of original purchase (a detailed, dated receipt) for warranty service. Your Prestige Truck order receipt is that proof.
Frequently Asked Questions
Will this fit my 2022-2026 Toyota Tundra?
Yes, if it has the 6'7" bed and it is not the Trail Edition. It fits the 2022-2026 Toyota Tundra. Measure along the bed rail from the bulkhead to the closed tailgate, check the fit notes above, and if you are unsure, send us your VIN and we will confirm.
Do I need to buy clamps?
The rail set does not include clamps (BAK: sold separately). BAK's rail sheet installs the new rails with your cover's clamps, so check yours are in good shape; if any are missing, ask us for the matching BAK clamps.
Does the set include clamps?
No. BAK lists clamps as not included (sold separately). BAK's rail sheet installs the new rails with clamps at the front, middle and rear of each rail.
How do I make sure I order the right rails?
Each rail set is made for one truck and bed, so check the part number and your bed before you order, or send us your VIN and the part number on your current cover and we will confirm.
Do I have to take the cover off to replace the rails?
Yes. BAK's rail sheet starts with the cover off the truck and the old rails removed, then the new rails clamp on and the cover goes back on and is squared up.
Are X4ts rails the same as X4s rails?
No. BAK lists separate rail sets for the X4ts (with the T-slot) and the X4s, at the same truck and bed. Order the set that matches your cover.
Installation
- T-30 Torx socket
- Drill or socket wrench
- 1/8" Allen wrench
Here's the short version of swapping rails on an existing Revolver, from the first steps of BAK's sheet for this truck. Keep the S clamps, screws and cargo rails you remove; they go back on.
- Take the cover off. Open the cover, remove the knobs and washers under the slotted brackets (keep them) and lift the cover off with its mounting bolts.
- Remove the old rails. Take off the cargo rails with their strap clamp assemblies and screws, then the old cover rails with their S clamps, and keep all of it.

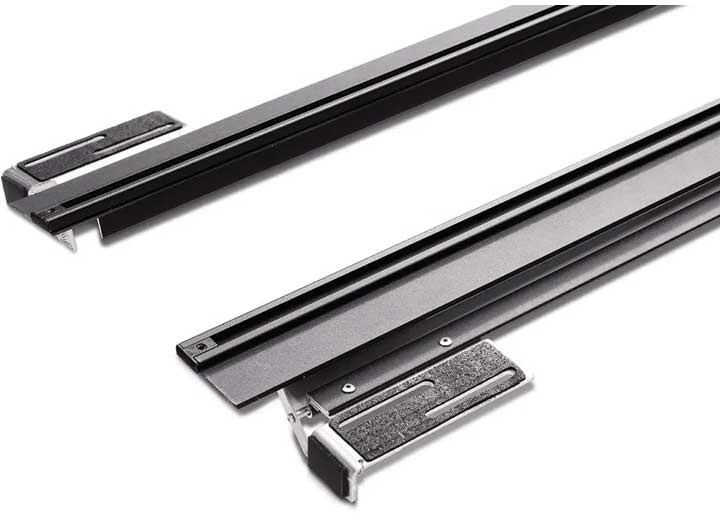

- Fit the end caps. Put one end cap on the cab end of each new cover rail and tighten its set screw with a 1/8" Allen wrench.

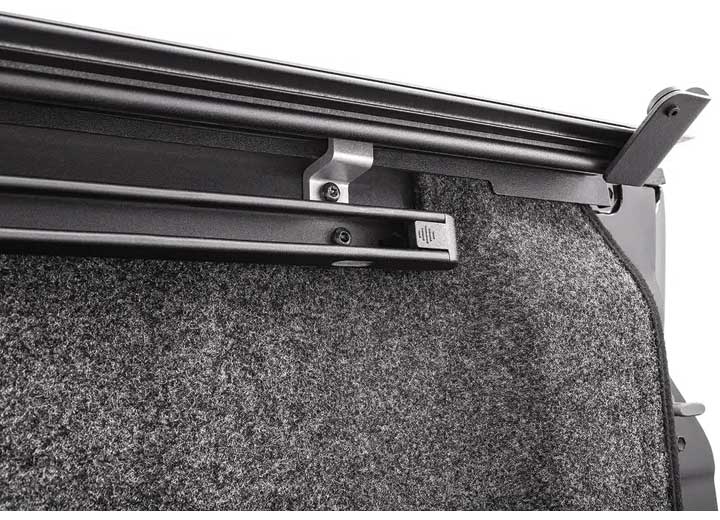

- Fasten the rails into the bed holes. Slide the S clamps into the rail slot to match the truck-bed hole locations and fasten the rail into those holes, pushed tight against the front cargo rail and clear of the tailgate.
- Cargo rail or strap. With a cargo rail, refit it and its strap clamp assembly through the lower hole of the S clamps at 7.5 Nm (6 ft-lb). Without one, fasten just the strap, washer and lock washer to the first S clamp near the cab. Repeat on the driver side.

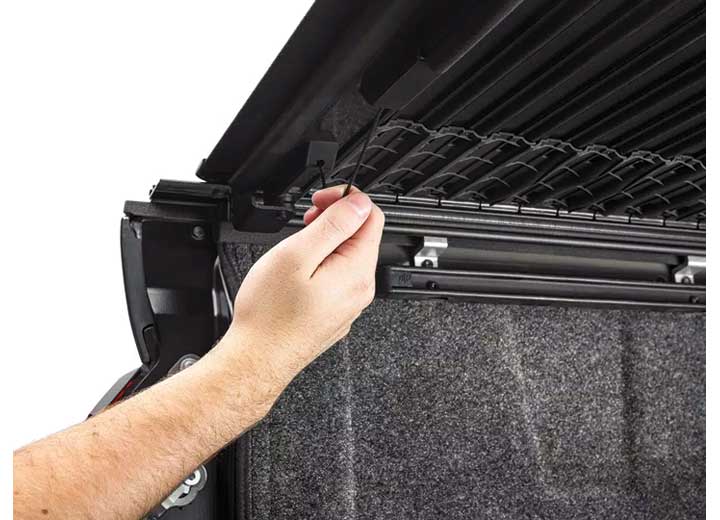

- Lock it in. Roll the cover open without knocking it out of line and tighten the knobs by hand only. Close it and check the locking levers hold it down on both sides. Refit the cover first: rest it on the rails, drop in the mounting bolts, fit the knobs loosely, line it up with about 1/8" (3.2 mm) on each side.
- BAK Revolver X4ts Replacement Rail Set Installation Sheet (PDF)
- BAK Revolver x4ts tonneau cover 22up tundra installation sheet (PDF)
Stuck on a step?
- 2 inner rails and 2 outer rails, fully assembled
- Mounting plate
- Spring actuators
- Locking levers
- 2 spacer shims and 8 angle shims (if necessary)
Specifications
| Brand | BAK |
|---|---|
| Part Number | BAKRAILS-80441RK |
| Product | Replacement side rail set for the Revolver X4ts |
| Sold As | Set of two (driver and passenger), fully assembled |
| Includes | 2 inner rails, 2 outer rails, mounting plate, spring actuators, locking levers, 2 spacer shims and 8 angle shims (if necessary) |
| Clamps | Not included (sold separately) |
| Bed Length | 6'7" |
| UPC | 192631046899 |
