Bolting a steel-framed BEDSLIDE straight into an aluminum truck bed is how you get galvanic corrosion, and BEDSLIDE says so plainly: improper installation can lead to corrosion. This kit is the correct way to do it. It brings 5" x 5" mount plates that spread the load across the thinner aluminum floor, nylon sleeves that isolate the fasteners from the bed, aluminum riv nuts rather than steel ones, and the riv nut tool to set them, plus all the bolts, nyloc nuts and washers. The kit works with any BEDSLIDE, and the beds that need it are the 2015 and newer Ford aluminum beds. If you have one of those trucks and you are mounting a slide by riv nut rather than with a no-drill bracket kit, this is not optional hardware, it is the difference between a clean install and a corroded bed floor.

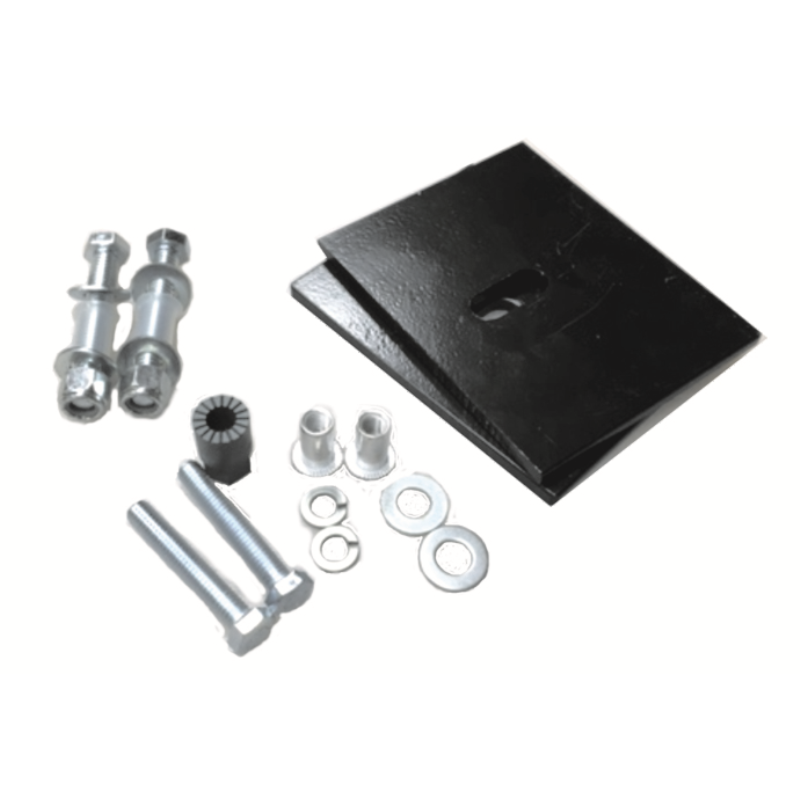

What's Included:
(2) 5" x 5" mount plates
(2) 3/8-16 x 2-1/2" bolts
(2) 3/8-16 nyloc nuts
(6) 3/8 flat washers
(2) nylon sleeves
(2) 5/16 split lock washers
(2) 5/16-18 x 2" bolts
(2) aluminum riv nuts
(1) riv nut tool
Features
Stops Galvanic Corrosion Before It Starts Aluminum riv nuts and nylon isolating sleeves keep dissimilar metals apart at the one place they would otherwise touch. That is the entire reason this kit exists, and BEDSLIDE's own warning is that improper installation can lead to corrosion.
Mount Plates Spread the Load The (2) 5" x 5" plates spread the mounting load across a wider area of the bed floor. An aluminum bed is thinner and softer than the steel it replaced, so concentrating a loaded slide onto a few small fasteners is not a good idea.
The Riv Nut Tool Is Included The kit includes the tool that sets the aluminum riv nuts, so the whole job is in one box rather than needing a separate tool purchase for a one-time task.
For 2015 and Newer Ford Aluminum Beds BEDSLIDE identifies the current applications as all Ford 2015 and newer aluminum truck beds. If your bed is aluminum and you are mounting with riv nuts, this is the kit.
Works With Any BEDSLIDE This is mounting hardware, not a sized part, so the same kit covers a 1000 CLASSIC, a 1500 CONTRACTOR, a 2000 HEAVY DUTY and a MAX Extension in any deck size.
Fitment & Compatibility
Truck bed
Fit
Ford 2015 and newer aluminum beds
✓ Yes, these are the applications BEDSLIDE names
Any other aluminum truck bed
✓ Yes, the kit is about bed material rather than model
Steel truck beds
✗ Not needed, use the standard BSA-RIVKT riv nut kit
Any BEDSLIDE series or deck size
✓ Yes, this is mounting hardware and not size specific
Slides mounted with a no-drill bracket kit
✗ Not needed, those use the factory bed bolts or tie-down points
Fit guidance: What decides whether you need this kit is what your bed is made of, not which slide you bought. BEDSLIDE lists the current applications as all Ford 2015 and newer aluminum truck beds, and warns that improper installation can lead to corrosion. If you are mounting into an aluminum bed with riv nuts, use this kit. If your truck has a steel bed, the standard BSA-RIVKT kit is the right part. If you are using a no-drill factory mount bracket kit instead, nothing goes through the bed floor at all and neither kit is needed.
Specifications
Part Number: BSA-HALUMKT
Type: Aluminum bed install kit
Mount Plates: (2) 5" x 5"
Riv Nuts: (2) aluminum
Isolation: (2) nylon sleeves
Tool Included: (1) riv nut tool
Applications: Ford 2015 and newer aluminum truck beds
Compatibility: Any BEDSLIDE
Brand: BEDSLIDE
Country of Origin: Made in the USA
Warranty: 5 years, extended to lifetime with registration within 30 days
Shipping Weight: 3 lb
UPC: 851274002647
Installation
Type: Riv nut inserts and isolating mount plates set into an aluminum bed floor · Time: About 1 hour on top of the slide install · Tools: Drill with the correct bit, socket set, plus the riv nut tool supplied · Difficulty: Intermediate, DIY with care
Position the mount plates against the slide frame and mark before drilling, then check underneath for fuel lines, wiring and the spare tire. Set the aluminum riv nuts with the supplied tool. The nylon sleeves are the part people skip and should not: they isolate the fastener from the aluminum floor and are the reason this kit exists. The BEDSLIDE aluminum bed install instructions are linked on this page and should be read before you drill anything.
Watch the installation walkthrough:
Resources
Everything you need for your BEDSLIDE Aluminum Bed Install Kit, in one place.
Warranty. BEDSLIDE covers all of its products with a 5-year warranty, extended to a LIFETIME warranty when the product is registered within 30 days of purchase. Coverage is for the original owner only and does not transfer if the product is resold. The warranty does not cover misuse, exceeding the rated capacity, corrosion of the steel frame caused by exposure, deck de-lamination from water, fuel or chemical spills, modifications that alter the design, improper installation, accidents, or lack of maintenance.
Free shipping. This item ships free to the lower 48 states and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect your order on arrival. If anything is damaged or missing, contact us right away and we will make it right.
About BEDSLIDE
BEDSLIDE invented the slide-out truck bed cargo tray. The idea is simple and it has not needed much improving: put the whole bed floor on heavy-duty bearings so it rolls out to you instead of making you climb in after your gear. Contractors, utility fleets, overlanders and anyone who has ever crawled the length of a bed looking for one tool have been buying them for the same reason for decades. Today BEDSLIDE is part of the LEER family under JB Poindexter and Co, which is the largest truck cap and accessory group in North America, and it remains an active NTEA member supplying commercial and work-truck upfitters. Every BEDSLIDE product is made in the USA.
The accessory line exists because the deck is only half the system. BEDTRAX T-slot rails run the length of every current BEDSLIDE, and the bins, trays, guardrails, tie-downs and mounting kits all drop into that same track, so you can add capability years after the slide went in without drilling anything new. Parts are built from aluminum and composite with an all-weather soft surface inside the bins, and they are designed to live outdoors in the same weather the slide does.
Prestige Truck is an authorized BEDSLIDE dealer. Every part we ship is new, in the factory box, and covered by the full BEDSLIDE factory warranty.
BEDSLIDE RIV NUT Installation
BEDSLIDE's official short clip on setting a RIV NUT with the supplied tool.
It is filmed vertically for phones, so it plays small on a desktop, but it is the clearest look at how the riv nut pulls up tight against the bed floor.
Reach Anything In Your Bed
The core BEDSLIDE pitch in one clip: pull the deck out and everything in the bed comes to you, with no crawling over the tailgate.
If you have ever climbed into a bed for the one box at the front, this is the fix.
The Lifetime Warranty
BEDSLIDE explains its warranty: five years on every slide, extended to lifetime coverage when you register within 30 days of purchase.
It is the original owner's warranty, so register it when it arrives and the slide is covered for as long as you keep the truck.
Frequently Asked Questions
Straight answers on specs, fit and support
Do I need this kit?
Only if you are mounting a BEDSLIDE into an aluminum truck bed using riv nuts. BEDSLIDE lists the current applications as all Ford 2015 and newer aluminum beds. If your bed is steel, the standard BSA-RIVKT kit is the right part instead.
What happens if I skip it and use standard hardware?
You risk galvanic corrosion where steel fasteners meet the aluminum floor, which is exactly what BEDSLIDE warns about when it says improper installation can lead to corrosion. The aluminum riv nuts and the nylon isolating sleeves in this kit are what prevent that, and corrosion caused by an improper install is not a warranty matter.
What is in the box?
Two 5" x 5" mount plates, two 3/8-16 x 2-1/2" bolts, two 3/8-16 nyloc nuts, six 3/8 flat washers, two nylon sleeves, two 5/16 split lock washers, two 5/16-18 x 2" bolts, two aluminum riv nuts and the riv nut tool. The tool is included, so there is nothing else to buy for the job.
Will it work with my BEDSLIDE?
Yes. This is mounting hardware rather than a sized part, so the same kit covers a 1000 CLASSIC, a 1500 CONTRACTOR, a 2000 HEAVY DUTY and a MAX Extension in any deck size.
Is there a way to avoid drilling the aluminum bed at all?
For many trucks, yes. BEDSLIDE makes no-drill factory mount bracket kits that use the truck's own bed bolts or factory tie-down points, so nothing goes through the bed floor and no isolation kit is needed. Those are sold per truck application, so you order the one for your make, model and bed length.
What does the BEDSLIDE warranty cover on an accessory like this?
Every BEDSLIDE product carries a 5-year warranty, and BEDSLIDE extends it to a lifetime warranty if you register the product within 30 days of purchase. Coverage is for the original owner and does not transfer if you sell the truck or the part. What is not covered is worth knowing up front: misuse, loading past the rated capacity, corrosion of the steel frame from exposure, deck de-lamination caused by water, fuel or chemical spills, modifications that change the design, improper installation, accidents, and neglect. Register it when it arrives, not later.
