The BEDBIN Complete 5-Piece Kit is every BEDSLIDE bin at once, bought together at about 10 percent less than the three kits cost separately. You get the Side Kix pair, which are the 7" x 44" bins that ride above the guardrails and out over the wheel wells, the Mini Kix pair, which are the 7" x 18" bins that sit outboard on the BEDTRAX at the tailgate end, and the deck divider, a loose 7" x 44" bin with a non-skid pad that you drop anywhere on the deck to stop a load shifting. Together they take the space that is normally wasted around the outside of a slide deck and turn it into organized storage, while leaving the whole deck free for the big items. Everything is aluminum and composite with an all-weather soft surface inside the bins, made in the USA, and it all hand-tightens into the BEDTRAX track you already have. This is the silver version, matched to a standard silver BEDSLIDE deck.
What's Included:

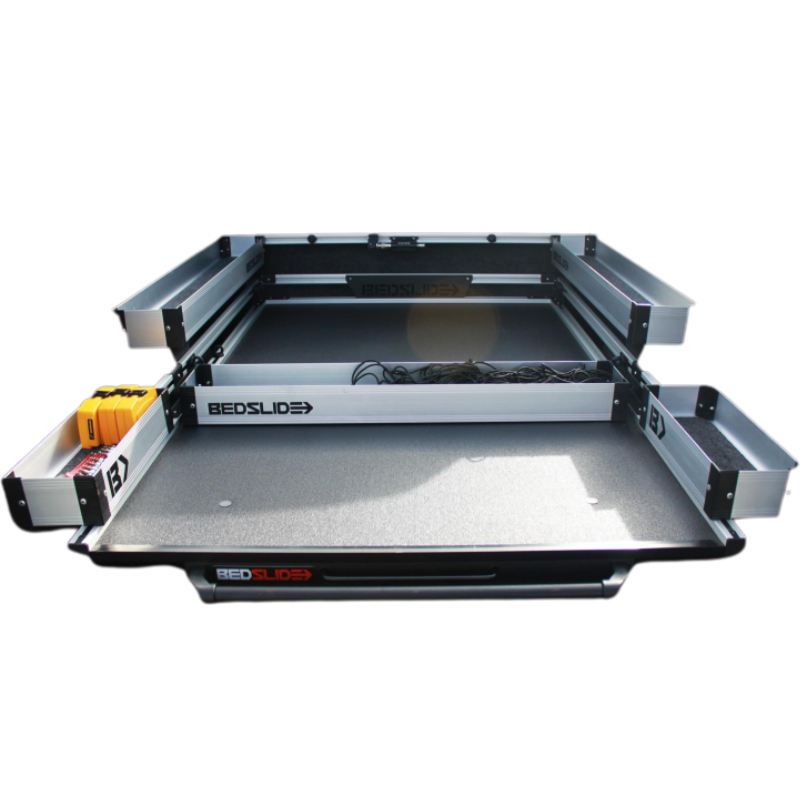

BSA-SK Side Kix, (2) 7" x 44" BEDBINs
Headboard BEDTRAX crossbar for the Side Kix
BSA-MK Mini Kix, (2) 7" x 18" BEDBINs
BSA-DK deck divider, (1) 7" x 44" BEDBIN with non-skid pad
Mounting hardware for all five bins
Features
All Five BEDBINs, About 10 Percent Off Buying the Side Kix, Mini Kix and deck divider together as BSA-BK saves roughly 10 percent against the three part numbers bought separately. If you already know you want the full cargo management setup, this is the way to buy it.

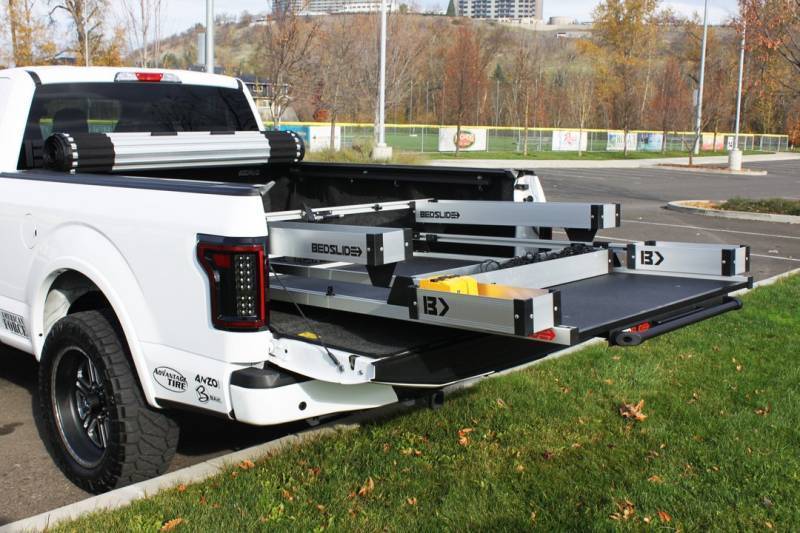

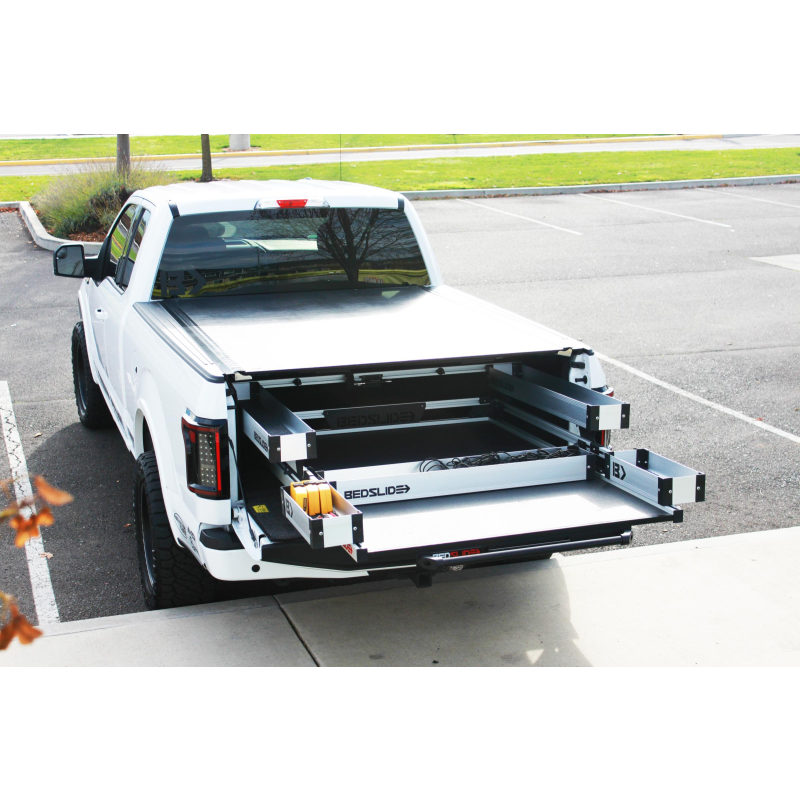

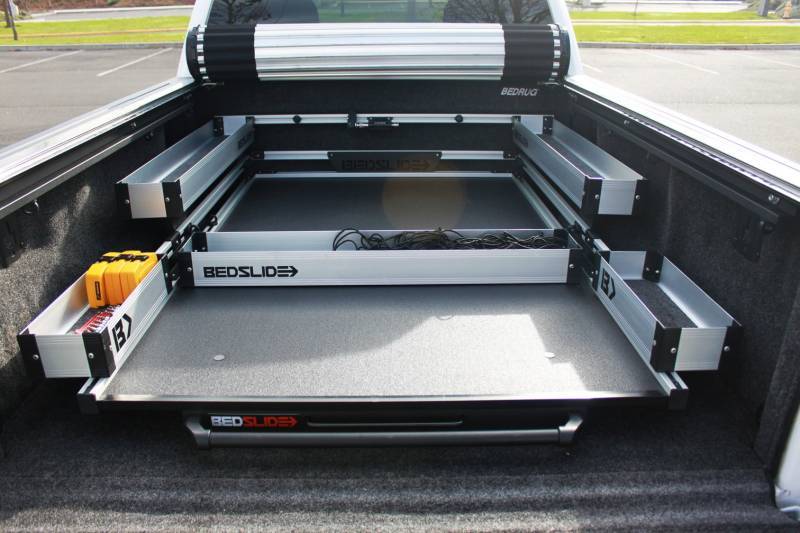

Storage Over and Beside the Wheel Wells The Side Kix pair sits taller than the guardrails and reaches out over the wheel wells, which is dead space on every pickup. The Mini Kix pair takes the narrower gap beside the wheel wells at the tailgate end. Between them you recover the full perimeter of the bed without giving up a single inch of deck.
The Deck Divider Doubles as a Load Stop The 7" x 44" divider is not fixed down. It has a non-skid pad underneath so you set it wherever the load needs it, wedge groceries against the headboard or stop a toolbox sliding side to side, and it holds smaller items itself while it is doing that.
Side Kix Give You a Taller Side Wall Because the Side Kix stand above the guardrail line, they act as extra containment for a loose load, not just as bins. If you regularly haul things that want to roll, that extra height is the real reason to fit them.
Mounts to the BEDTRAX T-Slot Track Every current BEDSLIDE runs BEDTRAX T-slot rails down its length. This bin drops into that same track and hand-tightens into place, so it is a bolt-on upgrade you can add years after the slide went into the truck. Nothing new gets drilled and nothing about the slide has to come apart.

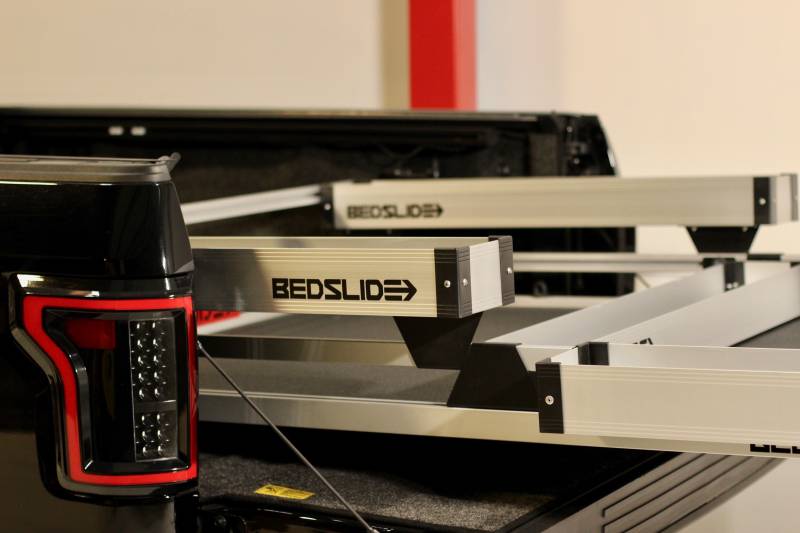

Built From Aluminum and Composite The bin body is aluminum with composite end caps and an all-weather soft surface lining the inside, so tools and gear are not sliding around on bare metal. It is the same material set BEDSLIDE uses on the deck itself, which means it lives outdoors in the same weather the slide does without swelling, rotting or rusting through.
Made in the USA BEDSLIDE builds this in the USA alongside the slides. That matters most for the parts you cannot see: the extrusion tolerances that let the bin slide into a BEDTRAX rail cleanly, and the hardware that has to hold a loaded bin steady over a washboard road.
Fitment & Compatibility
BEDSLIDE size
Fit
BEDSLIDE 70" and longer, 48" wide
● Best fit, everything mounts as designed
BEDSLIDE 66" to 69" long
✓ Fits, but expect the Side Kix and Mini Kix to overlap slightly
BEDSLIDE 65" and shorter
● Side Kix and Mini Kix will overlap
BEDSLIDE narrower than 48"
✓ Fits, but the Side Kix BEDTRAX support needs trimming
BEDSLIDE without guardrails or TRAXRAILS
● Side Kix cannot mount, add a BSA-GRK kit first
Fit guidance: The Side Kix are 44" long and the Mini Kix are 18" long, and with hardware they take up about 64" of a BEDSLIDE deck. That is why 65" and shorter decks see some overlap. Side guardrails may need cutting for the Mini Kix to sit properly, and decks narrower than 48" need the Side Kix BEDTRAX support trimmed. The deck divider is 44" long and fits best on a 48" wide deck. Guardrails or TRAXRAILS are required to use the Side Kix.
Specifications
Part Number: BSA-BK
Kit Contents: BSA-SK Side Kix, BSA-MK Mini Kix, BSA-DK deck divider
Finish: Silver
Side Kix Bin Size: 7" x 44" each, (2) supplied
Mini Kix Bin Size: 7" x 18" each, (2) supplied
Deck Divider Size: 7" x 44", (1) supplied
Guardrails or TRAXRAILS Required: Yes, for the Side Kix
Brand: BEDSLIDE
Material: Aluminum and composite with an all-weather soft surface liner
Mounting: BEDTRAX T-slot track, hand-tighten
Country of Origin: Made in the USA
Warranty: 5 years, extended to lifetime with registration within 30 days
Shipping Weight: 38 lb
UPC: 856341006214
Installation
Type: Bolt-on to the existing BEDTRAX and guardrail track, no drilling · Time: About 45 minutes for all five bins · Tools: Basic hand tools, mostly hand-tighten · Difficulty: Easy, DIY
Slide each bin into the BEDTRAX or guardrail track and hand-tighten it where you want it. The Side Kix bring their own headboard crossbar, which goes in first. Nothing is drilled and nothing about the slide has to come apart. Load the bins after they are tight, and re-check the fasteners once after the first few trips.
Warranty, Shipping & Returns
Warranty. BEDSLIDE covers all of its products with a 5-year warranty, extended to a LIFETIME warranty when the product is registered within 30 days of purchase. Coverage is for the original owner only and does not transfer if the product is resold. The warranty does not cover misuse, exceeding the rated capacity, corrosion of the steel frame caused by exposure, deck de-lamination from water, fuel or chemical spills, modifications that alter the design, improper installation, accidents, or lack of maintenance.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About BEDSLIDE
BEDSLIDE invented the slide-out truck bed cargo tray. The idea is simple and it has not needed much improving: put the whole bed floor on heavy-duty bearings so it rolls out to you instead of making you climb in after your gear. Contractors, utility fleets, overlanders and anyone who has ever crawled the length of a bed looking for one tool have been buying them for the same reason for decades. Today BEDSLIDE is part of the LEER family under JB Poindexter and Co, which is the largest truck cap and accessory group in North America, and it remains an active NTEA member supplying commercial and work-truck upfitters. Every BEDSLIDE product is made in the USA.
The accessory line exists because the deck is only half the system. BEDTRAX T-slot rails run the length of every current BEDSLIDE, and the bins, trays, guardrails, tie-downs and mounting kits all drop into that same track, so you can add capability years after the slide went in without drilling anything new. Parts are built from aluminum and composite with an all-weather soft surface inside the bins, and they are designed to live outdoors in the same weather the slide does.
Prestige Truck is an authorized BEDSLIDE dealer. Every part we ship is new, in the factory box, and covered by the full BEDSLIDE factory warranty.
BEDSLIDE Drawer System Features And Benefits
A longer look at how a loaded BEDSLIDE works day to day, including the cargo management options that the BEDBIN accessories plug into.
BEDSLIDE Specs, Measurements And Accessories
A run through how BEDSLIDE measures its decks and how the accessory range attaches to them.
Handy for checking rail lengths and clearances before you add bins or trays.
BEDSLIDE Silver And Black Editions
BEDSLIDE explains the difference between the Silver and Black Editions.
It is a finish choice, not a capability one, and this accessory is offered in both so you can match whatever is already in your bed.
Frequently Asked Questions
Straight answers on specs, fit and support
Will this fit my BEDSLIDE?
It fits any current BEDSLIDE that has guardrails or TRAXRAILS, which is every CLASSIC, CONTRACTOR, HEAVY DUTY and MAX slide sold today. Size is the thing to check rather than model. The Side Kix and Mini Kix together take about 64" of deck length, so on a 65" or shorter BEDSLIDE the two will overlap. On decks narrower than 48" the Side Kix BEDTRAX support needs trimming, and side guardrails may need cutting for the Mini Kix to sit right.
Do I need a guardrail or TRAXRAIL kit as well?
Yes. This bin sits on the upper GUARDRAIL or TRAXRAIL track, so your BEDSLIDE needs one of those fitted. Guardrails are included on current CLASSIC, CONTRACTOR, HEAVY DUTY and MAX slides. If yours is an older deck without them, the BSA-GRK guardrail upgrade kits add the track.
What is the difference between the Silver and the Black version?
Finish, and nothing else. The BSA-BK is the silver version and the BSA-BKB is the other. Same size, same mounting, same materials and the same warranty. Pick whichever matches the BEDSLIDE already in your truck, because a silver bin on a Black Edition deck is the one thing you cannot un-see. Black Edition parts carry a small price premium over silver across the whole BEDSLIDE range.
Can I leave it in the bed in bad weather?
Yes. The bin is aluminum and composite with an all-weather soft liner, and BEDSLIDE builds the whole product line to sit outside year round. Rain, snow, road salt and UV are all within design intent. The one thing worth doing is rinsing road salt off in the spring, the same as you would the slide, because the warranty does not cover corrosion of the steel frame caused by exposure.
What does the BEDSLIDE warranty cover on an accessory like this?
Every BEDSLIDE product carries a 5-year warranty, and BEDSLIDE extends it to a lifetime warranty if you register the product within 30 days of purchase. Coverage is for the original owner and does not transfer if you sell the truck or the part. What is not covered is worth knowing up front: misuse, loading past the rated capacity, corrosion of the steel frame from exposure, deck de-lamination caused by water, fuel or chemical spills, modifications that change the design, improper installation, accidents, and neglect. Register it when it arrives, not later.
Does the BEDSLIDE come with this?
No. Guardrails, BEDTRAX rails and the (4) D-ring tie-downs are included with a current BEDSLIDE, but the BEDBIN accessories are sold separately. This listing is for the bin kit only. The BEDSLIDE shown in some of the photos is not included.
