The 2024 Ford Ranger is a new truck under the sheet metal, and its bed mounting points do not match the outgoing generation, which is why it gets its own bracket kit. This one mounts to the factory tie-down points rather than the bed bolts, so nothing goes through the bed floor at all. You get a cab end bracket, two side mount brackets and the hardware pack, the slide sits down on top of them, and the bed is untouched if you ever take it out again. Installation is hand tools only, with no drilling, cutting or welding. Note that this kit is for the 5' bed and that the no-drill system works with the 1000 lb BEDSLIDE models, meaning the S model and the CLASSIC in Silver and Black Edition. The BEDSLIDE itself is sold separately.
What's Included:
Hardware pack
(1) cab end bracket
(2) side mount brackets
Installation instructions
Features
No Drilling Into Your Truck Bed This is the whole point. BEDSLIDE's patented mounting brackets use your truck's existing factory tie-down points to secure the slide, so the bed floor stays exactly as the factory made it. Nothing to seal, nothing to touch up, and nothing that shows when the slide comes out.
Built for One Truck These brackets are cut for the 2024 Ford Ranger and nothing else. That is why BEDSLIDE sells a kit per application rather than a universal bracket: the mounting points move between generations and bed lengths, and a bracket that nearly lines up is worse than no bracket at all.
Installs With Hand Tools BEDSLIDE lists the job as easy installation with hand tools. There is no welding, no cutting and no drilling. The brackets go to the factory mounting points and the slide goes on top of them.
Safe and Secure Mounting Points Using the truck's own tie-down points means the slide is anchored to structure the manufacturer already engineered to take load, rather than to sheet metal you have made a hole in.
Fitment & Compatibility
Make
Models
Years
Bed size
Ford
Ranger
2024
● 5'
Fit guidance: This kit is cut for one application: Ford Ranger, 2024, 5'. The 2019 to 2023 Ranger uses different mounting points and takes the BSA-FM5870 kit instead. The no-drill kits fit the 1000 lb BEDSLIDE models only, which is the S model and the CLASSIC in Silver and Black Edition, and they are not compatible with 2017 and previous CL parts. If you are fitting these to a slide you already own, all serial numbers after 102951 will accept the no-drill brackets. The BEDSLIDE itself is not included.
Specifications
Part Number: BSA-RANGER-2024
Type: No-drill factory mount install kit
Vehicle: Ford Ranger
Years: 2024
Bed Lengths: 5'
Mounts To: Factory tie-down points
Contents: Hardware pack, (1) cab end bracket and (2) side mount brackets
Compatible BEDSLIDE Models: 1000 lb models only: the S model and the CLASSIC in Silver and Black Edition
Not Compatible With: 2017 and previous CL parts
BEDSLIDE Serial Number Requirement: After 102951
BEDSLIDE Included: No
Brand: BEDSLIDE
Country of Origin: Made in the USA
Warranty: 5 years, extended to lifetime with registration within 30 days
Shipping Weight: 9 lb
UPC: 810059882119
Installation
Type: No-drill, brackets mount to the factory tie-down points · Time: About 1 hour · Tools: Basic hand tools and a socket set · Difficulty: Easy, DIY

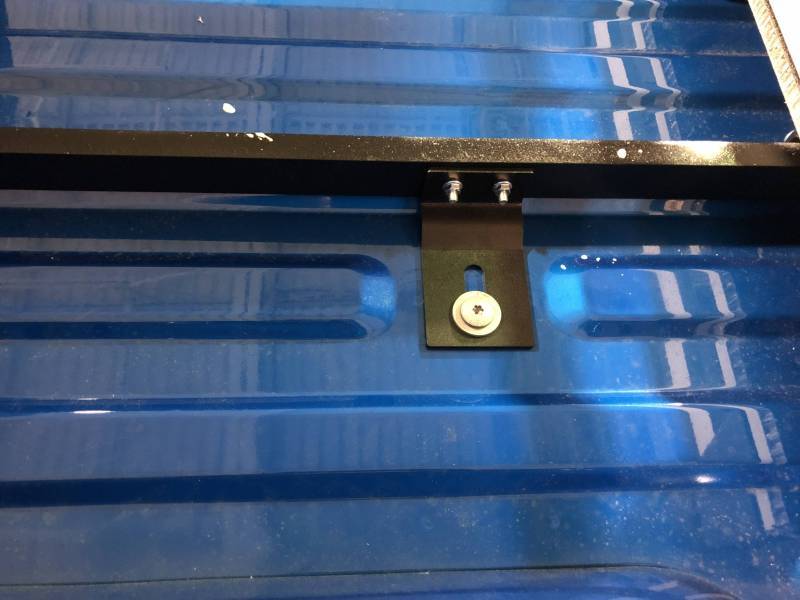

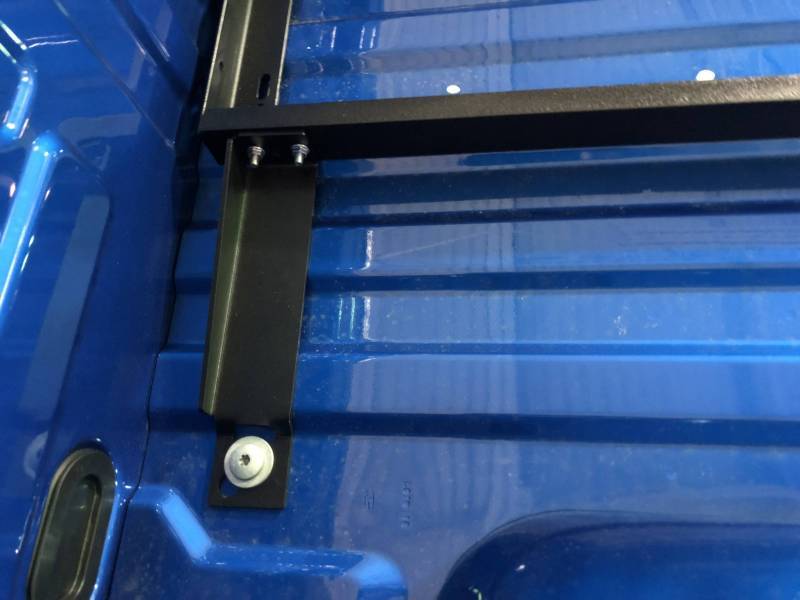

Fit the cab end bracket and the two side mount brackets to the factory tie-down points using the supplied hardware pack, then set the BEDSLIDE down onto them. Nothing is drilled and nothing goes through the bed floor. Roll the deck fully out and back before loading it, and re-check every fastener after the first few loaded trips.
Watch the installation walkthrough:
Warranty, Shipping & Returns
Warranty. BEDSLIDE covers all of its products with a 5-year warranty, extended to a LIFETIME warranty when the product is registered within 30 days of purchase. Coverage is for the original owner only and does not transfer if the product is resold. The warranty does not cover misuse, exceeding the rated capacity, corrosion of the steel frame caused by exposure, deck de-lamination from water, fuel or chemical spills, modifications that alter the design, improper installation, accidents, or lack of maintenance.
Free shipping. This item ships free to the lower 48 states and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect your order on arrival. If anything is damaged or missing, contact us right away and we will make it right.
About BEDSLIDE
BEDSLIDE invented the slide-out truck bed cargo tray. The idea is simple and it has not needed much improving: put the whole bed floor on heavy-duty bearings so it rolls out to you instead of making you climb in after your gear. Contractors, utility fleets, overlanders and anyone who has ever crawled the length of a bed looking for one tool have been buying them for the same reason for decades. Today BEDSLIDE is part of the LEER family under JB Poindexter and Co, which is the largest truck cap and accessory group in North America, and it remains an active NTEA member supplying commercial and work-truck upfitters. Every BEDSLIDE product is made in the USA.
The accessory line exists because the deck is only half the system. BEDTRAX T-slot rails run the length of every current BEDSLIDE, and the bins, trays, guardrails, tie-downs and mounting kits all drop into that same track, so you can add capability years after the slide went in without drilling anything new. Parts are built from aluminum and composite with an all-weather soft surface inside the bins, and they are designed to live outdoors in the same weather the slide does.
Prestige Truck is an authorized BEDSLIDE dealer. Every part we ship is new, in the factory box, and covered by the full BEDSLIDE factory warranty.
Install The BEDSLIDE Easily
BEDSLIDE's general installation video for the slide itself.
Useful for seeing where the mounting hardware ends up in the bed and how the deck sits once it is bolted down.
Which BEDSLIDE Is Right For You?
BEDSLIDE's buying guide across the 1000 Classic, 1500 Contractor, 2000 Heavy Duty and MAX Extension lines.
Useful if you are still choosing the slide this part will attach to.
Specs And Measurements Explained
BEDSLIDE's own guide to reading the spec sheet: how the deck sizes are measured, what the capacity rating means, and how the accessories mount to the rails.
Watch it with a tape measure at your truck and the fit question answers itself.
Frequently Asked Questions
Straight answers on specs, fit and support
Will this fit my truck?
It fits the 2024 Ford Ranger with the 5' bed. The 2019 to 2023 Ranger is a different truck at the mounting points and takes the BSA-FM5870 kit instead, so the model year is the thing to check rather than the badge.
Which BEDSLIDE models can I use these brackets with?
The 1000 lb models only. BEDSLIDE is explicit about this: the no-drill kits work with the S model and the CLASSIC in Silver and Black Edition, and they are not compatible with 2017 and previous CL parts. If you are ordering brackets for a slide you already own, check the serial number, because everything after serial 102951 will accept the no-drill brackets. A 1500 CONTRACTOR, a 2000 HEAVY DUTY or a MAX Extension needs a conventional mount.
How does it mount without drilling?
It uses the Ranger's factory tie-down points. The cab end bracket and the two side mount brackets bolt to those, the slide sits on the brackets, and nothing new goes through the bed floor. Those tie-down points are engineered to take load, which is exactly why BEDSLIDE uses them.
What tools do I need?
Basic hand tools and a socket set. Because this kit mounts to tie-down points rather than bed bolts, there is no Torx bit or seized-bolt gamble involved, which makes it one of the more straightforward kits in the range.
Does this come with the BEDSLIDE?
No. This listing is the mounting bracket kit only, and BEDSLIDE states plainly that the BEDSLIDE is not included. You buy the slide once and the bracket kit is what attaches it to your particular truck without drilling. Some of the photographs show a slide fitted in a bed, because that is what the brackets are holding up, but the slide itself is a separate purchase.
What does the BEDSLIDE warranty cover on an accessory like this?
Every BEDSLIDE product carries a 5-year warranty, and BEDSLIDE extends it to a lifetime warranty if you register the product within 30 days of purchase. Coverage is for the original owner and does not transfer if you sell the truck or the part. What is not covered is worth knowing up front: misuse, loading past the rated capacity, corrosion of the steel frame from exposure, deck de-lamination caused by water, fuel or chemical spills, modifications that change the design, improper installation, accidents, and neglect. Register it when it arrives, not later.
