B&W Continuum Weight Distribution Hitch, 2" Shank, 2-5/16" Ball, Standard Coupler (WDHK4500)
$40 OFFOrders $500+
Apply at checkout. One use per customer.
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features

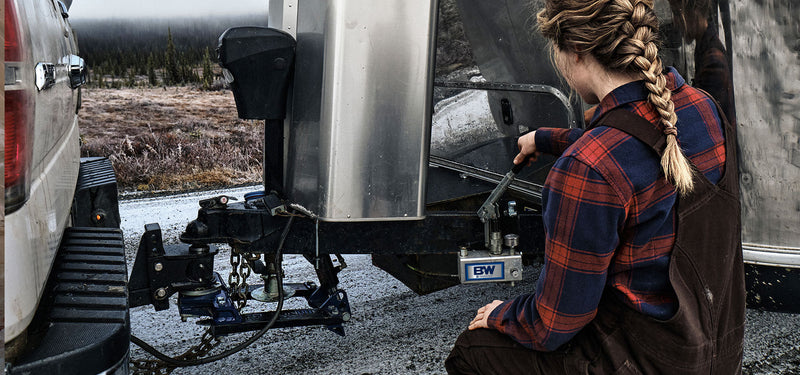

- Set Weight With a Pump Handle: Most weight distribution hitches are either loaded or unloaded. On the Continuum you pump a handle to move as much weight to the front axle as you want, and twist the needle valve knob to let it off again.
- One Bar Set, 600-1,600 lb: B&W teamed with Hendrickson for tapered composite spring bars built with Hendrickson's LITEFLEX technology. One set covers 600 to 1,600 lb of tongue weight, and B&W says composite flexes five times as much as steel at similar strength.
- Sway Prevention Already Working: The bars stay under load, so the friction that resists sway is there from the first foot of travel. B&W tested leading friction sway controls with the truck on air casters and found most take little force to overcome.
- Repeatable Setup on a Gauge: The head angle is preset and there is nothing to shim. A pressure gauge on the pump lets you return to the same setting every trip.
- All Setup on Driver's Side: Pump, gauge and needle valve are all on the trailer's driver side, so you set or release the load without walking around to the other side.
- Comes Apart When Not Needed: Hooking up a small trailer that needs no weight distribution? Lift off the spring bar assembly and pull it with the ball mount alone.
Description & Fitment

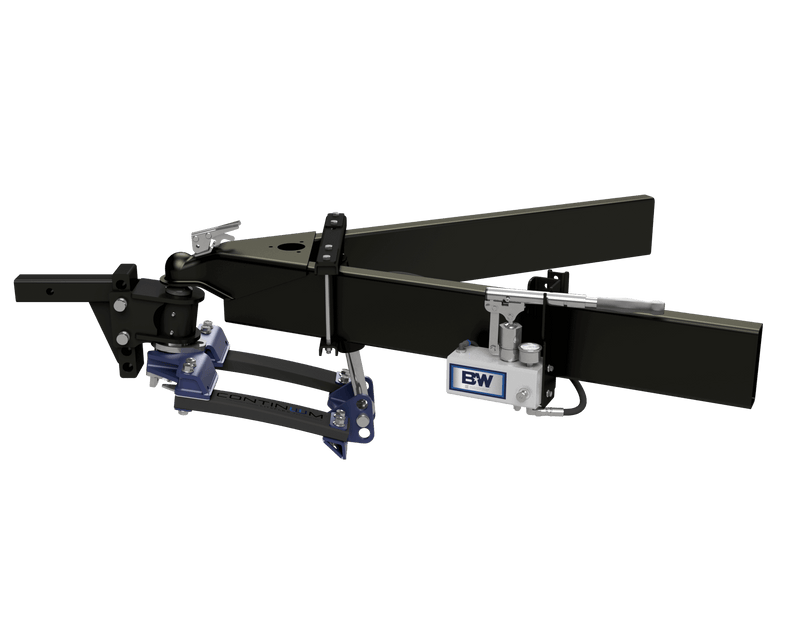

WDHK4500 is the complete B&W Continuum Weight Distribution Hitch for a 2" receiver and a trailer with a standard coupler, with standard shank and standard drop. It ships as head unit WDHH4500 with its 2-5/16" ball plus load bar unit WDHL4510, rated for trailers up to 16,000 lb with 600-1,600 lb of tongue weight.
Fitment & Compatibility
Check your fit: a 2" receiver, a trailer with an A-frame and a standard coupler, a trailer up to 16,000 lb and tongue weight between 600 and 1,600 lb.
Not for: a 2.5" receiver (use WDHK4502); a underslung coupler (use WDHK4501); trailers without an A-frame coupler.
About B&W Trailer Hitches
Roger Baker and Joe Works founded B&W Trailer Hitches in 1987, working out of a garage where they built custom truck beds; the company name comes from their initials. Customers wanted a gooseneck ball that would not sit welded in the middle of the bed, and their answer was the Turnoverball: it mounts beneath the bed, and the ball flips over to stow in the same hole it tows from. The Companion fifth wheel hitch came next and uses the same under-bed mounting.
B&W still builds its hitches in Humboldt, Kansas, from American-made steel, and Joe Works began handing the company to its workers in 2007; today it is employee-owned. B&W counts itself among the few hitch makers still building in America.
Buying B&W from Prestige Truck. B&W honors its warranty whether or not you register the product, so there is no card to mail. Keep your Prestige Truck order email with your records in case you ever need to make a claim.
Frequently Asked Questions
What comes in WDHK4500?
Head unit WDHH4500 with the 2-5/16" ball and a 5/8" receiver pin, plus load bar unit WDHL4510 with the hydraulic pump and cylinder and mounting hardware, per B&W.
Which coupler is WDHK4500 for?
A standard coupler. Underslung couplers take the version with the cylinder extension, WDHK4501.
How long does installation take?
In most cases 30 minutes or less, B&W says, and the one wrench you need is 9/16". The bar assembly comes put together and there is no head angle to set.
What if my load changes?
Add a few pumps on the handle to shift more weight to the front axle. B&W's design means no bar swap and no head adjustment for a change in tongue weight.
Will it fit my trailer frame?
B&W's manual calls for an A-frame coupler with rails about 2" wide and 5" to 6" tall; 4" to 7" rails work with alternate bolts available from B&W. The rails must sit 6" to 9" apart where it mounts, with 2" of open space behind the coupler.
Will the hydraulics leak?
B&W built the system as a closed loop, the type used on tractors and construction equipment. B&W's manual says the system relieves pressure automatically when it exceeds 3,000 psi, to protect the hitch, truck and trailer during overload events.
Installation
Here's the short version. Follow B&W's install sheet (below) for the exact positions and hardware.
- Park on level ground and level the trailer (equal frame-to-ground distance front and rear), then unpack the hitch components.
- Set the head-unit height: measure ground to the top of the coupler and to the ball with the head unit in the receiver, then re-pin the head unit so the ball height is correct; secure the pins with lynch pins.
- Prepare the trailer A-frame and bolt the pump mount bracket and inside clamp to the driver-side frame with the 3/8" x 3" bolts and flange nuts; torque the 3/8" nuts to 40 ft-lbs.
- Position the hydraulic cylinder and mount the pump to its bracket (the WDHL4510 load bar unit has no cylinder extension, so B&W skips that step).
- Secure the top cylinder mount with the washer plates and 3/8" x 8" cap screws, grease the head unit and fit the vent hose; never use tools on the needle valve.
- Attach the load bars to the cylinder, fit the fork holder bracket around the jack leg (3/8" nuts 30 ft-lbs), connect wiring, breakaway cable and chains, then set load by the wheel-well measurements.
Stuck on a step?
Specifications
| Brand | B&W Trailer Hitches |
|---|---|
| Part Number | WDHK4500 |
| System | Continuum Weight Distribution Hitch |
| Ball | 2-5/16" |
| Spring bars | Tapered composite, LITEFLEX by Hendrickson |
| Load adjustment | Hydraulic pump with pressure gauge; needle valve release |
| Head angle | Preset |
| Rating (complete hitch) | 16,000 lb max trailer weight; 600-1,600 lb tongue weight |
| Trailer | A-frame coupler only |
| Certification | SAE J-2638 |
| Made in | USA |
| Product | Continuum Weight Distribution Hitch (complete kit) |
| Shank size | 2" (fits a 2" receiver) |
| Shank length | Standard |
| Drop | Standard |
| Trailer coupler | Standard |
| Head unit | WDHH4500 |
| Load bar unit | WDHL4510 |
| Rating | 16,000 lb max trailer weight; 600-1,600 lb tongue weight |
| Warranty | Limited Lifetime |
| UPC | 843233083217 |
