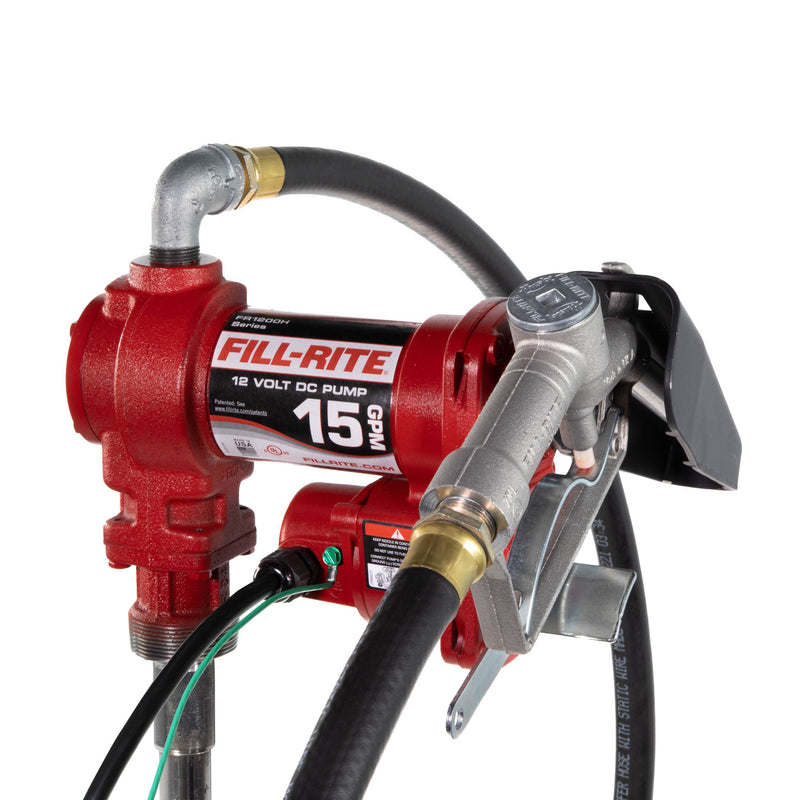

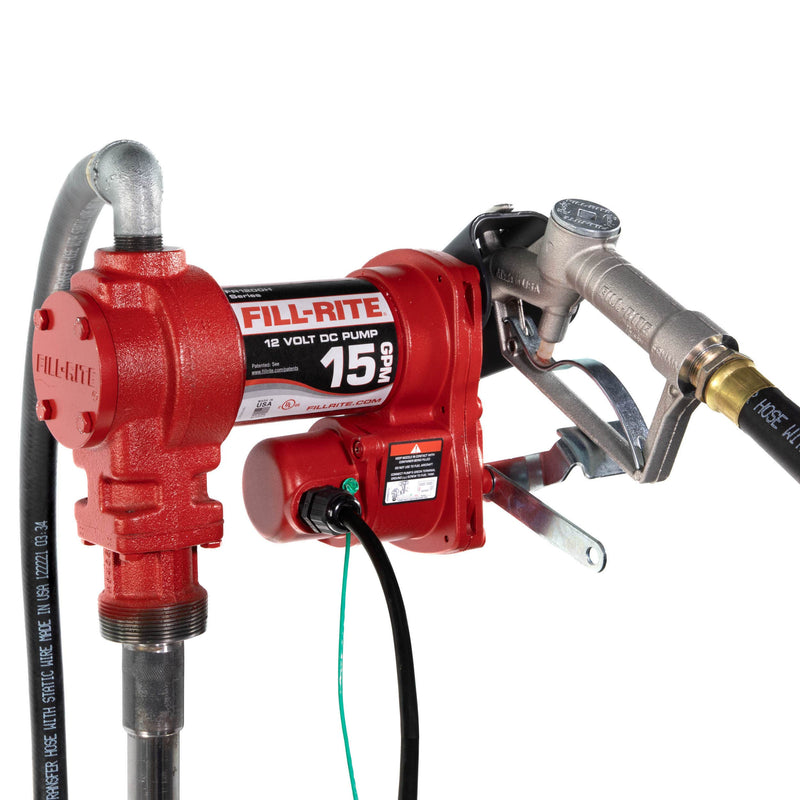

Fill-Rite FR1210H 12V DC 15 GPM Fuel Transfer Pump with Manual Nozzle

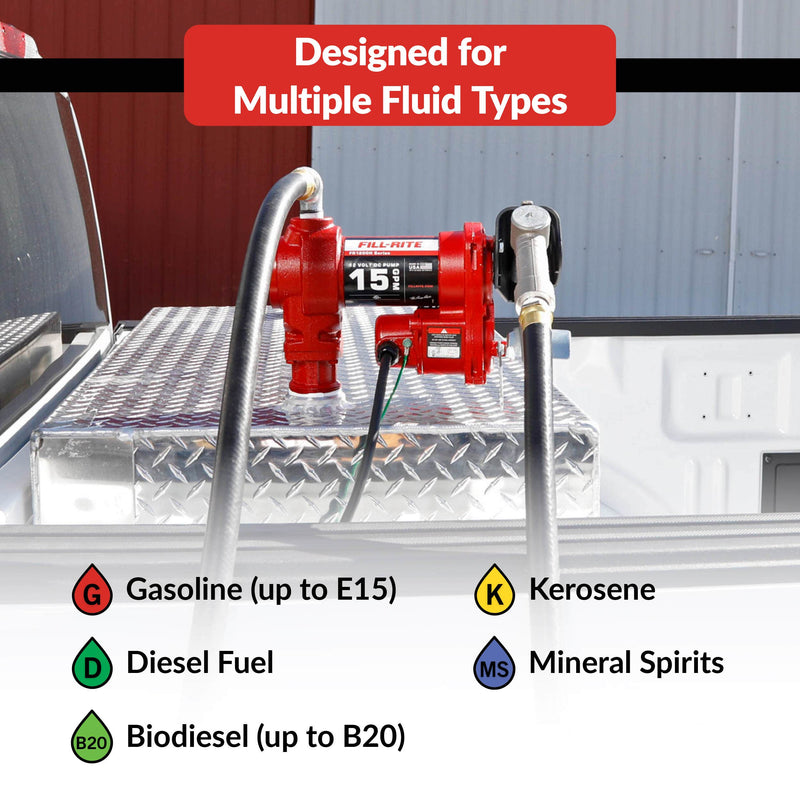

The Fill-Rite FR1210H is a 12-volt DC fuel transfer pump built for mobile refueling. Mount it on a bulk tank, transfer tank, or drum and move diesel, gasoline (up to E15), kerosene, biodiesel (up to B20), or mineral spirits at up to 15 GPM (57 LPM) straight off your truck or tractor battery, with no shore power needed. It is the pump fleets, farms, construction crews, and equipment yards reach for to fuel their own gear in the field. It is not for use with DEF.

A cast-iron housing and Fill-Rite rotary-vane technology give it the continuous-duty toughness the brand is known for, and the thermally protected 1/4 HP motor is self-priming with an 8' suction lift, so it draws fuel fast without babysitting. It arrives as a complete, ready-to-pump bundle and is backed by Fill-Rite's tiered Limited Warranty.

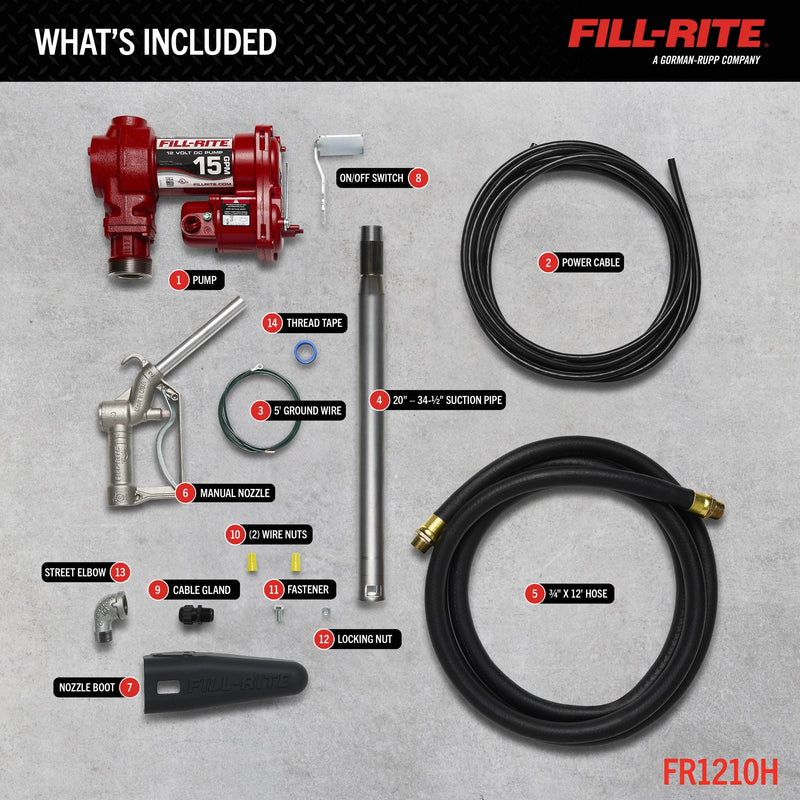

What's Included:

• FR1210H 12V DC cast-iron fuel transfer pump with 2 in NPT bung mount
• 18', 12-gauge power cable with battery clamps
• 20" to 34.5" steel telescoping suction pipe
• 3/4" x 12' discharge hose with static ground wire
• 3/4" cast-aluminum manual shut-off nozzle with nozzle boot
• Installation hardware: PTFE tape, street elbow, ground wire, cable gland, wire nuts, and locking nut
• Owner's manual

Watch Fill-Rite's official product overview:

Features

15 GPM Flow On 12-Volt Power

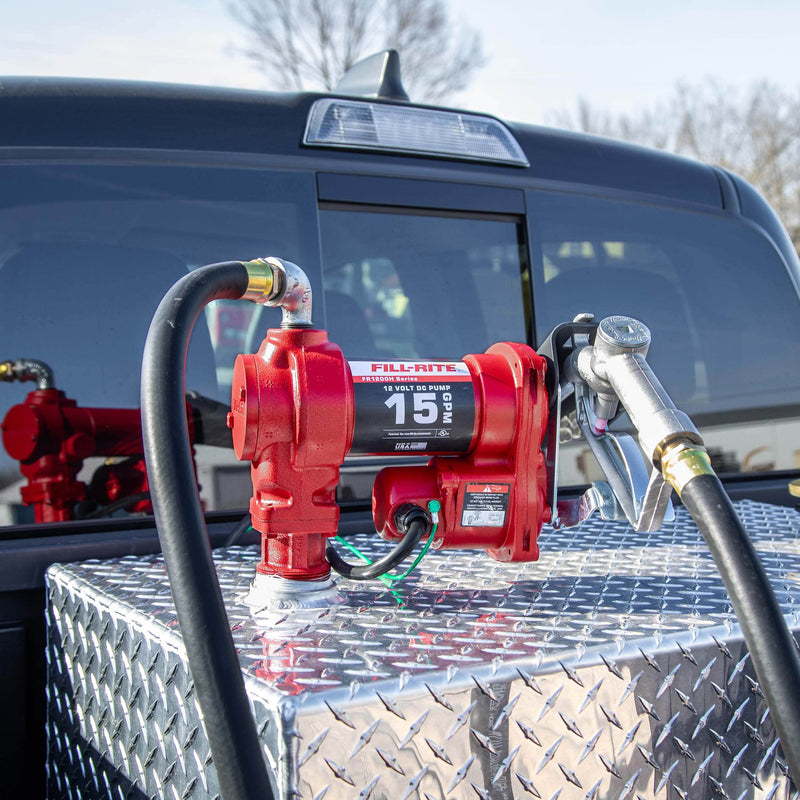

Runs off any 12V DC battery and moves up to 15 GPM (57 LPM), so you can refuel anywhere without shore power. It is perfectly matched to transfer tanks in the 15 to 60 gallon range on a truck or trailer.

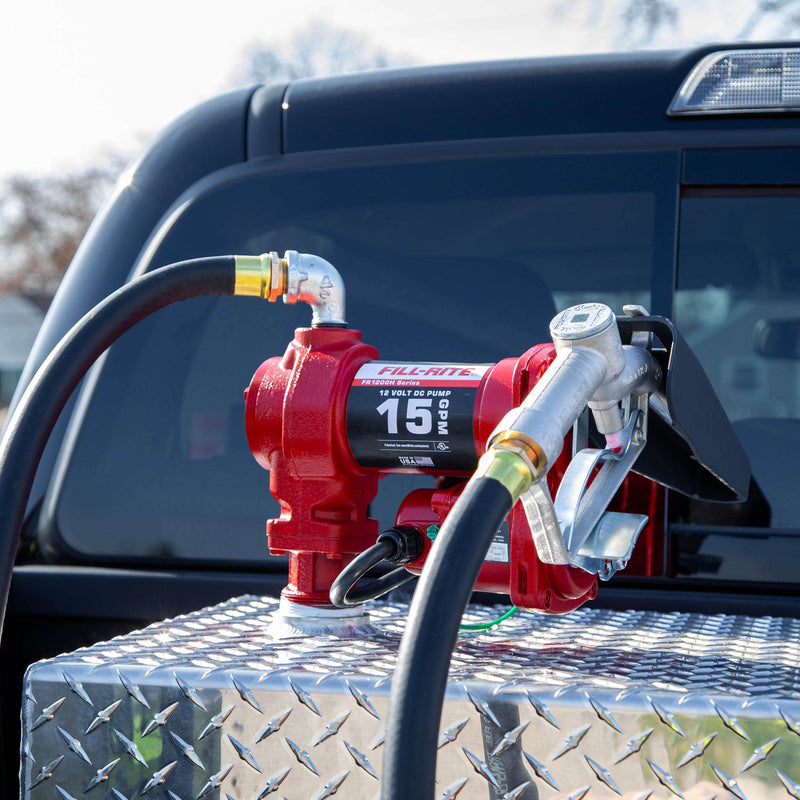

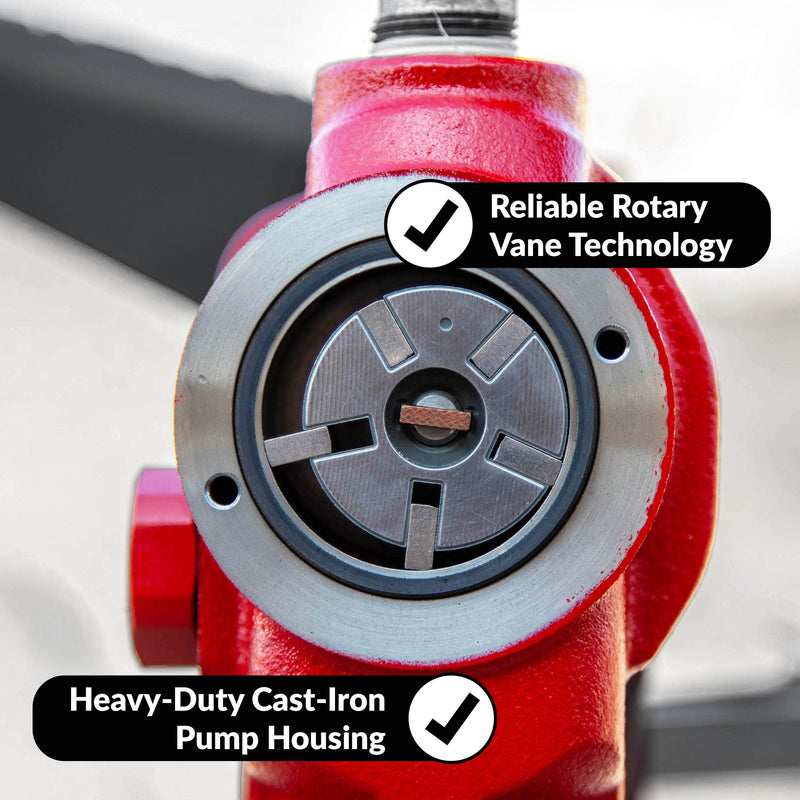

Cast-Iron, Continuous-Duty Build
A rugged cast-iron housing and rotary-vane pump technology are built for a 30-minute-on / 30-minute-off duty cycle and years of hard use in the field.

Self-Priming With Thermal Protection
The 1/4 HP motor is self-priming with an 8' suction lift and includes a thermal-protection switch that guards against overheating during long transfers.

180-Degree Rotating Junction Box
The electrical junction box rotates a full 180 degrees, making it easy to route wiring cleanly even when the pump is mounted in a tight spot.

Mesh Strainer Guards Your Equipment
A 20x20 micron mesh strainer helps keep debris out of the fuel you are transferring, protecting the equipment you fill.

Complete, Ready-To-Pump Bundle
Ships with the hose, manual nozzle, telescoping steel suction pipe, and power cable, and threads onto most tanks with its 2 in NPT bung mount.

Specifications

• Max Flow Rate: 15 GPM / 57 LPM
• Power Type: 12V DC
• Compatible Fluids: Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits
• Duty Cycle: 30 min on / 30 min off
• Motor Power: 0.25
• Max Current: 20 A
• Self-Priming: Yes
• Suction Lift: 8'
• Thermal Protection: Yes
• Discharge Head: 37'
• Max Operating Pressure: 16
• Operating Temperature: -15 to 150°F
• Inlet: 1" / Female / NPT
• Outlet: 0.75" / Female / NPT
• Mounting: 2" / NPT / Bung Mount
• Strainer Mesh: 20x20
• Dimensions (H x W x D): 8.4 x 13.0 x 6.5
• Weight: 29.1

Installation

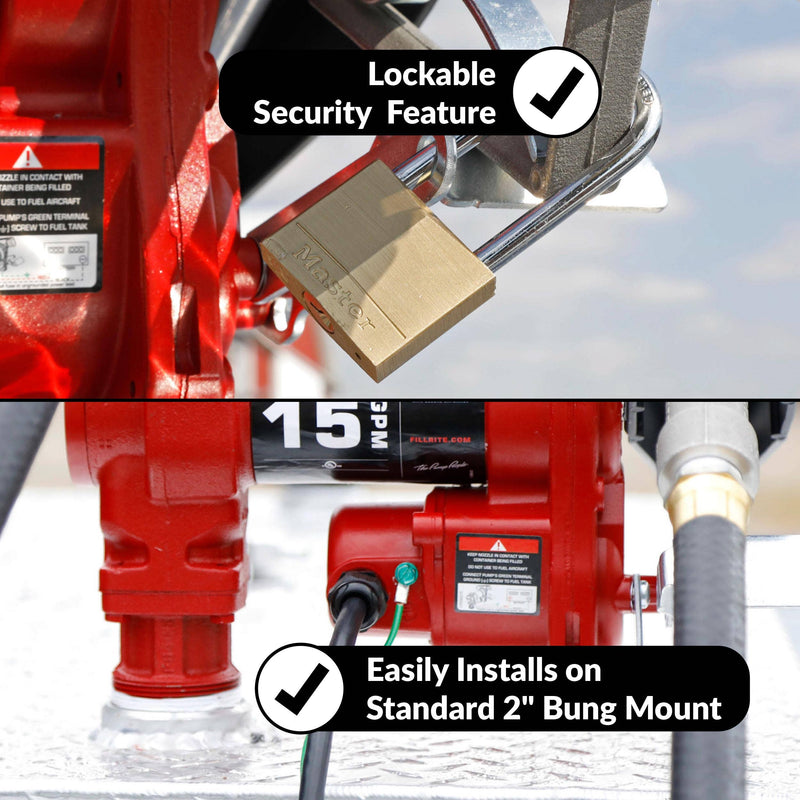

Type: Thread-on 2 in NPT bung mount  ·  Time: About 30 to 45 minutes  ·  Tools: Basic hand tools, wrench, wire stripper  ·  Difficulty: Moderate DIY

Thread the pump onto a 2 in NPT tank bung, fit the telescoping suction pipe to the tank depth, then wire the 12-gauge power cable to a 12-volt battery. The junction box rotates 180 degrees for easier wiring in tight spaces. Attach the discharge hose and nozzle, prime, and you are ready to pump. Follow the included owner's manual for exact wiring and torque.

Watch Fill-Rite's official installation walkthrough:

Resources

Everything you need for your Fill-Rite FR1210H 12V DC Fuel Transfer Pump, in one place.

• Fill-Rite FR1210H Owner's Manual (PDF)
• Fill-Rite FR1210H Product Data Sheet (PDF)

Warranty, Shipping & Returns

Warranty. Fill-Rite backs this pump with a tiered Limited Warranty against defects in materials and workmanship: lifetime on the pump castings (excluding paint and corrosion), 5 years on the motor and associated components, 2 years on wearable components, and 1 year on included accessories. It applies to the original purchaser and does not cover misuse, neglect, accident, or improper installation.

Free shipping. This item ships free to the lower 48 states. In-stock orders placed by 2 PM ET, Monday through Friday, typically ship the same business day and arrive in 3 to 5 business days.

Returns. Covered by our 30-day return policy on unused product in the original packaging. Please inspect the shipment on delivery, and if anything is damaged, note it on the delivery receipt and contact us right away.

About Fill-Rite

Fill-Rite has been building fuel transfer equipment in Fort Wayne, Indiana since 1957. Now a Tuthill brand, it earned its reputation the hard way, by making cast-iron rotary-vane pumps that stand up to continuous, real-world duty on fleets, farms, construction sites, and equipment yards across the country.

Today Fill-Rite makes a complete fuel-handling lineup, from 12-volt and 24-volt DC pumps to 115-volt and 230-volt AC pumps, hand pumps, flow meters, nozzles, hoses, and filtration. Whatever you are moving and however you power it, the parts are engineered to work together as a system.

That focus is why Fill-Rite is the name so many operators specify by default: durable where it counts, simple to service, and backed by a Limited Warranty. When fueling your own equipment is part of the job, it is the brand you buy once.
