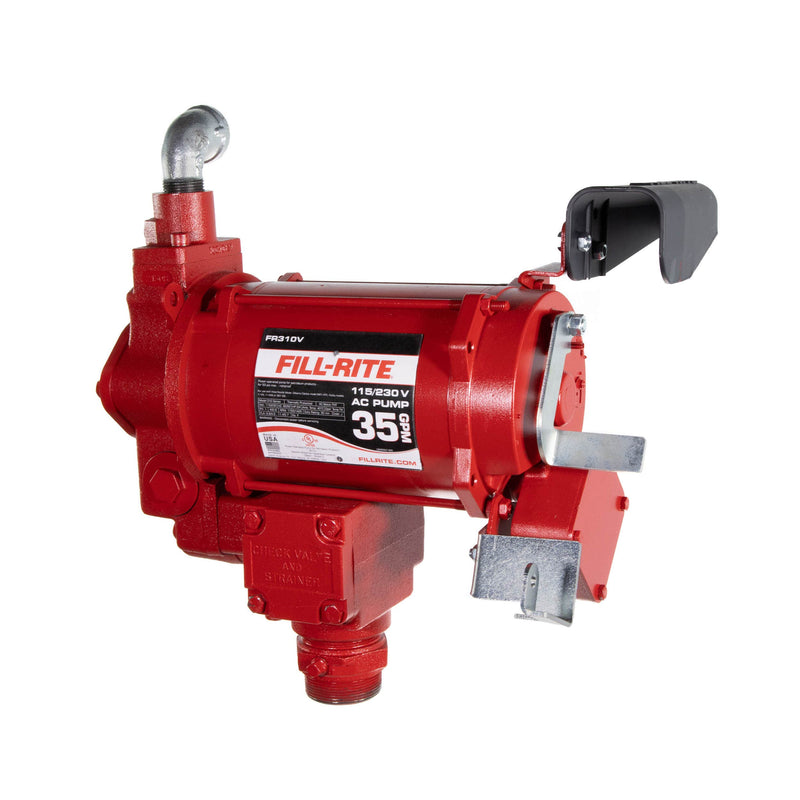

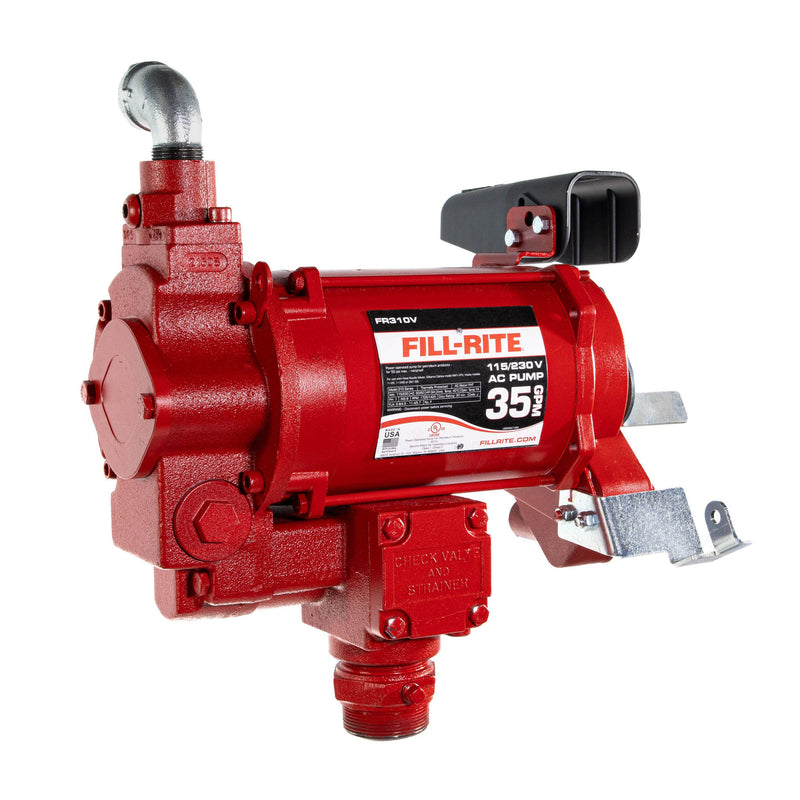

Fill-Rite FR310VN 115/230V AC 35 GPM Fuel Transfer Pump
$1,379.99
Free gift included with your order
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
See it on a truck
Cast-Iron Construction
Fits 2-Inch Tank Bungs
Lockable Nozzle Hook
Features
- Cast-Iron Construction: Every FR300V pump has a cast-iron housing around an iron composite rotor with carbon composite vanes. A built-in check valve that relieves pressure and an automatic bypass are part of the casting, so the pump is ready for years of bulk diesel work on a skid tank or fuel island.
- Fits 2" Tank Bungs: The supplied adapter threads into a 2" tank bung and holds a 1-1/4" suction pipe, with a 1/4" side port ready for an anti-siphon line. For a concrete fuel island, Fill-Rite offers the FRPA125 pedestal kit instead.
- Lockable Nozzle Hook: Turn the pump off, rest the nozzle in its boot, and a padlock through the nozzle rest and the nozzle handle keeps the nozzle from being lifted out. It is a simple way to stop fuel walking off a job site at night.
- Up to 35 GPM: Fill-Rite rates the FR310 models at up to 35 GPM (132 LPM) through a 1" outlet, enough to fill big equipment and service trucks quickly. Metered kits, export versions and the FR300VN carry their own flow numbers, listed on each product.
- 115/230V Dual Voltage: A selector switch on the end of the motor sets the pump for 115V or 230V AC; it leaves the factory on 115V. The FR310, FR311 and FR319 models use a 3/4 HP motor with thermal overload protection and a 30 minute duty cycle.
- Diesel and Kerosene: Fill-Rite's FR300 product pages list diesel, kerosene and biodiesel blends up to B20. The manual adds mineral spirits, Stoddard solvents and heptane, and allows B21 to B100 once the KIT300BD seal kit is fitted. Water, drinkable fluids and aircraft fueling are ruled out.
Description & Fitment
The FR310VN is the plain FR310 pump: a 115/230V AC cast-iron rotary vane pump that Fill-Rite rates at 35 GPM (132 LPM) with a 3/4 HP motor. In the box are the pump, a 2" tank bung adapter, nozzle boot, one 1" NPT street elbow, PTFE tape, two locking nuts, four fasteners and a check valve cover. Hose, nozzle and meter are left for you to choose.
Fitment & Compatibility
Check your setup: a vented tank with a 2" NPT bung, your own 1-1/4" suction pipe, a 1" hose and nozzle, and a 115V or 230V circuit wired by an electrician. For hose and an automatic nozzle in the box pick the FR310VB; for a gallon meter, the FR311VN.
Not for: water or any fluid meant for drinking and fueling aircraft (Fill-Rite's manual rules both out), plus gasoline, DEF or any other fluid Fill-Rite does not list for this pump.
About Fill-Rite
FILL-RITE.
Fill-Rite is a Gorman-Rupp company that designs and builds transfer equipment for fuel, oil and chemicals: electric and hand-operated transfer pumps, plus the meters, nozzles, hose and filters that go with them. Its sites are in Fort Wayne, Indiana and Lenexa, Kansas.
Its transfer pumps are built around cast-iron rotary vane bodies, and Fill-Rite stands behind them with a tiered warranty that runs for the life of the pump castings, 5 years on the motor and 2 years on wear parts.
Buying Fill-Rite from Prestige Truck. Fill-Rite asks for proof of purchase with any warranty claim, so keep your Prestige Truck order receipt with your records.
Frequently Asked Questions
Does the FR310VN include a hose and nozzle?
No. It is the pump with its mounting parts only. The FR310VB is the same pump with a 1" x 18' hose and an Ultra Hi-Flow automatic diesel nozzle.
Is there a power cord?
No. Fill-Rite ships it with bare leads in the junction box for hard wiring through conduit.
Does it run on 115V or 230V?
Either. Flip the voltage selector on the end of the pump to match your supply; it ships set to 115V. Fill-Rite lists the draw at 9.8 A on 115V and 4.9 A on 230V at 60 Hz, or 11.4 A and 5.7 A at 50 Hz. Its manual calls for a licensed electrician, rigid conduit with sealed fittings, and a connected ground wire.
Can it run continuously?
No. The motor is rated for a 30 minute duty cycle and has thermal overload protection. If it trips, switch the pump off: Fill-Rite warns that a cooled motor restarts without warning when the power is still on.
How is it mounted?
On a skid tank it threads onto the supplied 2" bung adapter, with a 1-1/4" suction pipe cut to stop at least 3" above the tank floor. On a concrete island Fill-Rite uses its FRPA125 pedestal kit. Either way the tank must be vented.
Do I need an anti-siphon device?
Fill-Rite recommends one. The bung adapter has a 1/4" NPT port that opens into the tank's vapor space; the KIT700AS kit runs a line from the pump outlet back to it on tank-top installs, and KIT700AVB covers other layouts. Both are sold separately.
Installation
Install time
Not printed in Fill-Rite's manual
DifficultyNot printed in Fill-Rite's manualFill-Rite has the wiring done by a licensed electrician
TypeThreads onto a 2" tank bung through the supplied bung adapter (skid tank) or onto an FRPA125 island pedestal, then hard-wired to 115V or 230V AC (Fill-Rite 300 Series manual)
ToolsNot printed in Fill-Rite's manualit calls for 1-1/4" suction pipe, thread sealant suited to the fluid and anti-seize compound
Here's the short version. Follow Fill-Rite's manual (below) for the full procedure, wiring and safety steps.
- Cut 1-1/4" suction pipe so it ends at least 3" above the tank floor once the pump is mounted.
- Seal the pipe threads with a sealant suited to the fluid and thread the pipe up into the bung adapter; the end marked PUMP SIDE is the top.
- Coat the adapter's outer threads with anti-seize compound and thread the adapter and pipe into the tank bung until air and fluid tight.
- Seal and thread the pump onto the adapter. On a concrete island use the FRPA125 pedestal kit with the pipe 32-1/2" above the slab instead.
- Run an anti-siphon line (KIT700AS or KIT700AVB) from the adapter's 1/4" NPT port with a steady slope to the vapor space, and mount the nozzle boot on its lower two holes.
- Have a licensed electrician wire it through the 1/2" NPT conduit opening with the ground connected, then set the voltage selector (factory 115V).
Stuck on a step?
Specifications
| Brand | Fill-Rite |
|---|---|
| Part Number | FR310VN |
| Series | FR300V Series |
| Pump type | Cast-iron rotary vane |
| Power | 115/230V AC, selector switch (factory set to 115V) |
| Duty cycle | 30 min on / 30 min off |
| Thermal overload protection | Yes |
| Outlet | 1" NPT (female) |
| Tank mount | 2" NPT bung |
| Max outlet pressure | 26 PSI |
| Built-in valves | Check valve with pressure relief, automatic bypass |
| Operating temperature | -13 to 150°F |
| Anti-siphon | Ready for KIT700AS or KIT700AVB (sold separately) |
| Voltage | 115/230V AC |
| Max flow | 35 GPM (132 LPM) |
| Motor | 3/4 HP |
| Max current | 9.8 A (115V) / 4.9 A (230V) |
| Self-priming | Yes |
| Suction lift | 18' |
| Dry vacuum | 14 inHg |
| Discharge head | 60' |
| Strainer | 40 x 40 mesh, 0.008" wire |
| Viscosity | 0.5 to 5.5 cSt |
| Inlet | 1-1/4" NPT (female) |
| Power leads | Bare leads, no cord |
| Fluids | Diesel, kerosene, biodiesel up to B20 |

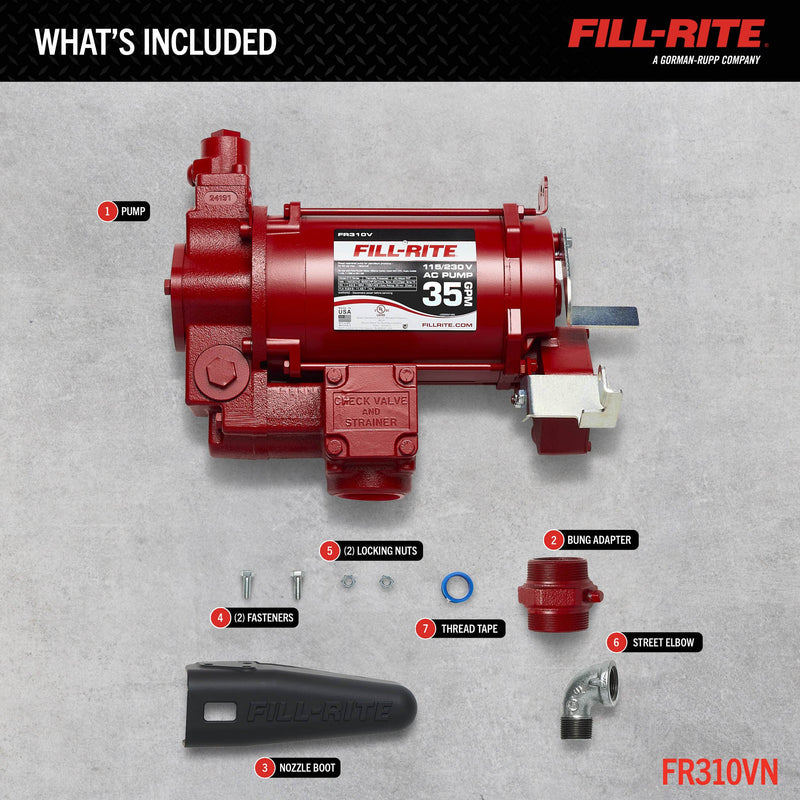

| Included | Pump, 2" tank bung adapter, nozzle boot, PTFE tape, check valve cover and fasteners, 1" NPT street elbow, (2) locking nuts |

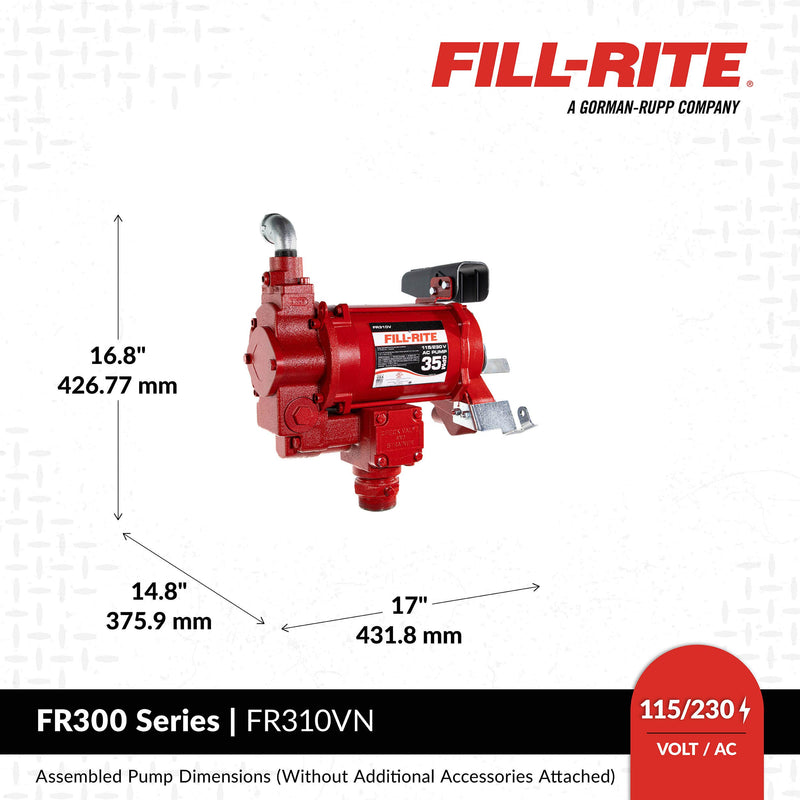

| Dimensions | 17.4 x 17.0 x 14.8" (H x W x D) |
| Weight | 65.8 lb |
| Shipping weight | 74.7 lb |
| Warranty | Tiered limited lifetime |
| UPC | 089404224281 |
More media
2 videosWarranty, shipping & returns
-
Lifetime Tiered limited warranty
Fill-Rite covers the FR300V Series pump with its tiered Limited Lifetime Warranty against defects in material and workmanship:- Lifetime: pump castings, such as the pump and motor housings, motor frame, inlet flange and bung adapter, junction box cover, switch plate and end bells. Paint and corrosion issues are excluded.
- 5 years: the motor and its components, such as magnets, armature, brushes, thermal protector, lead wires and circuit boards.
- 2 years: wear parts, such as seals, gaskets, O-rings, springs, vanes, rotor and rotor cover, bypass cap, nozzle boot, switch parts and paint adhesion. Paint wear from use, weather or chemicals is excluded.
- 1 year: accessories packed with the pump, such as hoses, nozzles, suction pipes, cables and connectors, elbows and swivels.
- On metered kits the meter follows Fill-Rite's meter terms instead (900 Series and TT Series): 2 years on all meter components.
- Coverage runs from the date of sale, or the delivery date if that is later, and only the original purchaser is covered; it does not transfer to a later owner.
- It applies to products bought from Fill-Rite or a seller Fill-Rite authorizes in the United States or Canada, and Fill-Rite needs proof of purchase with a claim. Without proof of purchase or delivery, Fill-Rite starts the clock at the date code on the product.
- Small items such as fasteners, washers, labels, nameplates, rivets, emblems, packaging, thread tape, wire nuts and paperwork are not covered.
- It does not cover misuse, neglect, accident, negligence, improper installation or maintenance, or repairs done by anyone other than Fill-Rite or its authorized representative.
- Fill-Rite's remedy is a replacement, or a refund of the price paid when a replacement or repair is not practical. Its liability is capped at the purchase price and it excludes incidental and consequential damages where the law allows. Implied warranties are limited to the length of this warranty.
- Please do not send the product back on your own: if Fill-Rite asks for a return, it issues a return number and pays the freight.
-
